Page +$1:+$ 138 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) Dump Box FRONT REAR 5 3 2 3 6 7 8 4 5 3 6 7 8 4 3 1 A 2 1 A
Page
+$1:+$
137
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
138
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

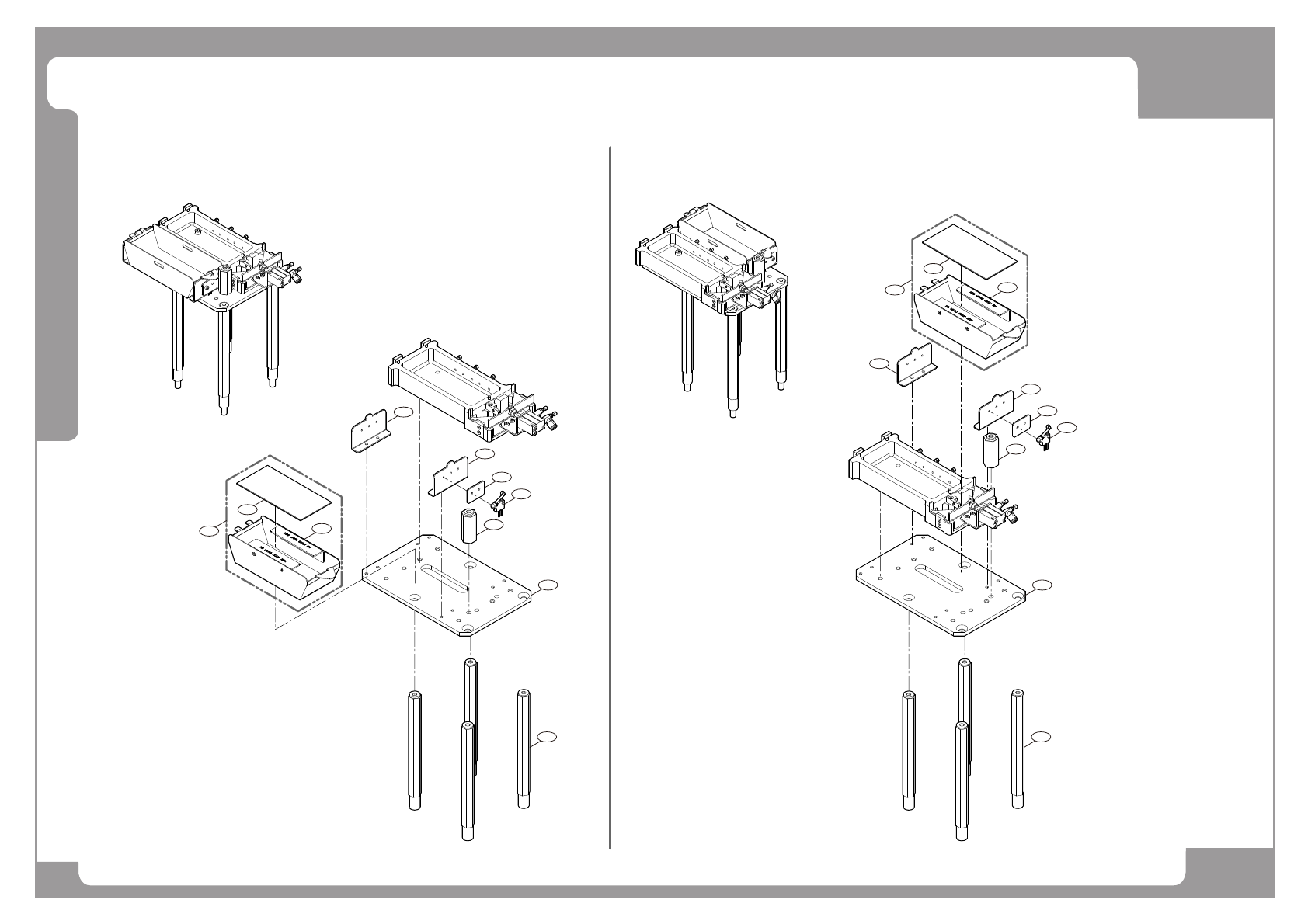

Dump Box
FRONT REAR
5
3
2
3
6
7
8
4
5
3
6
7
8
4
3
1
A
2
1
A
Page
+$1:+$
139
Dump Box
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-014200A ASSY,ETC,IMS-MTV1PA-DUMP_BOX 1
1 FC36-000041A SHEET-V1P-RUBBER_SHEET 1
2 FC08-000108A BOX-MTV1PP-DUMP_BOX 1
3 FC09-001952A BRACKET,MOUNTING-V1P-DUMPBOX_BRK_1 1
4 FC28-000407A PILLAR-V1P060-ANC_MOUNTING_ROD 4
5 FC30-000629A PLATE-V060-SW_PLATE 1
6 EP20-900101 SWITCH_CLAMP 1
7 FC09-001306A BRACKET-POLE B 1
8 FC30-001086B PRO-ANC_MOUNTING_PLATE_B 1 FC30-001086A
