Page +$1:+$ 154 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) HSH(1/4) 1 8 10 14 13 15 16 13 17 20 24 7 28 37 18 18 30 32 33 41 21 2 5 6 42 19 25 25 26 22 27 18 12 29 36 38 40 39 4 43 31 23 34 18 35 9 11 3
Page
+$1:+$
153
Flux(5/5)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-001464A DOG-DISK_DOG 1
2 EP08-900083 MOTOR_SH1421-5212 1
3 FC30-001068A PLATE-S_MOTOR_PLT 1
4 MC03-900118 BEARING[6901ZZ] 2
5 FC39-000948A FRAME-TOP_FRAME 1
6 MC11-900060 CAM-FOLLOWER_CF5FBUUR 1
7 FC30-001074A PLATE-CAM_F_BAR 1
8 J70691502A CAM_FLUX J70691502A 1
9 FC29-001458A HOLDER-BRG_HOLDER_S 1
10 MC13-900124 LM-GUIDE LWLC9C2R60BH 4
11 FC30-001076A PLATE-LM_PLATE 1
12 FC09-002097A BRACKET-SENSOR_BRACKET 1
13 EP19-900154 SENSOR_EE-SX972-C1 EE-SX972-C1 1
14 J70653549A BOTTOM_LOC_PIN J70653549A 1
15 FC38-000090 SPRING,ETC-AWU8-40;SWP-A,AWU8-40 2
16 FC29-001469A POST-SPG_POST_A 2
17 EP08-900082 MOTOR_103H7121-0740 1
18 FC14-900273 COUPLING XBS-19C2-6-BT×6.35-BT 1
19 FC30-001067A PLATE-T_MOTOR_PLT 1
20 FC18-900915 BEARING-NUT BNRC8 1
21 FC29-001465A COLLAR-BRG_COLLAR 1
22 MC03-900080 BALL BEARING[608ZZ] 2
23 FC29-001455A HOLDER-BRG_HOLDER_T 1
24 J70691542A PLATE_R J70691542A 1
25 FC29-001457A POST-RIB 1
26 FC29-001461A HOLDER-ROLLER_HOLDER 1
27 J70653553A CLAMPING_ROLLER 1
28 J70653554A CLAMP_BLOCK_SHAFT 1
29 FC39-000947A FRAME-SIDE_FRAME 1
30 FC39-000946A FRAME-BOTTOM_FRAME 1
Page
+$1:+$
154
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
HSH(1/4)
1
8
10
14
13
15
16
13
17
20
24
7
28
37
18
18
30
32
33
41
21
2
5
6
42
19
25
25
26
22
27
18
12
29
36
38
40
39
4
43
31
23
34
18
35
9
11
3
Page
+$1:+$

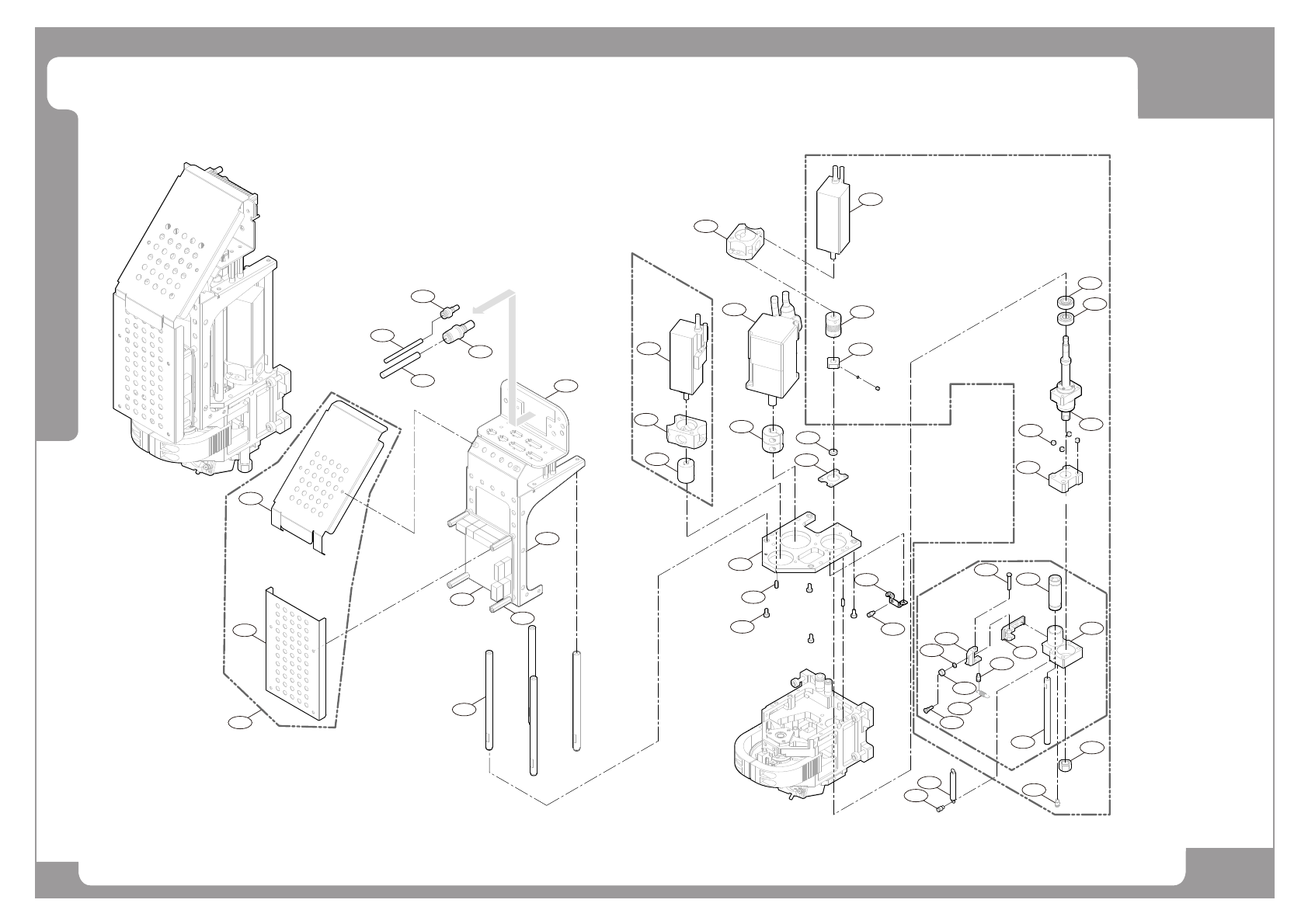

155
HSH(1/4)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-002461A COVER-HSH_DRAWER_CON_COVER 1 FC15-001092A
2 FC15-001091A COVER-MTV1PP-HD-HS312FRONT_COVER_A 1 Connector type: MOLEX
FC30-002042A PLATE-FRONT_COVER_A 1 Connector type: JST
3 FC18-000114A STUD,SUPPORT-STUD-S25-25;ME1:Steel 8 Connector type: MOLEX
4 EP06-001025 AMPLIFIER-D5192 1 EP06-000472/ EP06-001006/ EP06-001012
5 FC05-000189A BASE-MTV1PP-HD-HS311PCB_BASE_A 1 Connector type: MOLEX
FC09-006253B BRACKET-PCB BASE ASH M3;A5052 1 FC09-006253A Connector type: JST
6 FC09-003913A BRACKET-DRAWER_CON_BKT_25 1 FC09-001590A Connector type: MOLEX
FC09-006263A BRACKET-DRAWER BRACKET T2 A;A5052 1 Connector type: JST
7 FC29-001395A COLLAR-STOPPER_COLLAR 4
8 HP13-000053 TUBE,PNEUMATIC-TU0604W-20;mm,Straight,6 1
9 HP13-000052 TUBE-TU0425YR-20;4,2.5 1
10 FC14-000261 COUPLER-PLUG-KK2P_04H-SMC 1
11 FC14-000260 COUPLER-PLUG-KK3P_06H-SMC 1
12 MC19-000394A SHAFT-STAND_SHAFT 4
13 FC07-000454B BLOCK-MOTOR_BLOCK_B 2
14 AM03-014605A HARNESS-HSH TH MOTOR CABLE(30W) 2 EP02-001645B/ EP02-001645C Connector type: MOLEX
AM03-017781B CABLE ASSY-NEW 30W TH MOTOR CABLE 2 AM03-017781A Connector type: JST
15 FC14-000663A COUPLING-MTV1PP-HD-HS042T_COUPLING 1 FC14-000291A
16 EP02-001532C HARNESS-HSH V1+ R MOTOR CABLE(50W) 1 EP02-001532A/ EP02-001532B
AM03-017779B CABLE ASSY-NEW 50W MOTOR CABLE 1 AM03-017779A Connector type: JST
17 FC14-900268 COUPLING FC14-900268 1
18 FC18-000535A HOOK-SPRING_HOOK 4
19 FC14-000934 COUPLING 1 FC14-000012/ FC14-000513
20 J71551365A Z_NUT_SPACER 1
21 J70551819A Z_BEARING_HOLDER 1
22 FC29-001325A CAP-SCREW_CAP 1
23 MC13-000146 SCREW,BALL-BALL_SCREW-BLK0812S-THK 1
24 FC29-001326A STOPPER-Z_STOPPER 1
25 MC03-900091 ANGULAR_BEARING AC6-16DFSP2 2
26 FC18-900924 LOCK_NUT BNRC6 1
