Page +$1:+$ 173 MFH(2/4) (Option) EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old No. Supp ly Supply L T Refere nce 1 FC18-000345A NUT ,LOCK-V020-LOCK_NUT_T -01 1 2 FC28-90107 0 SET_PIECE…
Page
+$1:+$
172
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

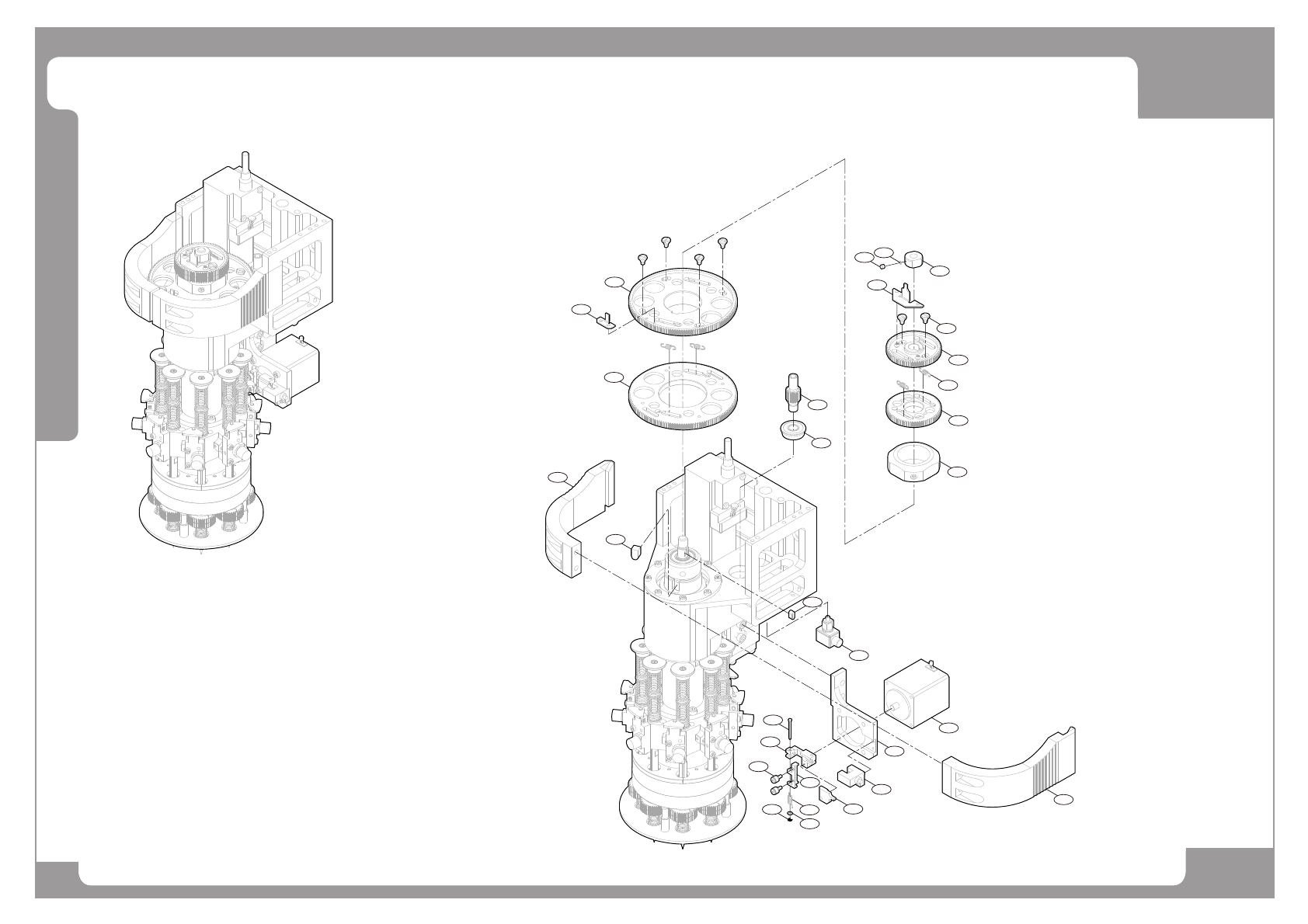

MFH(2/4) (Option)
9
10
11
15
27
24
30
25
26
2
29
3
1
4
5
6
7
8
28
12
13
14
16
17
18
19
20
21
22
23
Page
+$1:+$
173
MFH(2/4) (Option)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-000345A NUT,LOCK-V020-LOCK_NUT_T-01 1
2 FC28-901070 SET_PIECE SEPNS3 1
3 FC29-001363A DOG-MTV1PP-HD-MF308T_DOG_A 1
4 J70551771A V020-STEPPED_SCREW_A 6
5 MC11-000506A GEAR-MTV1PP-HD-MF009T_GEAR_B 1
6 J70551756A V020-GEAR_SPRING 4
7 MC11-000507A GEAR-MTV1PP-HD-MF010T_GEAR_C 1
8 FC18-000347A NUT,LOCK-V020-LOCK_NUT_R-01 1
9 MC11-000495A GEAR-MTV1PP-HD-MF005R_GEAR_B 1
10 FC29-001374A DOG-MTV1PP-HD-MF309R_DOG_B 1
11 MC11-000496A GEAR-MTV1PP-HD-MF006R_GEAR_C 1
12 J70551763A V020-R_GEAR_A 1
13 MC03-000017 BEARING,BALL-BEARING-F696ZZ1;F696ZZ1 1
14 EP19-900082 PRESSURE_SENSOR 1
15 FC15-003015A COVER-R_GEAR_COVER_MF_A 1 FC15-001465A
16 FC15-003016A COVER-R_GEAR_COVER_MF_B_B 1 FC15-001466A /FC15-001466B
17 EP08-900080 V1-MOTOR_TS3641N120 1
18 FC09-000320B BRACKET,MOTOR-V020-MOTOR_BRACKET-B 1
19 EP19-900134 MICRO_PHOTO_SENSOR PM-F24 1 EP02-001006A(CABLE)
20 FC29-001924A DOG 1
21 FC18-000565 WASHER,FLAT-WASHER-18X35X03;3.5,1.8,0.3 1
22 FC38-000075A SPRING,TOR-V020-V_SPRING;SWP-B 1
23 FC09-001675A BRACKET-V020-CAM_ARM_C 1
24 MC11-900058 CAM_FOLLOWER 2
25 FC09-001842A BRACKET-V020-SHAFT_HOLDER_V 1
26 J70551761A V020-PIN_V J70551761A 1
27 FC23-000022 KEY/KEYSTOCK-PARALLEL_KEY-KEGF5-8 1
28 MC19-900008 PARALLEL_KEY 1
29 FC18-901954 SOCKET SET SCREW 1
30 FC18-901346 E_RING[NETW1.2] 1
Page
+$1:+$
174
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

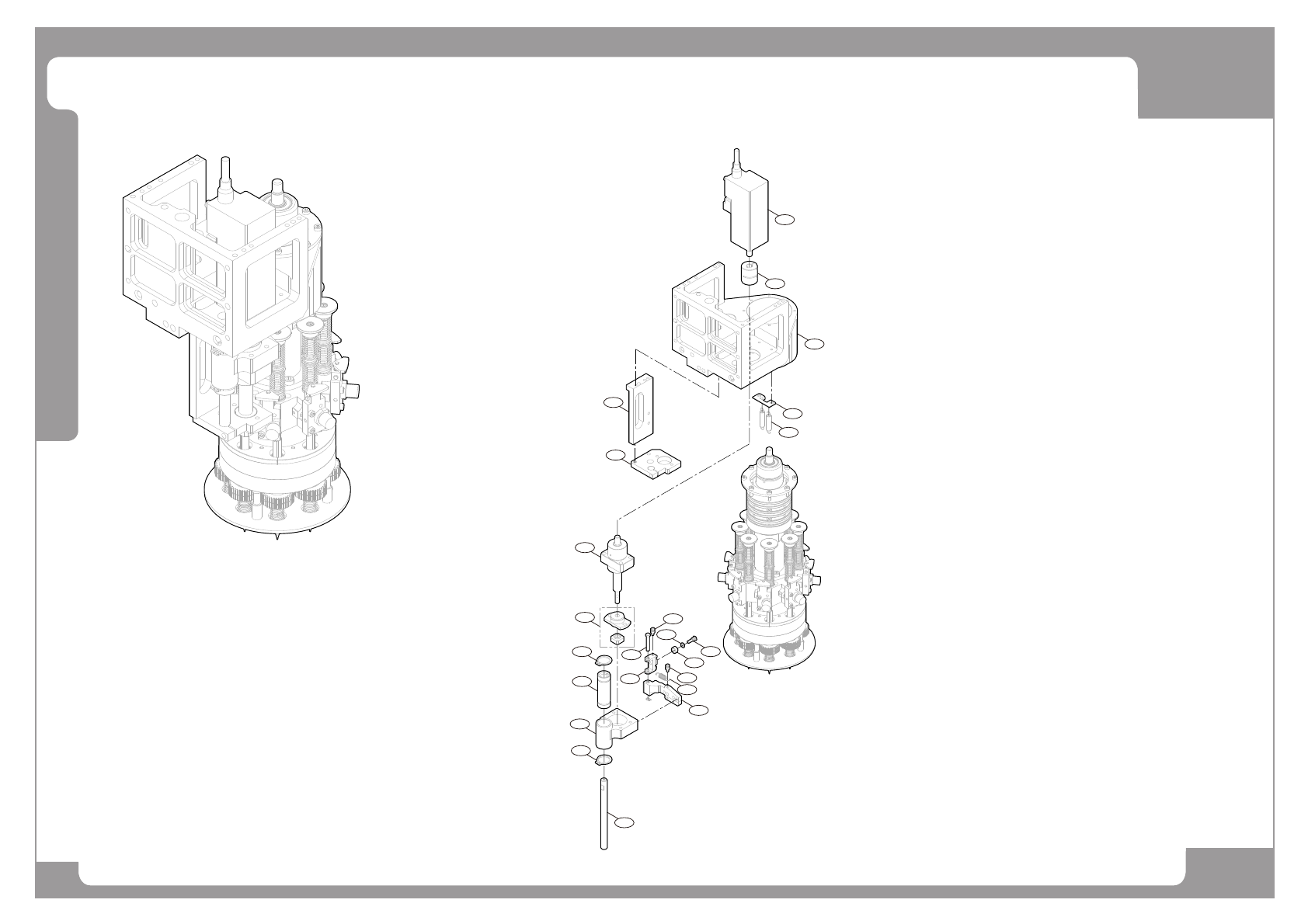

MFH(3/4) (Option)
6
7
19
8
17
9
21
21
10
1
2
3
4
5
18
16
14
20
15
11
11
12
13
