Page +$1:+$ 189 HSH(1/4) (Option) - Auto Sensing Head EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old N o. Supply Su pply L T Reference 1 FC09-004101A BRACKET -PCB_AMP_BASE 1 Connector ty…

100%1 / 742
Page
+$1:+$
188
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

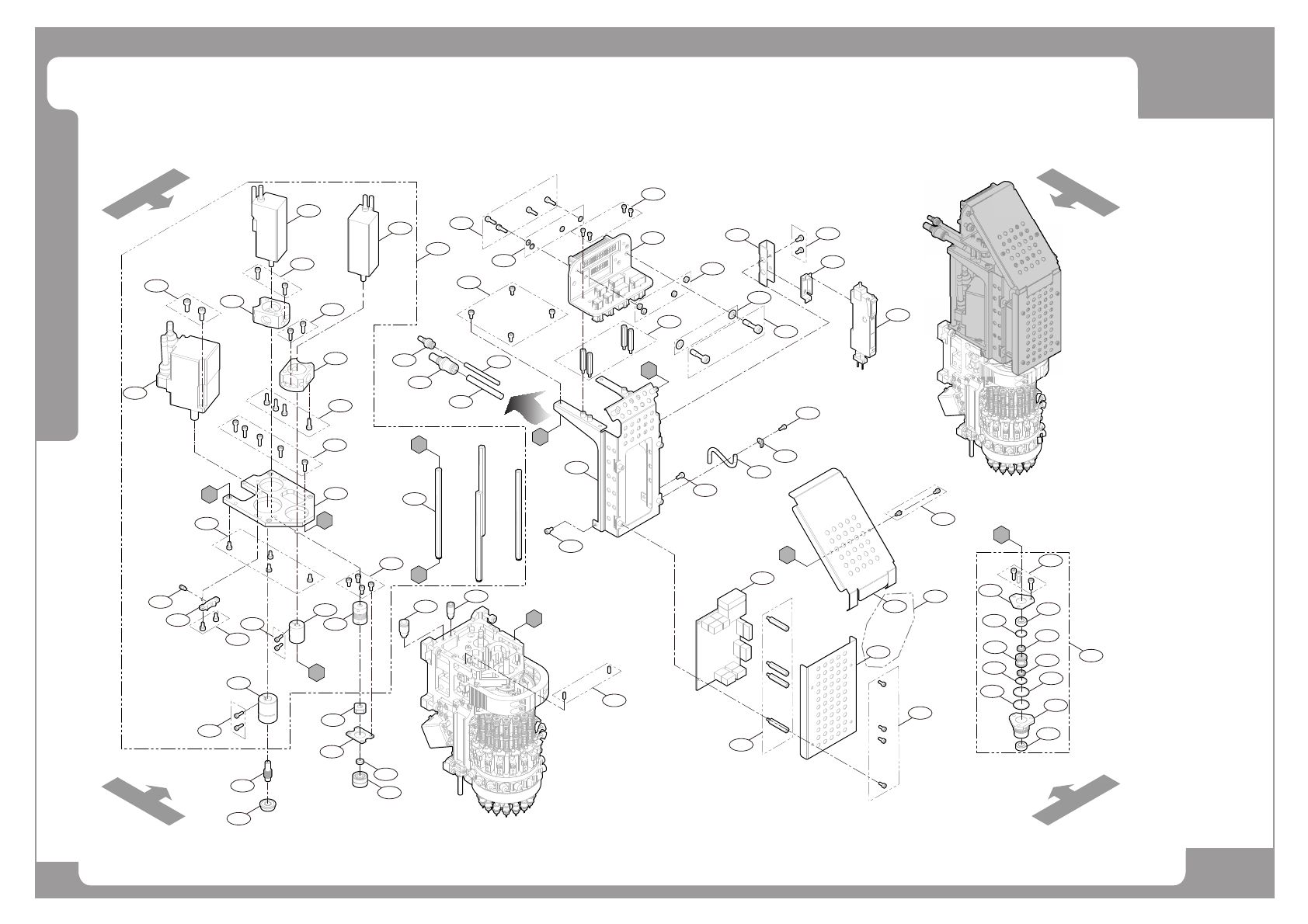

HSH(1/4) (Option) - Auto Sensing Head
14
45
13
46
28
6
10
26
14
23
1
32
33
10
42
22
21
4
12
9
11
10
10
41
25
15
16
17
5
33
30
31
34
40
39
2
38
35
10
43
44
24
6
6
28
6
6
27
29
54
18
4
3
7
2
8
19
20
4
55
4
36
C
B
B
C
D
D
E
A
A
E
37
6
48
50
50
52
53
48
47
49
51
49
52
Left side
Right side
Rear side
Front side
Page
+$1:+$
189
HSH(1/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-004101A BRACKET-PCB_AMP_BASE 1 Connector type: MOLEX
FC09-006253A BRACKET-PCB BASE ASH M3;A5052 1 Connector type: JST
2 FC18-000114A STUD,SUPPORT-STUD-S25-25;ME1:Steel 8 Site repair
3 FC09-003913A BRACKET-DRAWER_CON_BKT_25 1 FC09-001590A Connector type: MOLEX
FC09-006263A BRACKET-DRAWER BRACKET T2 A;A5052 1 Connector type: JST
4 FC18-902710 SOCKET HEAD CAP SCREW M2.5*6 (NI/ZN) 20 Site repair
5 FC18-903475 FLAT WASHER [M3 (BL/ZN)] 6 Site repair
6 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 33 Site repair
7 FC18-901045 HEX NUT M3,2/ZNY 5 Site repair
8 FC18-903479 FLAT WASHER [M5 (BL/ZN)] 2 Site repair
9 FC18-000538A SCREW,ETC-GUTB5;HEX,HEX,M5,19,STEEL 2 Site repair
10 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 19 Site repair
11 HP13-900017 TUBE TUS0425B-20 1 Site repair
12 FC09-004728A BRACKET-HSH_TUBE_FIX_BKT 4 Site repair
13 AM03-013206A CABLE ASSY-SOFT TOUCH SENSOR HARNESS 1 Site repair
14 FC18-000338 BOLT,HEX SOCKET HEAD-DP3-526;CBSH3-6 6 Site repair
15 FC14-000261 COUPLER-PLUG-KK2P_04H-SMC 1 Site repair
16 FC14-000260 COUPLER-PLUG-KK3P_06H-SMC 1 Site repair
17 HP13-000053 TUBE,PNEUMATIC-TU0604W-20;mm,Straight,6 1 Site repair
18 HP13-000052 TUBE-TU0425YR-20;4,2.5 1 Site repair
19 EP06-000498 AMPLIFIER-D5191 1 Site repair
20 FC30-002042A PLATE-FRONT_COVER_A 1 Site repair
21 FC15-002461A COVER-HSH_DRAWER_CON_COVER 1 Site repair
22 FC18-001104 PIN-PIN-MSH3_8-MISUMI 5 Factory repair
23 MC19-002126A SHAFT-STAND_SHAFT 4 MC19-000394A Factory repair
24 FC30-000922C PLATE-MOTOR_PLATE_C 1 Factory repair
25 AM03-017781B CABLE ASSY-NEW 30W TH MOTOR CABLE 1 AM03-017781A Site repair
26 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 2 Site repair
27 AM03-013823A CABLE ASSY-AUTO SENSING HPH Z MOTOR CAB 1 Connector type: MOLEX
AM03-017780B CABLE ASSY-NEW 30W Z MOTOR CABLE 1 AM03-017780A Connector type: JST
28 FC07-000454B BLOCK-MOTOR_BLOCK_B 2 Factory repair
Page
+$1:+$
190
HSH(1/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
29 AM03-013823A CABLE ASSY-AUTO SENSING HPH Z MOTOR CAB 1 Connector type: MOLEX
AM03-017780B CABLE ASSY-NEW 30W Z MOTOR CABLE 1 AM03-017780A Connector type: JST
30 FC09-006561A BLOCK-Z_HOOK_BLOCK 1 FC07-000879A Factory repair
31 FC18-000535A HOOK-SPRING_HOOK 2 Factory repair
32 FC14-000839A COUPLING-R_MOTOR_COUPLING 1 Factory repair
33 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 31 Factory repair
34 MC11-000491A GEAR-R_GEAR_A 1 Factory repair
35 MC03-000017 BEARING,BALL-BEARING-F696ZZ1;F696ZZ1 1 Factory repair
36 FC14-000663A COUPLING-MTV1PP-HD-HS042T_COUPLING 1 Factory repair
37 AM03-011942A ASSY,HEAD-EXCEN_PRO_HSH_T_SUB_ASSY 1 Factory repair
38 FC14-000934 COUPLING-MK1-5_20-5-5-2xM3 120degree-XX 1 FC14-000513 Factory repair
39 FC18-900924 LOCK_NUT BNRC6 1 Factory repair
40 J70551819A Z_BEARING_HOLDER J70551819A 1 Factory repair
41 J71551365A Z_NUT_SPACER J71551365A 1 Factory repair
42 MC03-000172 BEARING,BALL-BEARING-AC6_16DB-ORIGIN;6 1 Factory repair
43 HP06-900223 FITTING KJS06-M5 1 Site repair
44 HP06-900016 FITTING [KQ2S04-M5/POC4-M5M] 1 Site repair
45 FC09-000057 BRACKET-MS-DIN-2 1 Site repair
46 FC29-003802A HOLDER-AMP_HLD_PLT 1 Site repair
47 FC30-000921A PLATE-T_TOP_PLATE 1 Factory repair
48 MC03-900056 BALL BEARING MR126ZZ 2 Factory repair
49 FC18-001093 RING,O-O_ring_d10.0_w1.0_NBR-KYOWA 2 Factory repair
50 HP07-000166 PACKING-Y_PACKING-MYN_6-SAKAGAMI 2 Factory repair
51 FC29-001324A COLLAR-T_TOP_COLLAR 1 Factory repair
52 FC18-001091 RING,O-O_ring_d15.0_w1.0_NBR-KYOWA 2 Factory repair
53 FC30-000920A PLATE-T_TOP 1 Factory repair
54 AM03-014821A ASSY,HEAD-ASH_HS_MOTOR_ASSY 1 Factory repair
55 FC15-004246A COVER-HSH_BOARD_COVER;RECTANGLE 1 Integration type
ADD FC29-006737A SUPPORT-MTV1PP-AMP_SUPPORT_ASH 2 Connector type: JST, AS HSH ONLY
