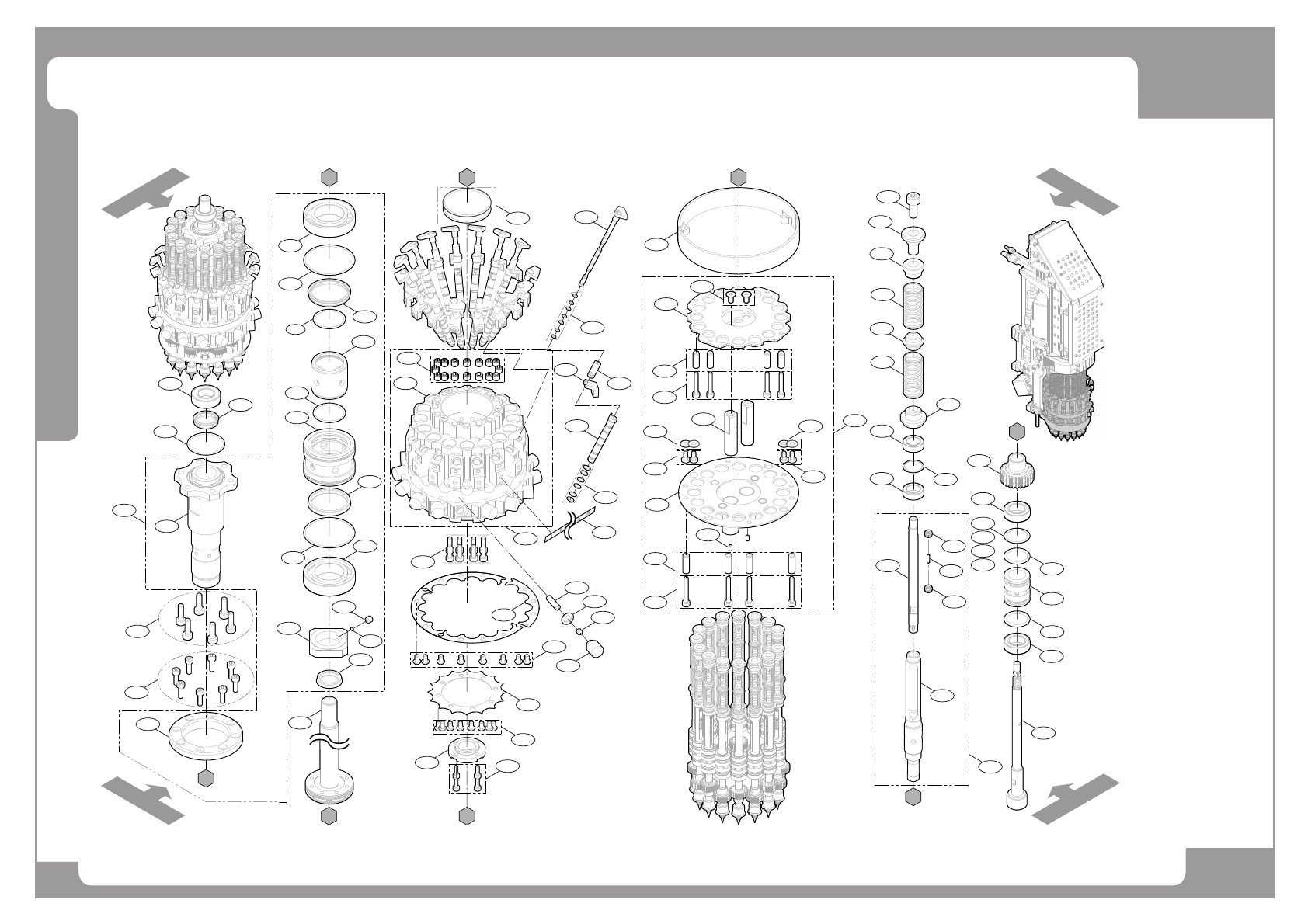

HSH(3/4) (Option) - Auto Sensing Head
12
47
35
58
36
53
70
71
72
73
37
51
38
37
41
41
42
21
22
63
33
18
7
1
12
14
45
66
50
5
3
48
24
25
26
39
63
69
31
58
20
29
31
40
67
23
19
17
6
11
57
8
60
62
64
56
34
52
61
32
27
30
28
57
16
4
9
10
10
13
11
2
9
15
A
A B C
B C
54
55
54
53
49
65
46
43
43
68
64
44
D
D
59
Left side
Right side
Rear side
Front side
Page
+$1:+$
197
HSH(3/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC03-000169 BEARING,BALL-BEARING-689ZZ1-NSK;9,17 1 Factory repair
2 HP07-000165 PACKING-Y_PACKING-MYN_11-SAKAGAMI 1 Factory repair
3 FC18-001089 RING,O-O_ring_d20.0_w1.0_NBR-KYOWA 1 Factory repair
4 MC19-000389A SHAFT-BARREL_SHAFT 1 Factory repair
5 FC18-000530A NUT,ETC-LOCK_NUT_B;M16,AL 1 Factory repair
6 FC28-901070 SET_PIECE SEPNS3 1 Factory repair
7 FC30-000916A PLATE-B_PLATE_BU 1 Factory repair
8 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 33 Site repair
9 MC03-000171 BEARING,BALL-BEARING-7903CTYNDBLP4-NSK 2 Factory repair
10 FC18-901418 O_RING J63041041A 2 Factory repair
11 HP07-000164 PACKING-Y_PACKING-MYN_21-SAKAGAMI 2 Factory repair
12 FC18-001090 RING,O-O_ring-d17_w1_KSN70102(NBR)-KY 2 Factory repair
13 FC29-001317B COLLAR-INNER_COLLAR;20,30 1 Factory repair
14 FC29-001318B COLLAR-OUTER_COLLAR;20,30 1 Factory repair
15 HP07-000165 PACKING-Y_PACKING-MYN_11-SAKAGAMI 1 Factory repair
16 MC19-000393B SHAFT-R_SHAFT;SCM440 1 Factory repair
17 FC18-001116 RING,O-ORING_26X1 2 Factory repair
18 AM03-020602A ASSY,ETC,IMS-HSH SPOOL 16 HP15-000002A / AM03-013447A /
AM03-014270A
Site repair
19 HP12-000217 SEALRING-OR2.9X1.5X0.7 112 Site repair
20 FC29-001328A HOLDER-SPOOL_HOLDER 16 Site repair
21 FC29-007188A SPOOL_GUIDE_PRESS 16 FC29-001323C Factory repair
22 HP13-000043A TUBE-CYL_TUBE 16 Factory repair
23 FC18-001087 RING,O-O_ring_d3.14_w0.63_NBR-KYOWA 96 Factory repair
24 HP04-000049A FILTER-AIR_FILTER 16 Site repair
25 HP12-000117 SEAL-M-5G2 16 Site repair
26 FC10-000058A SPONGE-V1_VALVE_CUSHION 16 Site repair
27 FC29-003360A CAP-FILTER_CAP 16 Site repair
28 FC30-000914B PLATE-HSH-B_PLATE_A_B 4 Site repair
29 FC30-000915A PLATE-B_PLATE_B 1 Factory repair
30 FC30-000917A PLATE-B_PLATE_BL 1 Factory repair
Page
+$1:+$
198
HSH(3/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
31 FC18-901891 BUTTON_HEAD_CAP_SCREW M2.5*4 (SUS) 16 Site repair
32 FC30-002074B PLATE-BOTTOM_COVER_B 1 FC30-002074A Site repair
33 FC28-000666A POLE-HSH-REF_POLE 2 Site repair
34 J74551006A MARK_PIN J74551006A 2 Site repair
35 FC19-000205A HEAD-SPINDLE_HEAD 1 Site repair
36 FC29-004479A HOLDER-SPR_HLD_U_A 1 Site repair
37 FC38-000107A SPRING,COM-SPINDLE_SPRING_P;SWP-B 2 Factory repair
38 FC29-004478A COLLAR-SPR_COLLAR_L_A 1 Site repair
39 FC29-004474A COLLAR-SPR_BASE_L_A 1 Factory repair
40 PT03-000437A STICKER-SPINDLE_N_STICKER;RECTANGLE 1 Site repair
41 MC03-000174 BEARING,BALL-BEARING-MR85ZZ-NSK;ID5 2 Factory repair
42 MC19-000780A SHAFT-U-4P 1 Factory repair
43 MC03-000170 BEARING,BALL-BEARING;1,3,Radial 2 Factory repair
44 FC18-000533A PIN-PIN_D1_L46 1 Factory repair
45 EP14-000338C BARREL 1 EP14-000338A Factory repair
46 FC29-002040A HOUSING-SHAFT_HOUSING 1 Factory repair
47 FC30-002071C PLATE-BOTTOM_PLT_C 1 FC30-002071A/ FC30-002071B Site repair
48 AM03-011941A ASSY,HEAD-EXCEN_PRO_HSH_BARREL_SHAFT_SUB 1 Factory repair
49 AM03-010101B ASSY,ETC,IMS-EXCEN PRO HSH SHAFT_L 1 Site repair
50 FC18-901954 SOCKET SET SCREW 1 Factory repair
51 AM03-008764A ASSY,HEAD-T-GEAR SUB ASSY 1 Factory repair
52 FC18-002645 CAP,SCREW-FC-2518EB 4 Site repair
53 MC03-900063 BALL_BEARING MR106ZZ 2 Factory repair
54 FC18-001086 RING,O-O_ring-d8_w1_KSE70102(EPDM)-KY 2 Factory repair
55 FC18-000534A SPACER-SEAL_SPACER 1 Factory repair
56 FC18-001243A SPACER-PLATE_SPACER_A 4 Site repair
57 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 31 Factory repair
58 FC18-902705 SOCKET HEAD CAP SCREW M2*6 (NI/ZN) 26 Site repair
59 FC18-902826 FLAT HEAD SOCKET SCREW M3*6 (NI/ZN) 4 Site repair
60 FC18-001237A SPACER-PLT_SPACER 4 Site repair
61 FC18-002644 CAP,SCREW-FC-2516EB 4 Site repair
