Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第208页
Page +$1:+$ 202 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) MFH(1/4) (Option) - Auto Sensing Head 2 5 7 8 33 34 39 42 48 50 51 9 10 11 7 46 47 7 44 45 5 6 7 18 14 40 35 3 36 37 6 34 14 4 32 12 A B B A D D 14 21 19 14 16 17 1…
Page
+$1:+$
201
HSH(4/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-000919B PLATE-CLAMP_PLATE_B 1 FC30-000919A Factory repair
2 FC18-902705 SOCKET HEAD CAP SCREW M2*6 (NI/ZN) 26 Site repair
3 FC18-000549A SCREW,ETC-DOG_SCREW;HEX,HEX,M2,4,STEEL 2 Factory repair
4 FC29-001322A DOG-R_DOG 1 Factory repair
5 FC29-001316A STEP-STEPPED_SCREW 3 Factory repair
6 FC18-000539B RING,JOINT-CLAMP_RING 1 FC18-000539A Factory repair
7 J70551756A V020-GEAR_SPRING J70551756A 3 Factory repair
Factory repair
Factory repair
10 FC18-901954 SOCKET SET SCREW 22 Factory repair
11 MC19-000392A SHAFT-T_SHAFT 1 Factory repair
12 MC03-000173 BEARING,BALL-BEARING-AC5_14DB-ORIGIN;5 1 Factory repair
13 FC18-000601A NUT,ETC-LOCK_NUT_T_P;M5,A2024 1 Factory repair
14 FC28-901070 SET_PIECE SEPNS3 4 Factory repair
15 AM03-011947A ASSY,HEAD-EXCEN_PRO_HSH_T_SHAFT_SUB_ASSY 1 Factory repair
16 AM03-011946B ASSY,HEAD-EXCEN_PRO_HSH_R_GEAR_ASSY 1 AM03-011946A Factory repair
17 FC39-001928B FRAME-MAIN_FRAME_STH_B 1 Factory repair
Page
+$1:+$
202
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

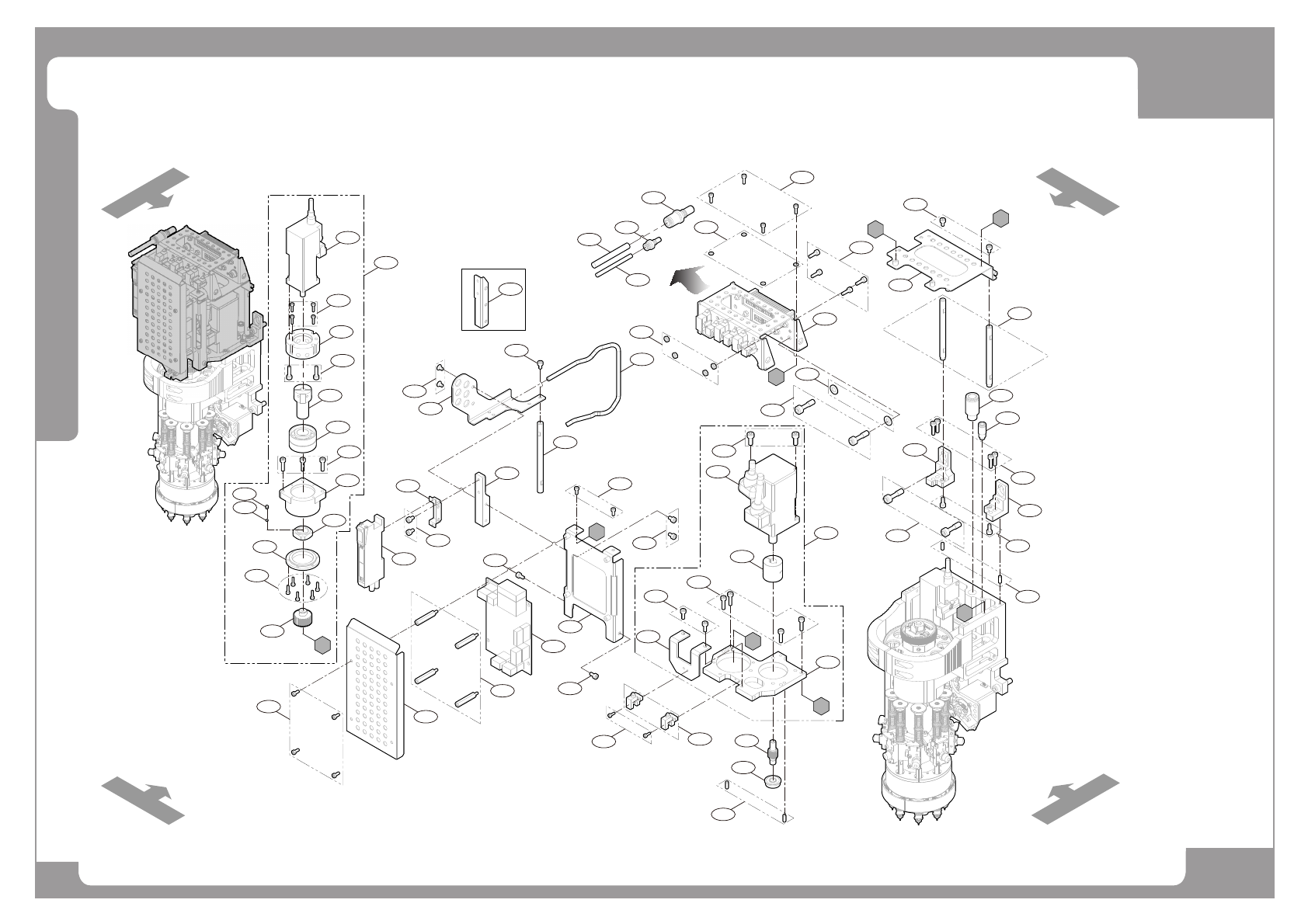

MFH(1/4) (Option) - Auto Sensing Head
2
5
7
8
33
34
39
42
48
50
51
9
10
11
7
46
47
7
44
45
5
6
7
18
14
40
35
3
36
37
6
34
14
4
32
12
A
B
B
A
D
D
14
21
19
14
16
17
15
22
53
28
31
38
38
33
24
1
52
29
30
20
20
13
41
52
42
43
49
C
C
25
23
27
26
54
28
Front side
Rear side
Left side
Right side
Page
+$1:+$
203
MFH(1/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-000972A PLATE-MTV1PP-HD-MF011MOTOR_PLATE_B 1 Connector type: MOLEX
FC30-000972B PLATE-MTV1PP-HD-MF011MOTOR_PLATE_B2 1 Connector type: JST
2 FC09-001940A BRACKET-MTV1PP-HD-MF307R_SNS_BKT_B 1 Site repair
3 EP02-001006A HARNESS-V_Axis_PH SENSOR CABLE 2 Site repair
4 FC18-902705 SOCKET HEAD CAP SCREW M2*6 (NI/ZN) 2 Site repair
5 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 18 Site repair
6 FC18-901190 DOWEL_PIN J6061300800 14 Factory repair
7 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 14 Site repair
8 EP02-001532B HARNESS-HSH V1+ R MOTOR CABLE(50W) 1 Site repair
9 FC14-900268 COUPLING J66121050A 1 Site repair
10 J70551763A V020-R_GEAR_A J70551763A 1 Factory repair
11 MC03-000017 BEARING,BALL-BEARING-F696ZZ1;F696ZZ1 1 Factory repair
12 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 2 Site repair
13 FC30-002040A PLATE-CONE_BASE_A 1 Connector type: MOLEX
FC30-004118A PLATE-MF-CONE_BASE_B 1 Connector type: JST
14 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 10 Site repair
15 FC29-003166A STAND-BACK_SHAFT_U 2 Factory repair
16 HP06-900153 FITTING-KQ2S08-01S-SMC 1 Site repair
17 HP06-900016 FITTING [KQ2S04-M5/POC4-M5M] 1 Site repair
18 FC07-001375A BLOCK-CARRY_BLOCK_UR 1 Site repair
19 FC07-001374A BLOCK-CARRY_BLOCK_UL 1 Site repair
20 FC18-000538A SCREW,ETC-GUTB5;HEX,HEX,M5,19,STEEL 6 Site repair
21 FC18-903479 FLAT WASHER [M5 (BL/ZN)] 2 Site repair
22 FC09-003826A BRACKET-CONE_BKT 1 Connector type: MOLEX
FC09-006254A BRACKET,CONNECTOR-MF-CONE_BKT_B 1 Connector type: JST
23 FC18-903218 FLAT WASHER M2.5 (BL/Zn) 6 Site repair
24 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 20 Site repair
25 FC14-000298 PLUG-PLUG-KK3P_08H-SMC 1 Site repair
26 HP13-900079 TUBR-TU0604B-SMC 1
27 FC14-000261 COUPLER-PLUG-KK2P_04H-SMC 1 Site repair
28 HP13-000052 TU0425YR-20;4,2.5 2
