Page +$1:+$ 206 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) MFH(2/4) (Option) - Auto Sensing Head D D A C 24 15 18 26 29 30 21 16 8 9 1 2 25 10 14 40 6 11 8 27 28 32 33 19 41 22 12 40 13 3 5 6 4 31 4 23 20 7 17 42 C B B A 36…
Page
+$1:+$
205
MFH(1/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
ADD FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 2 Connector type: JST, AS MFH ONLY
ADD FC29-006712A GUIDE-MTV1PP-HD-SM314_V_GUIDE 1 Connector type: JST, AS MFH ONLY
Page
+$1:+$
206
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

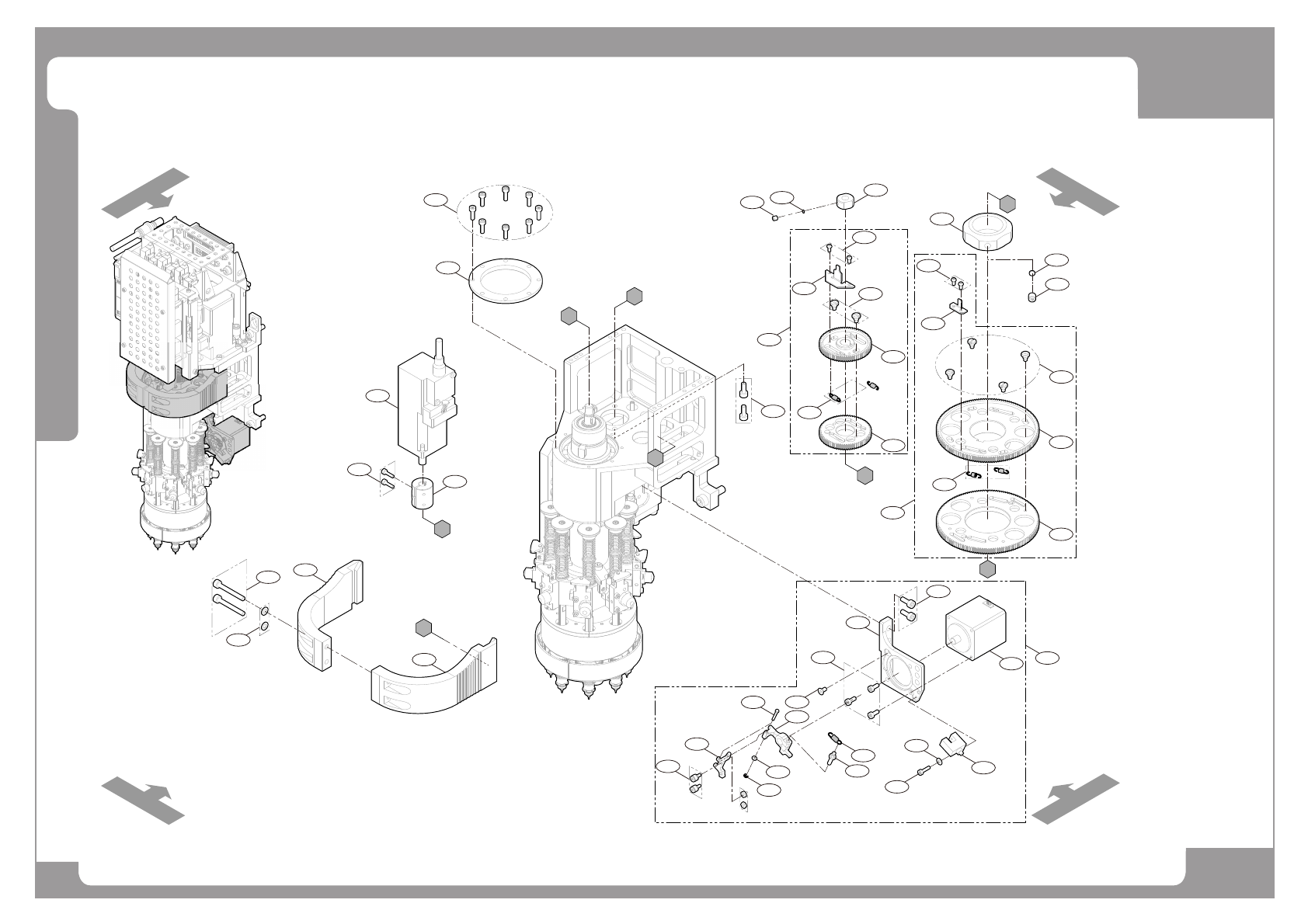

MFH(2/4) (Option) - Auto Sensing Head
D
D
A
C
24
15
18
26
29
30
21
16
8
9
1
2
25
10
14
40
6
11
8
27
28
32
33
19
41
22
12
40
13
3
5
6
4
31
4
23
20
7
17
42
C
B
B
A
36
37
23
34
38
35
39
Front side
Rear side
Left side
Right side
Page
+$1:+$
207
MFH(2/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-000632A PLATE-V020-BEARING_PLATE_B01 1 Factory repair
2 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 20 Site repair
3 MC11-000496A GEAR-MTV1PP-HD-MF006R_GEAR_C 1 Factory repair
4 J70551756A V020-GEAR_SPRING J70551756A 4 Factory repair
5 MC11-000495A GEAR-MTV1PP-HD-MF005R_GEAR_B 1 Factory repair
6 J70551771A V020-STEPPED_SCREW_A J70551771A 6 Factory repair
7 FC29-001374A DOG-MTV1PP-HD-MF309R_DOG_B 1 Site repair
8 FC18-901889 BUTTON_HEAD_CAP_SCREW M2*4 (SUS) 4 Factory repair
9 FC18-000347A NUT,LOCK-V020-LOCK_NUT_R-01 1 Factory repair
10 FC28-901071 SET_PIECE SEPNS5 1 Factory repair
11 FC18-901964 SET_SCREW-MSSF5-5 11 Site repair
12 MC11-000507A GEAR-MTV1PP-HD-MF010T_GEAR_C 1 Factory repair
13 MC11-000506A GEAR-MTV1PP-HD-MF009T_GEAR_B 1 Factory repair
14 FC18-000345A NUT,LOCK-V020-LOCK_NUT_T-01 1 Factory repair
15 FC18-901954 SOCKET SET SCREW 7 Site repair
16 FC28-901070 SET_PIECE SEPNS3 3 Factory repair
17 FC29-001363A DOG-MTV1PP-HD-MF308T_DOG_A 1 Factory repair
18 FC07-001614A BLOCK-V_MOTOR_BLK_MF 1 Factory repair
19 EP08-000239 MOTOR,STEP-SH2281-5773;SH2281-5773 1 Site repair
20 FC18-901923 FHCS PACK-SFB 2.5-6 1 Factory repair
21 FC18-902710 SOCKET HEAD CAP SCREW M2.5*6 (NI/ZN) 11 Site repair
22 EP02-001006A HARNESS-V_Axis_PH SENSOR CABLE 1 Site repair
23 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 38 Site repair
24 FC18-903473 FLAT WASHER[M2 (SUS)] 1 Site repair
25 FC29-003954A HOLDER-V_SHAFT_HLD_MF 1 Factory repair
26 FC18-001430A PIN,ETC-V_PIN_MF;1.5,8.2,SUS 1 Factory repair
27 FC18-000565 WASHER,FLAT-WASHER-18X35X03;3.5,1.8,0.3 1 Site repair
28 FC18-901346 E_RING[NETW1.2] 9 Factory repair
29 FC29-003955A HOLDER-V_HUMMER_HLD_MF 1 Factory repair
30 MC11-900058 CAM_FOLLOWER J66011174A 2 Site repair
31 AM03-008823A ASSY,HEAD-V1P_MFH_R_GEAR_SUB_ASSY 1 Factory repair
