Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第216页
Page +$1:+$ 210 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) MFH(3/4) (Option) - Auto Sensing Head 19 9 9 1 10 2 3 17 22 23 38 59 39 38 18 18 17 13 14 15 12 11 9 52 6 8 16 24 20 16 16 28 57 21 21 7 9 10 10 9 34 23 54 4 5 E B …
Page
+$1:+$
209
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
210
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

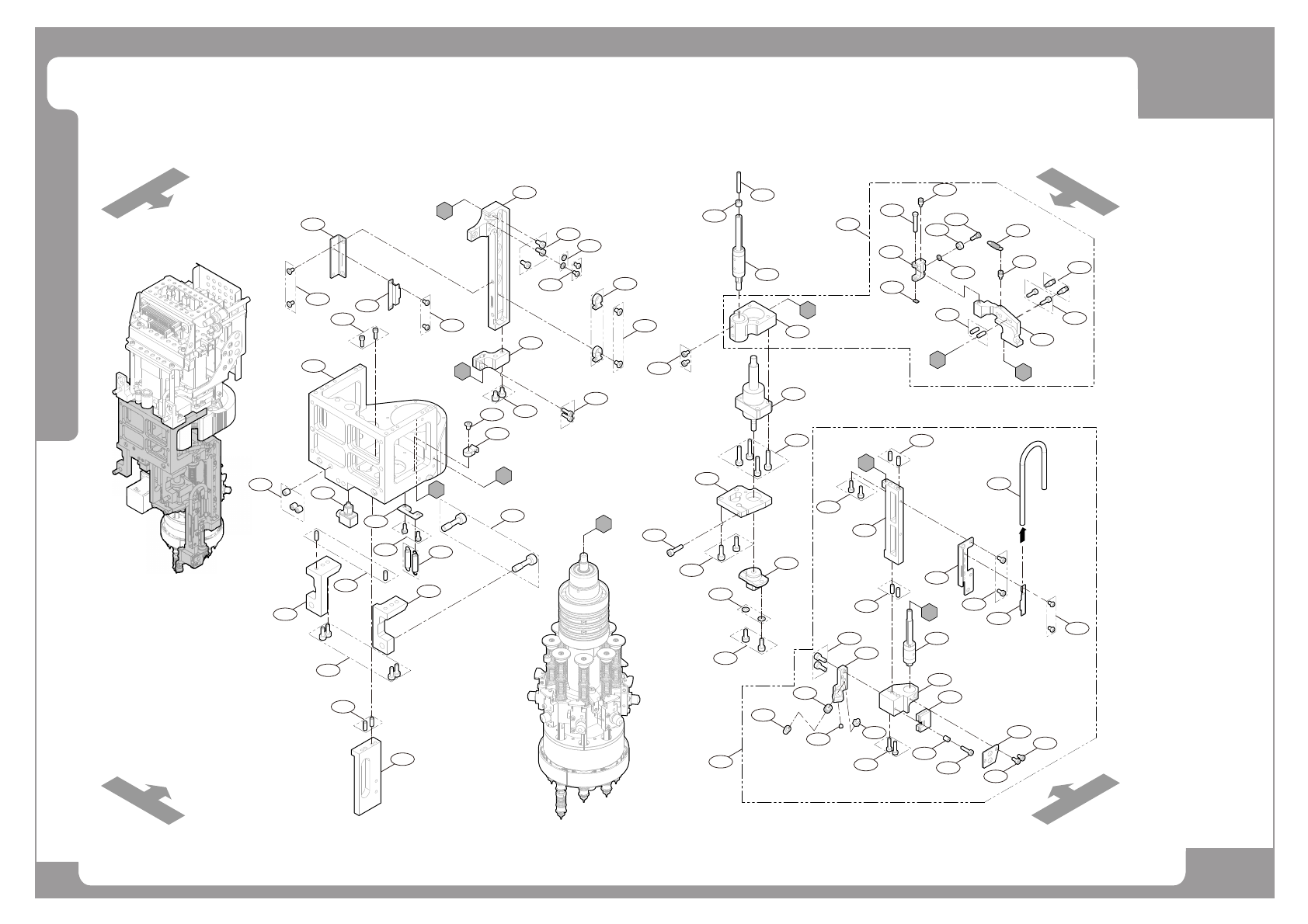

MFH(3/4) (Option) - Auto Sensing Head
19
9
9
1
10
2
3
17
22
23
38
59
39
38
18
18
17
13
14
15
12
11
9
52
6
8
16
24
20
16
16
28
57
21
21
7
9
10
10
9
34
23
54
4
5
E
B
D
C
B
A
A
D
E
C
33
32
62
30
10
29
25
35
26
31
27
28
30
30
36
28
60
61
56
51
55
53
40
44
45
42
41
58
49
50
47
48
46
37
23
43
Rear side
Front side
Right side
Left side
Page
+$1:+$
211
MFH(3/4) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC39-001964A FRAME-MAIN_FRAME 1 Factory repair
2 FC18-901964 SET_SCREW-MSSF5-5 12 Site repair
3 EP02-000896A HARNESS-VACUUM SENSOR CABLE ASSY 1 Site repair
4 FC30-001102A PLATE-V020-SPRING_PLATE 1 Factory repair
5 FC18-902710 SOCKET HEAD CAP SCREW M2.5*6 (NI/ZN) 11 Site repair
6 FC38-000089A SPRING,EXT-V020-Z_SPRING_001;SWPB 2 Factory repair
7 FC07-000458A BLOCK-MTV1PP-HD-MF003CARRY_BLOCK_R 1 Site repair
8 FC07-000457A BLOCK-MTV1PP-HD-MF002CARRY_BLOCK_L 1 Site repair
9 FC18-901190 DOWEL_PIN J6061300800 14 Factory repair
10 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 18 Site repair
11 FC18-000538A SCREW,ETC-GUTB5;HEX,HEX,M5,19,STEEL 4 Site repair
12 FC09-000099A BRACKET-V021-Z_BRACKET_B;ME1:Steel 1 Factory repair
13 FC07-001606A BLOCK-JOINT_BLOCK 1 Factory repair
14 FC18-000338 BOLT,HEX SOCKET HEAD-DP3-526;CBSH3-6 3 Factory repair
15 FC18-903218 FLAT WASHER M2.5 (BL/Zn) 6 Site repair
16 FC18-901891 BUTTON_HEAD_CAP_SCREW M2.5*4 (SUS) 6 Site repair
17 FC18-903190 PROFILE MOUNT DIA4.0 3 Site repair
18 FC18-901940 FLAT HEAD SOCKET SCREW M3*5,ZN-B 5 Site repair
19 FC09-004444A BRACKET-TUBE_BKT_FIX 1 Site repair
20 FC18-002792 SCREW-FH_SCREW_M2.5*5(PFZNNI-BL);M2.5 2 Site repair
21 FC09-004222A BRACKET-HOLDER_TUBE 2 Site repair
22 FC07-001499A BLOCK-BLOCK_SFT_L 1 Factory repair
23 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 20 Site repair
24 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 10 Site repair
25 FC07-001501A BLOCK-BLOCK_SPL_HLD 1 Site repair
26 FC28-000711A TRIM,RUBBER-RUBBER 1 Site repair
27 FC18-002791 SPACER-CB-2604.5E 1 Site repair
28 FC18-902708 SOCKET HEAD CAP SCREW M2.5*4 (NI/ZN) 6 Site repair
29 FC30-002179A PLATE-PLATE_RUBBER 1 Site repair
30 FC09-004554A BRACKET-MFH_SNS_BKT 7 Site repair
31 EP06-000456 DISTRIBUTION UNIT,FIBER SIGNAL-FD-32G 1 Site repair
