HPH(3/3) (Option) - Auto Sensing Head
Left side
Right Side
Front side
Rear side
22
18
17
16
15
14
4
6
7
1
2
3
9
5
8
50
24
51
A
12
11
13
10
48
52
12
49
49
19
53
A
B
37
47
37
42
41
37
36
37
46
36
37
45
36
8
44
43
21
23
B
26
27
28
21
22
29
30
31
32
33
34
35
C
C
36
38
39
38
40
20
37
25
Page
+$1:+$
229

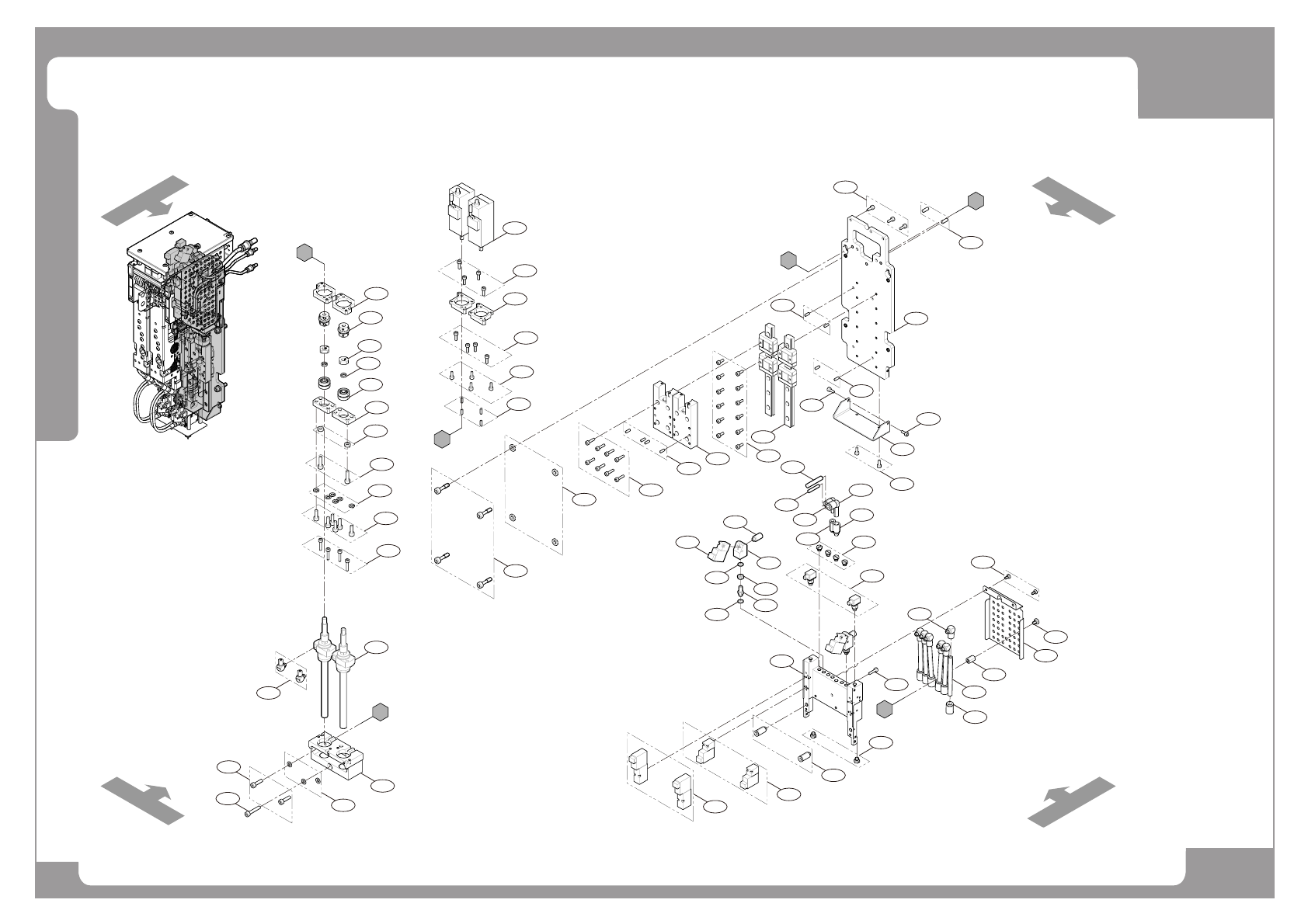

HPH(3/3) (Option) - Auto Sensing Head
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-002786 BOLT-CBSS4-6,M4,0.7,6,SCM435 2 Site repair
2 FC18-003029 SCREW-FSLC-0305,3,0.5,5,MIGRATION,MIGRAT 1 Site repair
3 FC15-002943A COVER-TANK_COVER 1 Site repair
4 FC18-002789 SPACER-ASL-411E,11,M4 3 Site repair
5 HP06-900086 FITTING_M5HL6_SMP300 M-5HL-6 6 Site repair
6 HP13-900079 TUBE [TU0604B] 6 Site repair
7 HP06-000427 FITTING-KQ2C06-00A;PLUG,6,6 6 Site repair
8 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 29 Site repair
9 FC14-000153 PLUG-PLUG,M-5P 2 Site repair
10 HP09-001025A MANIFOLD-MANIFOLD_BLOCK;A7075 1 Factory repair
11 HP14-000971 VALVE,SOLENOID-10-VQ110-5L-X46 4 Site repair
12 HP06-900016 FITTING [KQ2S04-M5/POC4-M5M] 3 Site repair
13 HP14-000970 VALVE,SOLENOID-VQD1151W-5L 2 Site repair
14 HP14-000971 VALVE,SOLENOID-10-VQ110-5L-X46 2 Site repair
15 AM03-013498A CABLE ASSY-ASH VACUUM SENSOR CABLE ASSY 2 Site repair
16 FC14-000153 PLUG-PLUG,M-5P 6 Site repair
17 HP06-900224 STRAIGHT FITTING J67111226A 1 Site repair
18 HP06-900145 S_ELBOW_FITTING KQ2L06-99 1 Site repair
19 HP06-000298 FITTING-KQ2L04-99;ELBOW,ONE TOUCH,4MM 1 Site repair
20 FC18-902748 SOCKET HEAD CAP SCREW M4*20 (NI/ZN) 1 Site repair
21 FC18-903476 FLAT WASHER [M4 (BL/ZN)] 19 Site repair
22 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 4 Site repair
23 FC09-002005A BRACKET,MOTOR-MOTOR;A2024-T4 1 Factory repair
24 FC18-901047 HEX NUT M5 (BL/Zn) 2 Site repair
25 HP06-000219 FITTING-NIPPLE_ELBOW;MINIATURE 4 Site repair
26 MC13-000145 SCREW,BALL-THK BLK0812S-3GT+162.5LCP5R 2 Factory repair
27 FC18-902730 SOCKET HEAD CAP SCREW M3*15 (NI/ZN) 4 Site repair
28 FC18-902743 SOCKET HEAD CAP SCREW M4*12 (NI/ZN) 6 Site repair
29 FC18-000955A SPACER-SPACER_4-8-3 2 Factory repair
30 FC29-001013B SUPPORT-SUPPORT-BEARING;A5052-H34 2 Factory repair
31 MC03-900091 ANGULAR_BEARING AC6-16DFSP2 2 Factory repair
