Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第238页
Page +$1:+$ 232 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) X Frame(1/2) 29 38 32 33 35 11 8 3 36 41 14 14 1 2 4 5 6 7 7 30 6 17 39 12 18 37 21 22 42 25 26 27 28 28 24 25 24 9 31 10 20 23 19 40 15 16 13 43 X Frame AF X Frame…
Page
+$1:+$
231
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
232
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
X Frame(1/2)
29
38
32
33
35
11
8
3
36
41
14
14
1
2
4
5
6
7
7
30
6
17
39
12
18
37
21
22
42
25
26
27
28
28
24
25
24
9
31
10
20
23
19
40
15
16
13
43
X Frame AF
X Frame AF
X Frame AF
3
&$0(5$6:%2$5'&1
/$6(5B6(1625681;+*&
7
6+5,1.78%(
* New type
AM03-020845A
CABLE ASSY-V1+ HEIGHT SENSOR(SUNX)
13
FC09-006374A
BRACKET-HIGHT_SENSOR_BKT_SUNX
1F, 2R
2F, 1R
Page
+$1:+$
233
X Frame(1/2)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference

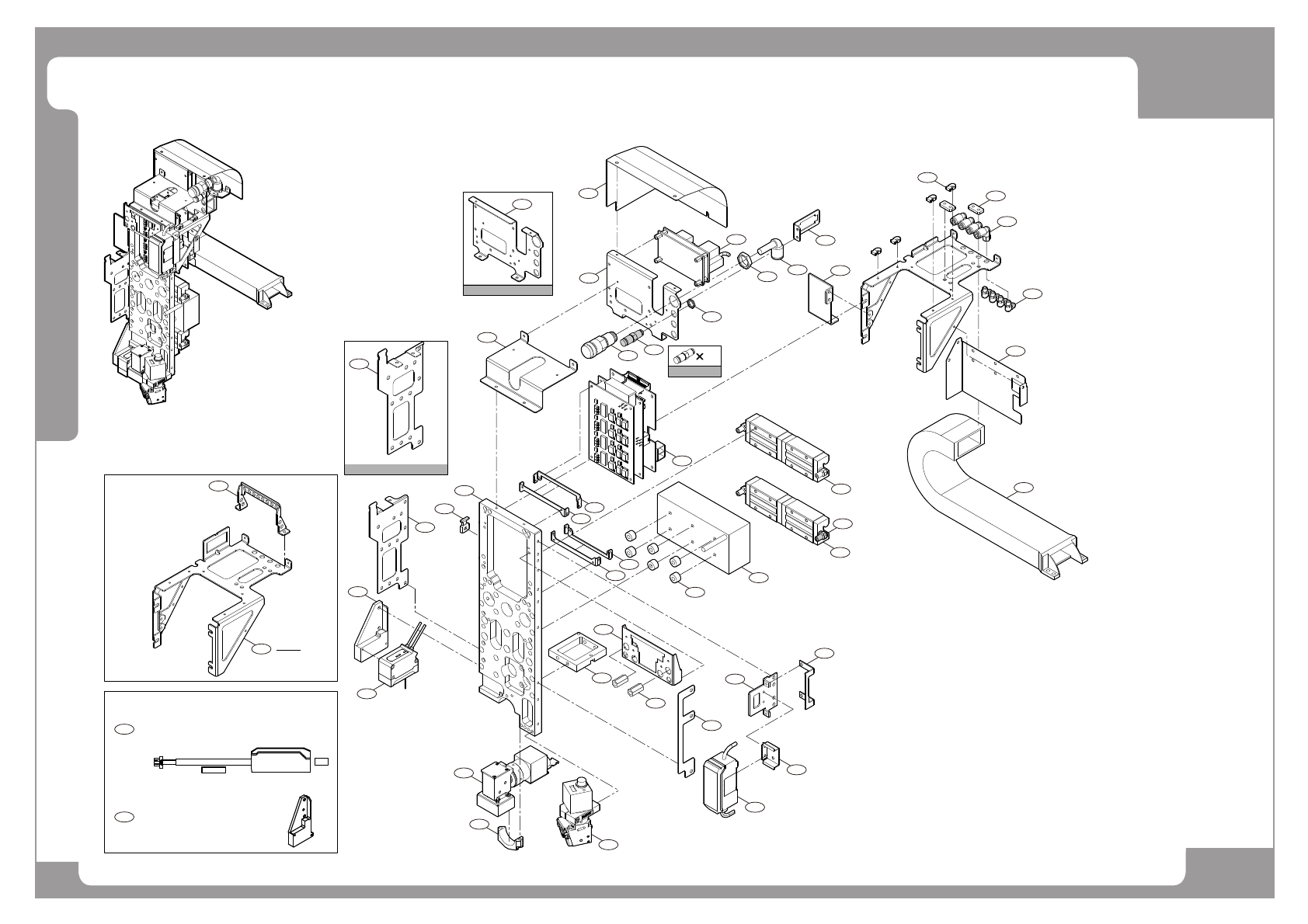

1 FC15-001045A COVER-SW_BOARD_COVER_B 1
2 FC09-001832A BRACKET-SW_BOARD_BKT_B 1
3 AM03-004534B HEAD_SWITCHING_BOARD 1 AM03-004534A
4 FC09-001827A BRACKET-X_MOTOR_CN_BKT 1
5 HP06-000239 FITTING-KQ2L08-99;ELBOW,one touch,08, 10 1
6 FC14-000258 COUPLER-COUPLER_KK3S-08E;KK3S-08E 1
7 FC14-000257 COUPLER-COUPLER_KK2S-04E;KK2S-04E 1
8 EP03-000066 CABLEVEYOR-X_CABLEVEYOR 1
9 FC15-001043B COVER-H_AMP_TOP_COVER 1 FC15-001043A
10 FC11-000007A CARRIER-HEAD_CARRIER 1
11 FC15-001047A COVER-H_AMP_COVER_B 1
12 FC09-001824A BRACKET-X_SCALE_CN_BKT_B 1
13 FC09-001878A BRACKET-R_SENSOR_BKT 1
FC09-006374A BRACKET-HIGHT_SENSOR_BKT_SUNX 1 EXCEN PRO(D)
14 AM03-014264A HARNESS-V1+ HEIGHT_SENSOR HEAD CABLE 1
AM03-020845A CABLE ASSY-V1+ HEIGHT SENSOR(SUNX) CABLE 1 EXCEN PRO(D)
15 AM03-008136B ASSY,OPTICS-V1P_FIDUCIAL_CAMERA_ASSY 1 AM03-008136A
16 FC09-001818A BRACKET-HEAD_CAMERA_FIXER 1
17 AM03-000548B ASSY,OPTICS-V1P_SVS_ASSY 1 AM03-000548A
AM06-002353A ASSY,PCB SMD-SVS SIDE-LED PCB 1
18 FC09-001820B BRACKET-X_SCALE_HEAD_BKT 1 FC09-001820A(~#98, ~JULY 2015)
19 FC09-004011A BRACKET-HEAD_DRAWER_BKT_BASE 1 FC09-001833A
20 FC18-903199 ANCHOR_MOUNT CTAM1-M4 2
21 AM16-001225A HARNESS-V1+ HEGHT_SENSOR AMP CABLE 1 EP06-000208
22 FC09-000040 AMP-OP-76877-KEYENCE 1 RM01-000557A
23 FC07-000440C SENSOR_AMP_BLOCK 1 FC07-000440A
24 FC09-001834A BRACKET-HEAD_AMP_BKT_A 2
25 FC09-001835A BRACKET-HEAD_AMP_BKT_B 2
26 FC18-003126A WASHER,FLAT-WASHER_FWASA-D12.0-V5.0-T7.4 6 FC18-001072
27 EP08-000050 MOTOR,ELECTRIC-LINEAR_MOTOR_CORE 1
