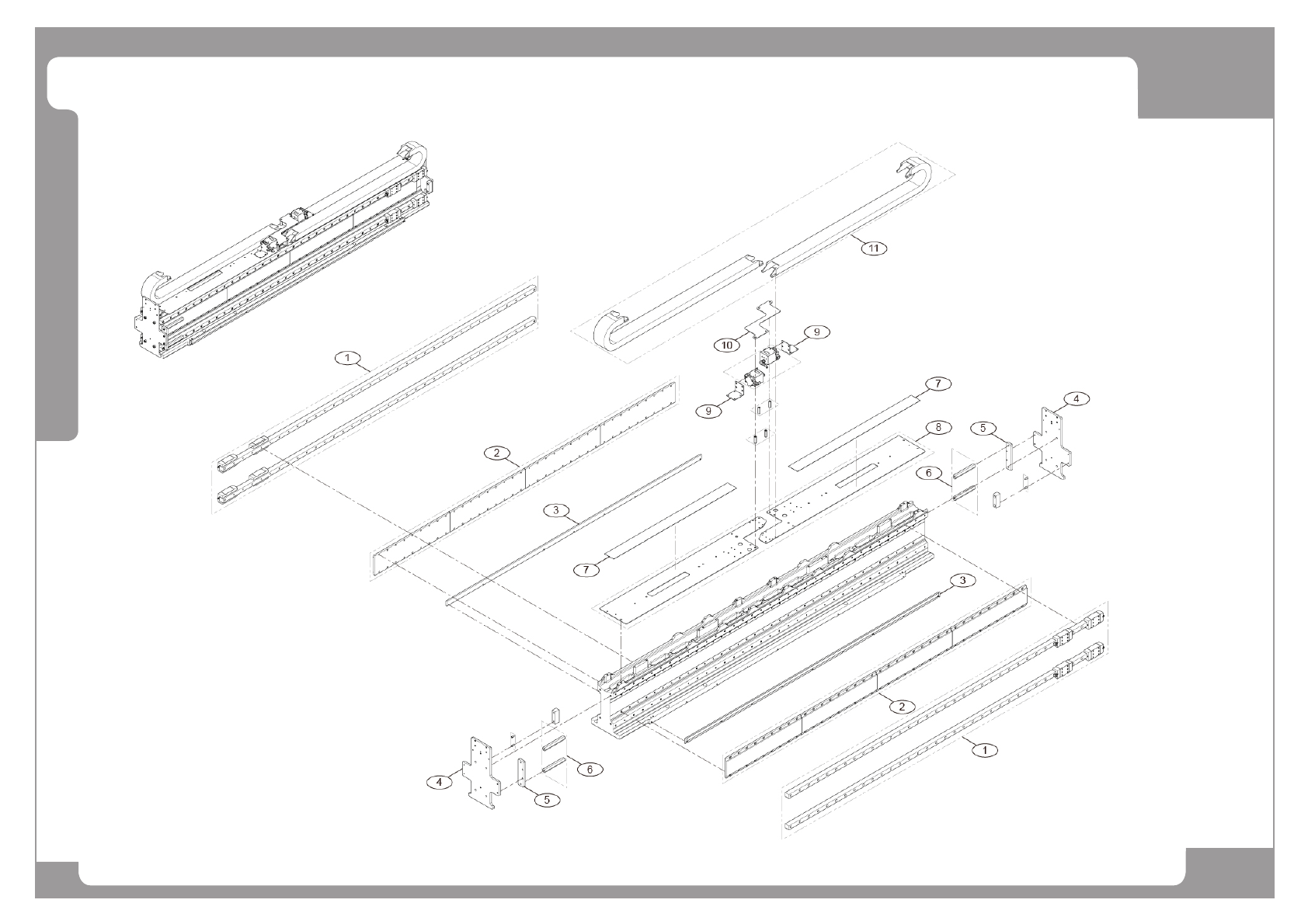

Page +$1:+$ 242 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) Y Frame - EXCEN PRO(D)
Page
+$1:+$
241
Y Frame
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP08-001003 LINEAR_MOTOR_MAGNET 8 EP08-900057/ EP08-000120
2 MC13-000147 LM GUIDE 4
MC13-001095 LM GUIDE-SHS25V2SSC1E+2066LH-II;.,. 4 H950
3 FC30-000968A PLATE-Y_STOPPER_PLATE 2
4 RM01-003036A Y_STOPPER_HEX_BAR 2 FC07-000464A
5 J72541042A Y_STOPPER_ROOT_A J72541042A 2
6 FC18-903165 SPACER,SMKB5-15 8
7 FC39-000835A FRAME-Y_BEAM;GC300 1
8 EP19-000174 POSITION SENSOR,LINEAR-Y_LINEAR_SCALE 2
9 FC09-000029A BRACKET-TRANSPORT BKT;ME1:Steel 4
10 J70541462A CABLE_BEAR_GUIDE A 2
11 FC36-000039A SHEET-TEFRON_SHEET 4
12 FC09-001903A BRACKET-TOWER_BKT 2
Page
+$1:+$
242
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
Y Frame - EXCEN PRO(D)
Page
+$1:+$
243
Y Frame - EXCEN PRO(D)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC13-001095 LM GUIDE-SHS25V2SSC1E+2066LH-II;.,. 4
2 EP08-001003 MOTOR,ELECTRIC-LINEAR MOTOR MAGNET;CDM30 8
3 FC28-001065 LINEAR SCALE UNIT-ST708A-1600A-R 2
4 FC30-000968A PLATE-Y_STOPPER_PLATE 2
5 FC07-003630A BLOCK-MTED-Y004A_STOPPER_BLOCK 2
6 RM01-003743A BAR-MTED-Y002A_STOPPER_HEX_BAR;AL6061 4
7 FC36-001062A SHEET-MTED-Y003A_SHEET 2
8 FC30-004787A PLATE-MTED-Y001A_CABLEVEYOR_GUIDE 2
9 FC09-007421A BRACKET-MTED-Y005A_E_REGULATOR_BKT 2
10 FC30-004788A PLATE-MTED-Y006A_GUIDE_SUPPORT1 1
11 MC08-001014 CHAIN-TKR0200W50R55(55L+PIK+PKA) 2
