Page +$1:+$ 248 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) Base Frame (2/2) 1 5 29 11 10 3 4 6 7 8 9 2 1 28 2 12 13 28 14 27 15 16 25 17 22 24 23 18 21 19 20 26
Page
+$1:+$
247
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
248
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

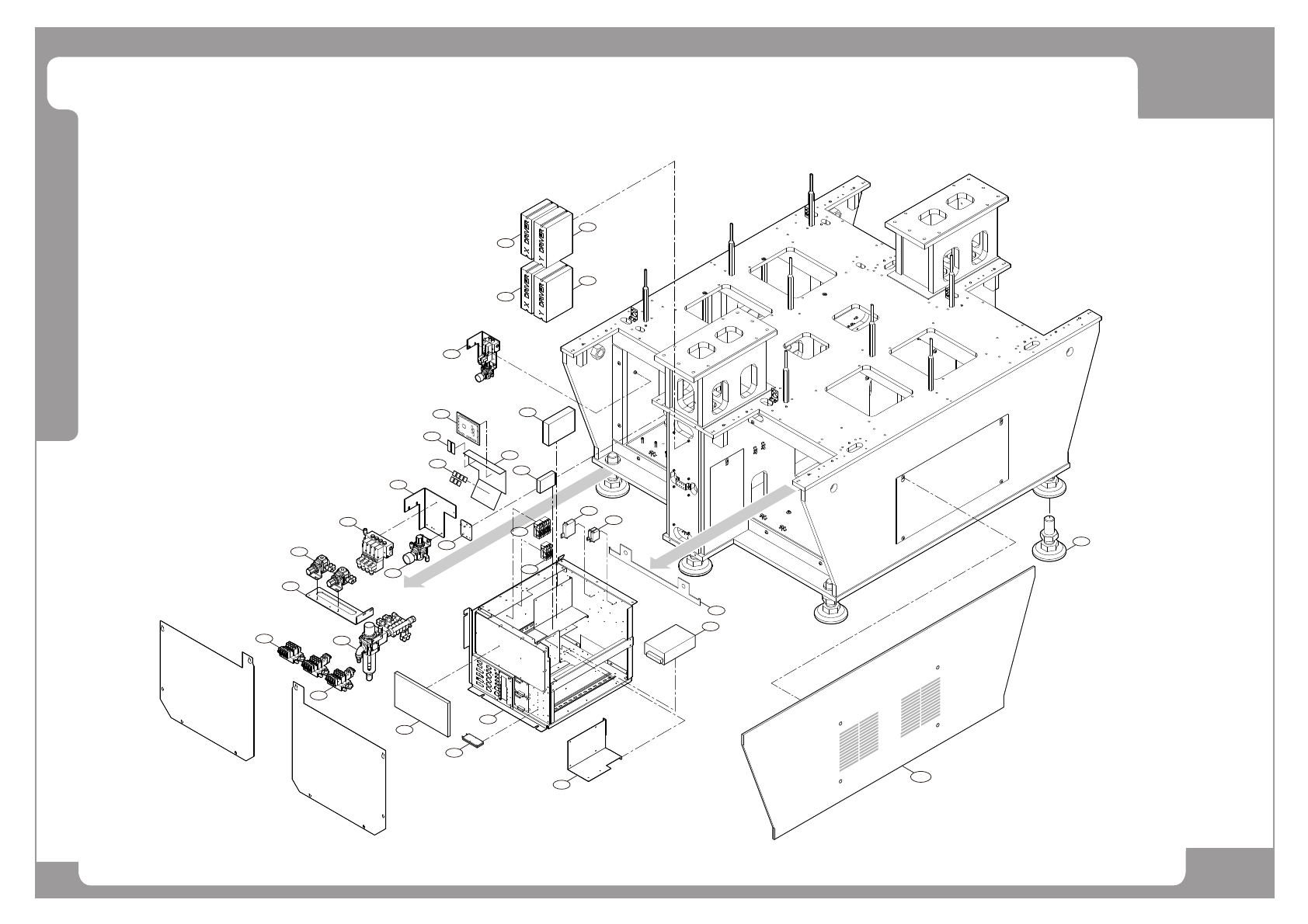

Base Frame (2/2)
1
5
29
11
10
3
4
6
7
8
9
2
1
28
2
12
13
28
14
27
15
16
25
17
22
24
23
18
21
19
20
26
Page
+$1:+$
249
Base Frame (2/2)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Reference
1 EP06-900166 KOLLMORGEN_DRIVER S20360-SRS 2
2 EP06-900156 X_AXIS_KOLLMORGEN_DRIVER S20660-SRS 2
3 FC09-000762B BRACKET-VALVE_BKT 1
4 AM03-000069 MANIFOLD_VQZ335R-00-CJPZ0967 1
5 HP09-000105 REGULATOR-REGULATOR;AR20-02BG-1RY,0.2MPA 1
6 AM03-000070 ASSY,AIR-VP_BLOW_REG_ASSY 2
7 FC09-002522A BRACKET-REGULATOR_BKT 1
8 AM03-000068 ASSY,AIR-VP_MAIN_REG_ASSY 1
9 HP14-000192 VALVE,SOLENOID-SOLVALVE_ANC 1 EP07-000833 ASSY
HP14-002056 VALVE,SOLENOID-DV1120-5V-T4 SINGLE VALVE
10 HP14-000193 VALVE,SOLENOID-SOLVALVE_CC_CUT 2 EP07-000834 ASSY
HP14-002057 VALVE,SOLENOID-DV1120-5V-T6 SINGLE VALVE
HP14-000216 SOLENOID-SOLVALVE;DV1220-5V-T6 SINGLE VALVE
11 AM03-007437A ELECTRIC-V1P POWER UNIT ASSY 1
12 AM03-009553J BASE CONTROL BOARD 1 AM03-009553G/ AM03-009553H/ AM03-009553I
13 EP18-000005 RELAY-G9SC-400-CNP4EDC24;4POLE,24V,15mA 2
14 EP06-901019 ADA600F-48 2
15 EP07-901337 SD-Q19 DC24V1a1b 2
16 EP07-901338 SD-Q11 DC24V1b 1
17 EP06-000526 SUPPLY,POWER,AC-DC-ADA750F-24-F;220VAC,2 1 EP06-000232
18 EP06-901047 PBA15F-24-N 1
19 EP07-900053 CP-T4 1
20 EP07-900049 CP31FI/5(CCC) 1
21 FC09-004278A CABLE GUIDE 1
22 AM03-014955A ASSY,BOARD-GIOEX BOARD ASSY 1 AM03-009555A
23 AM03-000678A OUTPUT CONNECTOR BOARD 2
24 AM03-000677A INPUT CONNECTOR BOARD 7
25 FC09-001943B IO BOARD BKT 1
26 AM03-017098A BASE SIDE COVER 1
27
AM03-008041A
ASSY,MAIN FRAME-FOOT_950_ASSY 6
28 AM03-001107 ASSY,AIR-CLEANING_BLOW_AR20-02-CJTZ3274 1
