Page +$1:+$ 382 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) Base - RS232C Ring -A01 (-K306) PT -PC BOARD CPU BOX RXD TXD GND RTS CTS GND (-K304) NCIO BOARD N.C TX+ TX- GND FG CN6 4 3 2 1 5 -IO BOARD (-K322) I/O BOARD GND RXD…
Page
+$1:+$
381
Base - NCIO ZMP
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP02-000998B HARNESS-NCIO ZMP ILK SIGNAL CABLE ASSY 1
Page
+$1:+$
382
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

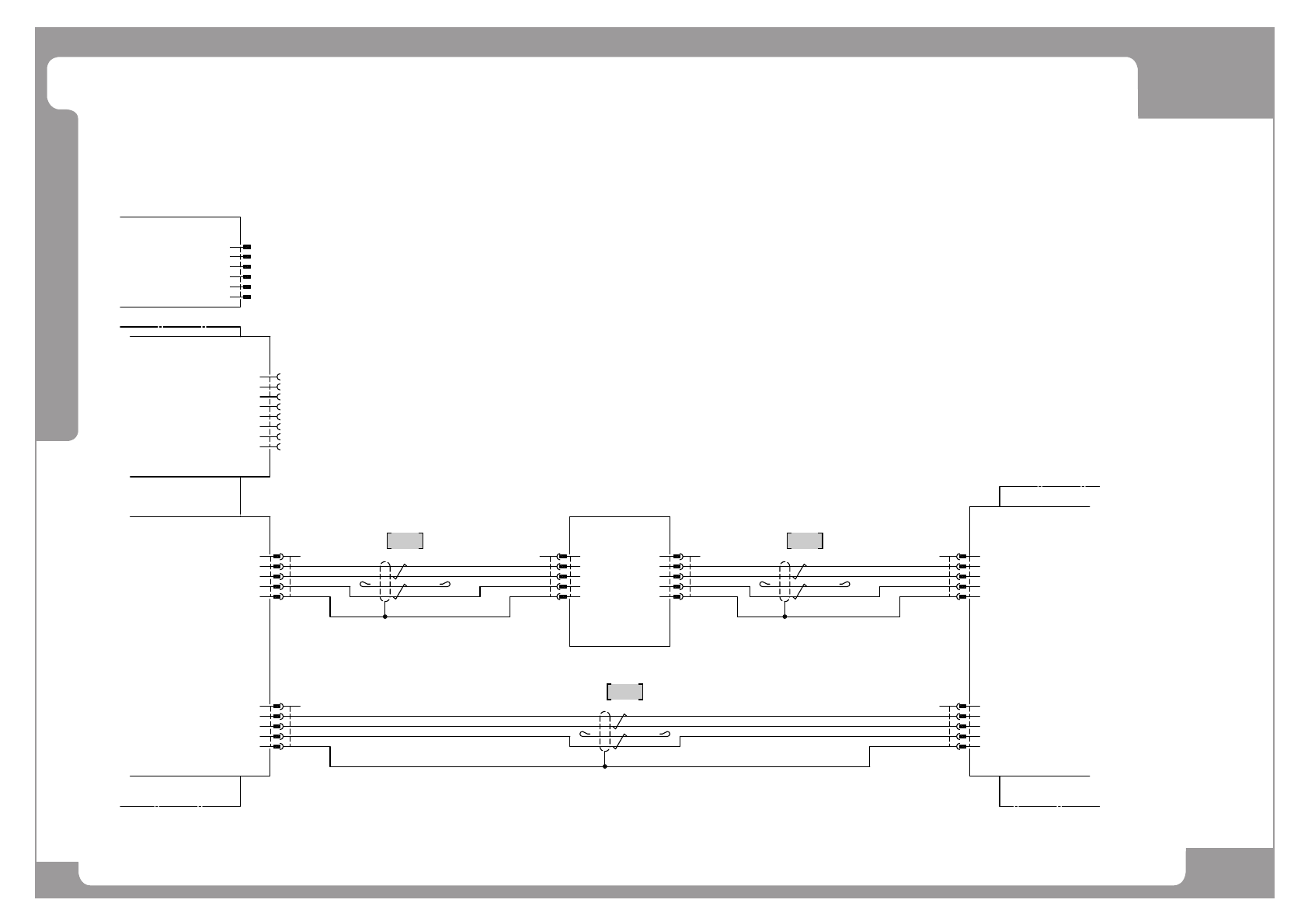

Base - RS232C Ring
-A01
(-K306)
PT-PC BOARD
CPU BOX
RXD
TXD
GND
RTS
CTS
GND
(-K304)
NCIO BOARD
N.C
TX+
TX-
GND
FG
CN6
4
3
2
1
5
-IO BOARD (-K322)
I/O BOARD
GND
RXD+
RXD-
GND
FG
CN7
4
3
2
1
5
N.C
RX+
RX-
GND
FG
5
NCIO-CN6
4
3
2
1
JAE
IL-AG5-5S-S3C1
IL-AG5-C1-5000
POWER UNIT
5
CN10
1
2
3
4
CN11
4
3
2
1
5
GND
TXD+
TXD-
GND
FG
5
NCIO-CN7
4
3
2
1
JAE
IL-AG5-5S-S3C1
IL-AG5-C1-5000
5
M34S75C4F1
MX34005SF1
JAE
IO-CN10
1
2
3
4
5
IO-CN11
4
3
2
1
JAE
MX34005SF1
M34S75C4F1
5
M34S75C4F1
MX34005SF1
JAE
BC-CN10
1
2
3
4
5
M34S75C4F1
MX34005SF1
JAE
BC-CN11
1
2
3
4
5
CN10
1
2
3
4
5
CN11
1
2
3
4
BASE Control BOARD
GND
RXD+
RXD-
GND
FG
GND
TXD+
TXD-
GND
FG
(-K321)
-A02
EP02-000971A
UL2464-SB 2P*24AWG
EP02-000973A
UL2464-SB 2P*24AWG
EP02-000974A
UL2464-SB 2P*24AWG
CNSWC
6
3
5
2
4
1
-A02
+24V
GND
+24V
GND
N,C
FG
5
8
1
7
4
2
3
6
COM
POWER UNIT
CPU BOARD
NCIO
B-C-BOARD
NO USE
NO USE
Ring
1 2
3
Page
+$1:+$
383
Base - RS232C Ring
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP02-000971A HARNESS-NCIO IO BD RS232C CABLE ASSY 1
2 EP02-000973A HARNESS-IO BD NCIO RS232C CABLE ASSY 1
3 EP02-000974A HARNESS-NCIO BASE CTR BD RS2342C CABLE 1
