Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第51页
Page +$1:+$ 45 EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L)
Page
+$1:+$
44
Cart Clamp AF /BR
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 MC03-000056 BEARING,NEEDLE 2
31 FC29-006667A BRACKET-V_CC_CAM_FOLLOW_HOLDER 2 FC09-001800A
32 EP02-001990A HARNESS-FDR UNLOCK 2 SNS CABLE ASSY 2
33 FC18-000081 NUT-NUT;M12 1,ME1:Steel 2
34 J70621031A CAM_B_L J70621031A 1
35 FC29-000145A COLLAR-V1_CC_COLLAR_B;ME1:Steel 1
36 MC03-900116 BEARING 6000ZZNR 4
37 J70621013A LEVER_L J70621013A 1
38 FC18-003393A CC_HOOK_P_R 1 FC18-000344A
39 J70621017A BLOCK J70621017A 2
40 FC29-000146A COLLAR-V1_CC_COLLAR_C;ME1:Steel 2
41 FC14-000122 END,STUB-ROD END 2
42 HP06-900076 ELBOW_FITTING KQ2L06-01S 4 HP14-900109
43 HP03-000124 CYLINDER-CQ2D40-75DZ;AIR,1MPA,75MM,40MM 1 HP03-000011/ HP03-000124/ HP03-001001
44 FC18-901667 C-RING(SHAFT) 4
45 FC18-902792 SOCKET HEAD CAP SCREW [M8*35 (BL/ZN)] 2
46 FC09-001801A BRACKET-V_CARTCLAMP-CYL_FI_BLOCK_1 1
47 J70621034A CAM_B_R J70621034A 1
48 J70621014A LEVER_R J70621014A 1
49 FC18-003394A CC_HOOK_P_L 1 FC18-000352A
50 HP03-000125 CYLINDER-CDQ2D40-75DZ;AIR,1MPA,75MM,40MM 1 HP03-000012 /HP03-000025/ HP03-001002
51 FC09-001802A BRACKET-V_CARTCLAMP-CYL_FI_BLOCK_2 1
52 FC18-901194 DOWEL PIN[MS4-10] 4
53 FC18-901194 DOWEL PIN[MS4-10] 2
54 J70621029A NUT_PLT_A J70621029A 2
55 FC18-000063A PIN-V1_CC_PIN_A;ME5:Stainless steel 2
56 FC09-004326B BRACKET-MTV1PP-FB016A-CC_SENSOR_BKT;TYPE 1
57 PT03-000252A STICKER-STICKER-FEEDER_NUMBER_DC;BONDING 1
HP13-000016 TUBE-TUBE;TU0604Y 2
HP13-900079 TUBE [TU0604B] 2
Page
+$1:+$
45
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
46
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

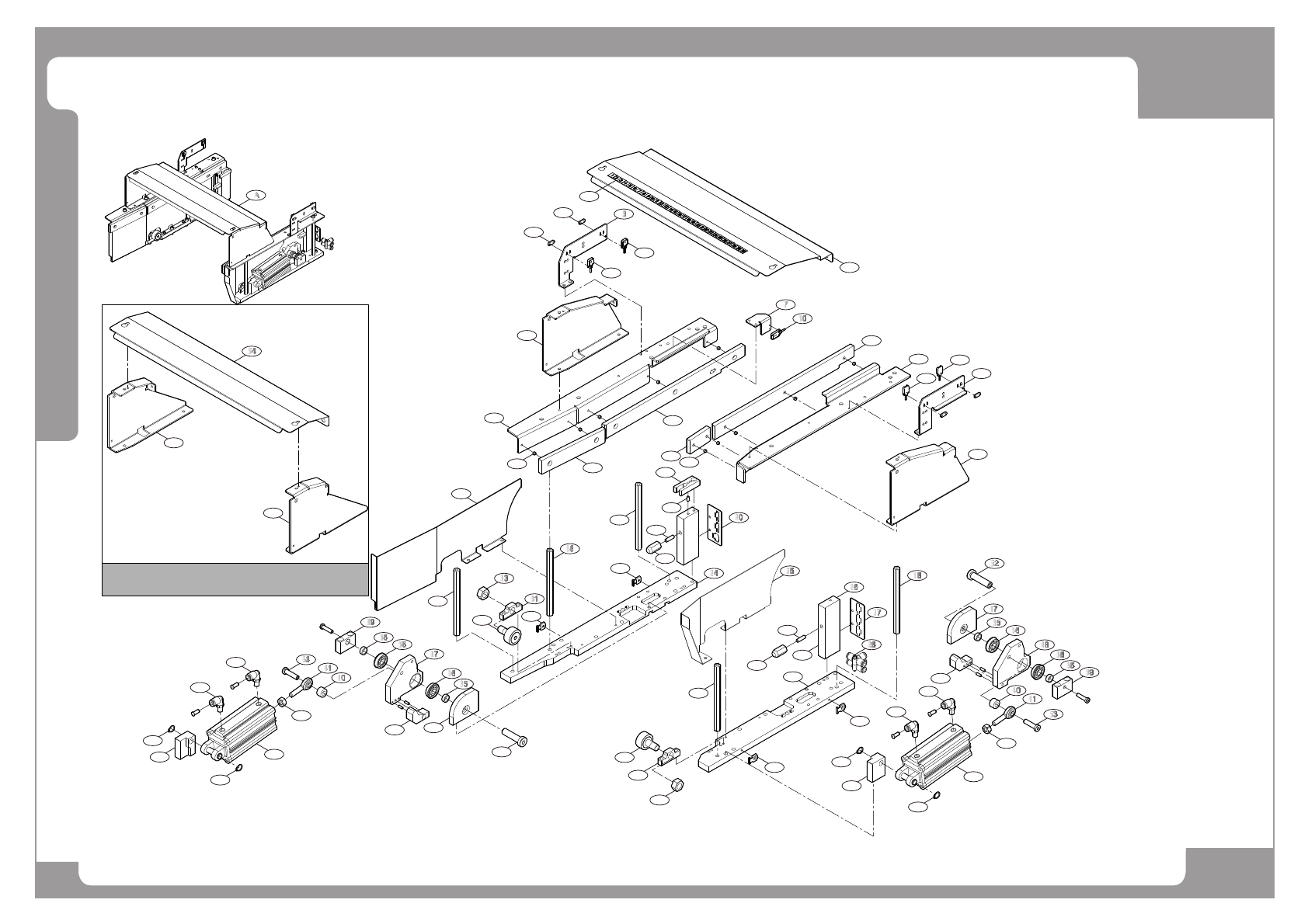

Cart Clamp AR /BF
4
4
5
6
22
42
42
42
56
17
42
29
11
18
18
18
30
21
23
44
44
51
33
49
34
38
44
44
46
31
1
2
32
9
8
50
43
52
55
52
22
22
22
14
32
2
15
16
7
A
10
35
36
37
40
36
35
39
18
33
54
31
41
20
24
25
47
18
48
35
52
36
36
35
39
40
41
53
28
26
27
13
11
12
22
30
19
52
53
45
45
54
3
OPTION
57
