Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第622页
Page +$1:+$ 616 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) XY - BR Sensor Regulator - PRO(D) Standard -BR CAMERA SW BR CAMERA SW BOARD +24V ITF_IN 24GND +24V Sig 24GND BR EV RREGULA TER -B1200 SMC ITV AM03-021 179A : XY ROB…
Page
+$1:+$
615
XY - BR Sensor Regulator
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP02-001634A HARNESS-V1+ HEGHT_SENSOR AMP CABLE 1 EP02-001634A/ EP02-001634B
2 EP02-001633A HARNESS-V1+ HEIGHT_SENSOR HEAD CABLE 1
3 J90834582A BR_SW_BD_SHORT_CABLE;V1_XY_023 1
4 EP02-001826A HARNESS-V1+ REGULATOR CABLE ASSY 1 EP02-001826A(One pair of 4ea)
Page
+$1:+$
616
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

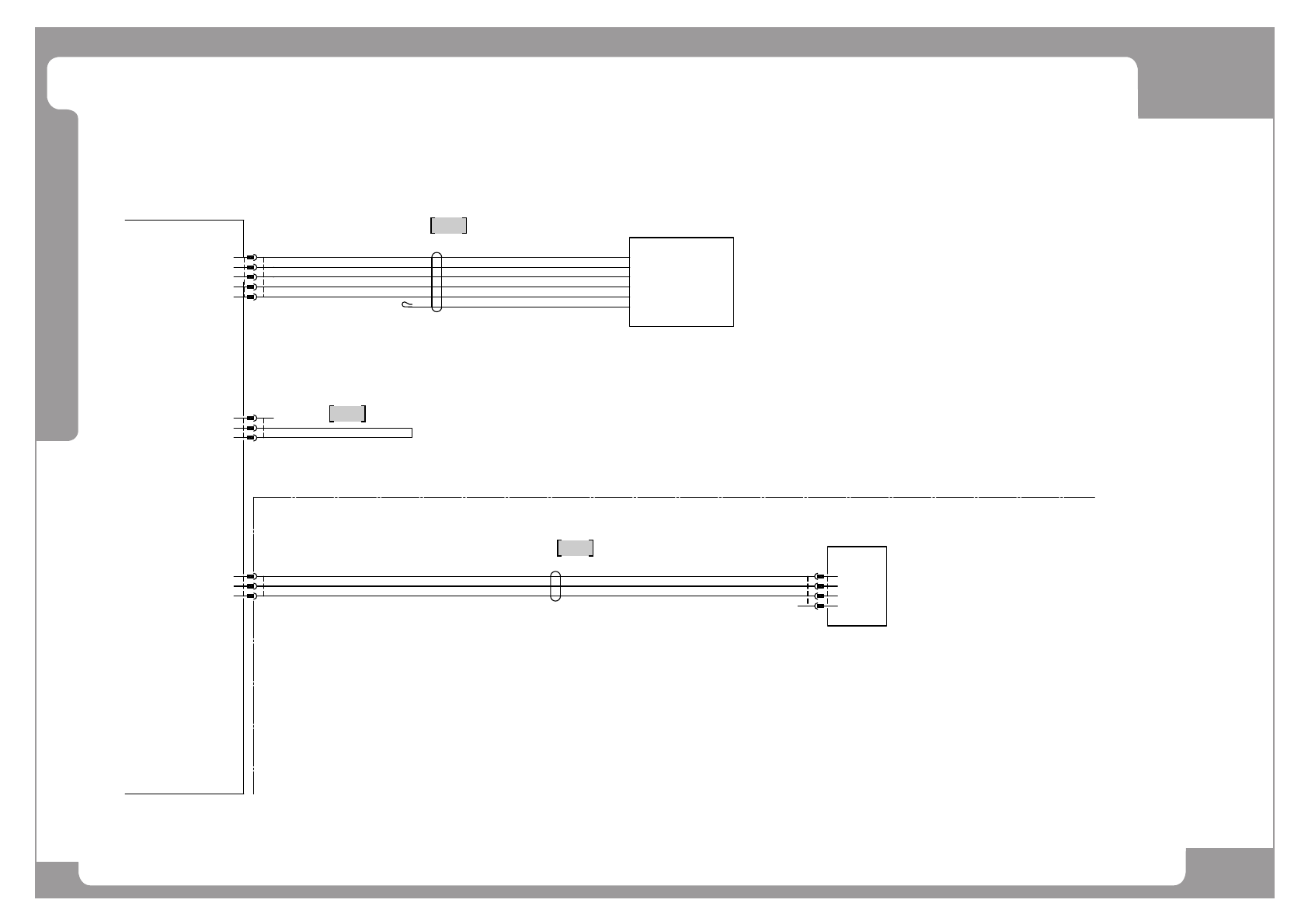

XY - BR Sensor Regulator - PRO(D) Standard
-BR CAMERA SW
BR CAMERA
SW BOARD
+24V
ITF_IN
24GND
+24V
Sig
24GND
BR EV RREGULATER
-B1200
SMC ITV
AM03-021179A : XY ROBOT HARNESS
AM03-017804A
HEIGHT
SEN
BR Height Sensor
+24V
ANALOG VOLTAGE
OUTPUT
0V(GND)
EXTERNAL INPUT
ANALOG GROUND
CONTROL OUTPUT
-B1025
SUNX
HC-1030
3
2
1
CN10
3
2
1
CN14
BR-CAM-CN10
3
1
2
MOLEX
43645-0300
43030-0001
J90834582A
UL1007 AWG24, BLUE
CN5
4
3
2
1
5
4
3
2
1
REG-SMC
OMRON
XS2C-D421
4
3
2
1
CNREG
CAM-CN14
3
1
2
JST
PARP-03V
SPA-001T-P0.5
PMS-03V-S
(0.2mm2-3C)
AM03-020688A
ROFHV 3C*0.2SQ
BK
BU
BW
BROWN
GRAY
BLUE
SHIELD
BLACK
5
CAM-CN5
4
3
2
1
MOLEX
502380-0500
502381-0000
PINK
1
2
3
Page
+$1:+$
617
XY - BR Sensor Regulator - PRO(D) Standard
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-020845A CABLE ASSY-V1+ HEIGHT SENSOR(SUNX) CABLE 1
2 J90834582A BR_SW_BD_SHORT_CABLE;V1_XY_023 1
3 AM03-020688A CABLE ASSY-SMC REGULATOR CABLE ASSY 2
