Page +$1:+$ 672 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) MFH - 8 Block Diagram Wiring CNHEAD1 -M551 Z MOTOR (30W) -M552 R MOTOR (50W) -M553 TH MOTOR (30W) MOTOR POWER SIG,V -Axis -M555 V -Axis MOTOR ASHAHI V -AXIS BOARD C…
Page
+$1:+$
671
HSH - 16 TH Axis Motor
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014605A HARNESS-HSH TH MOTOR CABLE(30W) 1 EP02-001645B/ EP02-001645C Connector type: MOLEX
AM03-017781B CABLE ASSY-NEW 30W TH MOTOR CABLE 1 AM03-017781A Connector type: JST
Page
+$1:+$
672
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

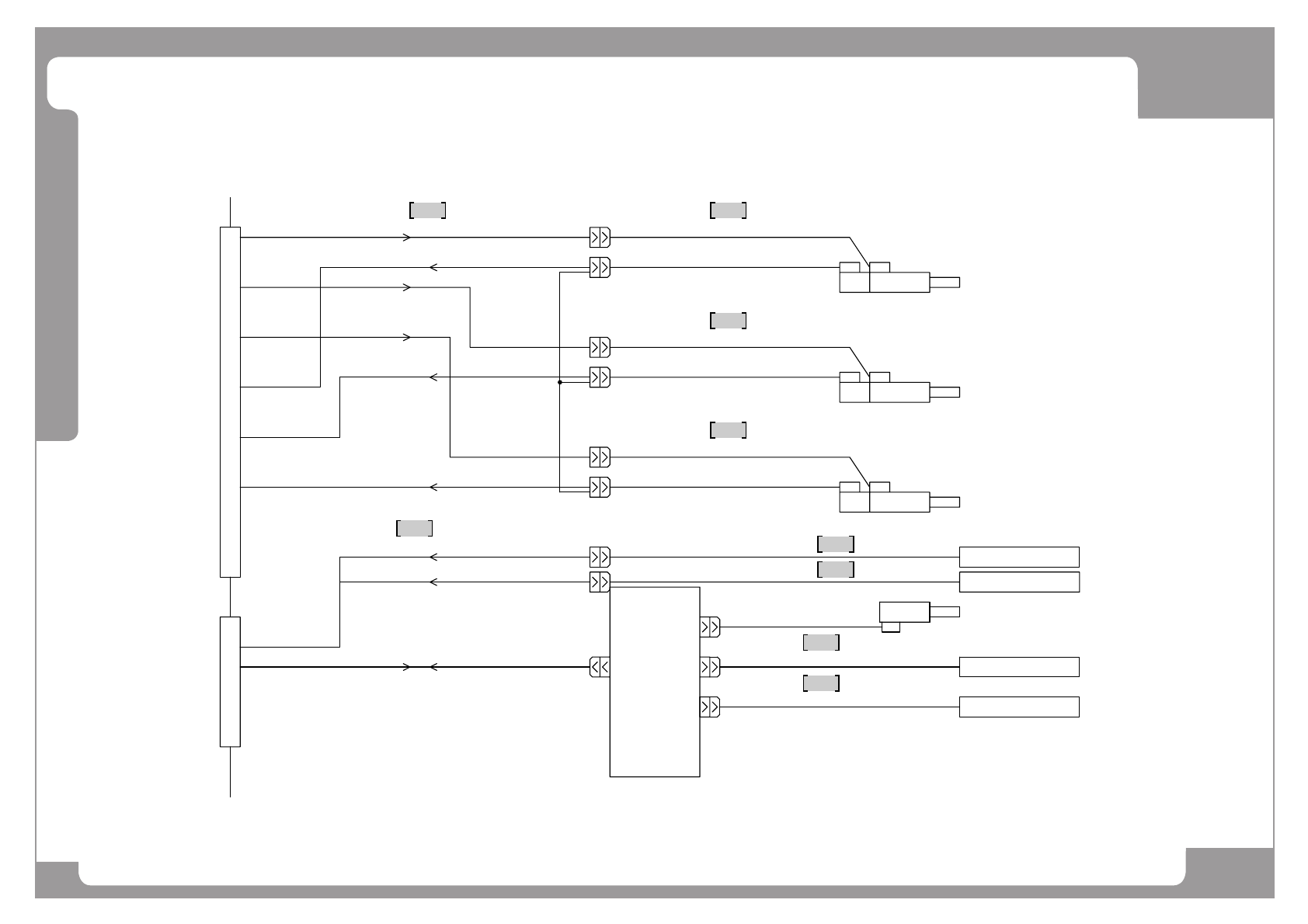

MFH - 8 Block Diagram Wiring
CNHEAD1
-M551 Z MOTOR
(30W)
-M552 R MOTOR
(50W)
-M553 TH MOTOR
(30W)
MOTOR
POWER
SIG,V-Axis
-M555
V-Axis MOTOR
ASHAHI V-AXIS
BOARD
CN3
CN1
CN2
STEPPING
MOTOR
HOME
SNS
MOTOR
ENCODER
-B1042 V-Axis ORG
CNHEAD2
-B1041 R-Axis ORG
CN4
HOME
SNS
-B1043 PRESSURE
EP02-000838B
EP02-001533B
EP02-001532B
EP02-001645C
EP02-000933A
EP02-001006A
EP02-000896A
EP02-000839A
-B1042 TH-Axis ORG
EP02-001744A
1
2
3
4
5
6
7
8
9
Page
+$1:+$
673
MFH - 8 Block Diagram Wiring
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP02-000838B HARNESS-HSM_CNHEAD1 CABLE ASSY 1 EP02-000838A Connector type: MOLEX
AM03-017776A CABLE ASSY-NEW MFH CNHEAD1 CABLE ASSY 1 Connector type: JST
2 EP02-000839A HARNESS-HSM_CNHEAD2 CABLE ASSY 1
3 AM03-013823A CABLE ASSY-AUTO SENSING HPH Z MOTOR CAB 1 Connector type: MOLEX
AM03-017780B CABLE ASSY-NEW 30W Z MOTOR CABLE 1 AM03-017780A Connector type: JST
4 EP02-001532B HARNESS-HSH V1+ R MOTOR CABLE(50W) 1 EP02-001532A
5 AM03-014605A HARNESS-HSH TH MOTOR CABLE(30W) 1 EP02-001645B/ EP02-001645C Connector type: MOLEX
AM03-017781B CABLE ASSY-NEW 30W TH MOTOR CABLE 1 AM03-017781A Connector type: JST
6 EP02-000933A HARNESS-R_Axis_PH SENSOR CABLE ASSY 1
7 EP02-001744A HARNESS-TH_Axis_PH SENSOR CABLE ASSY 1
8 EP02-001006A HARNESS-V_Axis_PH SENSOR CABLE 1
9 EP02-000896A HARNESS-VACUUM SENSOR CABLE ASSY 1
