YSM40_PartList - 第10页
1 2 T op Cover (Right side) Cover KLF-1307 52 52 18 11 46 46 3 17 57 25 44 44 53 16 30 44 32 51 5 55 50 34 35 44 44 54 62 47 65 58 1 28 27 48 49 45 45 19 36 45 6 7 8 53 20 63 64 44 44 44 44 44 44 44 44 44 44 31 33 12 57 …
2
1
Sub Assy / UPS
Base
KLF-1307
10
12
9
8
17
17
17
20
1
17
17
17
17
18
13
6
14
17
17
17
9
8
19
19
11
5
3
4
15
16
7
19
2
10
17
17
17
20
OLD
12
21
22
23
24
25
26
27
29
17
30
28
19
32
31
33
28
30
29
19
32
31
17
28
30
29
UPS
7
36
35
34
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1151-00 PLATE,SIDE 1 1
2 KLF-M1152-00 PLATE,SIDE 2 1
3 KLF-M1153-00 PLATE,SIDE 3 1
4 KLF-M1154-00 PLATE,SIDE 4 1
5 KLF-M1155-00 PLATE,SIDE 5 1
6 KLF-M1156-00 PLATE,SIDE 6 1
7
KLF-M1157-01 PLATE,SIDE 7 1 OK MK00050-2013/11/26
KLF-M1157-00 PLATE,SIDE 7 1
8
KLF-M1158-01 PLATE,SIDE 8 2 OK MK30054-2013/3/13
KLF-M1158-00 PLATE,SIDE 8 2
9 KLF-M1159-00 PLATE,SIDE 9 2
10 KLF-M1164-00 COVER,FAN 2
11 KLF-M1337-00 BRACKET 1
12
KLF-M1337-51 BRACKET 1 NG MJ70127-2012/9/6
KLF-M1337-50 BRACKET 1
13 $FVU8-8 JOINT 1
14 KLF-M1339-00 BRKT.,FL 1
15 KLF-M1338-00 BRKT.MAIN SWITCH 1
16 KKE-M1180-00 LEVELING BOLT ASSY 4
17 90990-12J004 SCREW,PAN HEAD W/W 60
18 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X30
19 91312-05010 BOLT HEX.SOCKET HEAD 28 M5X10
20 KGS-M1180-00 LEVELING BOLT ASSY 4
21 KLF-M1153-10 PLATE,SIDE 3 1
22 KLF-M1154-11 PLATE,SIDE 4 1
23 KLF-M115E-01 PLATE,UPS 1
24 KLF-M115F-02 BRACKET,UPS 1
25 KHW-M1157-01 BRACKET 2,UPS 1
26 KLF-M1161-00 BRACKET 3,UPS 1
27 KLF-M1160-00 COVER,HARNESS 1
28 91312-04006 BOLT HEX.SOCKET HEAD 9
29 92902-04200 WASHER PLAIN 9
30 90172-00J040 WASHER,EXTL.TOOTHED 9
31 92902-05200 WASHER PLAIN 4
32 90172-00J050 WASHER,EXTL.TOOTHED 4
33 90990-12J001 SCREW BIN.HEAD W/W 2
34 KLF-M115J-00 FILTER,CP FAN 1 MK00050-2013/11/26
35 98502-04050 SCREW PAN HEAD (+) 8 MK00050-2013/11/26
36 95302-04600 NUT, HEXAGON 8 MK00050-2013/11/26
1
2

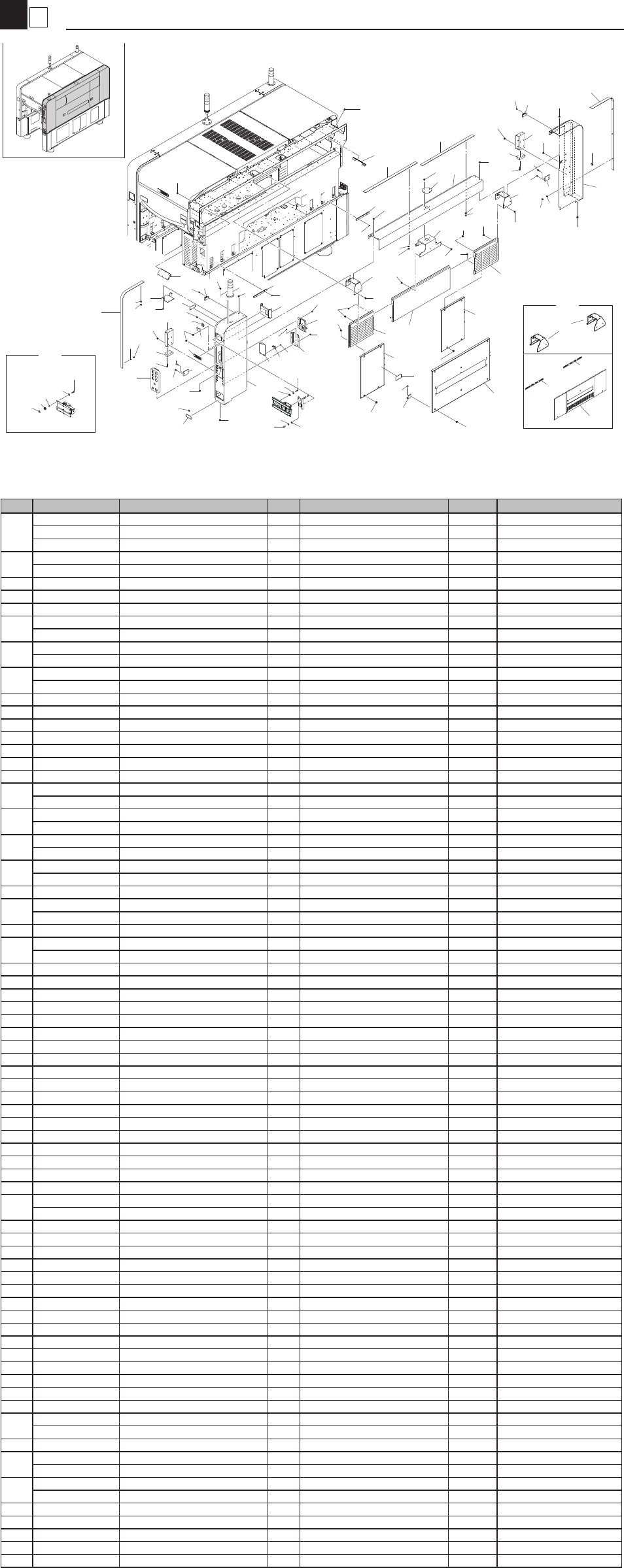

Top Cover (Right side)
Cover
KLF-1307
52
52
18
11
46
46
3
17
57
25
44
44
53
16
30
44
32
51
5
55
50
34
35
44
44
54
62
47
65
58
1
28
27
48
49
45
45
19
36
45
6
7
8
53
20
63
64
44
44
44
44
44
44
44
44
44
44
31
33
12
57
59
2
25
44
51
55
56
46
50
34
14
13
10
9
44
22
44
44
44
23
44
46
56
46
24
53
56
23
49
26
39
29
41
38
44
40
43
37
15
24
4
49
56
56
21
21
19
OLD
23
OLD
60
60
61
42
58
66
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1301-04 COVER 1 1 OK MLX0117-2015/2/16
KLF-M1301-03 COVER 1 1 Stay position change NG MJ70127-2012/9/6
KLF-M1301-02 COVER 1 1
2
KLF-M1302-03 COVER 2 1 Hole position change NG MJ70127-2012/9/6
KLF-M1304-02 COVER 4 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KLF-M130B-00 COVER,SW 1
6
KLF-M13A3-01 COVER A3 1 D=23.5mm NG MJ70127-2012/9/6
KLF-M13A3-00 COVER A3 1 D=17.5mm
7
KLF-M13A4-02 COVER A4 RH. 1 Hole position change NG MJ70127-2012/9/6
KLF-M13A4-01 COVER A4 RH. 1
8
KLF-M13A4-52 COVER A4 LH. 1 Hole position change NG MJ70127-2012/9/6
KLF-M13A4-51 COVER A4 LH. 1
9 KLF-M13A5-00 COVER A5 1
10 KLF-M1343-00 PLATE 1
11 KLF-M131A-00 COVER A RH. 1
12 KLF-M131A-50 COVER A LH. 1
13 KLF-M131B-00 COVER B RH. 1
14 KLF-M131B-50 COVER B LH. 1
15 KLF-M1318-00 COVER 18 1
16
KLF-M133A-01 BRKT,LCD UNIT 1 OK MJ70127-2012/9/6
KLF-M133A-00 BRKT,LCD UNIT 1
17
Delete MJ70127-2012/9/6
KLF-M133B-00 BRKT R 1
18
Delete MJ70127-2012/9/6
KLF-M133C-00 BRKT L 1
19
KLF-M1372-01 COVER 72 1 NG MJ70127-2012/9/6
KLF-M1372-00 COVER 72 1
20
KLF-M1335-00 BRKT.2,GATE COVER 2
21
Delete MJ70127-2012/9/6
KLF-M1331-00 BRACKET 1 2
22 KLF-M1332-01 BRACKET 2 1
23
KLF-M1333-02 BRKT. 1 2 NG MJ70127-2012/9/6
KLF-M1333-01 BRKT. 1 2
24 KLF-M1336-00 RAIL,COVER 2
25 KV5-M1130-00 CATCH MG. 2
26 KLF-M130C-00 BRKT,KB C 1
27 KLF-M13B4-00 CATCH MG. 1
28 KLF-M1344-00 PLATE 1
29 KLF-M1349-00 COVER 49 1
30 KLF-M13F1-01 COVER,CE R 1
31 KLF-M13F2-01 COVER,CE L 1
32 KLF-M13F3-00 GUIDE,FES. R 1
33 KLF-M13F4-00 GUIDE,FES. L 1
34 KLF-M3TFN-00 BRACKET CTG. 2
35 KLF-M13D6-00 SEAL 1(YSM40) 1
36 90K41-001250 LABEL,WARNING 2
37 90K41-001260 LABEL,WARNING 1
38 90K41-001290 LABEL,WARNING 1
39 K93-M1392-00 SPACER 2
40 KH1-M13A9-00 BUSH 1
41 90990-23J008 GROMMET 1
42
Delete H01766-2013/1/8
KKE-M138A-00 DAMPER 4
43 90990-01J074 BOLT HEX.SOCKET HEAD 2
44 90990-12J001 SCREW BIN.HEAD W/W 64
45 90990-12J004 SCREW BIN.HEAD W/W 10
46 90172-00J040 WASHER,EXTL.TOOTHED 14
47 90172-00J050 WASHER,EXTL.TOOTHED 8
48 91312-03004 BOLT HEX.SOCKET HEAD 2 M3X4
49 91312-04005 BOLT HEX.SOCKET HEAD 9 M4X5
50 91312-04010 BOLT HEX.SOCKET HEAD 10
M4X10
51 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
52 91312-05006 BOLT HEX.SOCKET HEAD 9 M5X6
53 91312-05008 BOLT HEX.SOCKET HEAD 28 M5X8
54 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
55 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
56 95702-04500 NUT FLANGE 17
57 98902-03005 SCREW BINDING HEAD 16
58
98902-04008 SCREW BINDING HEAD 4 NG H01766-2013/1/8
98902-04016 SCREW BINDING HEAD 4
59 90990-23J006 GROMMET 1
60
Delete H01766-2013/1/8
90990-28J141 WASHER,PLAIN 8
61
Delete H01766-2013/1/8
90990-41J132 COLLAR 4
62 92902-05200 WASHER PLAIN 8
63 KLF-M1375-00 COVER 75 1 MJ70127-2012/9/6
64 KLF-M1376-00 COVER 76 1 MJ70127-2012/9/6
65 92902-04200 WASHER PLAIN 4 H01766-2013/1/8
66 90172-00J040 WASHER,EXTL.TOOTHED 4 H01766-2013/1/8
2
2

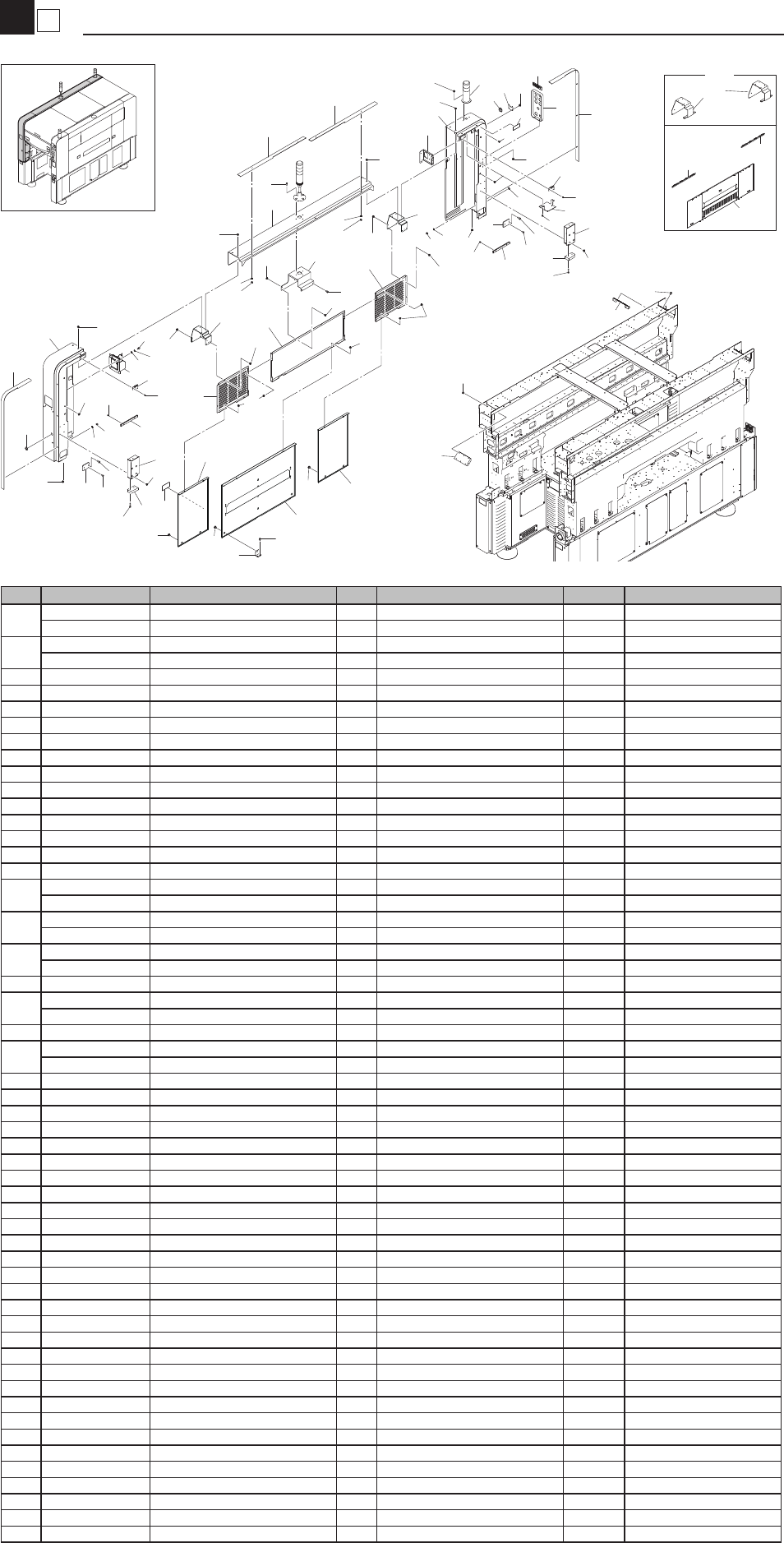

Top Cover (Left side)
Cover
KLF-1307
37
37
41
9
12
1
11
37
37
37
37
37
38
38
27
32
30
41
45
42
29
19
18
44
38
37
37
6
37
37
37
37
37
37
44
23
37
37
16
28
42
43
17
43
37
35
37
37
37
37
2
4
15
36
33
26
24
48
40
3
10
5
31
34
14
30
41
45
22
22
21
39
39
47
47
39
47
49
39
47
23
44
48
24
25
39
40
37
46
13
8
7
OLD
18
20
20
22
50
51
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1302-03 COVER 2 1 Hole position change NG MJ70127-2012/9/6
KLF-M1302-02 COVER 2 1
2
KLF-M1301-03 COVER 1 1 Stay position change NG MJ70127-2012/9/6
KLF-M1303-02 COVER 3 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KLF-M130B-00 COVER,SW 1
6 KLF-M13A3-00 COVER A3 1
7 KLF-M13A4-01 COVER A4 RH. 1
8 KLF-M13A4-51 COVER A4 LH. 1
9 KLF-M13A5-00 COVER A5 1
10 KLF-M131A-00 COVER A RH. 1
11 KLF-M131A-50 COVER A LH. 1
12 KLF-M131B-00 COVER B RH. 1
13 KLF-M131B-50 COVER B LH. 1
14 KLF-M1318-00 COVER 18 1
15 KLF-M133A-00 BRKT,LCD UNIT 1
16
Delete MJ70127-2012/9/6
KLF-M133B-00 BRKT R 1
17
Delete MJ70127-2012/9/6
KLF-M133C-00 BRKT L 1
18
KLF-M1372-01 COVER 72 1 NG MJ70127-2012/9/6
KLF-M1372-00 COVER 72 1
19 KLF-M1335-00 BRKT.2,GATE COVER 2
20
Delete MJ70127-2012/9/6
KLF-M1331-00
BRACKET 1 2
21 KLF-M1332-01 BRACKET 2 1
22
KLF-M1333-02 BRKT. 1 2 NG MJ70127-2012/9/6
KLF-M1333-01 BRKT. 1 2
23 KLF-M1336-00 RAIL,COVER 2
24 KV5-M1130-00 CATCH MG. 2
25 KLF-M130D-A0 USB BOX ASSY. 1
26 KLF-M13F1-01 COVER,CE R 1
27 KLF-M13F2-01 COVER,CE L 1
28 KLF-M13F3-00 GUIDE,FES. R 1
29 KLF-M13F4-00 GUIDE,FES. L 1
30 KLF-M3TFN-00 BRACKET CTG. 2
31 KLF-M13D6-00 SEAL 1(YSM40) 1
32 90K41-001250 LABEL,WARNING 2
33 90K41-001260 LABEL,WARNING 1
34 KH1-M13A9-00 BUSH 1
35 90990-23J008 GROMMET 2
36 90990-01J074 BOLT HEX.SOCKET HEAD 4
37 90990-12J001 SCREW BIN.HEAD W/W 52
38 90990-12J004 SCREW BIN.HEAD W/W 6
39 90172-00J040 WASHER,EXTL.TOOTHED 36
40 91312-04005 BOLT HEX.SOCKET HEAD 9 M4X5
41 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
42 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
43 91312-05006 BOLT HEX.SOCKET HEAD 9 M5X6
44 91312-05008 BOLT HEX.SOCKET HEAD 12 M5X8
45 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
46 92902-04200 WASHER PLAIN 14
47 95702-04500 NUT FLANGE 17
48 98902-03005 SCREW BINDING HEAD 8
49 90990-23J006 GROMMET 1
50 KLF-M1375-00 COVER 75 1 MJ70127-2012/9/6
51 KLF-M1376-00 COVER 76 1 MJ70127-2012/9/6
