YSM40_PartList - 第12页
3 2 T op Cover (Ceiling) / Conv .(UPS) Cover KLF-1307 OLD 7 7 3 3 12 12 1 2 4 4 Fig 1 Fig 2 7 8 8 10 10 5 13 10 10 5 6 6 1 1 9 8 8 12 12 1 2 4 4 3 8 8 16 10 10 8 17 17 15 15 14 20 22 24 23 8 8 15 15 8 21 19 10 10 8 18 14…
2
2

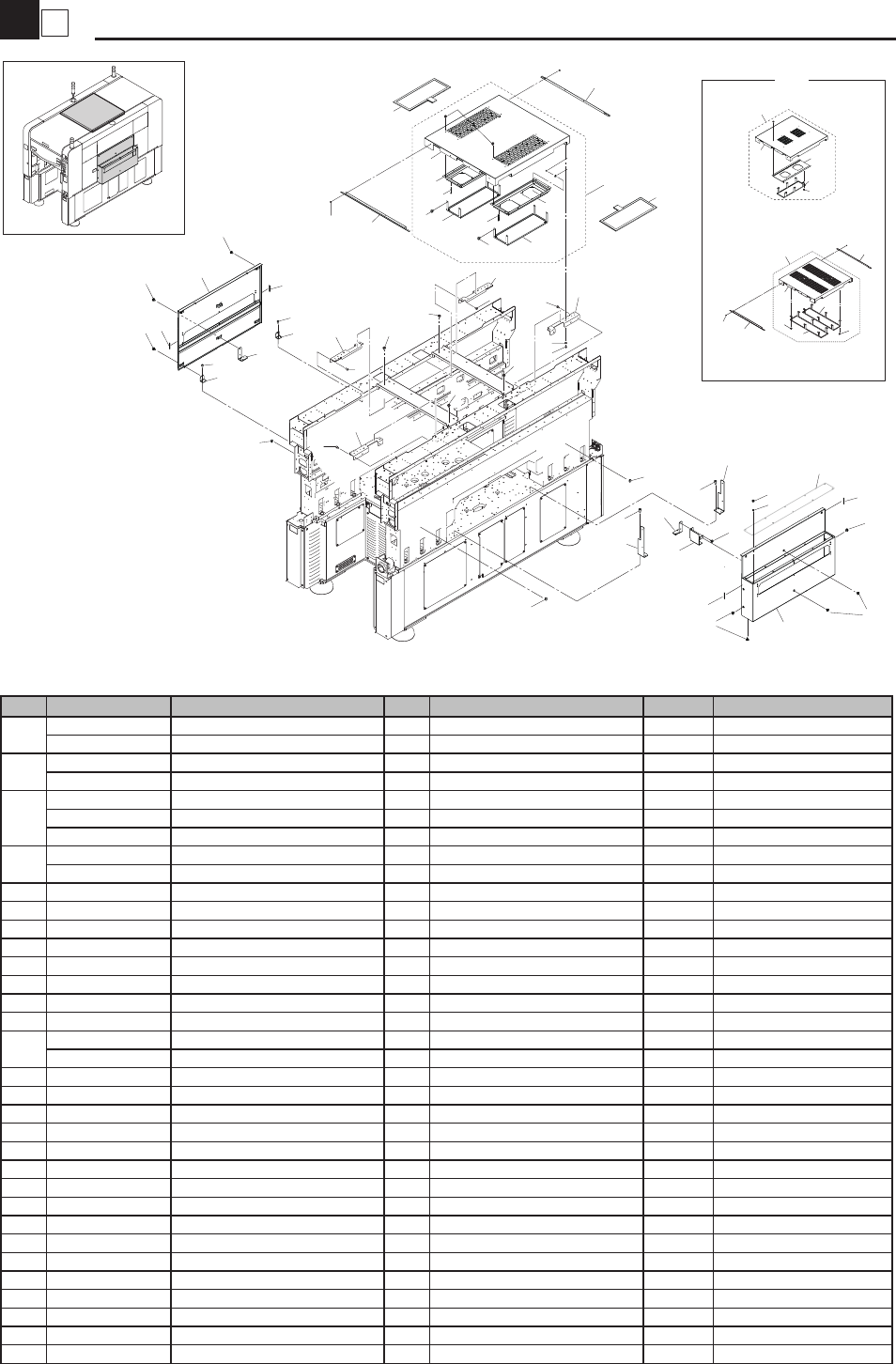

Top Cover (Left side)
Cover
KLF-1307
37
37
41
9
12
1
11
37
37
37
37
37
38
38
27
32
30
41
45
42
29
19
18
44
38
37
37
6
37
37
37
37
37
37
44
23
37
37
16
28
42
43
17
43
37
35
37
37
37
37
2
4
15
36
33
26
24
48
40
3
10
5
31
34
14
30
41
45
22
22
21
39
39
47
47
39
47
49
39
47
23
44
48
24
25
39
40
37
46
13
8
7
OLD
18
20
20
22
50
51
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1302-03 COVER 2 1 Hole position change NG MJ70127-2012/9/6
KLF-M1302-02 COVER 2 1
2
KLF-M1301-03 COVER 1 1 Stay position change NG MJ70127-2012/9/6
KLF-M1303-02 COVER 3 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KLF-M130B-00 COVER,SW 1
6 KLF-M13A3-00 COVER A3 1
7 KLF-M13A4-01 COVER A4 RH. 1
8 KLF-M13A4-51 COVER A4 LH. 1
9 KLF-M13A5-00 COVER A5 1
10 KLF-M131A-00 COVER A RH. 1
11 KLF-M131A-50 COVER A LH. 1
12 KLF-M131B-00 COVER B RH. 1
13 KLF-M131B-50 COVER B LH. 1
14 KLF-M1318-00 COVER 18 1
15 KLF-M133A-00 BRKT,LCD UNIT 1
16
Delete MJ70127-2012/9/6
KLF-M133B-00 BRKT R 1
17
Delete MJ70127-2012/9/6
KLF-M133C-00 BRKT L 1
18
KLF-M1372-01 COVER 72 1 NG MJ70127-2012/9/6
KLF-M1372-00 COVER 72 1
19 KLF-M1335-00 BRKT.2,GATE COVER 2
20
Delete MJ70127-2012/9/6
KLF-M1331-00
BRACKET 1 2
21 KLF-M1332-01 BRACKET 2 1
22
KLF-M1333-02 BRKT. 1 2 NG MJ70127-2012/9/6
KLF-M1333-01 BRKT. 1 2
23 KLF-M1336-00 RAIL,COVER 2
24 KV5-M1130-00 CATCH MG. 2
25 KLF-M130D-A0 USB BOX ASSY. 1
26 KLF-M13F1-01 COVER,CE R 1
27 KLF-M13F2-01 COVER,CE L 1
28 KLF-M13F3-00 GUIDE,FES. R 1
29 KLF-M13F4-00 GUIDE,FES. L 1
30 KLF-M3TFN-00 BRACKET CTG. 2
31 KLF-M13D6-00 SEAL 1(YSM40) 1
32 90K41-001250 LABEL,WARNING 2
33 90K41-001260 LABEL,WARNING 1
34 KH1-M13A9-00 BUSH 1
35 90990-23J008 GROMMET 2
36 90990-01J074 BOLT HEX.SOCKET HEAD 4
37 90990-12J001 SCREW BIN.HEAD W/W 52
38 90990-12J004 SCREW BIN.HEAD W/W 6
39 90172-00J040 WASHER,EXTL.TOOTHED 36
40 91312-04005 BOLT HEX.SOCKET HEAD 9 M4X5
41 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
42 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
43 91312-05006 BOLT HEX.SOCKET HEAD 9 M5X6
44 91312-05008 BOLT HEX.SOCKET HEAD 12 M5X8
45 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
46 92902-04200 WASHER PLAIN 14
47 95702-04500 NUT FLANGE 17
48 98902-03005 SCREW BINDING HEAD 8
49 90990-23J006 GROMMET 1
50 KLF-M1375-00 COVER 75 1 MJ70127-2012/9/6
51 KLF-M1376-00 COVER 76 1 MJ70127-2012/9/6
3
2
Top Cover (Ceiling) / Conv.(UPS)
Cover
KLF-1307
OLD
7
7
3
3
12
12
1
2
4
4
Fig 1
Fig 2
7
8
8
10
10
5
13
10
10
5
6
6
11
9
8
8
12
12
1
2
4
4
3
8
8
16
10
10
8
17
17
15
15
14
20
22
24
23
8
8
15
15
8
21
19
10
10
8
18
14
14
25
25
7
13
1
2
3
7
3
13
7
26
26
28
28
29
27
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1306-A1 COVER6 ASSY. 1 OK MK00050-2013/11/26
KLF-M1306-A0 COVER6 ASSY 1 Fig 1,Fig 2
2
KLF-M1305-01 COVER 6-1 1 NG MK00050-2013/11/26
KLF-M1305-00 COVER 6-1 1 Fig 1
3
KLF-M130H-02 COVER,FAN 1 NG MK00050-2013/11/26
KLF-M130H-01 COVER,FAN 1 Fig 1 NG MK20110-2013/3/20
KLF-M130H-00 COVER,FAN 1 Fig 2
4
KLF-M1329-01 COVER 29 2 Hole pitch =574mm NG MJ60110-2012/9/11
KLF-M1329-00 COVER 29 2 Hole pitch =554mm
5 KLF-M26F4-00 PLATE 4 2
6 KLF-M26F5-00 PLATE 5 2
7 90990-12J001 SCREW BIN.HEAD W/W 16
8 90990-12J004 SCREW BIN.HEAD W/W 27
9 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
10 91312-05008 BOLT HEX.SOCKET HEAD 20 M5X8
11 92902-04200 WASHER PLAIN 4
12 98902-03005 SCREW BINDING HEAD 8
13
KLF-M130F-02 BRKT.,FAN 2 NG MK00050-2013/11/26
KLF-M130F-01 BRKT.,FAN 1 Fig 1 MK20110-2013/3/20
14 KLF-M1370-00 DAMPER 4
15 KLF-M1371-00 TAPE 12
16 KLF-M1372-01 COVER 72 1
17 KLF-M1335-00 BRKT.2,GATE COVER 2
18 KLF-M1379-00 COVER 79 1
19 KLF-M137C-00 BRKT,COVER79 1
20 KLF-M137D-00 BRKT 2,COVER 79 1
21 KLF-M137E-00 BRKT 3,COVER 79 1
22 KLF-M137F-00 PLATE,CON. COVER 1
23 90990-12J006 SCREW BIND HEAD W/W 10
24 90990-41J134 COLLAR 8
25 KLF-M9133-01 PLATE,DUCT 2
26 KLF-M130J-00 FILTER,TOP COVER FAN 2 MK00050-2013/11/26
27 KLF-M130P-00 MAGNET 4 MK00050-2013/11/26
28 98502-04050 SCREW PAN HEAD (+) 16 MK00050-2013/11/26
29 98702-03006 SCREW FLAT HEAD 4 MK00050-2013/11/26
4
2

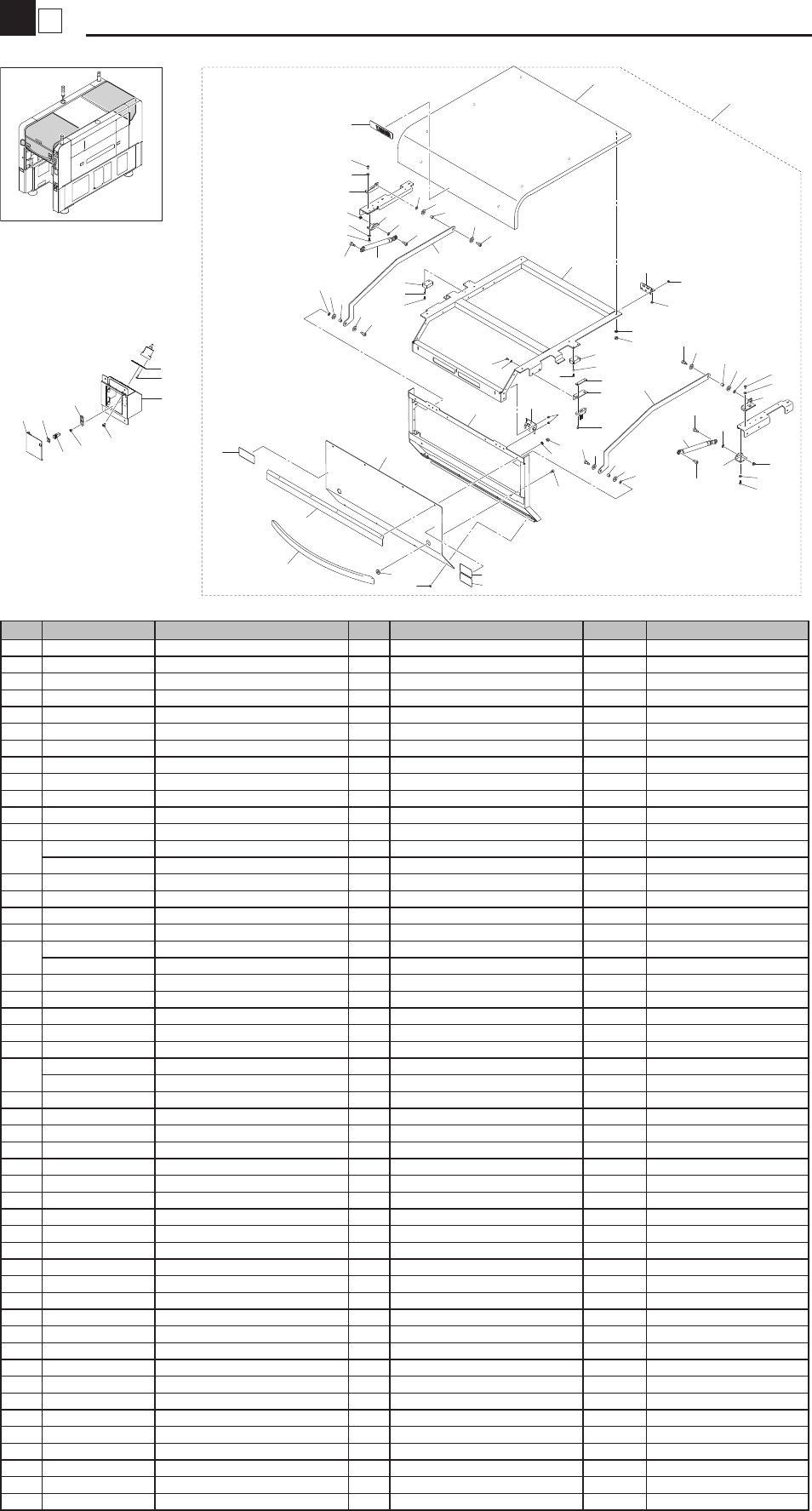

Door / USB-Box
Cover
KLF-1307
20
41
45
45
47
42
9
2
36
36
46
46
18
18
19
12
6
37
40
46
18
18
18
18
46
43
49
48
39
14
17
44
16
15
40
37
6
48
49
17
36
36
18
36
23
26
33
24
29
31
34
27
28
25
1
4
5
8
35
38
21
22
19
19
18
46
41
45
10
19
47
45
42
36
11
46
12
36
7
7
11
30
36
3
13
32
32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1309-01 COVER 9-1 1
2 KLF-M130A-00 COVER 9-2 1
3 KLF-M130K-00 BRKT. 1,COVER 9 1
4 KLF-M130L-01 BRKT. 2,COVER 9 1
5 KLF-M1347-00 COVER 9-4 1
6 KLF-M130M-00 STOPPER 2
7 KLF-M1345-00
PLATE,LINK 2
8
KLF-M1324-00 KNOB 1
9 KLF-M134A-00 BRKT. NUT L 1
10 KLF-M134B-00 BRKT. NUT R 1
11 KLF-M1328-00 BRACKET, GAS DAMPER 2
12 KGS-M1348-00 GAS SPRING 2
13
K46-M1374-12 HINGE 2 3 OK MK20039-2013/2/13
K46-M1374-11 HINGE 2 3
14 KLF-M1374-00 HINGE 2
15 KLF-M1373-00 BRACKET 1, SCHMEASAL 1
16 KL0-M1374-00 PLATE 1 SCHMESAL 1
17 KGS-M1360-00 BOLT 4
18
90990-28J166 WASHER PLAIN 8 OK MJY0091-2013/2/14
KHT-M1347-00 SPACER 8
19 KHT-M1346-00 BUSH 4
20 KKX-M13D7-00 SEAL 2(YAMAHA) 1
21 90K41-001250 LABEL,WARNING 1
22 90K41-001420 LABEL,WARNING 1
23 KLF-M1392-00 LABEL,WARNING 1
24
KLF-M130D-01 BOX,USB 1 OK MJX0051-2012/11/12
KLF-M130D-00 BOX,USB 1
25 KLF-M130E-00 DOOR,USB 1
26 KLF-M1348-00 PLATE,USB 1
27 KW3-M1349-00 MINI LATCH 1
28 KGJ-M1350-00 SPACER,MINI LATCH 1
29 KGJ-M1351-01 PLATE,MINI LATCH 1
30 KLF-M1309-A0 COVER 9 ASSY 2
31 90990-12J001 SCREW BIN.HEAD W/W 2
32 90990-12J002 SCREW BIN.HEAD W/W 20
33 98902-03008 SCREW BINDING HEAD 2
34 98902-04006 SCREW BINDING HEAD 2
35 90990-28J003 WASHER,PLAIN 2
36 90990-31J006 BOLT,SHOULDER 8
37 90990-41J132 COLLAR 4
38 90990-46J001 BOLT,THIN HEAD 4
39 91312-04005 BOLT HEX.SOCKET HEAD 17 M4X5
40 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
41 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
42 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
43 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
44 92902-04200 WASHER PLAIN 2
45 92902-05200 WASHER PLAIN 8
46 92902-06200 WASHER PLAIN 6
47 95307-06600 NUT HEXAGON 2
48 95702-04500 NUT FLANGE 13
49 90172-00J040 WASHER,EXTL.TOOTHED 38
