YSM40_PartList - 第13页
4 2 Door / USB-Box Cover KLF-1307 20 41 45 45 47 42 9 2 36 36 46 46 18 18 19 12 6 37 40 46 18 18 18 18 46 43 49 48 39 14 17 44 16 15 40 37 6 48 49 17 36 36 18 36 23 26 33 24 29 31 34 27 28 25 1 4 5 8 35 38 21 22 19 19 18…
3
2
Top Cover (Ceiling) / Conv.(UPS)
Cover
KLF-1307
OLD
7
7
3
3
12
12
1
2
4
4
Fig 1
Fig 2
7
8
8
10
10
5
13
10
10
5
6
6
11
9
8
8
12
12
1
2
4
4
3
8
8
16
10
10
8
17
17
15
15
14
20
22
24
23
8
8
15
15
8
21
19
10
10
8
18
14
14
25
25
7
13
1
2
3
7
3
13
7
26
26
28
28
29
27
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1306-A1 COVER6 ASSY. 1 OK MK00050-2013/11/26
KLF-M1306-A0 COVER6 ASSY 1 Fig 1,Fig 2
2
KLF-M1305-01 COVER 6-1 1 NG MK00050-2013/11/26
KLF-M1305-00 COVER 6-1 1 Fig 1
3
KLF-M130H-02 COVER,FAN 1 NG MK00050-2013/11/26
KLF-M130H-01 COVER,FAN 1 Fig 1 NG MK20110-2013/3/20
KLF-M130H-00 COVER,FAN 1 Fig 2
4
KLF-M1329-01 COVER 29 2 Hole pitch =574mm NG MJ60110-2012/9/11
KLF-M1329-00 COVER 29 2 Hole pitch =554mm
5 KLF-M26F4-00 PLATE 4 2
6 KLF-M26F5-00 PLATE 5 2
7 90990-12J001 SCREW BIN.HEAD W/W 16
8 90990-12J004 SCREW BIN.HEAD W/W 27
9 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
10 91312-05008 BOLT HEX.SOCKET HEAD 20 M5X8
11 92902-04200 WASHER PLAIN 4
12 98902-03005 SCREW BINDING HEAD 8
13
KLF-M130F-02 BRKT.,FAN 2 NG MK00050-2013/11/26
KLF-M130F-01 BRKT.,FAN 1 Fig 1 MK20110-2013/3/20
14 KLF-M1370-00 DAMPER 4
15 KLF-M1371-00 TAPE 12
16 KLF-M1372-01 COVER 72 1
17 KLF-M1335-00 BRKT.2,GATE COVER 2
18 KLF-M1379-00 COVER 79 1
19 KLF-M137C-00 BRKT,COVER79 1
20 KLF-M137D-00 BRKT 2,COVER 79 1
21 KLF-M137E-00 BRKT 3,COVER 79 1
22 KLF-M137F-00 PLATE,CON. COVER 1
23 90990-12J006 SCREW BIND HEAD W/W 10
24 90990-41J134 COLLAR 8
25 KLF-M9133-01 PLATE,DUCT 2
26 KLF-M130J-00 FILTER,TOP COVER FAN 2 MK00050-2013/11/26
27 KLF-M130P-00 MAGNET 4 MK00050-2013/11/26
28 98502-04050 SCREW PAN HEAD (+) 16 MK00050-2013/11/26
29 98702-03006 SCREW FLAT HEAD 4 MK00050-2013/11/26
4
2
Door / USB-Box
Cover
KLF-1307
20
41
45
45
47
42
9
2
36
36
46
46
18
18
19
12
6
37
40
46
18
18
18
18
46
43
49
48
39
14
17
44
16
15
40
37
6
48
49
17
36
36
18
36
23
26
33
24
29
31
34
27
28
25
1
4
5
8
35
38
21
22
19
19
18
46
41
45
10
19
47
45
42
36
11
46
12
36
7
7
11
30
36
3
13
32
32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1309-01 COVER 9-1 1
2 KLF-M130A-00 COVER 9-2 1
3 KLF-M130K-00 BRKT. 1,COVER 9 1
4 KLF-M130L-01 BRKT. 2,COVER 9 1
5 KLF-M1347-00 COVER 9-4 1
6 KLF-M130M-00 STOPPER 2
7 KLF-M1345-00
PLATE,LINK 2
8
KLF-M1324-00 KNOB 1
9 KLF-M134A-00 BRKT. NUT L 1
10 KLF-M134B-00 BRKT. NUT R 1
11 KLF-M1328-00 BRACKET, GAS DAMPER 2
12 KGS-M1348-00 GAS SPRING 2
13
K46-M1374-12 HINGE 2 3 OK MK20039-2013/2/13
K46-M1374-11 HINGE 2 3
14 KLF-M1374-00 HINGE 2
15 KLF-M1373-00 BRACKET 1, SCHMEASAL 1
16 KL0-M1374-00 PLATE 1 SCHMESAL 1
17 KGS-M1360-00 BOLT 4
18
90990-28J166 WASHER PLAIN 8 OK MJY0091-2013/2/14
KHT-M1347-00 SPACER 8
19 KHT-M1346-00 BUSH 4
20 KKX-M13D7-00 SEAL 2(YAMAHA) 1
21 90K41-001250 LABEL,WARNING 1
22 90K41-001420 LABEL,WARNING 1
23 KLF-M1392-00 LABEL,WARNING 1
24
KLF-M130D-01 BOX,USB 1 OK MJX0051-2012/11/12
KLF-M130D-00 BOX,USB 1
25 KLF-M130E-00 DOOR,USB 1
26 KLF-M1348-00 PLATE,USB 1
27 KW3-M1349-00 MINI LATCH 1
28 KGJ-M1350-00 SPACER,MINI LATCH 1
29 KGJ-M1351-01 PLATE,MINI LATCH 1
30 KLF-M1309-A0 COVER 9 ASSY 2
31 90990-12J001 SCREW BIN.HEAD W/W 2
32 90990-12J002 SCREW BIN.HEAD W/W 20
33 98902-03008 SCREW BINDING HEAD 2
34 98902-04006 SCREW BINDING HEAD 2
35 90990-28J003 WASHER,PLAIN 2
36 90990-31J006 BOLT,SHOULDER 8
37 90990-41J132 COLLAR 4
38 90990-46J001 BOLT,THIN HEAD 4
39 91312-04005 BOLT HEX.SOCKET HEAD 17 M4X5
40 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
41 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
42 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
43 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
44 92902-04200 WASHER PLAIN 2
45 92902-05200 WASHER PLAIN 8
46 92902-06200 WASHER PLAIN 6
47 95307-06600 NUT HEXAGON 2
48 95702-04500 NUT FLANGE 13
49 90172-00J040 WASHER,EXTL.TOOTHED 38
5
2

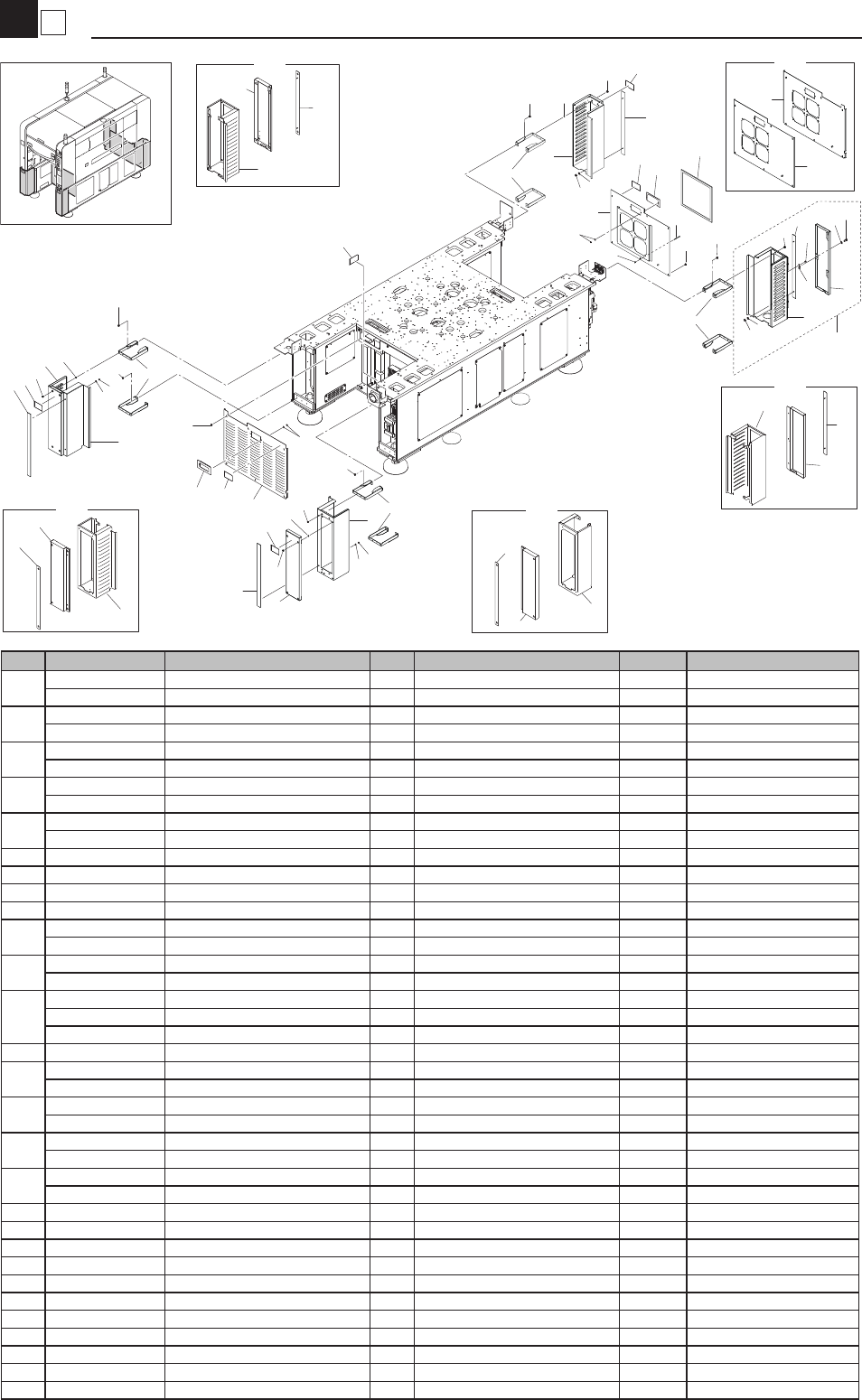

Base
Cover
KLF-1307
17
23
22
18
13
12
18
20
20
20
1
9
10
22
23
22
14
23
16
17
17
18
19
19
19
13
18
20
20
2
7
21
3
23
22
4
5
6
8
20
11
24
19
18
OLD
10
16
17
20
25
OLD
1
14
17
OLD
3
4
5
OLD
17
12
11
15
24
24
24
25
18
19
25
13
13
12
OLD
Fig 2
Fig 1
26
28
27
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1310-02 COVER 10 1 NG MK10103-2013/2/6
KLF-M1310-01 COVER 10 1
2
KLF-M1311-A1 COVER 11 ASSY. 1 NG MK10103-2013/2/6
KLF-M1311-A0 COVER 11 ASSY. 1
3
KLF-M1311-02 COVER 11 1 NG MK10103-2013/2/6
KLF-M1311-01 COVER 11 1
4
KLF-M132D-01 COVER 11-1 1 NG MK10103-2013/2/6
KLF-M132D-00 COVER 11-1 1
5
KLF-M137A-01 COVER,PANEL A 1 NG MK10103-2013/2/6
KLF-M137B-00 COVER,PANEL B 1
6 KGJ-M1350-00 SPACER,MINI LATCH 1
7 KGJ-M1351-01 PLATE,MINI LATCH 1
8 KW3-M1349-00 MINI LATCH 1
9 KLF-M1312-00 COVER,12 1
10
KLF-M1313-02 COVER 13 1 NG MK10103-2013/2/6
KLF-M1313-01 COVER 13 1
11
KLF-M1314-02 COVER 14 1 NG MK10103-2013/2/6
KLF-M1314-01 COVER 14 1
12
KLF-M1315-04 COVER,15 1 OK MK00050-2013/11/26
KLF-M1315-03 COVER,15 1 Fig 2 NG MK30134-2013/3/27
KLF-M1315-02 COVER,15 1 Fig 1
13 KHU-M1117-00 PULL 2
14
KLF-M132A-01 COVER 10-1 1 NG MK10103-2013/2/6
KLF-M132A-00 COVER 10-1 1
15
Delete NG MK10103-2013/2/6
KLF-M132A-50 COVER 10-1 1
16
Delete NG MK10103-2013/2/6
KLF-M132B-00 COVER 13-1 1
17
KLF-M137A-01 COVER,PANEL A 3 NG MK10103-2013/2/6
KLF-M137A-00 COVER,PANEL A 3
18 90K41-001270 LABEL,WARNING 6
19 90990-12J001 SCREW BIN.HEAD W/W 16
20 90990-12J004 SCREW BIN.HEAD W/W 28
21 90990-12J006 SCREW BIND HEAD W/W 2
22 90172-00J040 WASHER,EXTL.TOOTHED 8
23 95702-04500 NUT FLANGE 8
24 KLF-M13E1-00 BRKT.,COVER 8
25 KH1-M1396-00 WASHER 12
26 KLF-M131J-00 FILTER,REAR BASE FAN 1 MK00050-2013/11/26
27 98502-04050 SCREW PAN HEAD (+) 16 MK00050-2013/11/26
28 95302-04600 NUT, HEXAGON 16 MK00050-2013/11/26
