YSM40_PartList - 第16页
2 3 Bank FES46 Locate Pin / Fan Feeder Holder KLF-1307 35 34 16 16 16 16 16 21 25 5 12 33 25 17 26 26 18 20 2 3 23 1 1 6 13 19 14 20 18 1 1 29 28 1 22 10 9 17 7 8 4 15 27 15 27 15 27 35 34 30 31 32 4 35 34 4 OLD 4 24 No.…
1
3

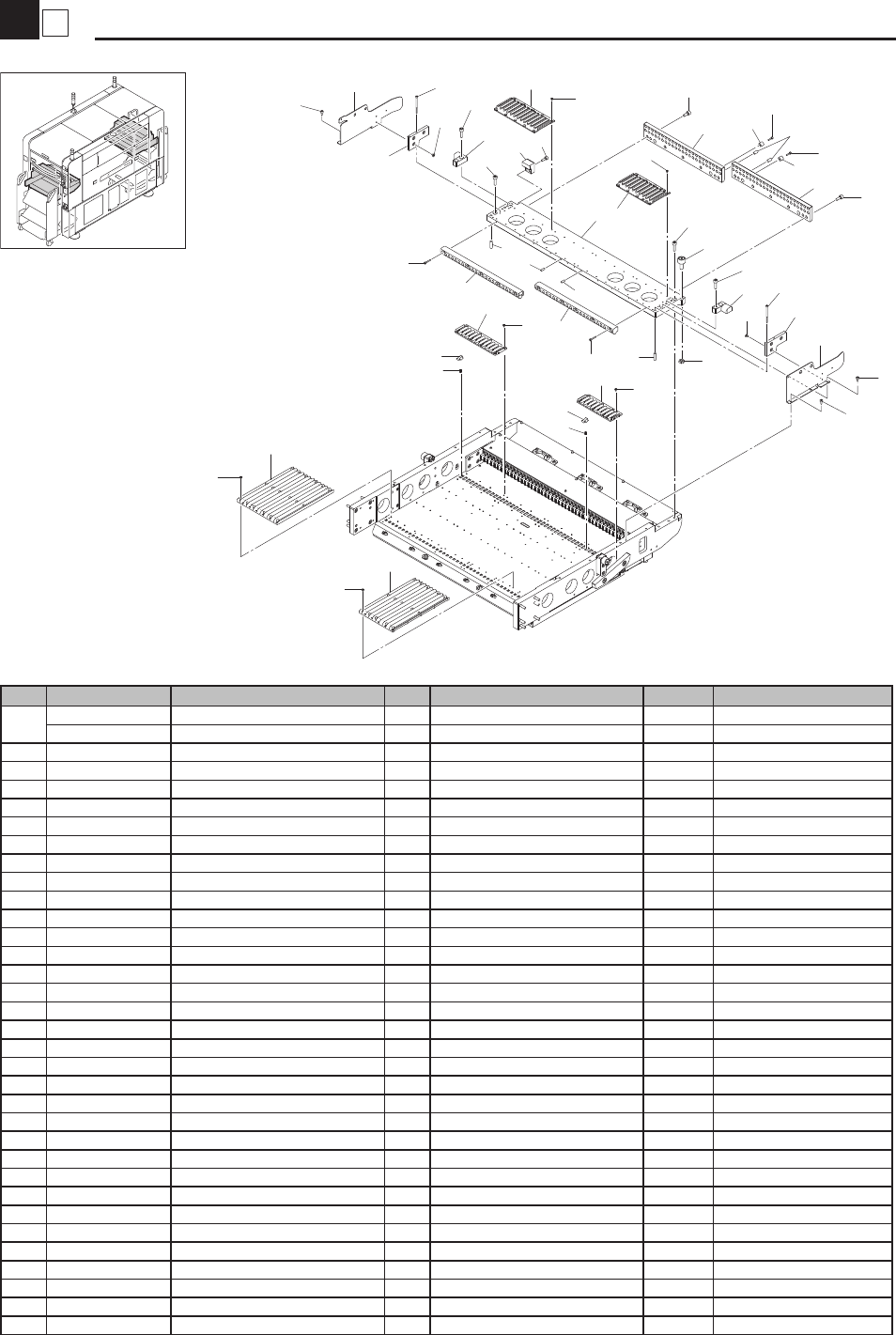

Bank FES46 Rail Guide
Feeder Holder
KLF-1307
24
22
31
31
33
33
28
30
30
30
30
11
12
9
17
19
17
19
18
22
7
7
5
23
10
20
27
27
27
27
4
20
23
10
24
24
6
14
8
1
25
29
26
2
2
26
21
21
32
15
15
29
16
13
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M3751-01 PLATE,FEEDER 1 OK MJX0076-2012/12/20
KLF-M3751-00 PLATE,FEEDER 1
2 KLF-M3754-01 PLATE,FRONT 2
3 KLF-M3755-00 PLATE,UPPER L 1
4 KLF-M3755-50 PLATE,UPPER R 1
5 KLF-M3756-01 COVER,ARM L 1
6 KLF-M3756-51 COVER,ARM R 1
7 KLF-M3757-00 SHAFT,GUIDE 2
8 KLF-M375H-00 RAIL GUIDE 12P 1
9 KLF-M375N-00 GUIDE,FEEDER UNDER 1
10 KLF-M375T-00 BLOCK,COVER 2
11 KLF-M375X-00 GUIDE,FEEDER UNDER 3
12 KLF-M375X-50 GUIDE,FEEDER UNDER 1
13 KLF-M3761-01 PLATE,MAIN 1
14 KLF-M3763-00 CAM FOLLOWER 1
15 KLF-M3764-00 PIN 2
16 KHY-M371R-00 RAIL GUIDE 12P 3
17 KHY-M372P-00 SUPPORT,LEVER 46
18 KHY-M372R-00 GUIDE,FEEDER UNDER 3
19 KHY-M372S-01 SPRING,SUPPORT 46
20 90990-46J005 BOLT,THIN HEAD 6
21 91312-03012 BOLT,HEX.SOCKET HEAD 2 M3X12
22 91312-03018 BOLT HEX.SOCKET HEAD 10 M3X18
23 91312-03050 BOLT HEX.SOCKET HEAD 4 M3X50
24 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
25 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
26 91312-06014 BOLT HEX.SOCKET HEAD 10 M6X14
27 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
28 95302-08700 NUT HEXAGON 1
29 98702-03006 SCREW FLAT HEAD 40
30 98902-03004 SCREW BINDING HEAD 101
31 99480-04012 PIN,PARALLEL 2
32 99480-06012 PIN,PARALLEL 2
33 99480-06020 PIN PARALLEL 4
2
3
Bank FES46 Locate Pin / Fan
Feeder Holder
KLF-1307
35
34
16
16
16
16
16
21
25
5
12
33
25
17
26
26
18
20
2
3
23
11
6
13
19
14
20
18
11
29
28
1
22
10
9
17
7
8
4
15
27
15
27
15
27
35
34
30
31
32
4
35
34
4
OLD
4
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M375A-00 LOCATING PIN,A 1
2 KLF-M375B-00 LOCATING PIN,B 1
3 KLF-M375C-00 BAR,CONNECTOR 1
4
KLF-M375D-01 BRACKET,FAN 3 NG MJX0194-2012/12/24
KLF-M375D-00 BRACKET,FAN 3
5 KLF-M375E-00 PLATE,CONNECTOR 1
6 KLF-M375G-00 BLOCK,ADJUSTER 2
7 KLF-M375K-00 COVER,FRONT 2 1
8 KLF-M375L-00 COVER,MAIN 1 1
9 KLF-M375M-00 PLATE,SIDE L 1
10 KLF-M375M-50 PLATE,SIDE R 1
11 KLF-M375R-00 HOLDER,PIN 2
12 KHY-M372M-00 SCREW,STAD 92
13
KLF-M3719-00 AIR JOINT 4 L=22mm OK MK00036-2013/10/11
KV8-M3719-00 AIR JOINT 4 L=20mm
14 90112-2AJ008 BOLT HEX.SOCKET HEAD 4
15 90990-11J001 SCREW PAN HEAD W/W 16
16 90990-12J001 SCREW BIN.HEAD W/W 21
17 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
18 91312-04018 BOLT HEX.SOCKET HEAD 4 M4X18
19 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
20 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
21 92012-03005 BOLT BUTTON HEAD 5
22 92012-05010 BOLT,BUTTON HEAD 8
23 92A08-04304 SET SCREW M4X4 4
24
Delete MJX0194-2012/12/24
95302-03600 NUT HEXAGON 12
25 99480-03008 PIN,PARALLEL 4
26 99480-03010 PIN,PARALLEL 4
27 $NK-3N NYLON CLIP 16
28 KLF-M66R4-00 HNS,FES.CUNET 1
29 KLF-M66R5-00 HNS,FES.PWR 1
30 KLF-M66RP-00 HNS,FDR FAN DI FES 1
31 KLF-M66RP-10 HNS,FDR FAN DI FES 1
32 KLF-M66RP-20 HNS,FDR FAN DI FES 1
33 KLF-M66TE-00 HNS,F.CTRL-FDR 46
34 KHY-M6187-00 FAN MOTOR ASSY 3
35 91312-03018 BOLT HEX.SOCKET HEAD 12 NG MJX0194-2012/12/24
3
3
Bank FES46 Base
Feeder Holder
KLF-1307
21
21
6
6
3
4
18
5
19
19
9
9
17
17
10
1
2
8
20
10
8
20
33
38
38
37
40
40
39
39
34
32
22
22
22
30
31
26
2726
15
15
12
11
15
15
15
13
36
35
28
29
15
16
15
24
24
25
25
23
23
14
18
5
14
7
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M3752-02 ARM,MAIN L 1 Semicircle depth=10.4mm NG MJ90166-2012/10/1
KLF-M3752-01 ARM,MAIN L 1 Semicircle depth=8.4mm OK MJ90018-2012/9/7
KLF-M3752-00 ARM,MAIN L 1
2
KLF-M3752-53 ARM,MAIN R 1 Semicircle depth=7.4mm NG MJ90166-2012/10/1
KLF-M3752-52 ARM,MAIN R 1 Semicircle depth=5.4mm OK MJ90018-2012/9/7
KLF-M3752-51 ARM,MAIN R 1
3
KLF-M3753-00 GUIDE,FOLLOWER L
1
4
KLF-M3753-50 GUIDE,FOLLOWER R 1
5
KLF-M3758-02 HOLDER,FOLLOWER 2 t=19mm NG MJ90166-2012/10/1
KLF-M3758-01 HOLDER,FOLLOWER 2 t=17mm OK MJ90018-2012/9/7
KLF-M3758-00 HOLDER,FOLLOWER 2
6 KLF-M3759-00 STRIPPER BOLT 4
7 KLF-M375F-01 COVER,FRONT 1 1
8 KLF-M375P-00 COLLAR 2
9 KLF-M375U-00 COVER,HNS. 2
10 KLF-M375V-00 DAMPER 2
11 KLF-M375W-00 COVER,MAIN 3 1
12 KLF-M375Y-00 COVER,MAIN 2 1
13 KLF-M3762-00 BRKT.,CONNECTOR 1
14 KKU-M1138-00 CAM FOLLOWER 2
15 90990-12J001 SCREW BIN.HEAD W/W 22
16 90990-42J047 JOINT 2
17 90990-46J005 BOLT,THIN HEAD 8
18 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
19 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X25
20 91312-06030 BOLT HEX.SOCKET HEAD 2 M6X30
21 92012-03005 BOLT BUTTON HEAD 5
22 98902-03004 SCREW BINDING HEAD 28
23 95602-06100 NUT,U 4
24 95602-08100 NUT U 2
25 99480-06030 PIN, PARALELL 4
26
KLF-M443S-00 FDR INDI BRD SET 1 INDI 1/2 set MJ90060-2012/9/11
KLF-M4436-00 FDR INDI1 BRD ASSY 1
27
Delete MJ90060-2012/9/11
KLF-M4438-00 FDR INDI2 BRD ASSY 1
28 KLF-M4476-02 FDR.CTRL.BOARD ASSY 1
29 KLF-M6697-00 HNS,CN-55-RS232C 1
30 KLF-M6698-00 HNS,FDR CTRL INDI 1
31 KLF-M6699-00 HNS,FDR INDI 1
32 KLF-M66RG-00 HNS,TERMINATION 1
33 KLF-M66RL-00 HNS,FDR DI A FES 1
34 KLF-M66RM-00 HNS,FDR DO FES 1
35 KLF-M66RR-01 HNS,FDR COVER DI FES 1
36 KHJ-M668A-00 HNS,RS232C 1
37 KLF-M373B-00 LABEL,LED POSITION 1
38 KLF-M373C-00 LABEL,INDICATOR 2
39 KHY-M13D8-00 STICKER 2
40 KV8-M3758-00 SEAL(DUMP) 2
