YSM40_PartList - 第18页
4 3 Cover FES46 Moving Part Feeder Holder KLF-1307 8 4 4 28 30 30 15 24 28 12 28 16 17 27 27 17 13 14 19 25 19 25 1 1 10 26 26 26 1 2 2 2 2 26 20 20 23 23 6 1 26 26 26 26 5 5 21 21 29 29 22 22 24 28 28 3 7 9 18 24 OLD 13…
3
3
Bank FES46 Base
Feeder Holder
KLF-1307
21
21
6
6
3
4
18
5
19
19
9
9
17
17
10
1
2
8
20
10
8
20
33
38
38
37
40
40
39
39
34
32
22
22
22
30
31
26
2726
15
15
12
11
15
15
15
13
36
35
28
29
15
16
15
24
24
25
25
23
23
14
18
5
14
7

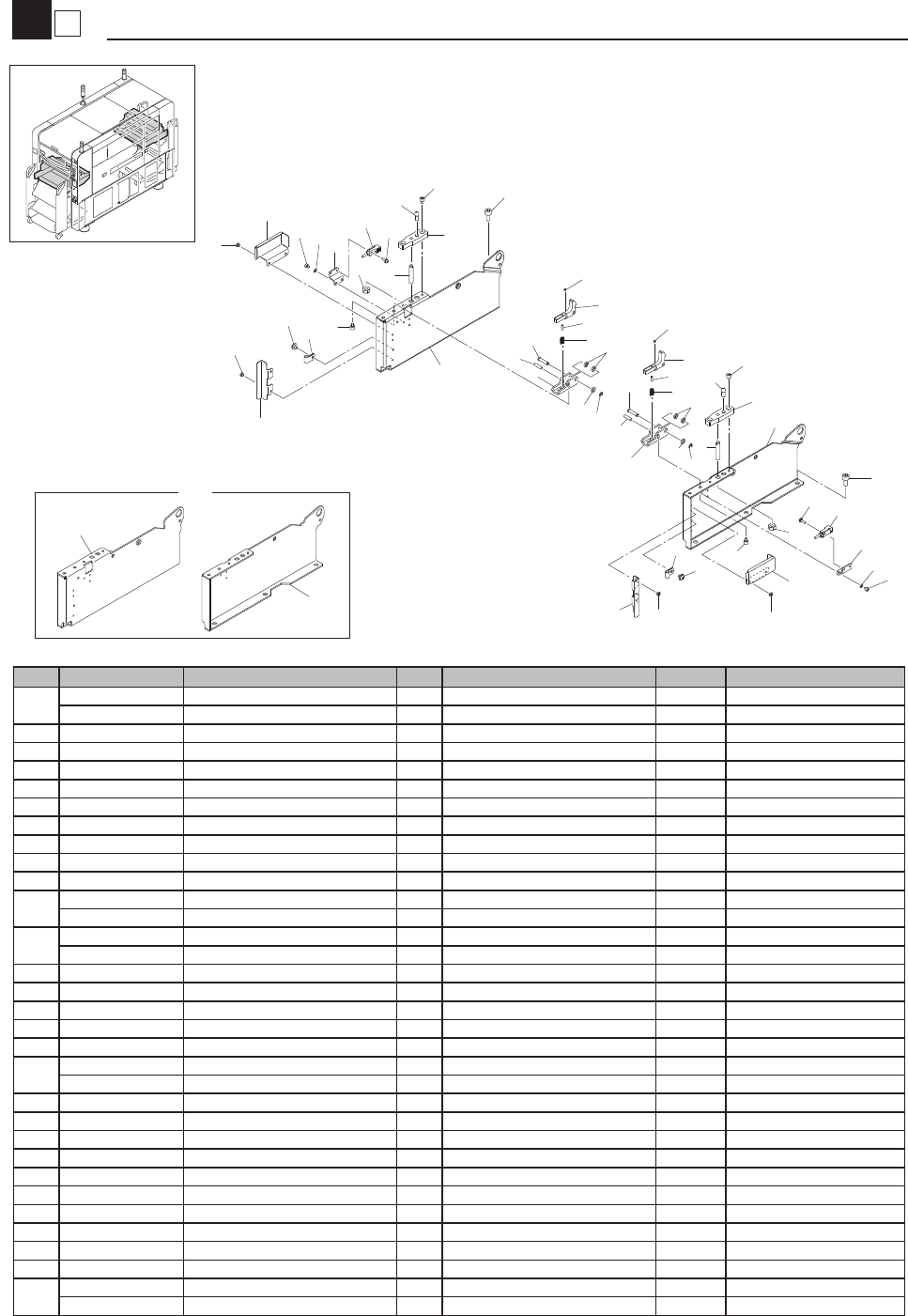

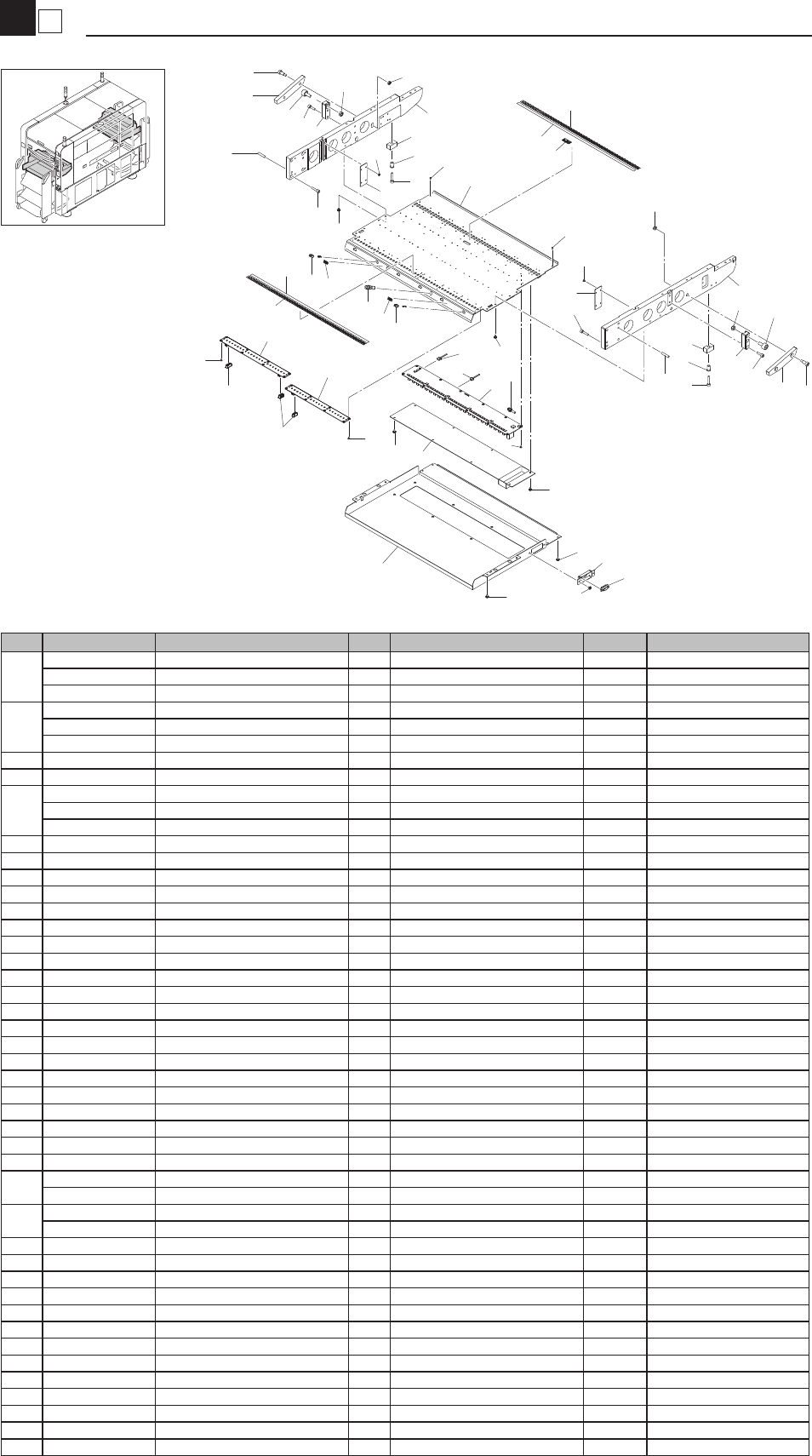

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M3752-02 ARM,MAIN L 1 Semicircle depth=10.4mm NG MJ90166-2012/10/1
KLF-M3752-01 ARM,MAIN L 1 Semicircle depth=8.4mm OK MJ90018-2012/9/7
KLF-M3752-00 ARM,MAIN L 1
2
KLF-M3752-53 ARM,MAIN R 1 Semicircle depth=7.4mm NG MJ90166-2012/10/1
KLF-M3752-52 ARM,MAIN R 1 Semicircle depth=5.4mm OK MJ90018-2012/9/7
KLF-M3752-51 ARM,MAIN R 1
3
KLF-M3753-00 GUIDE,FOLLOWER L
1
4
KLF-M3753-50 GUIDE,FOLLOWER R 1
5
KLF-M3758-02 HOLDER,FOLLOWER 2 t=19mm NG MJ90166-2012/10/1
KLF-M3758-01 HOLDER,FOLLOWER 2 t=17mm OK MJ90018-2012/9/7
KLF-M3758-00 HOLDER,FOLLOWER 2
6 KLF-M3759-00 STRIPPER BOLT 4
7 KLF-M375F-01 COVER,FRONT 1 1
8 KLF-M375P-00 COLLAR 2
9 KLF-M375U-00 COVER,HNS. 2
10 KLF-M375V-00 DAMPER 2
11 KLF-M375W-00 COVER,MAIN 3 1
12 KLF-M375Y-00 COVER,MAIN 2 1
13 KLF-M3762-00 BRKT.,CONNECTOR 1
14 KKU-M1138-00 CAM FOLLOWER 2
15 90990-12J001 SCREW BIN.HEAD W/W 22
16 90990-42J047 JOINT 2
17 90990-46J005 BOLT,THIN HEAD 8
18 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
19 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X25
20 91312-06030 BOLT HEX.SOCKET HEAD 2 M6X30
21 92012-03005 BOLT BUTTON HEAD 5
22 98902-03004 SCREW BINDING HEAD 28
23 95602-06100 NUT,U 4
24 95602-08100 NUT U 2
25 99480-06030 PIN, PARALELL 4
26
KLF-M443S-00 FDR INDI BRD SET 1 INDI 1/2 set MJ90060-2012/9/11
KLF-M4436-00 FDR INDI1 BRD ASSY 1
27
Delete MJ90060-2012/9/11
KLF-M4438-00 FDR INDI2 BRD ASSY 1
28 KLF-M4476-02 FDR.CTRL.BOARD ASSY 1
29 KLF-M6697-00 HNS,CN-55-RS232C 1
30 KLF-M6698-00 HNS,FDR CTRL INDI 1
31 KLF-M6699-00 HNS,FDR INDI 1
32 KLF-M66RG-00 HNS,TERMINATION 1
33 KLF-M66RL-00 HNS,FDR DI A FES 1
34 KLF-M66RM-00 HNS,FDR DO FES 1
35 KLF-M66RR-01 HNS,FDR COVER DI FES 1
36 KHJ-M668A-00 HNS,RS232C 1
37 KLF-M373B-00 LABEL,LED POSITION 1
38 KLF-M373C-00 LABEL,INDICATOR 2
39 KHY-M13D8-00 STICKER 2
40 KV8-M3758-00 SEAL(DUMP) 2
4
3
Cover FES46 Moving Part
Feeder Holder
KLF-1307
8
4
4
28
30
30
15
24
28
12
28
16
17
27
27
17
13
14
19
25
19
25
11
10
26
26
26
1
2
2
2
2
26
20
20
23
23
6
1
26
26
26
26
5
5
21
21
29
29
22
22
24
28
28
3
7
9
18
24
OLD
13
14
4
4

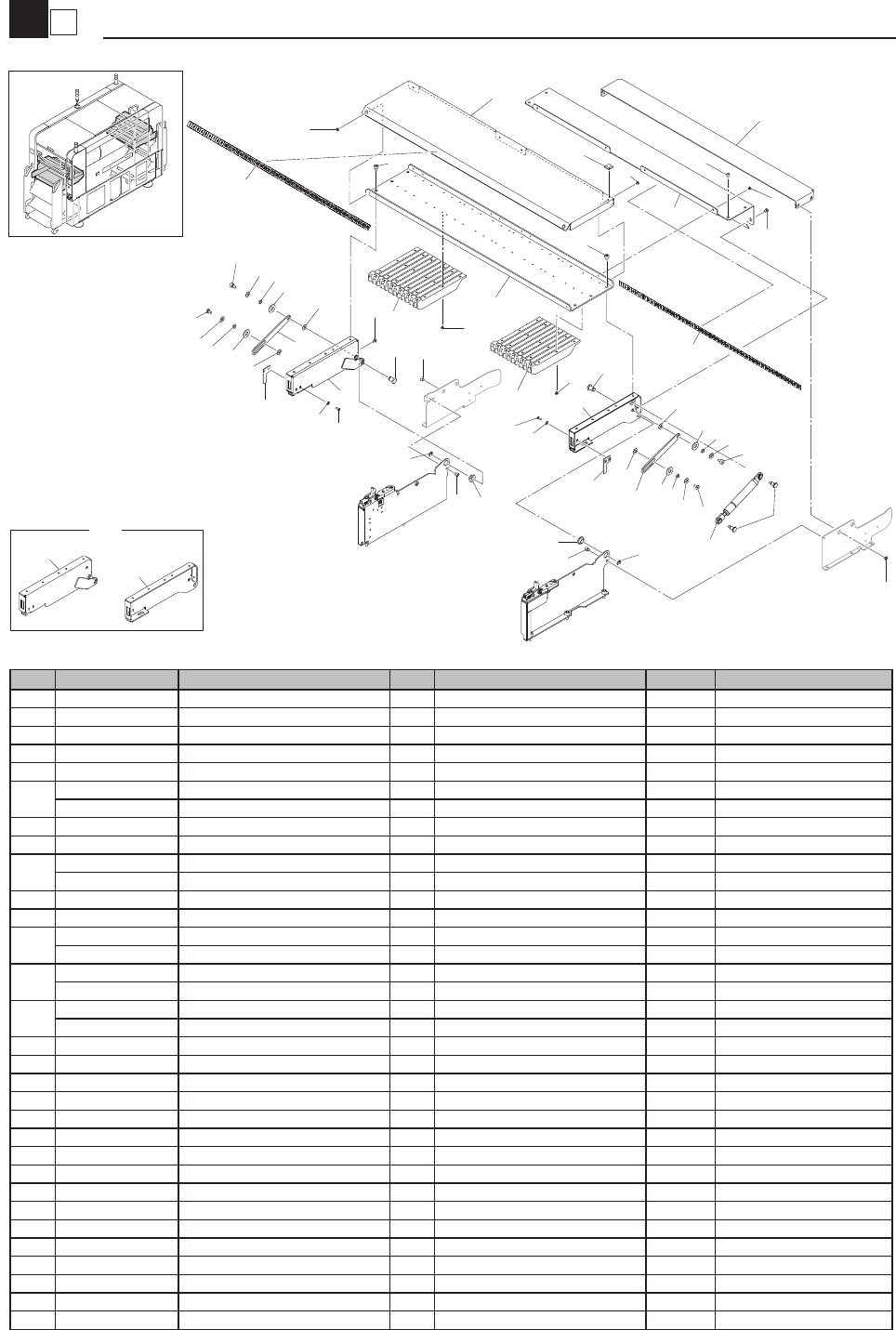

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3741-00 PLATE,STOPPER 2
2 KLF-M3742-00 WASHER 4
3 KLF-M3743-00 STOPPER,TAPE GUIDE 1
4 KLS-M3744-00 WASHER 4 MJ00063-2012/10/9
5 KLF-M374D-00 BUSH,FLANGE 2
6
KLF-M3745-00 BOLT. DAMPER 2 OK MJY0012-2012/12/5
KW8-M1375-00 BOLT. DAMPER 2
7 KLF-M374H-00 PLATE,OBSTRUCTIVE 1
8 KLF-M374J-00 GAS DAMPER 1
9
KLF-M374M-01 COVER,TOP 1 L=598mm NG MK30082-2013/4/8
KLF-M374M-00 COVER,TOP 1 L=601mm
10 KLF-M374N-00 DOG,SENSOR R 1
11 KLF-M374N-50 DOG,SENSOR L 1
12
KLF-M374P-01 PLATE,UPPER 1 L=595mm NG MK30082-2013/4/8
KLF-M374P-00 PLATE,UPPER 1 L=598mm
13
KLF-M374R-01 ARM,UPPER GUIDE R 1 NG MK10033-2013/1/21
KLF-M374R-00 ARM,UPPER GUIDE R 1
14
KLF-M374R-51 ARM,UPPER GUIDE L 1 NG MK10033-2013/1/21
KLF-M374R-50 ARM,UPPER GUIDE L 1
15 KLF-M374S-00 GUIDE,FEEDER UPPER 3
16 KLF-M374T-00 GUIDE,FEEDER UPPER 1
17 KLF-M374X-00 PIN,HINGE 2
18 KV5-M1356-00 SPACER DOOR 2
19 90990-01J071 BOLT,HEX.SOCKET HEAD 4
20 90990-01J074 BOLT HEX.SOCKET HEAD 2
21 91312-04005 BOLT HEX.SOCKET HEAD 2 M4X5
22 91312-05006 BOLT HEX.SOCKET HEAD 6 M5X6
23 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
24 92012-04006 BOLT, BUTTON HEAD 6
25 92902-03200 WASHER PLAIN 4
26 92902-05200 WASHER PLAIN 8
27 98702-04006 SCREW FLAT HEAD 4
28 98902-03004 SCREW BINDING HEAD 79
29 99002-07600 CIRCLIP 2
30 KHY-M13D8-000 STICKER 2
5
3
Cover FES46 Base / Sensor
Feeder Holder
KLF-1307
17
9
20
24
7
26
1
21
18
17
17
10
10
29
18
17
8
21
26
27
7
24
20
22
13
29
13
27
12
28
28
15
15
5
2
2
19
16
19
16
1
3
3
23
5
23
25
25
4
4
6
6
11
14
14
21
21
22
OLD
12
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M374K-00 PLUNGER 2 OK MK10033-2013/1/21
KLF-M3747-00 PLUNGER 2
2 KLF-M3748-00 WASHER 4
3 KLF-M374A-00 BASE,CLAMP 2
4 KLF-M374B-00 LEVER,CLAMP 2
5 KLF-M374C-00 SPRING,CLAMP 2
6 KLF-M374F-00 STOPPER,ARM 2
7 KLF-M374L-00 BRKT.,SENSOR 2
8 KLF-M374U-00 COVER,SENSOR R 1
9 KLF-M374U-50 COVER,SENSOR L 1
10 KLF-M374V-00 COVER,HNS. 2
11
KLF-M374Y-01 BASE,ARM R 1 Damper position movement NG MK10033-2013/1/21
KLF-M374Y-00 BASE,ARM R 1
12
KLF-M374Y-51 BASE,ARM L 1 Damper position movement NG MK10033-2013/1/21
KLF-M374Y-50 BASE,ARM L 1
13 KLF-M652W-00 SENSOR COVER DI ASSY 2
14 KHJ-MC10S-01 PIN,LOCATE 1 2
15 KHJ-MC289-00 PIN,CLAMP 2
16 90440-01J030 CIRCLIP(E) 2
17 90990-10J008 SCREW,BINDING HEAD 8
18
Delete MK30146-2013/3/27
90990-11J001 SCREW PAN HEAD W/W 4
19 90990-28J038 WASHER,PLAIN 2
20 91312-03004 BOLT HEX.SOCKET HEAD 4 M3X4
21 91312-04005 BOLT HEX.SOCKET HEAD 8 M4X5
22 91312-06012 BOLT HEX.SOCKET HEAD 6 M6X12
23 91609-25008 PIN,SPRING 2
24 92902-03600 WASHER PLAIN 4
25 92A08-03303 SET SCREW M3X3 2
26 95302-06600 NUT HEXAGON 2
27 97602-03310 SCREW,PAN HEAD W/W 2
28 99480-04014 PIN,PARALLEL 2
29
Delete MK30146-2013/3/27
$NK-3N NYLON CLIP 4
