YSM40_PartList - 第26页
3 4 X-axis Holder Head / Dog Moving-axis KLF-1210 26 4 29 T ype B, C 2 5 12 32 8 31 26 27 19 14 20 30 20 30 35 27 27 34 15 19 27 25 22 10 23 28 29 29 29 30 31 24 3 1 17 18 21 21 16 6 7 9 1 1 13 32 20 20 33 D A B C No. Pa…
2
4

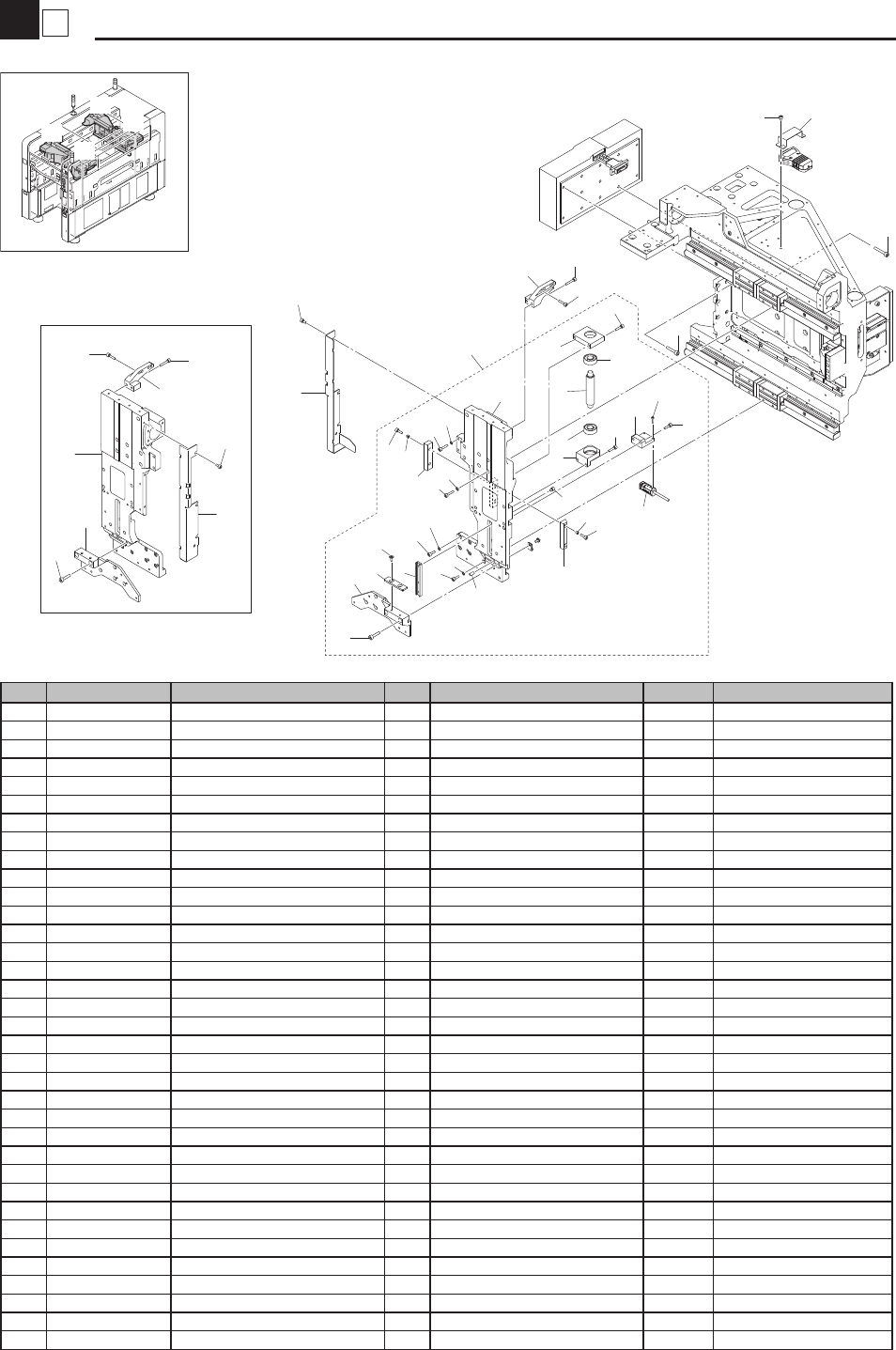

X-axis Guide / BS / X Stopper (4-Beam)
Moving-axis
KLF-1307
OLD
26
37
37
3
1
1
2
2
4
36
36
35
3
30
30
Type B, C
30
30
D
A
B
C
19
16
28
22
15
25
14
18
28
34
24
32
17
44
40
45
43
42
41
39
39
27
11
29
8
7
13 12
6
10
9
31
31
5
33
38
14
21
16
23
20
18
24
32
17
46
50
48
47
48
49
48
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M2211-01 GUIDE,X-AD AXIS 1 A,D OK MKX0067-2013/12/3
KLF-M2211-00 GUIDE,X-AD AXIS 1 A,D
2
KLF-M2211-51 GUIDE,X-BC AXIS 1 B,C OK MKX0067-2013/12/3
KLF-M2211-50 GUIDE,X-BC AXIS 1 B,C
3 KLF-M2225-10 COVER,2 GUIDE X 2
4 KLF-M22T1-A0 X SCALE ASSY 1
5 KLF-M2207-00 BRKT.,CYL. 1
6 KLF-M2251-00 CYL.., X-STOPPER 1
7 KLF-M2252-00 RECEIVER 1
8 KLF-M2253-00 STOPPER 1 1
9 KLF-M653F-00 SEN.X LMT.FOR ASSY 1
10 KLF-M653F-10 SEN.X LMT.BACK ASSY 1
11
90990-41J180 COLLAR 2 OK ML60128-2014/7/11
KHW-M2656-00 SPACER 2
12 $TL4-M5 JOINT 1
13 $SC4-M5A SPEED CONTROLLER 1
14
KLF-M2212-A1 BALL SCREW ASSY. 1 B.R.G Change NG MM40039-2015/4/27
KLF-M2212-A0 BALL SCREW ASSY. 1 14,21 Press-t OK ML70107-2014/7/18
KLF-M2212-00 BALL SCREW 1
15 KLF-M2215-00 HOLDER,BRG. 1
16
KLF-M2216-01 PULLEY X1 1 2 Step NG MM40039-2015/4/27
KLF-M2216-00 PULLEY X1 1 1 Step
17
KLF-M221A-01 COLLAR A 2 NG ML70016-2014/7/18
KLF-M221A-00 COLLAR A 2
18
KLF-M221S-01 DAMPER,1 1 NG ML70016-2014/7/18
KLF-M221S-00 DAMPER 1
19 KLF-M222H-00 MECHA LOCK 1
20
delete ML70107-2014/7/18
KHN-M224D-00 SPACER 1
21
delete ML70107-2014/7/18
KHN-M2221-00 SUPPORT UNIT 1
22 KG2-M9173-00 LOCK NUT 1
23
delete ML70107-2014/7/18
KGS-M2628-00 LOCK NUT 1
24 KHN-M224K-00 COLLAR B 2
25 90933-01J000 BEARING 2
26 90990-01J038 BOLT,HEX.SOCKET HEAD 5
27 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
28 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
29 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
30 91312-04016 BOLT,HEX.SOCKET HEAD 28 M4X16
31 91312-04022 BOLT HEX.SOCKET HEAD 4 M4X22
32
91312-04045 BOLT HEX.SOCKET HEAD 2 M4X45 NG ML70016-2014/7/18
91312-04040 BOLT HEX.SOCKET HEAD 2 M4X40
33 91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12
34 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
35 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
36 91312-08012 BOLT HEX.SOCKET HEAD 8 M8X12
37 98902-03006 SCREW BINDING HEAD 10
38 KLF-M2251-A0 X STOPPER 1 Option MKX0039-2014/1/10
39 90K81-200004 CAP C4 14 MJ00115-2012/10/17
40 KLF-M266A-00 PLATE,PIPE 1 MJ90008-2012/9/7
41 KHY-M266C-00 BLOCK,JOINT 1 MJ90008-2012/9/7
42
$BF4U JOINT 1 OK MK90109-2013/10/15
KHY-M266E-00 JOINT 1 MJ90008-2012/9/7
43 KHN-M22AD-00 GREASE NIPPLE 1 MJ90008-2012/9/7
44 91312-03008 BOLT HEX.SOCKET HEAD 2 MJ90008-2012/9/7
45 91312-04010
BOLT,HEX.SOCKET HEAD 2 MJ90008-2012/9/7
46 KLF-M221U-00 DAMPER,2 1 ML70016-2014/7/18
47 KLF-M221W-00 BRKT.,A DAMPER 1 ML70016-2014/7/18
48 91312-04008 BOLT HEX.SOCKET HEAD 4 ML70016-2014/7/18
49 90990-41J168 COLLAR 2 ML70016-2014/7/18
50 98902-04008 SCREW BINDING HEAD 2 ML70016-2014/7/18
3
4

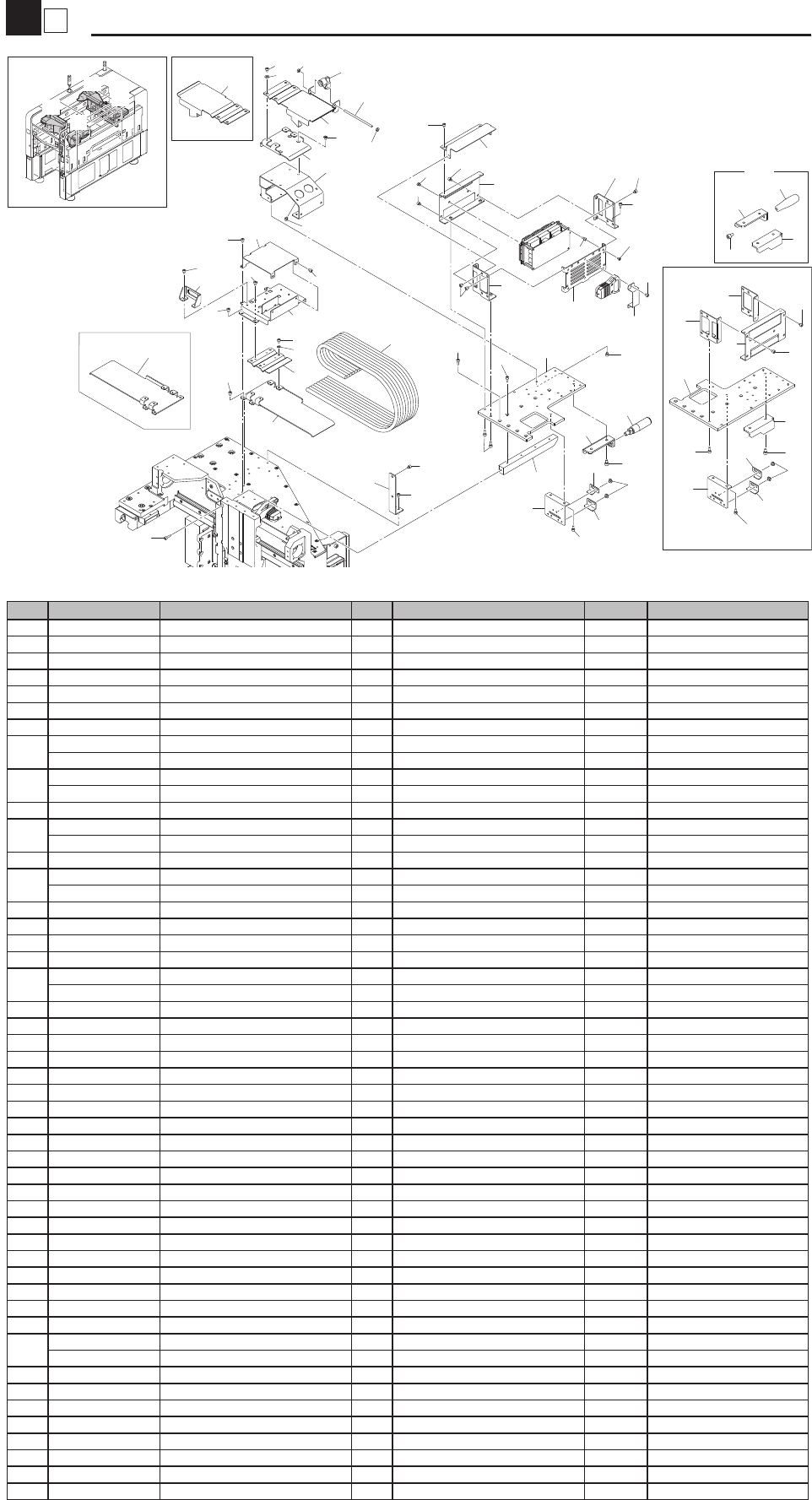

X-axis Holder Head / Dog
Moving-axis
KLF-1210
26
4
29
Type B, C
2
5
12
32
8
31
26
27
19
14
20
30
20
30
35
27
27
34
15
19
27
25
22
10
23
28
29
29
29
30
31
24
3
1
17
18
21
21
16
6
7
9
11
13
32
20
20
33
D
A
B
C
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M223E-00 STAY,R HEAD 1
2 KLF-M223E-50 STAY,L HEAD 1 Type B, C
3 KLF-M224L-00 BRKT.,CONN. 1
4 KLF-M2257-00 COVER,A CAM.CABLE 1
5 KLF-M2257-50 COVER,B CAM.CABLE 1 Type B, C
6 KLF-M2231-A0 HOLDER HAED XAD ASSY 1
7 KLF-M2231-00 PLATE,HEAD A 1
8 KLF-M2232-00 PLATE,HEAD B 1 Type B, C
9 KLF-M223D-00 PLATE,KEYWAY 1
10 KLF-M2237-00 HOLDER,X READ HEAD 1
11 KLF-M223M-00 PLATE,A CAMERA 1
12 KLF-M223N-00 PLATE,B CAMERA 1 Type B, C
13 KLF-M223H-00 PLATE,HEAD 1
14 KLF-M2253-00 STOPPER 1 1
15 KLF-M2253-10 STOPPER 2 1
16 KLF-M2254-00 HOLDER,1 BRG. 1
17 KLF-M2254-10 HOLDER,2 BRG 1
18 KLF-M2255-00 SHAFT 1
19 KHW-M2656-00 SPACER 4
20 KHN-M22F4-00 WASHER,SWR04 16
21 90933-01J000 BEARING 2
22 KLF-M22T4-01 READ HEAD 1
23 90112-2AJ012 BOLT,HEX.SOCKET HEAD 2
24 91312-04005 BOLT HEX.SOCKET HEAD 2 M4X5
25 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X3
26 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
27 91312-04012 BOLT,HEX.SOCKET HEAD 12 M4X12
28 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
29 91312-04016 BOLT,HEX.SOCKET HEAD 6 M4X16
30 91312-04018 BOLT HEX.SOCKET HEAD 8 M4X18
31 91312-04022 BOLT HEX.SOCKET HEAD 4 M4X22
32 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
33 91312-05025 BOLT HEX.SOCKET HEAD 9 M5X25
34 99480-05010 PIN,PARALLEL 1
35 98702-04010 SCREW FLAT HEAD 2
4
4

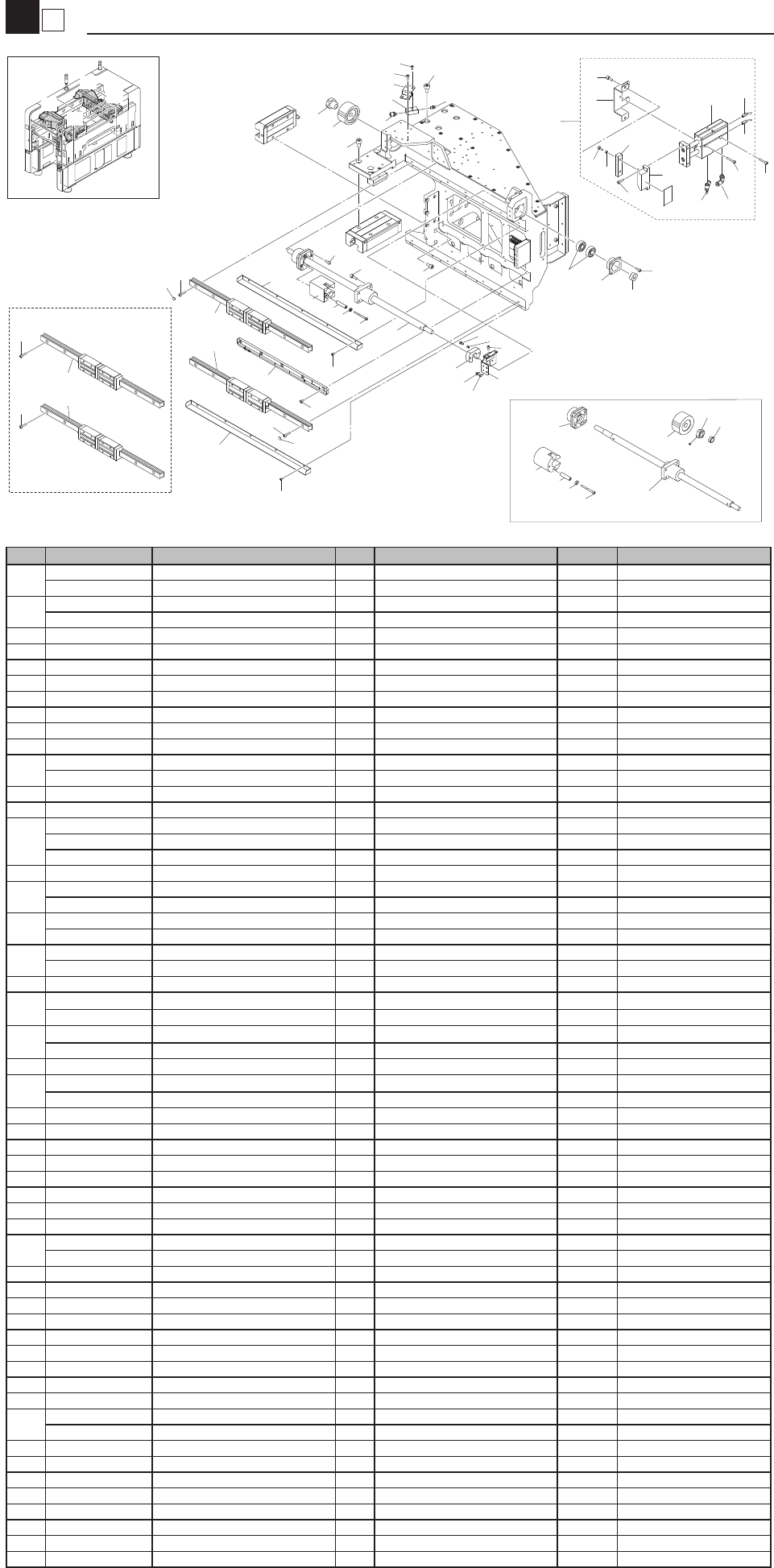

X-axis Duct / I/O-BOX
Moving-axis
KLF-1307
34
45
47
47
34
19
23
34
34
41
34
15
34
34
34
12
Type B, C
14
7
36
16
34
35
42
40
32
10
6
36
36
36
8
18
38
35
35
43
43
3
2
9
38
5
5
1
3
4
34
11
17
13
22
35
20
21
34
34
30
34
34
34
34
34
46
24
25
33
34
34
37
26
34
29
31
28
27
D
A
B
C
Type B, C
Type B, C
OLD
8
18
39
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M2235-00 DOG,XA 2ND-LM 1
2 KLF-M2235-50 DOG,XB 2ND-LM 1 Type B, C
3 KLF-M2236-00 DOG,X O/S 2
4 KLF-M223F-00 LIB,S 1
5 KLF-M223G-00 BRKT.,DOG X 1
6 KLF-M2244-00 STAY,DUCT XA 1
7
KLF-M2244-50
STAY,DUCT XB 1
Type B, C
8
KLF-M224F-01
STAY,A GRIP 1 NG MJ00201-2012/10/25
KLF-M224F-00 STAY,A GRIP 1
9
KLF-M224F-51 STAY,B GRIP 1 Type B, C NG MJ00201-2012/10/25
KLF-M224F-50 STAY,B GRIP 1 Type B, C
10 KLF-M2282-00 BRKT.,1 BOARD 1
11
KLF-M2283-01
BRKT.,C-1 BOARD 1 OK MJ00181-2012/10/13
KLF-M2283-00 BRKT.,C-1 BOARD 1
12 KLF-M2283-50 BRKT.,C-2 BOARD 1 Type B, C
13
KLF-M2284-01 BRKT.,A-2 BOARD 1 OK MJ00181-2012/10/13
KLF-M2284-00 BRKT.,A-2 BOARD 1
14 KLF-M2284-50 BRKT.,B-2 BOARD 1 Type B, C
15 KLF-M2285-00 BRKT.,D-1 BOARD 1
16
KLF-M2285-50 BRKT.,D-2 BOARD 1 Type B, C
17 KLF-M2286-00 COVER,H 1
18
KLF-M2256-00 GRIP 1 NG MJ00201-2012/10/25
KKE-M2256-00 GRIP 1
19 KLF-M66N1-00 HNS, X-FLEX 4
20 KLF-M2242-00 BRKT.,3 DUCT X 1
21 KLF-M224C-00 BRKT.,2 DUCT X 1
22 KLF-M224D-00 BRKT.,5-1 DUCT XA 1
23 KLF-M224D-50 BRKT.,5-1 DUCT XB 1 Type B, C
24 KLF-M224D-10 BRKT.,5-2 DUCT X 1
25 KLF-M224E-00 BRKT.,A-1 DUCT X 1
26 KLF-M224E-50 BRKT.,B-1 DUCT X 1 Type B, C
27 KLF-M224G-00 SHAFT,JOINT 1
28 $UL8 JOINT 5
29 KLF-M2241-00 BRKT.,A CONN. 1
30 KLF-M224J-00 COVER,HNS DUCT X 1
31 KLF-M224K-00 BRKT.,POW CONN. 1
32 KLF-M224L-00 BRKT.,CONN. 1
33 KLF-M2258-01 BRKT.,FIX XS AXIS 1
34 91312-04005 BOLT HEX.SOCKET HEAD 29 M4X5
35 91312-04008 BOLT HEX.SOCKET HEAD 3 M4X8
36 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
37 91312-04018 BOLT HEX.SOCKET HEAD 1 M4X18
38 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
39
Delete MJ00201-2012/10/25
91312-06010 BOLT HEX.SOCKET HEAD 1 M6X10
40 98902-03006 SCREW BINDING HEAD 8
41 98902-04006 SCREW BINDING HEAD 2
42 90563-03J070 SPACER BOLT 4
43 90990-11J001 SCREW PAN HEAD W/W 6
44 98702-04008 SCREW,FLAT HEAD (+) 4
45 92902-04200 WASHER PLAIN 4
46 92902-04600 WASHER PLAIN 4
47 95302-04600 NUT HEXAGON 2
