6 4 X-axis / Y -axis Connection Moving-axis KLF-1210 2 21 22 21 27 13 19 19 17 18 12 23 22 9 8 10 7 1 1 1 1 20 20 28 28 28 28 T ype B, C T ype B, C 21 14 15 24 29 22 26 3 25 25 22 5 16 1 17 6 4 D A B C 30 No. Part No. Pa…
5
4

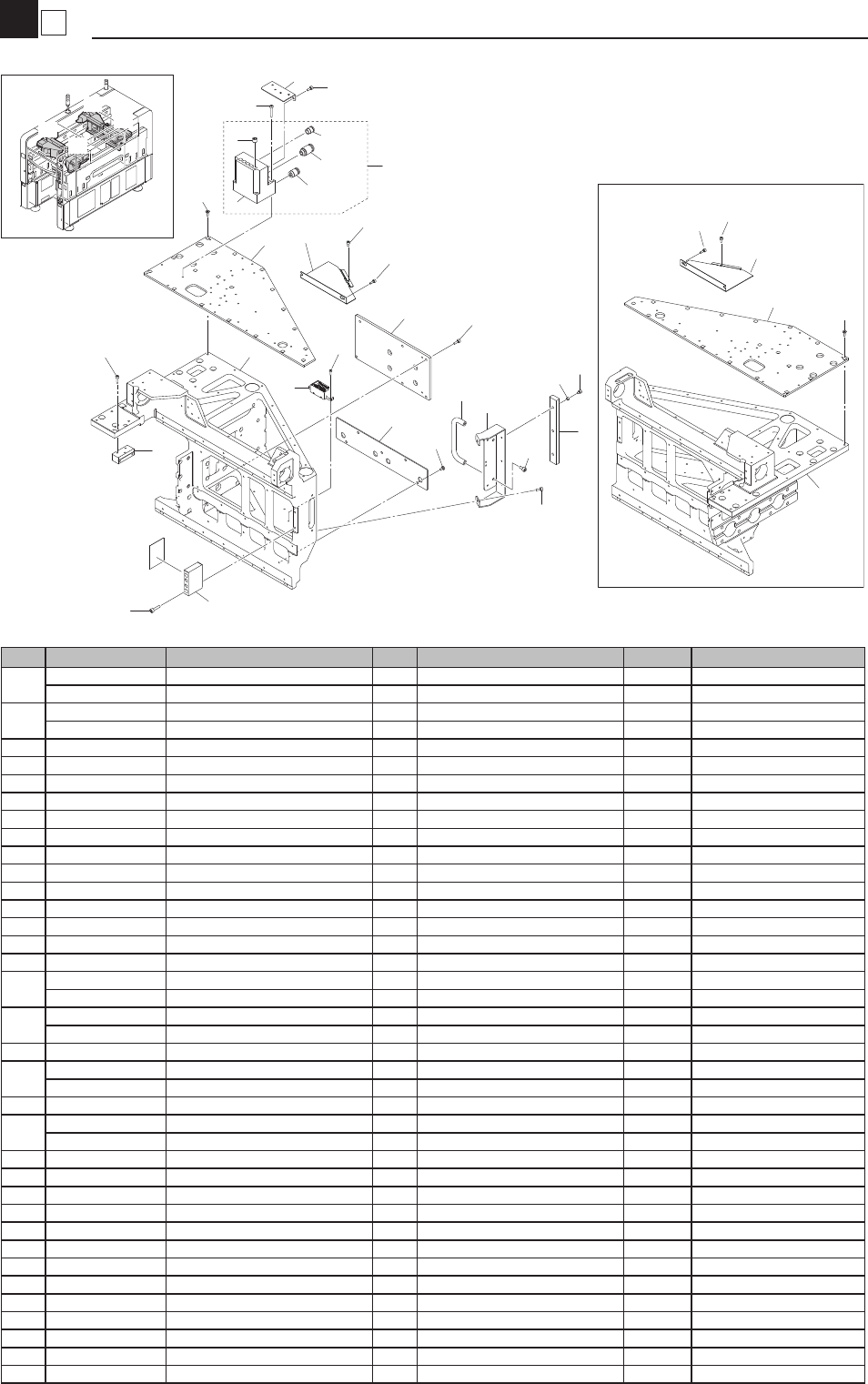

X-axis Sub Assy / Manufold
Moving-axis
KLF-1307
29
29
4
Type B, C
2
3
12
8
24
30
10
6
27
23
7
22
11
25
1
9
5
28
21
13
D
A
B
C
20
23
26
1719
15
14
19
16
18
31
32
33
34
33
34
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M2201-01 FRAME,XA AXIS 1 OK MK20086-2013/3/7
KLF-M2201-00 FRAME,XA AXIS 1
2
KLF-M2202-01 FRAME,XB AXIS 1 Type B, C OK MK20086-2013/3/7
KLF-M2202-00 FRAME,XB AXIS 1 Type B, C
3 KLF-M2203-00 PLATE,A X DUCT 1
4 KLF-M2203-50 PLATE,B X DUCT 1 Type B, C
5
KLF-M2217-00 PLATE,STOPPER X 1
6 KLF-M221H-00 BRKT.,GRIP 1
7 KLF-M221J-00 DAMPER,X-F 1
8 KLF-M221L-00 PLATE,2 1
9 KLF-M2671-00 HOLDER,1 Y-RH 1
10 KH2-M1324-01 GRIP 1
11 KHW-M2656-00 SPACER 3
12 KLF-M221K-00 PLATE,1 1
13 KKX-M6555-00 JUNCTION BOX V 1
14 KLF-M224A-A0 MANUFOLD,XY ASSY. 1
15 KLF-M223J-00 JOINT 3
16
KLF-M224A-01 MANUFOLD,XY 1 Hole specications change NG MJ90137-2012/9/26
KLF-M224A-00 MANUFOLD,XY 1
17
Delete MJ90137-2012/9/26
KLF-M7063-00 JOINT 2
18 K40-M8598-10 PLUG 1 5
19
$TSH8-02 JOINT 7 NG MJ90137-2012/9/26
$TSH8-02 JOINT 5
20 KLF-M222C-00 BRKT.,HNS X MOTOR 1
21
90990-11J007 SCREW,PAN HEAD W/W 2 OK MK10092-2013/1/23
91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
22 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X6
23 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
24 91312-04012 BOLT HEX.SOCKET HEAD 4 M4X12
25 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
26 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
27 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
28 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
29 98702-04012 SCREW FLAT HEAD 36
30 98902-04008 SCREW BINDING HEAD 5
31 KLF-M2209-00 COVER,3 XA 1 MK10043-2013/1/18
32 KLF-M2209-50 COVER,3 XB 1 MK10043-2013/1/18
33 91312-04008 BOLT HEX.SOCKET HEAD 2 MK10043-2013/1/18
34 91312-04012 BOLT HEX.SOCKET HEAD 2 MK10043-2013/1/18
6
4

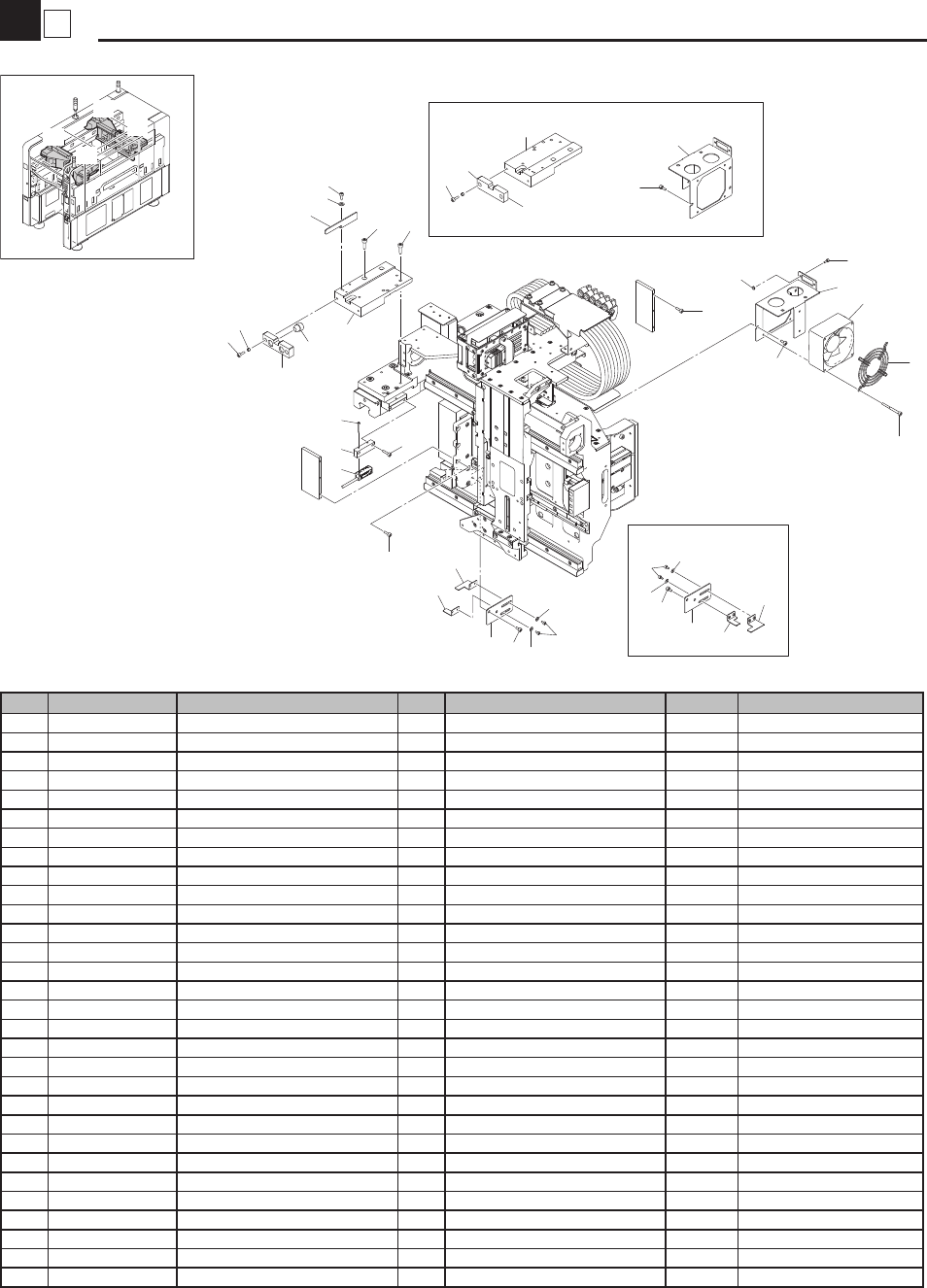

X-axis / Y-axis Connection
Moving-axis
KLF-1210
2
21
22
21
27
13
19
19
17
18
12
23
22
9
8
10
7
11
11
20
20
28
28
28
28
Type B, C
Type B, C
21
14
15
24
29
22
26
3
25
25
22
5
16
1
17
6
4
D
A
B
C
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M2227-00 BRKT.,A,MOTOR X 1
2 KLF-M2227-50 BRKT.,B MOTOR X 1 Type B, C
3 KLF-M2228-00 BRKT.,A FAN Y-M 1
4 KLF-M2228-50 BRKT.,B FAN Y-M 1 Type B, C
5 KLF-M2262-00 PLATE 1, DAMPER 1
6 KLF-M2262-10 PLATE 2, DAMPER 1 Type B, C
7 KLF-M2672-00 DOG,YR 2ND-LIMIT 1
8 KLF-M2672-50 DOG,YL 2ND-LIMIT 1 Type B, C
9 KLF-M2673-00 DOG,YR ORG 1
10 KLF-M2673-50 DOG,YL ORG 1 Type B, C
11 KLF-M2674-00 BRKT.,Y DOG 1
12 KLF-M2675-01 HOLDER,2 Y-RH 1
13 KLF-M2696-00 DOG,COL. 1
14 KLF-M6185-B1 FAN MOTOR ASSY 1
15 KGN-M4187-00 FAN GUARD 1
16 KV7-M2651-00 DAMPER,STOPPER 2
17 KHW-M2656-00 SPACER 2
18 90112-2AJ020 BOLT HEX.SOCKET HEAD 2
19 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
20 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
21 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10
22 91312-04012 BOLT,HEX.SOCKET HEAD 10 M4X12
23 91312-04016 BOLT HEX.SOCKET HEAD 2 M4X16
24 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
25 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
26 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
27 92902-04200 WASHER PLAIN 2
28 92902-03200 WASHER PLAIN 4
29 95302-03600 NUT, HEXAGON 2
30 KLF-M26T4-00 READ HEAD Y 1
7
4

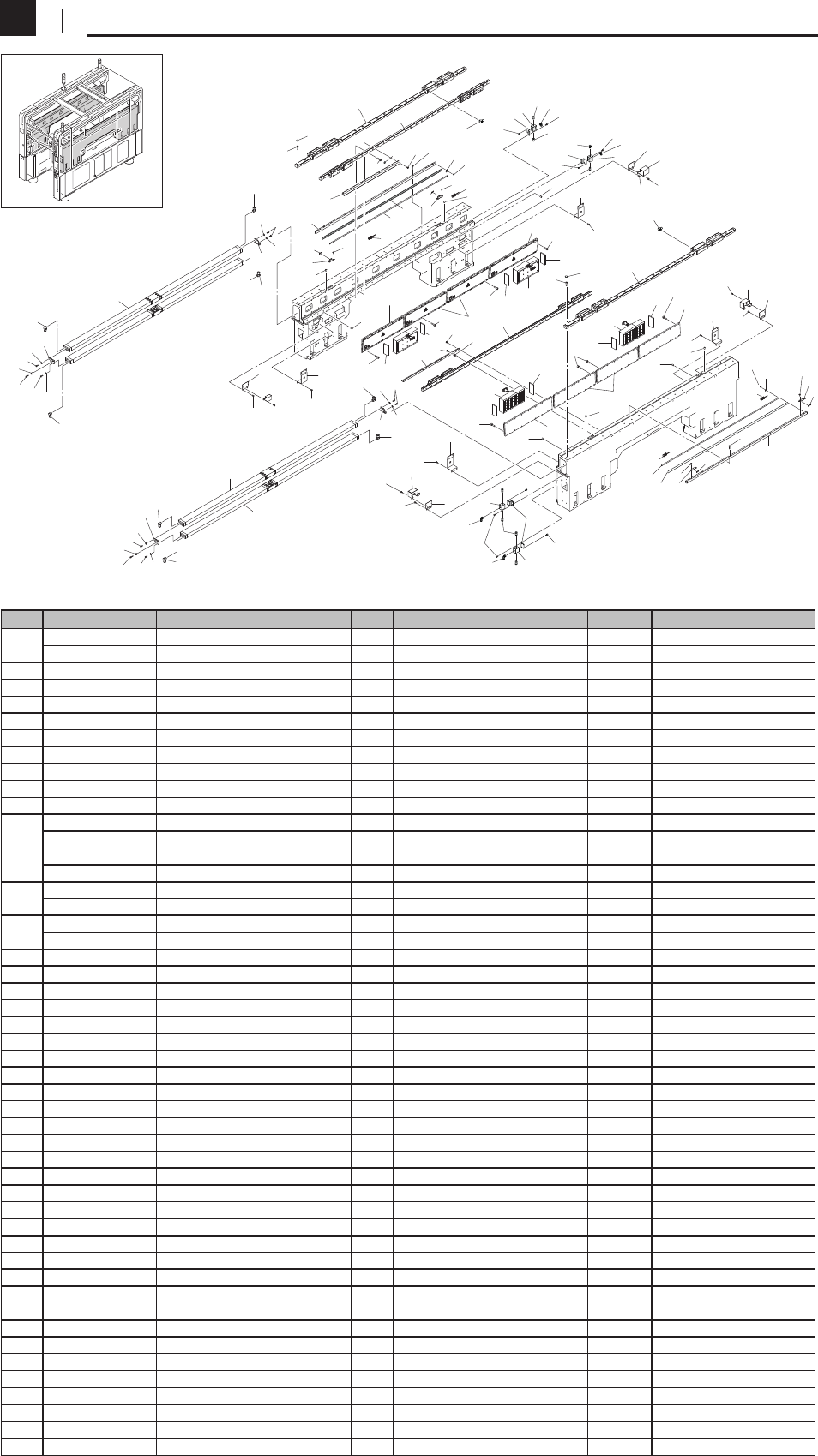

Y-axis (2/4 Beam)
Moving-axis
KLF-1307
14
14
19
19
19
13
36
36
29
19
11
11
28
28
28
28
28
6
5
27
27
14
14
12
12
1
1
19
36
36
13
29
10
10
33
19
34
34
20
20
20
20
23
23
23
23
23
23
23
23
22
22
21
21
21
21
35
33
31
24
24
8
9
18
18
17
16
25
6
28
28
1
1
12
12
27
27
28
28
28
28
11
11
18
7
7
18
5
3
4
2
44
15
15
17
9
9
9
16
17
17
31
25
8
24
24
24
24
24
13
36
36
29
29
30
26
19
19
13
36
36
29
29
30
26
32
32
32
32
32
32
32
35
24
37
37
39
39
38
38
40
40
28
41
43
41
42
41
41
28
43
42
43
41
28
28
42
42
44
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M2609-00 PLATE,1 CONN. 4 4 Beams
KLF-M2609-00 PLATE,1 CONN. 2 2 Beams
2 KLF-M2610-03 GUIDE,30 Y AXIS 2 Set cancellation OK MKX0067-2013/12/3
3 KLF-M2605-10 STAY,SCALE L ASSY. 1
4 KLF-M2605-00 STAY,SCALE R ASSY. 1
5 KLF-M261A-00 PILOT VALVE 2 4 Beams
6
KLF-M261A-00
PILOT VALVE 2
2/4 Beams
7 KLF-M261B-00 BRKT.,1 FIXED MARK 2
8 KLF-M261C-00 BRKT.,2 FIXED MARK 2
9 KLF-M261D-00 SUPER L/H SCREW 8
10 KLF-M2624-00 COVER,GUIDE Y 6
11
KLF-M2658-00 BRKT.,S FIX Y AXIS 4 4 Beams
KLF-M2658-10 BRKT.,L FIX Y AXIS 2 2 Beams
12
KLF-M2677-00 COVER,SENSOR 4 4 Beams
KLF-M2677-00 COVER,SENSOR 2 2 Beams
13
KLF-M2679-00 BRKT.,ACCUMLATOR 4 4 Beams
KLF-M2679-00 BRKT.,ACCUMLATOR 2 2 Beams
14
KLF-M26S0-A0 ACCUMLATOR ASSY. 4 4 Beams
KLF-M26S0-A0 ACCUMLATOR ASSY. 2 2 Beams
15
KLF-M26T1-00 TAPE,Y LINEAR SCALE 2
16 KLF-M26T2-00 CLAMP,SCALE 2
17 KLF-M26T4-01 READ HEAD Y 4
18 KLF-M22T6-00 REF.MARK 4
19 $SL10-02 JOINT 24
20 KLF-M26C0-A0 MOTOR,Y AXIS 4
21 KLF-M26C0-B0 SHORT STATOR ASSY. 6
22 KLF-M26C0-C0 LONG STATOR ASSY. 2
23 KLF-M26C8-00 PLATE 8
24 90990-20J011 PIN, DOWEL 8
25 90990-01J043 BOLT,HEX.SOCKET HEAD 2
26 90990-41J048 COLLAR 4
27 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
28 91312-04008 BOLT HEX.SOCKET HEAD 32 M4X8
29 91312-04010 BOLT HEX.SOCKET HEAD 14 M4X10
30 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
31 91312-04016 BOLT,HEX.SOCKET HEAD 36 M4X16
32 91312-06018 BOLT HEX.SOCKET HEAD 100 M6X18
33 91312-06020 BOLT HEX.SOCKET HEAD 62 M6X20
34 91312-08025 BOLT HEX.SOCKET HEAD 48 M8X25
35 98902-04008 SCREW BINDING HEAD 36
36 92902-04200 WASHER PLAIN 20
37 KLF-M266D-00 JOINT 4 MJ90008-2012/9/7
38 90K81-200002 CAP C6 62 MJ00115-2012/10/17
39 90K81-200009 CAP C8 48 MJ00115-2012/10/17
40 KLF-M26T1-10 CASE,Y LINEAR SCALE 2
41 $TSH4-01 JOINT 4
42 $TL4-01M JOINT 2
43
KLF-M2620-00 PLATE,VALVE.Y 2
44
KLF-M2611-00 GUIDE,25 Y AXIS 2 Set cancellation OK MKX0067-2013/12/3
