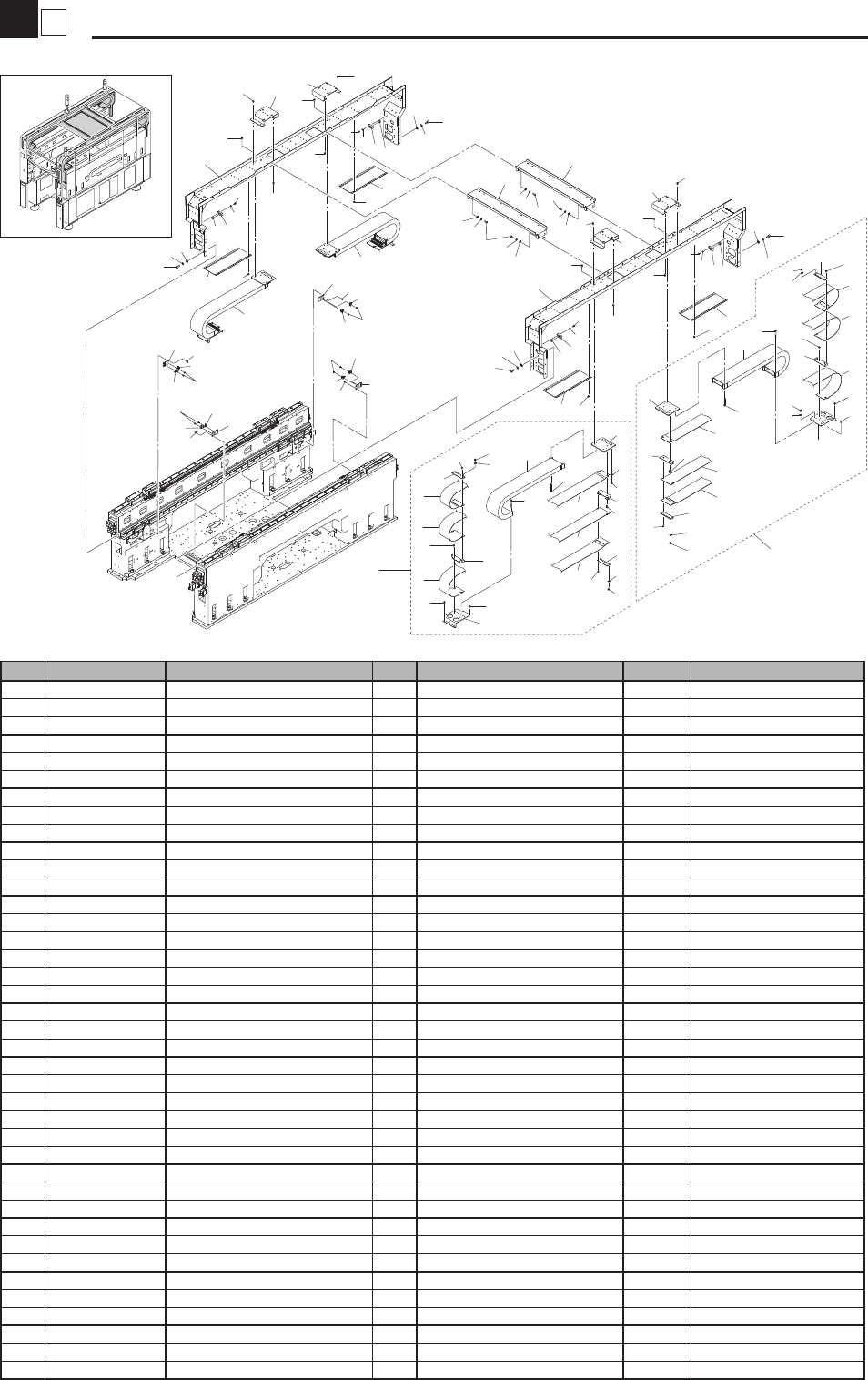

8 4 Y -axis Frame / Cable Moving-axis KLF-1210 24 24 25 25 19 19 18 18 20 20 39 39 37 37 29 29 25 19 18 20 39 37 29 15 15 38 38 36 36 36 38 24 24 24 24 27 27 14 36 38 16 16 28 28 28 2 1 24 17 17 34 25 19 18 20 39 37 29 1…
7
4
Y-axis (2/4 Beam)
Moving-axis
KLF-1307
14
14
19
19
19
13
36
36
29
19
11
11
28
28
28
28
28
6
5
27
27
14
14
12
12
1
1
19
36
36
13
29
10
10
33
19
34
34
20
20
20
20
23
23
23
23
23
23
23
23
22
22
21
21
21
21
35
33
31
24
24
8
9
18
18
17
16
25
6
28
28
1
1
12
12
27
27
28
28
28
28
11
11
18
7
7
18
5
3
4
2
44
15
15
17
9
9
9
16
17
17
31
25
8
24
24
24
24
24
13
36
36
29
29
30
26
19
19
13
36
36
29
29
30
26
32
32
32
32
32
32
32
35
24
37
37
39
39
38
38
40
40
28
41
43
41
42
41
41
28
43
42
43
41
28
28
42
42
44
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M2609-00 PLATE,1 CONN. 4 4 Beams
KLF-M2609-00 PLATE,1 CONN. 2 2 Beams
2 KLF-M2610-03 GUIDE,30 Y AXIS 2 Set cancellation OK MKX0067-2013/12/3
3 KLF-M2605-10 STAY,SCALE L ASSY. 1
4 KLF-M2605-00 STAY,SCALE R ASSY. 1
5 KLF-M261A-00 PILOT VALVE 2 4 Beams
6
KLF-M261A-00
PILOT VALVE 2
2/4 Beams
7 KLF-M261B-00 BRKT.,1 FIXED MARK 2
8 KLF-M261C-00 BRKT.,2 FIXED MARK 2
9 KLF-M261D-00 SUPER L/H SCREW 8
10 KLF-M2624-00 COVER,GUIDE Y 6
11
KLF-M2658-00 BRKT.,S FIX Y AXIS 4 4 Beams
KLF-M2658-10 BRKT.,L FIX Y AXIS 2 2 Beams
12
KLF-M2677-00 COVER,SENSOR 4 4 Beams
KLF-M2677-00 COVER,SENSOR 2 2 Beams
13
KLF-M2679-00 BRKT.,ACCUMLATOR 4 4 Beams
KLF-M2679-00 BRKT.,ACCUMLATOR 2 2 Beams
14
KLF-M26S0-A0 ACCUMLATOR ASSY. 4 4 Beams
KLF-M26S0-A0 ACCUMLATOR ASSY. 2 2 Beams
15
KLF-M26T1-00 TAPE,Y LINEAR SCALE 2
16 KLF-M26T2-00 CLAMP,SCALE 2
17 KLF-M26T4-01 READ HEAD Y 4
18 KLF-M22T6-00 REF.MARK 4
19 $SL10-02 JOINT 24
20 KLF-M26C0-A0 MOTOR,Y AXIS 4
21 KLF-M26C0-B0 SHORT STATOR ASSY. 6
22 KLF-M26C0-C0 LONG STATOR ASSY. 2
23 KLF-M26C8-00 PLATE 8
24 90990-20J011 PIN, DOWEL 8
25 90990-01J043 BOLT,HEX.SOCKET HEAD 2
26 90990-41J048 COLLAR 4
27 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
28 91312-04008 BOLT HEX.SOCKET HEAD 32 M4X8
29 91312-04010 BOLT HEX.SOCKET HEAD 14 M4X10
30 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
31 91312-04016 BOLT,HEX.SOCKET HEAD 36 M4X16
32 91312-06018 BOLT HEX.SOCKET HEAD 100 M6X18
33 91312-06020 BOLT HEX.SOCKET HEAD 62 M6X20
34 91312-08025 BOLT HEX.SOCKET HEAD 48 M8X25
35 98902-04008 SCREW BINDING HEAD 36
36 92902-04200 WASHER PLAIN 20
37 KLF-M266D-00 JOINT 4 MJ90008-2012/9/7
38 90K81-200002 CAP C6 62 MJ00115-2012/10/17
39 90K81-200009 CAP C8 48 MJ00115-2012/10/17
40 KLF-M26T1-10 CASE,Y LINEAR SCALE 2
41 $TSH4-01 JOINT 4
42 $TL4-01M JOINT 2
43
KLF-M2620-00 PLATE,VALVE.Y 2
44
KLF-M2611-00 GUIDE,25 Y AXIS 2 Set cancellation OK MKX0067-2013/12/3
8
4
Y-axis Frame / Cable
Moving-axis
KLF-1210
24
24
25
25
19
19
18
18
20
20
39
39
37
37
29
29
25
19
18
20
39
37
29
15
15
38
38
36
36
36
38
24
24
24
24
27
27
14
36
38
16
16
28
28
28
2
1
24
17
17
34
25
19
18
20
39
37
29
17
32
13
1
2
33
33
10
10
5
6
3
30
30
4
24
5
3
4
24
25
8
32
13
32
13
25
26
26
26
6
26
4
3
5
4
3
5
33
33
32
13
10
31
32
13
9
9
11
32
13
10
31
11
12
12
7
34
34
17
34
24
27
27
16
16
14
22
21
21
22
23
23
25
25
35
35
25
35
21
23
22
25
35
23
22
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M2617-A0 CABLE,YA ASSY 2
2 KLF-M2617-B0 CABLE,YB ASSY 2
3 KLF-M260B-00 TAPE,1 DUCT Y 2
4 KLF-M260C-00 TAPE,2 DUCT Y 2
5 KLF-M260D-00 TAPE,3 DUCT Y 2
6 KLF-M2617-00 CABLE DUCT,Y 2
7 KLF-M2618-00 BRKT.,A DUCT Y 1
8 KLF-M2618-50 BRKT.,B DUCT Y 1
9 KLF-M2619-00 PLATE,DUCT Y 2
10 KLF-M2666-00 PLATE, NUT 4
11 KLF-M2669-00 BRACKET,1 HARNESS 2
12 KLF-M2669-10 BRACKET,2 HARNESS 2
13 $NK-2N NYLON CLIP 60
14 KLF-M26F1-00 FRAME,1 2
15 KLF-M26F3-00 FRAME,3 2
16 KLF-M26FD-00 BRACKET,DUCT Y 4
17 KLF-M26F8-00 PLATE,DUCT SHEET 4
18 KHW-M2654-00 PLATE , DAMPER 4
19 KHW-M2656-00 SPACER 8
20 KV7-M2651-00 DAMPER,STOPPER 4
21 KLF-M2629-00 PLATE,SW.Y 4
22 KLF-M653G-00 SENSOR Y ORG ASSY 4
23 KLF-M653H-00 SENSOR Y OT ASSY 4
24 91312-04006 BOLT HEX.SOCKET HEAD 20 M4X6
25 91312-04008 BOLT HEX.SOCKET HEAD 68 M4X8
26 91312-04040 BOLT HEX.SOCKET HEAD 8 M4X40
27 91312-05006 BOLT HEX.SOCKET HEAD 16 M5X6
28 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
29 91312-06014 BOLT HEX.SOCKET HEAD 16 M6X14
30 90990-01J011 BOLT,HEX.SOCKET HEAD 4
31 90990-01J032 BOLT,HEX.SOCKET HEAD 4
32 97602-04308 SCREW PAN HEAD W/W 60
33 98902-03006 SCREW BINDING HEAD 8
34 98902-04005 SCREW BINDING HEAD 24
35 97602-03108 SCREW PAN HEAD W/W 16
36 92902-05600 WASHER PLAIN 15
37 92902-06600 WASHER PLAIN 8
38 90172-00J050 WASHER,EXTL.TOOTHED 8
39 90172-00J060 WASHER,EXTL.TOOTHED 16
A
B
42
11
42
4
10
29
15
30
2
37
5
38
23
34
28
43
17
16
6
10
19
41
33
21
32
35
22
5
13
24
39
18
31
3
42
6
6
22
40
21
19
43
39
12
36
3
35
5
7
5
27
25
8
14
1
14
9
20
26
41
Type A
44
45
9
4

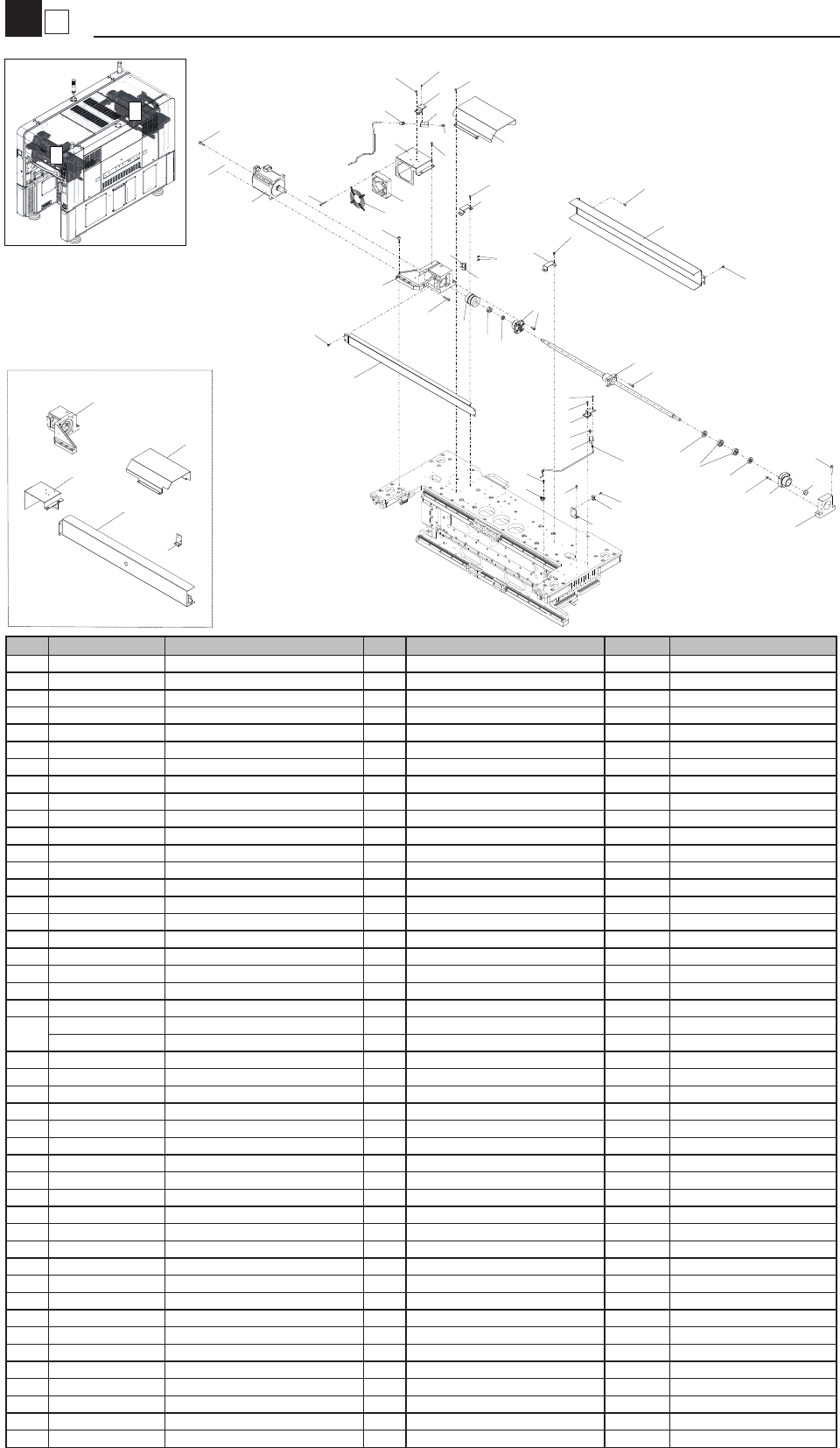

X-Motor / BS (2-Beam)
Moving-axis
KLF-1307
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90933-01J000 BEARING 2
2 90KA1-303303 AC SERVO MOTOR 1
3 91312-03008 BOLT HEX,SOCKET HEAD 4
4 91312-04005 BOLT HEX,SOCKET HEAD 2
5 91312-04008 BOLT HEX,SOCKET HEAD 10
6 91312-04010 BOLT HEX,SOCKET HEAD 6
7 91312-04030 BOLT HEX,SOCKET HEAD 4
8 91312-05014 BOLT HEX,SOCKET HEAD 4
9 91312-05016 BOLT HEX,SOCKET HEAD 4
10 91312-06022 BOLT HEX,SOCKET HEAD 8
11 KG2-M9173-00 LOCK NUT 1
12 KGN-M4187-00 FAN GUARD 1
13 KGS-M2628-00 LOCK NUT 1
14 KHN-M2248-00 SPACER 2
15 KHN-M2221-00 SUPPORT UNIT 1
16 KLF-M653A-10 SENSOR 1 X ORG
17 KLF-M653B-10 SENSOR 1 X OT1
18 KHN-M224D-00 SPACER 1
19
KHN-M22AD-00 GREASE NIPPLE 2
20 KHY-M2240-00 SLEEVE,BRG. 1
21 KHY-M266C-00 BLOCK,JOINT 2
22
$BF4U JOINT 1 OK MK90109-2013/10/15
KHY-M266E-00 JOINT 2
23 KLF-M653C-10 SENSOR 1 X OT2
24 KLF-M653J-10 SENSOR 1 Y SAFE
25 KLF-M2212-10 BALL SCREW,XL 1
26 KLF-M2214-00 HOLDER,BRG 1
27 KLF-M221N-00 COVER,B CABLE 1 Type B
28 KLF-M222B-00 HOLDER,MOTOR XB 1 Type B
29 KLF-M222D-00 PLATE,NUT X MOTOR 2
30 KLF-M222E-00 BRKT.,A FAN XM 1 Type A
31 KLF-M222E-50 BRKT.,B FAN XM 1 Type B
32 KLF-M222F-00 COUPLING,X-AXIS 1
33 KLF-M2239-00 BRKT.,XA 2ND-LIMIT 1 Type A
34 KLF-M2239-50 BRKT.,XB 2ND-LIMIT 1 Type B
35 KLF-M224L-00 BRKT.,CONN. 2
36 KLF-M227G-00 COVER,1 B.S. 1
37 KLF-M227H-00 COVER,2-F B.S. 1 Type A
38 KLF-M227H-50 COVER,2-R B.S. 1 Type B
39 KLF-M266A-00 PLATE,PIPE 2
40 KLF-M6185-A0 FAN MOTOR ASSY 1
41 91312-06025 BOLT HEX,SOCKET HEAD 3
42 97602-03108 SCREW PAN HEAD W/WASHER 8
43 98902-04008 SCREW BINDING HEAD 6
44 KLF-M222A-00 HOLDER,MOTOR XA 1 Type A
45 KLF-M221M-00 COVER,A CABLE 1 Type A
