1 1 4 X-Holder Head (2-Beam) Moving-axis KLF-1307 28 32 16 3 38 33 29 27 5 26 10 9 25 24 4 23 31 2 6 17 6 1 1 7 15 37 13 14 6 34 15 6 1 1 41 1 15 19 12 21 6 34 8 12 13 7 6 43 5 36 20 39 42 30 18 35 22 T ype A A B 16 33 4…
10
4
X-Guide / Manufold (2-Beam)
Moving-axis
KLF-1307
28
29
27
2
2
9
24
11
26
24
23
23
1
18
161
5
22
29
21
4
13
8
7
15
14
23
25
25
12
24
23
28
4
24
6
4
2
20
3
2
6
4
19
10
17
10
A
B
30
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
$TSH8-02 JOINT 7 NG MJ90137-2012/9/26
$TSH8-02 JOINT 5
2 91312-06012 BOLT HEX,SOCKET HEAD 16
3 90990-01J038 BOLT HEX,SOCKET HEAD 9
4 91312-04008 BOLT HEX,SOCKET HEAD 18
5
91312-04010 BOLT HEX,SOCKET HEAD 2
6 91312-04016 BOLT HEX,SOCKET HEAD 27
7 91312-04030 BOLT HEX,SOCKET HEAD 4
8 K40-M8598-10 PLUG 1 5
9 KH2-M1324-01 GRIP 1
10 KHY-M266D-00 JOINT 4
11 KKE-M2659-00 BRACKET,HANDLE 1
12 KLF-M22T1-E0 X SCALE ASSY 1
13
KLF-M224A-01 MANUFOLD,XY 1 Hole specications change NG MJ90137-2012/9/26
KLF-M224A-00 MANUFOLD,XY 1
14 KLF-M2258-10 BRKT.,FIX XL AXIS 1
15 KLF-M220G-00 COVER,F 1
16
Delete MJ90137-2012/9/26
KLF-M7063-00 JOINT 1
17
KLF-M2211-11 GUIDE,XL AXIS 2 OK MKX0067-2013/12/3
KLF-M2211-10 GUIDE,XL AXIS 2
18 KLF-M223J-00 JOINT 3
19 KLF-M2225-L0 COVER,L GUIDE X 1
20 KLF-M2225-R0 COVER,R GUIDE X 1
21 KLF-M2229-00 COVER,D GUIDE X 1
22
Delete MK20027-2013/2/11
KLF-M222C-00 BRKT.,HNS X MOTOR 1
23 91312-04012 BOLT HEX,SOCKET HEAD 12
24 91312-04018 BOLT HEX,SOCKET HEAD 8
25
91312-05008 BOLT HEX,SOCKET HEAD 2
26 91312-05010 BOLT HEX,SOCKET HEAD 2
27 91312-05012 BOLT HEX,SOCKET HEAD 2
28 91312-05025 BOLT HEX,SOCKET HEAD 18
29 91312-08012 BOLT HEX,SOCKET HEAD 16
30 90K81-200004 CAP C4 27 MJ00115-2012/10/17
11
4
X-Holder Head (2-Beam)
Moving-axis
KLF-1307
28
32
16
3
38
33
29
27
5
26
10
9
25
24
4
23
31
2
6
17
6
11
7
15
37
13
14
6
34
15
6
11
41
1
15
19
12
21
6
34
8
12
13
7
6
43
5
36
20
39
42
30
18
35
22
Type A
A
B
16
33
40
32
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $NK-2N NYLON CLIP 5
2 90112-2AJ012 BOLT, HEX.SOCKET HEAD 2
3 90990-11J001 SCREW, PAN HEAD W/W 6
4 91312-03012 BOLT HEX,SOCKET HEAD 4
5 91312-04008 BOLT HEX,SOCKET HEAD 5
6 91312-04010 BOLT HEX,SOCKET HEAD 29
7 91312-04012 BOLT HEX,SOCKET HEAD 4
8 91312-04014 BOLT HEX,SOCKET HEAD 1
9 91312-04016 BOLT HEX,SOCKET HEAD 2
10 91312-04022 BOLT HEX,SOCKET HEAD 2
11 KHN-M22AD-00 GREASE NIPPLE 3
12 KHN-M22F4-00 WASHER,SWR04 16
13 KHW-M2656-00 SPACER 4
14 KHY-M266C-00 BLOCK,JOINT 2
15 KHY-M266E-00 JOINT 4
16
KLF-M2256-00 GRIP 1 M8 NG MJ00201-2012/10/25
KKE-M2256-00 GRIP 1 M6
17 KLF-M2237-10 HOLDER,X READ HEAD 1
18 KLF-M223A-00 PLATE,HEAD A 1 Type A
19 KLF-M223B-00 PLATE,HEAD B 1 Type B
20
KLF-M223C-01 BLOCK,LOCATE 1 OK MJX0157-2012/11/30
KLF-M223C-00 BLOCK,LOCATE 1
21 KLF-M223D-00 PLATE,KEYWAY 1
22 KLF-M223E-00 STAY,R HEAD 1 Type A
23 KLF-M223E-50 STAY,L HEAD 1 Type B
24 KLF-M223F-10 LIB,L 1
25 KLF-M223G-10 BRKT.,L DOG X 1
26 KLF-M223K-00 DOG,X1 2ND-LM 1
27 KLF-M223K-50 DOG,X2 2ND-LM 1
28 KLF-M223L-00 DOG,XA ORG. 1 Type A
29 KLF-M223L-50 DOG,XB ORG. 1 Type B
30 KLF-M2244-F0 STAY,F DUCT X 1 Type A
31 KLF-M2244-R0 STAY,R DUCT X 1 Type B
32
KLF-M224F-01 STAY,A GRIP 1 Type A NG MJ00201-2012/10/25
KLF-M224F-00 STAY,A GRIP 1
33
KLF-M224F-51 STAY,B GRIP 1 Type B NG MJ00201-2012/10/25
KLF-M224F-50 STAY,B GRIP 1
34 KLF-M2253-00 STOPPER 1 2
35 KLF-M225A-00 COVER,A-1 CAM.CABLE 1 Type A
36 KLF-M225A-50 COVER,B-1 CAM.CABLE 1 Type B
37 KLF-M22T4-01 HEAD,LINEAR SCALE X 1
38 91312-05008 BOLT HEX,SOCKET HEAD 2
39 91312-05016 BOLT HEX,SOCKET HEAD 2
40
Delete MJ00201-2012/10/25
91312-06010 BOLT HEX,SOCKET HEAD 1
41 97602-04308 SCREW PAN HEAD W/WASHER 5
42 98902-04008 SCREW BINDING HEAD 2
43 99480-05010 PIN,PARALLEL 1
12
4

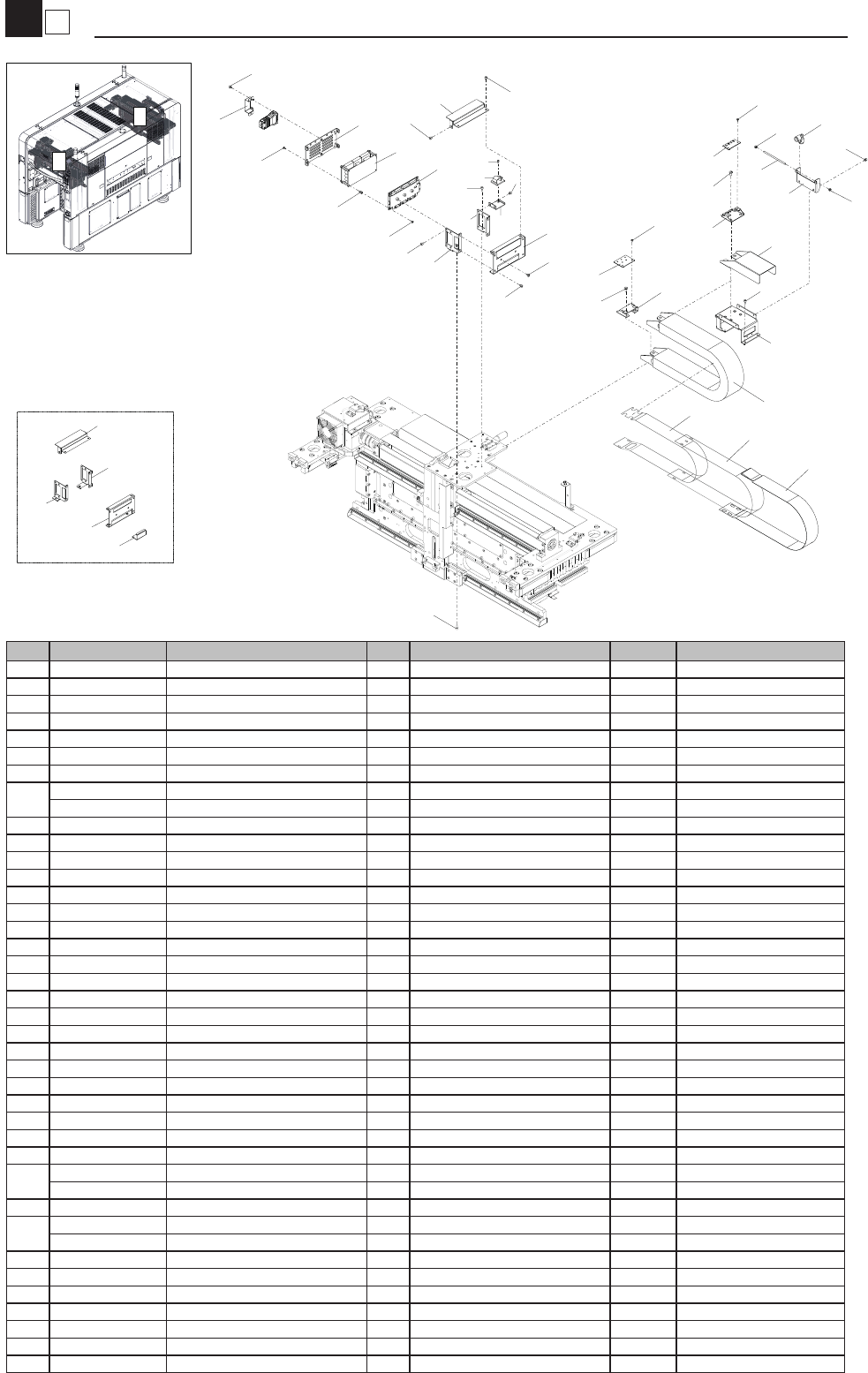

X-Duct / I/O Box (2-Beam)
Moving-axis
KLF-1307
A
B
26
15
6
14
12
5
7
20
21
1
7
8
16
23
4
9
4
24
26
18
2
5
22
27
25
13
19
3
10
5
27
30
36
6
32
5
28
5
35
34
5
29
5
33
31
Type A
17
38
37
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $UL8 JOINT
5
2 91312-04010 BOLT HEX,SOCKET HEAD
3
3 90563-03J070 SPACER
4
4 90990-01J032 BOLT HEX,SOCKET HEAD
8
5 91312-04005 BOLT HEX,SOCKET HEAD
16
6 91312-04008 BOLT HEX,SOCKET HEAD
3
7 95302-04600 NUT HEXAGON
2
8
KLF-M2243-A0 COVER DUCT ASSY.
1
t=1.2 OK MLY0095-2015/1/8
KHY-M221A-A0 COVER DUCT ASSY.
1
t=0.8
9 KGT-M2266-10 PLATE, NUT
1
10 KKE-M220F-02 CAMERA SELECTOR
1
11 KLF-M228C-00 COVER 2 HNS
1
MJ00181-2012/10/23
12 KHY-M220A-00 TAPE,X DUCT
1
13 KHY-M220B-00 TAPE 2,X DUCT
1
14 KHY-M220C-00 TAPE 3,X DUCT
1
15 KLF-M2242-10 BRKT.,3 DUCT X
1
16 KHY-M2268-00 BRACKET 1, TAPE
1
17 91312-03006 BOLT HEX,SOCKET HEAD
1
MJY0053-2012/12/10
18 KKE-M2267-A0 GUIDE,X AXIS ASSY
1
19 KLA-M4506-00 HEAD I/O UNIT ASSY
1
20 KLF-M224G-00 SHAFT,JOINT
1
21 KLF-M224H-00 BRKT.,JOINT
1
22 KLF-M224L-00 BRKT.,CONN.
1
23 KKE-M2269-00 BRACKET 2,TAPE
1
24 KKE-M226D-00 PLATE,NUT
1
25 KLF-M2282-00 BRKT.,1 BOARD
1
26 98902-03005 SCREW BINDING HEAD
4
27 98902-03006 SCREW BINDING HEAD
8
28 98902-04006 SCREW BINDING HEAD
2
29
KLF-M2283-01 BRKT.,C-1 BOARD
1
Type A OK
MJ00181-2012/10/23
KLF-M2283-00 BRKT.,C-1 BOARD
1
30 KLF-M2283-50 BRKT.,C-2 BOARD
1
Type B
31
KLF-M2284-01 BRKT.,A-2 BOARD
1
Type A OK MJ00181-2012/10/23
KLF-M2284-00 BRKT.,A-2 BOARD
1
32 KLF-M2284-50 BRKT.,B-2 BOARD
1
Type B
33 KLF-M2286-00 COVER,H
1
Type A
34 KLF-M2286-50 COVER,H
1
Type B
35 KLF-M2288-00 BRKT.,D-F BOARD
1
Type A
36 KLF-M2288-50 BRKT.,D-R BOARD
1
Type B
37 KLF-M228A-00 BRKT.,1 CLAMP
1
MJY0053-2012/12/10
38 KLF-M657H-00 ADJUSTBLE CLAMP
1
MJY0053-2012/12/10
