YSM40_PartList - 第37页
1 5 Head (MU) Head KLF-1307 17 25 7 20 20 12 4 29 30 15 15 9 19 28 24 24 21 23 23 18 10 2 1 26 19 19 19 22 6 8 11 27 16 5 20 3 28 13 14 31 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M71K0-0…
13
4

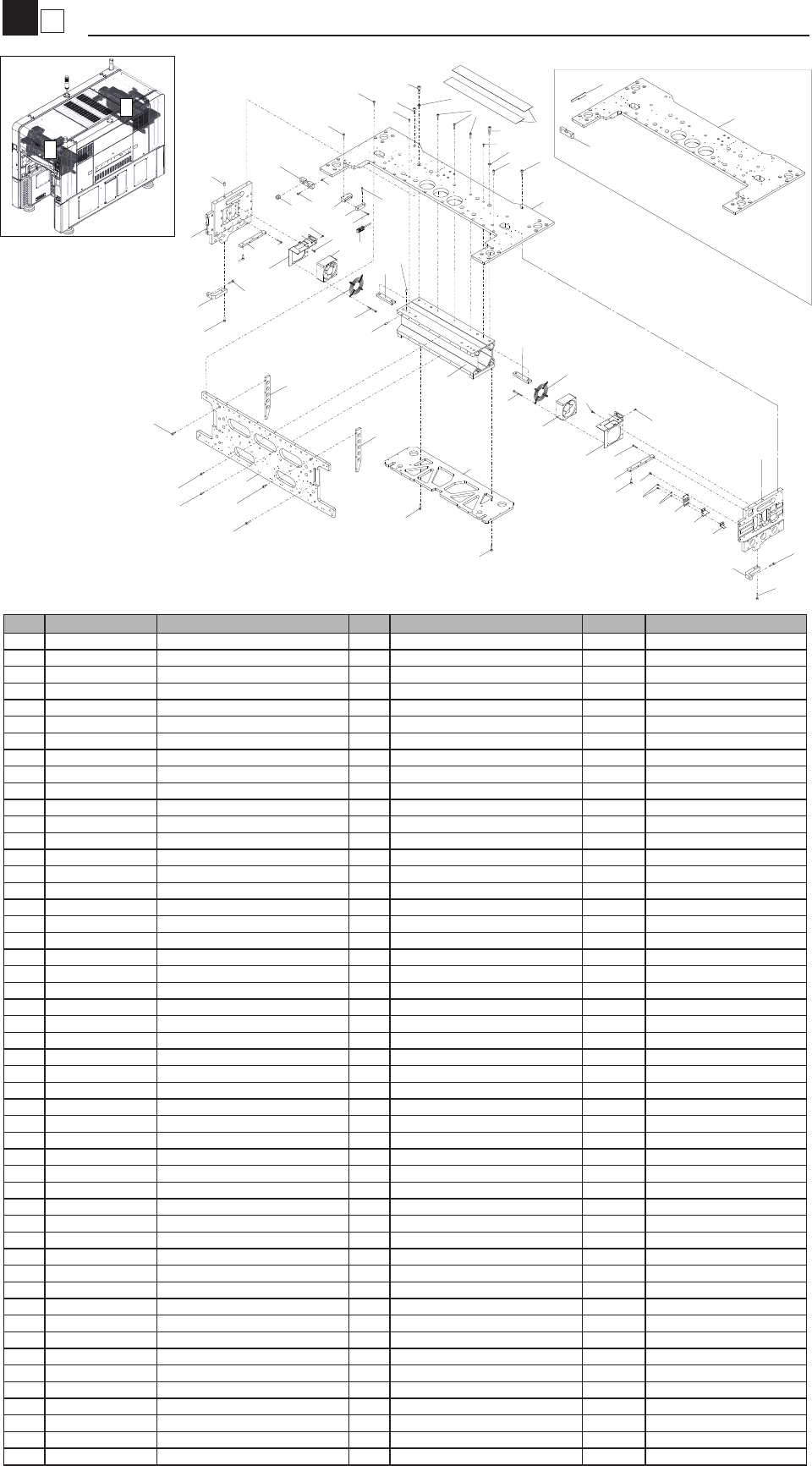

X-Frame / Y-Connection(2-Beam)
Moving-axis
KLF-1307
A
B
42
43
13
4
9
38
40
41
33
40
24
41
40
39
17
10
19
12
3
45
26
15
40
6
35
40
11
28
37
23
2
44
46
47
18
34
23
29
37
20
42
1
9
11
14
35
27
7
39
36
6
3
21
10
43
45
4
25
5
20
39
22
19
13
32
31
30
8
39
8
24
38
40
16
48
50
49
Type A
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90112-2AJ020 BOLT, HEX.SOCKET HEAD 4
2 91312-03006 BOLT HEX,SOCKET HEAD 4
3 91312-03008 BOLT HEX,SOCKET HEAD 4
4 91312-03010 BOLT HEX,SOCKET HEAD 4
5 91312-04008 BOLT HEX,SOCKET HEAD 2
6 91312-04010 BOLT HEX,SOCKET HEAD 6
7 91312-04012 BOLT HEX,SOCKET HEAD 4
8 91312-04014 BOLT HEX,SOCKET HEAD 16
9 91312-04016 BOLT HEX,SOCKET HEAD 8
10 91312-04022 BOLT HEX,SOCKET HEAD 8
11 KGN-M4187-00 FAN GUARD 2
12 KH1-M34D3-00 LOCATE PIN 1
13 KHN-M22F8-00 WASHER,SWR08 8
14 KHW-M2656-00 SPACER 4
15 KLF-M2204-00 LIB,1 X AXIS 1
16 KLF-M2205-00 PLATE,L X AXIS 1
17 KLF-M2206-00 PLATE,R X AXIS 1
18 KLF-M220A-00 FRAME,XL AXIS 1
19 KLF-M220E-00 LIB,4 2
20 KLF-M220F-00 LIB,3 2
21 KLF-M221B-00 BASE,X AXIS 1
22 KLF-M221D-00 PLATE,B 1 Type B
23 KLF-M221E-00 SPACER, NUT 4
24 KLF-M221F-000 LIB,2 2
25 KLF-M2228-L0 BRKT.,L FAN Y-M 1
26 KLF-M2228-R0 BRKT.,R FAN Y-M 1
27 KLF-M2262-00 PLATE 1, DAMPER 2 Type B
28 KLF-M22E0-00 TAPE, X DUCT 2
29 KLF-M2671-00 HOLDER,1 Y-RH 2
30 KLF-M2672-50 DOG,YL 2ND-LIMIT 1
31 KLF-M2673-50 DOG,YL ORG 1
32 KLF-M2674-10 BRKT.,YL DOG 1
33 KLF-M2675-01 HOLDER,2 Y-RH 2
34 KLF-M26T4-01 HEAD,LINEAR SCALE Y 2
35 KLF-M6185-B1 FAN MOTOR ASSY 2
36 KV7-M2651-00 DAMPER, STOPPER 4
37 91312-04045 BOLT HEX,SOCKET HEAD 8
38 91312-05014 BOLT HEX,SOCKET HEAD 8
39 91312-05016 BOLT HEX,SOCKET HEAD 16
40 91312-05020 BOLT HEX,SOCKET HEAD 19
41 91312-05025 BOLT HEX,SOCKET HEAD 4
42 91312-06022 BOLT HEX,SOCKET HEAD 6
43 91312-08025 BOLT HEX,SOCKET HEAD 8
44 92902-03200 WASHER,PLAIN 4
45 95302-03600 NUT HEXAGON 4
46 99480-06012 PIN,PARALLEL 2
47 99480-06014 PIN,PARALLEL 1
48 KLF-M221C-00 PLATE,A 1 Type A
49 KLF-M2262-10 PLATE 2, DAMPER 2 Type A
50 KLF-M2696-00 DOG,COL. 1 Type A
1
5
Head (MU)
Head
KLF-1307
17
25
7
20
20
12
4
29
30
15
15
9
19
28
24
24
21
23
23
18
10
2
1
26
19
19
19
22
6
8
11
27
16
5
20
3
28
13
14
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M71K0-00 Z AXIS ASSY.1 2
2 KLF-M71L0-00 Z AXIS ASSY.2 2
3
KLF-M715A-A1 VALVE,ASSY. 1 OK MLY0002-2015/1/22
KLF-M715A-A0 VALVE,ASSY. 1
4 KLF-M7150-B0 VALVE,PRESS. 1
5 KLF-M7109-00 BASE,VALVE 1
6 KLF-M71C1-00 COVER,CABLE 1
7 KLF-M71C4-00 BRACKET,CONNECTOR 1
8 KLF-M71C8-00 BRACKET,COVER 1
9 KLF-M71C9-01 COVER,HEAD 1
10 KLF-M71CD-00 CLAMP,HARNESS 2
11 KLF-M71Y0-00 LABEL,HEAD SERIAL 2
12 KLF-M7152-00 VALVE, SPARE 1 Spare
13 KLF-M7153-00 VALVE 1 Spare
14 KLF-M7154-00 JOINT 1 Spare
15 90990-01J058 BOLT,HEX.SOCKET HEAD 6
16 90990-46J007 BOLT,THIN HEAD 4
17 97602-04306 SCREW,BIN.HEAD W/W. 4
18 98902-03004 SCREW BINDING HEAD 6
19 91312-04005 BOLT HEX.SOCKET HEAD 8 M4X5
20 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
21 91312-04016 BOLT,HEX.SOCKET HEAD 4 M4X16
22 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
23 91312-04045 BOLT HEX.SOCKET HEAD 16 M4X45
24 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
25 $NK-4N NYLON CLIP 4
26 KLF-M712A-00 TUBE(TUS0425N) 6
27 KLF-M712B-00 TUBE(TUS0425N) 4
28 KLF-M712C-00 TUBE(TUS0425N) 10
29
KLF-M712D-00 TUBE(TUS0425N) 4
30 $UB0850-R URETHANE TUBE 2 (200mm)
31 KLF-M7153-10 VALVE 1 Spare MK10136-2013/2/1
2
5
R-axis Assy (MU)
Head
KLF-1210
12
13
21
34
24
25
35
36
27
27
29
29
3
1
22
22
22
14
22
4
5
34
21
9
35
11
36
23
33
23
33
20
19
15
20
19
15
21
34
24
27
35
36
35
10
22
23
23
6
6
16
16
18
28
17
27
27
26
34
21
8
27
36
30
30
7
34
34
31
32
37
34
34
31
37
7
34
34
31
37
13
12
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7101-00 HOUSING,HEAD 1
2 KLF-M7102-00 PLATE,R MOTOR 1
3 KLF-M7113-00 PLATE 2,BRG. 1
4 KLF-M7114-00 PLATE 3,BRG. 10
5 KLF-M7118-00 PLATE 4,BRG. 1
6 KLF-M7125-00 BRACKET,STOPPER 2
7 KLF-M7126-00 SHAFT,TENSION 3
8 KLF-M7127-00 BLOCK 1,ADJUST 1
9 KLF-M7128-00 BLOCK 2,ADJUST 1
10 KLF-M7129-00 BLOCK 3,ADJUST 1
11 KLF-M7130-00 BLOCK 4,ADJUST 1
12 KLF-M7131-00 BELT 1 2
13 KLF-M7132-00 BELT 2 2
14 KLF-M7133-00 SHEET,SCREEN 1
15 KLF-M7134-00 PULLEY,R MOTOR 2
16 KLF-M7139-00 STOPPER R 2
17 90KB0-113503 AC SERVO MOTOR R1 1
18 90KB0-113504 AC SERVO MOTOR R2 1
19 KGV-M7157-00 BLOCK2,STOPPER R 2
20 KHN-M7132-00 BLOCK1 STOPPER 2
21 KV8-M7115-00 SHAFT 1,TENSION 4
22 91312-03006 BOLT HEX.SOCKET HEAD 28 M3X6
23 91312-03010 BOLT HEX.SOCKET HEAD 6 M3X10
24 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
25 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
26 91312-03035 BOLT,HEX.SOCKET HEAD 2 M3X35
27 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
28 91312-05018 BOLT HEX.SOCKET HEAD 2 M5X18
29 98702-03006 SCREW FLAT HEAD 14
30 92A08-04304 SET SCREW M4X4 4
31 99009-07800 CIRCLIP : 3
32 99480-04008 PIN,PARALLEL:4X8 2
33 90990-19J016 NEEDLE,PIN 2
34 90990-25J016 BEARING 20
35 92902-03200 WASHER PLAIN 8
36 92902-04200 WASHER PLAIN 4
37 90990-28J157 WASHER,PLAIN 3
