9 5 R-axis Assy 2(FL) Head KLF-1307 28 23 27 26 1 7 37 36 36 36 34 34 33 31 35 32 32 31 35 30 33 38 38 36 36 8 3 21 24 10 1 1 2 9 14 17 12 18 16 16 15 13 6 19 25 20 22 5 29 4 7 7 39 No. Part No. Part Name Q'ty Remar…
8
5
R-axis Assy 1(FL)
Head
KLF-1304
21
14
19
19
23
8
7
17
15
11
12
12
11
15
16
26
22
6
4
25
13
20
20
1
23
3
24
23
23
27
28
18
23
2
5
9
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M741K-00 COVER,MOTOR 1
2 KLF-M741T-00 BRKT.,COVER 1
3 KLF-M7424-00 COLLAR,SPRING 1
4 KLF-M7481-00 GEAR,MOTOR R 1
5 KLF-M7482-00 GEAR 1 ,R 1
6 KLF-M7486-00 PLATE,MOTOR 1
7 KLF-M7487-00 HOLDER,BEARING 1
8 KLF-M748A-00 COVER,GEAR 1
9 KLF-M654L-00 SENSOR R1 ORG ASSY 1 R1
10 KLF-M654L-10 SENSOR R2 ORG ASSY 1 R2
11 KLF-M7032-00 GEAR 2,R 2
12 KLF-M7035-00 SPRING,TORTION 2
13 90KB0-113103 AC SERVO MOTOR R1 1 R1
14 90KB0-113104 AC SERVO MOTOR R2 1 R2
15 90440-01J060 CIRCLIP 2
16 90933-02J694 BEARING 1
17 90933-02J695 BEARING 1
18 90990-11J003 SCREW,PAN HEAD W/W 1
19 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
20 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
21 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
22 91312-04040 BOLT HEX.SOCKET HEAD 2 M4X40
23 91317-03006 BOLT HEX.SOCKET HEAD 10 M3X6
24 92907-03200 WASHER PLAIN 2
25 92A08-04303 SET SCREW 2
26 99480-03008 PIN,PARALLEL 2
27 99480-04010 PIN PARALLEL: 4X10 2
28 $NK-3N NYLON CLIP 1
9
5

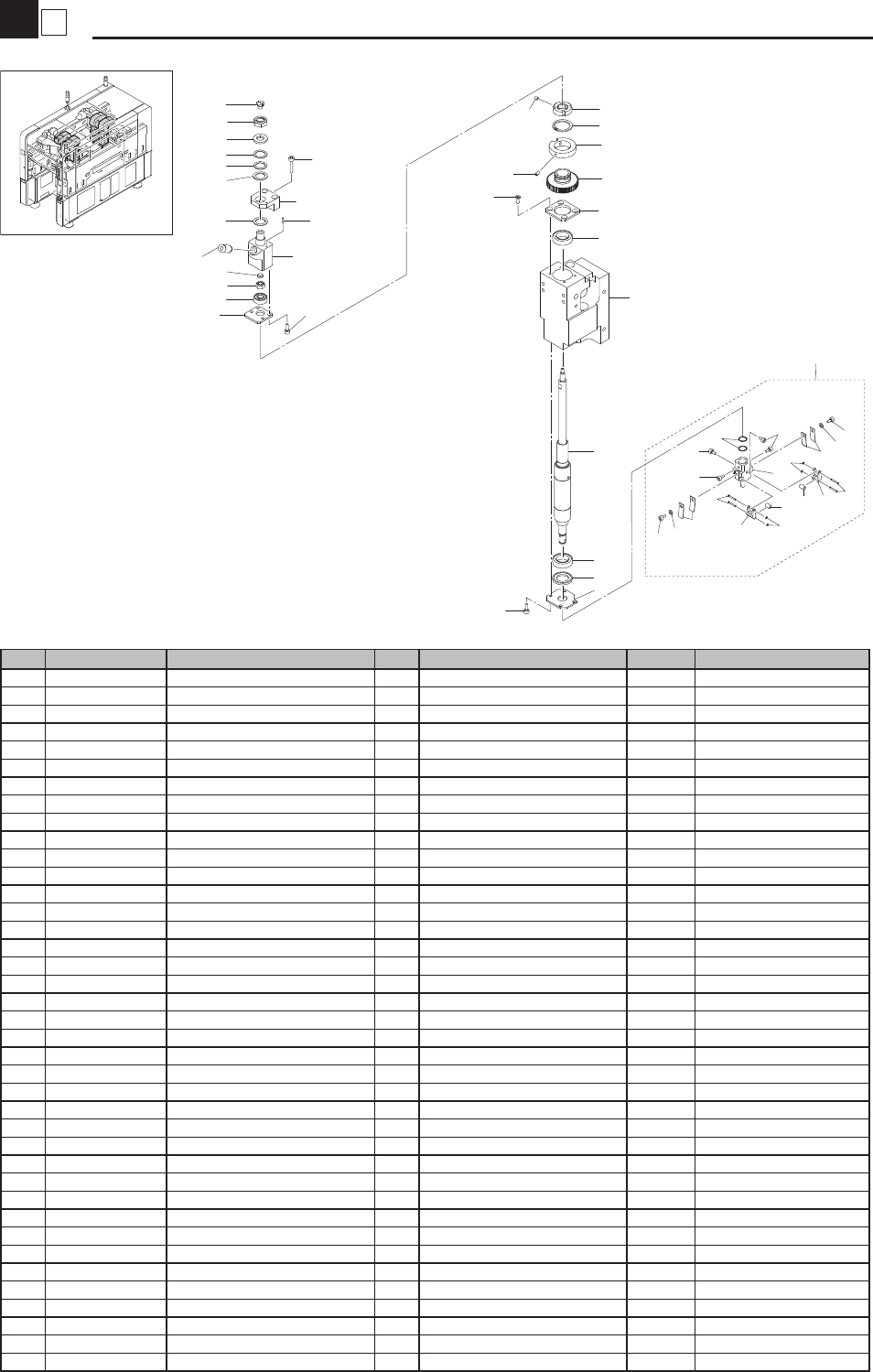

R-axis Assy 2(FL)
Head
KLF-1307
28
23
27
26
1
7
37
36
36
36
34
34
33
31
35
32
32 31
35
30
33
38
38
36
36
8
3
21
24
10
11
2
9
14
17
12
18
16
16
15
13
6
19
25
20
22
5
29
4
7
7
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7413-00 BLOCK,SHAFT 1
2 KLF-M7419-00 PLATE,BEARING TOP 1
3 KLF-M741S-00 PLATE,STOPPER 1
4 KLF-M742M-01 ARM 1
5 KLF-M742S-00 BLOCK,SPLINE 1
6 KLF-M742V-00 PLATE,BRG 1
7 KLF-M7441-01 SPLINE SHAFT 1
8 KLF-M744A-00 COLLAR,BEARING 1
9 KLF-M7460-00 NUT,SPLINE 1
10 KLF-M7480-00 COLLAR,DOG 1
11 KLF-M7483-00 GEAR,HEAD R 1
12 KGS-M715A-02 WAVE WASHER 1
13 90933-02J605 BEARING 1
14 90990-16J002 NUT,U 1
15 90990-22J009 PACKING 1
16 90990-28J045 WASHER,PLAIN 2
17 90990-28J046 WASHER,PLAIN 1
18 90990-29J033 SHIM 1
19 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
20 91312-03016 BOLT,HEX.SOCKET HEAD 2 M3X16
21 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
22 91609-12006 PIN SPRING 1
23 92A08-03003 SET SCREW M3X3 2
24 92A08-03005 SET SCREW M3X5 2
25 95602-05100 NUT U 1
26 98702-03008 SCREW FLAT HEAD 4
27 99009-17800 CIRCLIP (IS) 1
28 $PF PLUG 1
29 $TSH4-M5M JOINT 1
30 KLF-M74D3-01 BLOCK,NOZZLE HOLDER 1
31 KV7-M81D1-00 ARM,NOZZLE 2
32 KV7-M81D4-00 ROLLER 2
33 KV7-M81D3-01 PIN 4
34 KV7-M8171-00 PLATE,SPLING 4
35 90440-10J008 CIRCLIP 4
36 90115-02J004 BOLT,HEX.SOCKET HEAD 6
37 90990-17J079 O-RING 2
38 90990-28J002 WASHER PLAIN 2
39 KLF-M74A0-01 ROLLER LOCK ASSY. 1
10
5

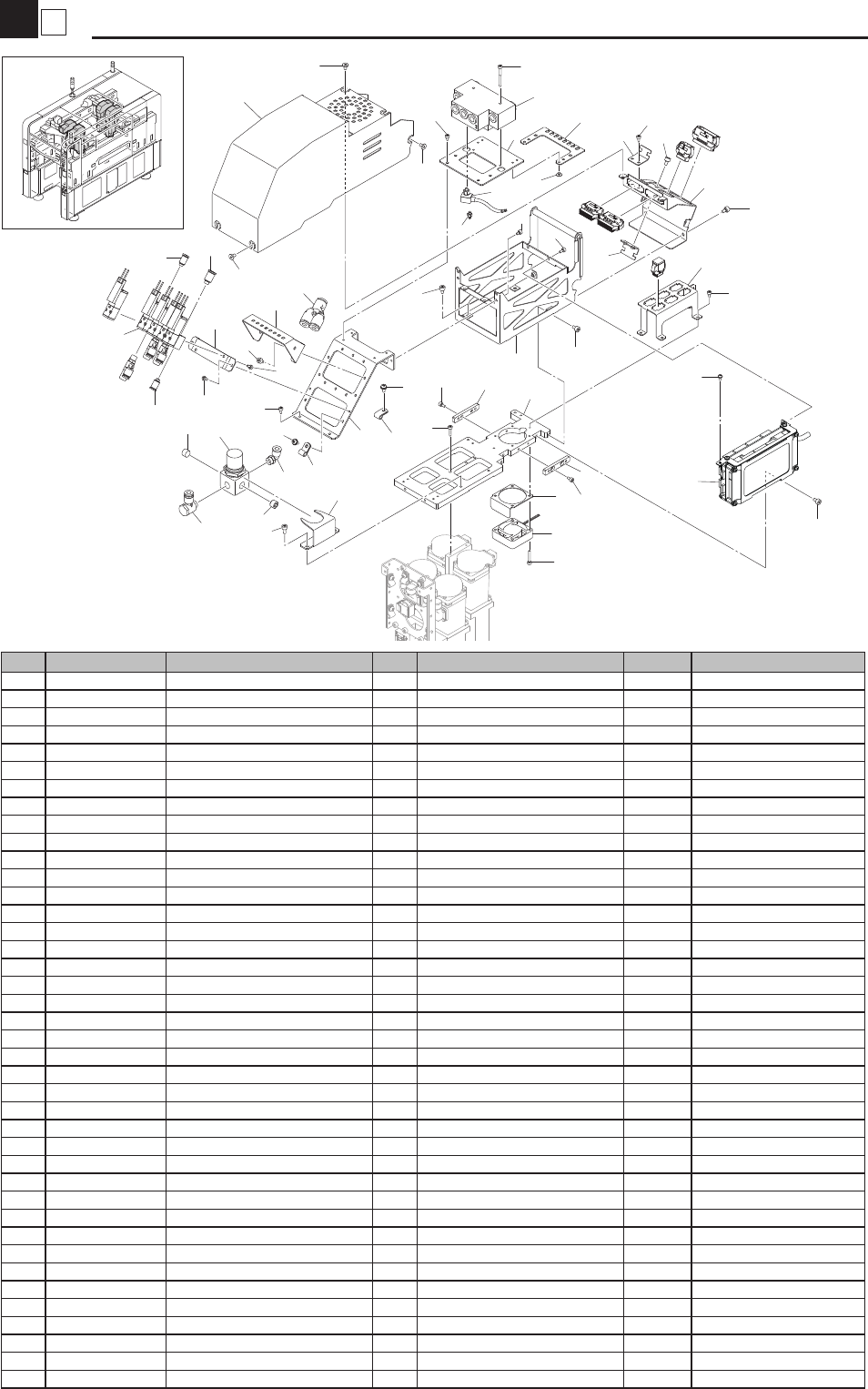

Ejector / Board (HS)
Head
KLF-1304
25
9
25
27
31
13
10
11
28
32
32
17
12
28
34
32
32
14
32
28
29
18
33
38
38
5
20
21
18
35
28
28
2
4
24
32
22
37
22
25
23
28
28
39
15
30
35
6
3
1
16
16
7
36
8
19
26
27
28
40
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M701J-02 BASE,I/O BOX 1
2 KLF-M7072-00 STAY,EJECTOR 1
3 KLF-M7073-00 STAY,REGULATOR 1
4 KLF-M7074-00 STAY,HOSE 1
5 KLF-M7075-00 REGULATOR 1
6 KLF-M7083-00 STAY,3 I/O BOX 1
7 KLF-M70C6-00 BRACKET,SERVO BOX 1
8 KLF-M70C7-00 BRACKET,VALVE 1
9 KLF-M70C9-01 COVER,HEAD 1
10 KLF-M70CA-00 BRACKET,HNS. 1
11 KLF-M70CE-00 CLAMP,HNS. 1
12 KLF-M70CF-00 BRACKET,CON. 1
13 KLF-M70V1-00 VALVE,MASTER 1
14 KLF-M7191-01 BOX,SERVO BRD. 1
15 KLF-M7196-00 BASE,FAN MOTOR 1
16 KLF-M71CB-00 PLATE,NUT 2
17 KLF-M71CE-00 CLAMP,CONNECTOR 1
18 $NK-3N NYLON CLIP 6
19 $BF4BU-M3 JOINT 1
20 $SL6-01 JOINT 1
21 $TL6-01M JOINT 1
22 $TSH4-M5M JOINT 4
23 $TSH6-M6M JOINT 3
24 $UYD8-6 JOINT 1
25 90990-01J058 BOLT HEX.SOCKET HEAD 6
26 90990-46J016 BOLT THIN HEAD 4
27 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
28 91312-03006 BOLT HEX.SOCKET HEAD 14 M3X6
29 91312-03012 BOLT,HEX.SOCKET HEAD 2 M3X12
30 91312-03018 BOLT HEX.SOCKET HEAD 4 M3X18
31 91312-03030 BOLT,HEX.SOCKET HEAD
2 M3X30
32 91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
33 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
34 97602-03106 SCREW PAN HEAD W/W 1
35 97602-04308 SCREW,PAN HEAD W/W 6
36 KLF-M654K-00 SENSOR VAC.PRE.ASSY 1
37 KLF-M7071-A1 EJECTOR,UNIT ASSY 1
38 K40-M8598-10 PLUG 1 2
39 KLF-M6185-00 FAN MOTOR ASSY. 1
40 KLA-M5802-23 HEAD SERVO UNIT ASSY 1
