YSM40_PartList - 第50页
14 5 Flow Sensor / S.V .Camera (HS) Head KLF-1307 19 30 29 27 33 20 28 12 4 41 41 8 24 11 9 21 27 18 35 37 18 40 38 12 13 32 23 5 34 22 20 16 31 17 17 17 42 43 6 7 25 10 14 27 38 39 40 36 1 15 26 2 3 32 9 OLD OLD No. Par…
13
5

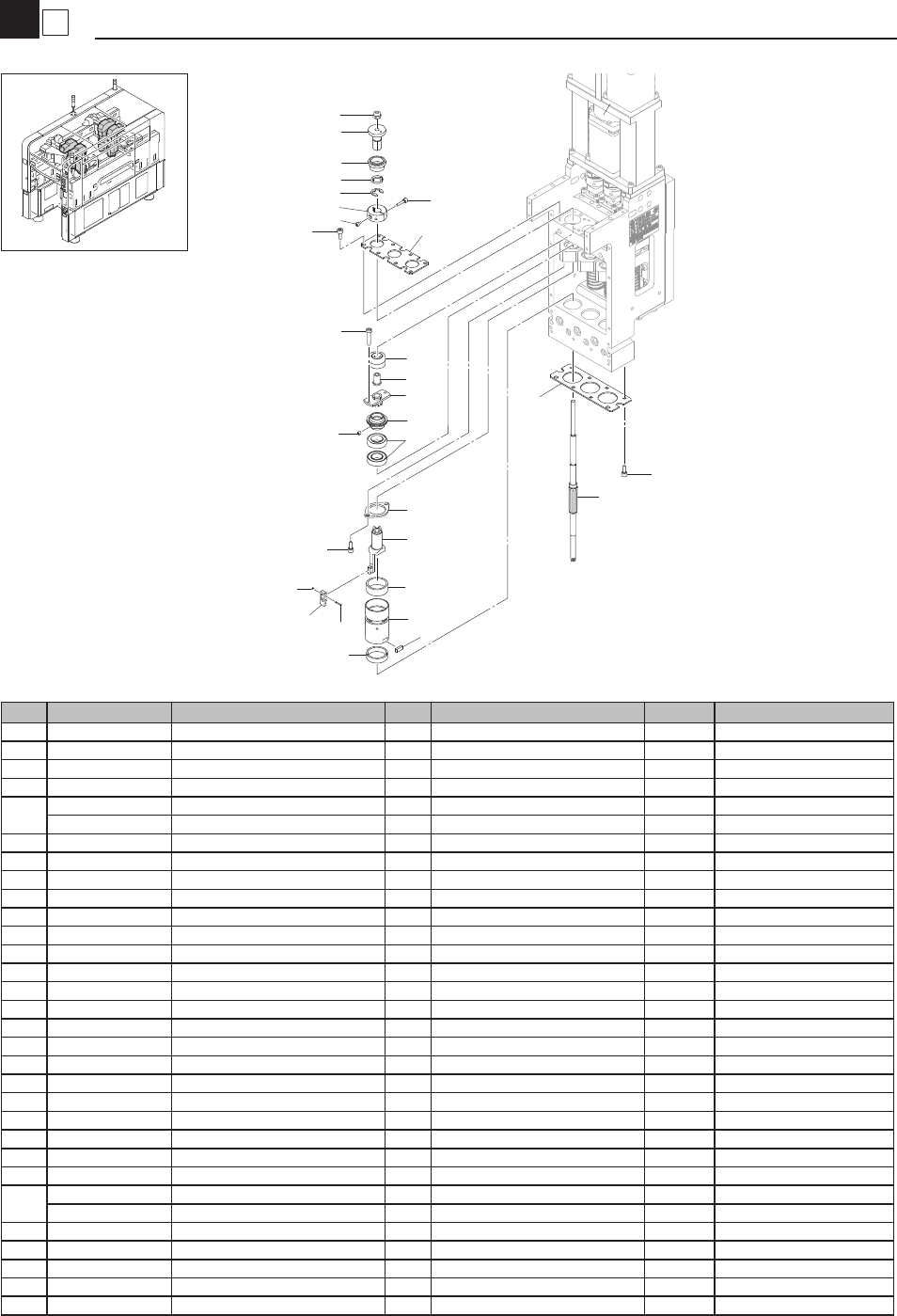

R-axis Assy 2 (HS)
Head
KLF-1307
30
15
16
17
27
18
24
22
26
6
8
9
12
29
10
11
19
21
5
2
3
14
13
20
28
1
4
20
7
25
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7012-00 COLLAR,MAIN 3
2 KLF-M7013-00 BALL GUIDE, 7.5 3
3 KLF-M7014-00 BALL GUIDE, 5.0 3
4 KLF-M7015-00 BLOCK,STOPPER 2
5
KLF-M7016-01 PLATE,COLLAR 1 OK MK40099-2013/4/17
KLF-M7016-00 PLATE,COLLAR 1
6 KLF-M7017-00 BEARING 3
7 KLF-M7018-00 PLATE,BEARING 1
8 KLF-M7019-00 COLLAR,1 BEARING 3
9 KLF-M701A-00 CLUTCH 3
10 KLF-M7029-00 PLATE,BEARING 3
11 KLF-M702A-01 ROD,PUSH 3
12 KLF-M702B-A0 MAGNET NUT ASSY. 3
13 KLF-M702C-00 HOOK 3
14 KLF-M702D-00 PIN 6
15 KLF-M7031-01 GEAR 1,R 3
16 KLF-M7032-00 GEAR 2,R 3
17 KLF-M7035-00 SPRING,TORTION 3
18 KLF-M7038-00 CLAMP 3
19 KLF-M7041-00 SHAFT,MAIN 3
20 91312-03008 BOLT HEX.SOCKET HEAD 14 M3X8
21 91317-03008 BOLT HEX.SOCKET HEAD 8 M3X6
22 KHJ-MC23E-00 BOLT HEX.S/H LOW 6
23 KLF-M704F-00 NEEDLE PIN 3
24 90112-02J004 BOLT,HEX.SOCKET HEAD 3
25
90990-01J102 BOLT HEX.SOCKET HEAD 3 OK MKY0113-2014/1/7
90112-2AJ010 BOLT,HEX.S.H:M2.5X10 3
26 90152-03J03 SCREW,SET M3X3 3
27 90440-01J060 CIRCLIP 3
28 90440-10J008 CIRCLIP 6
29 90933-01J800 BEARING 6
30 90990-15J003 NUT,HEXAGON 3
14
5

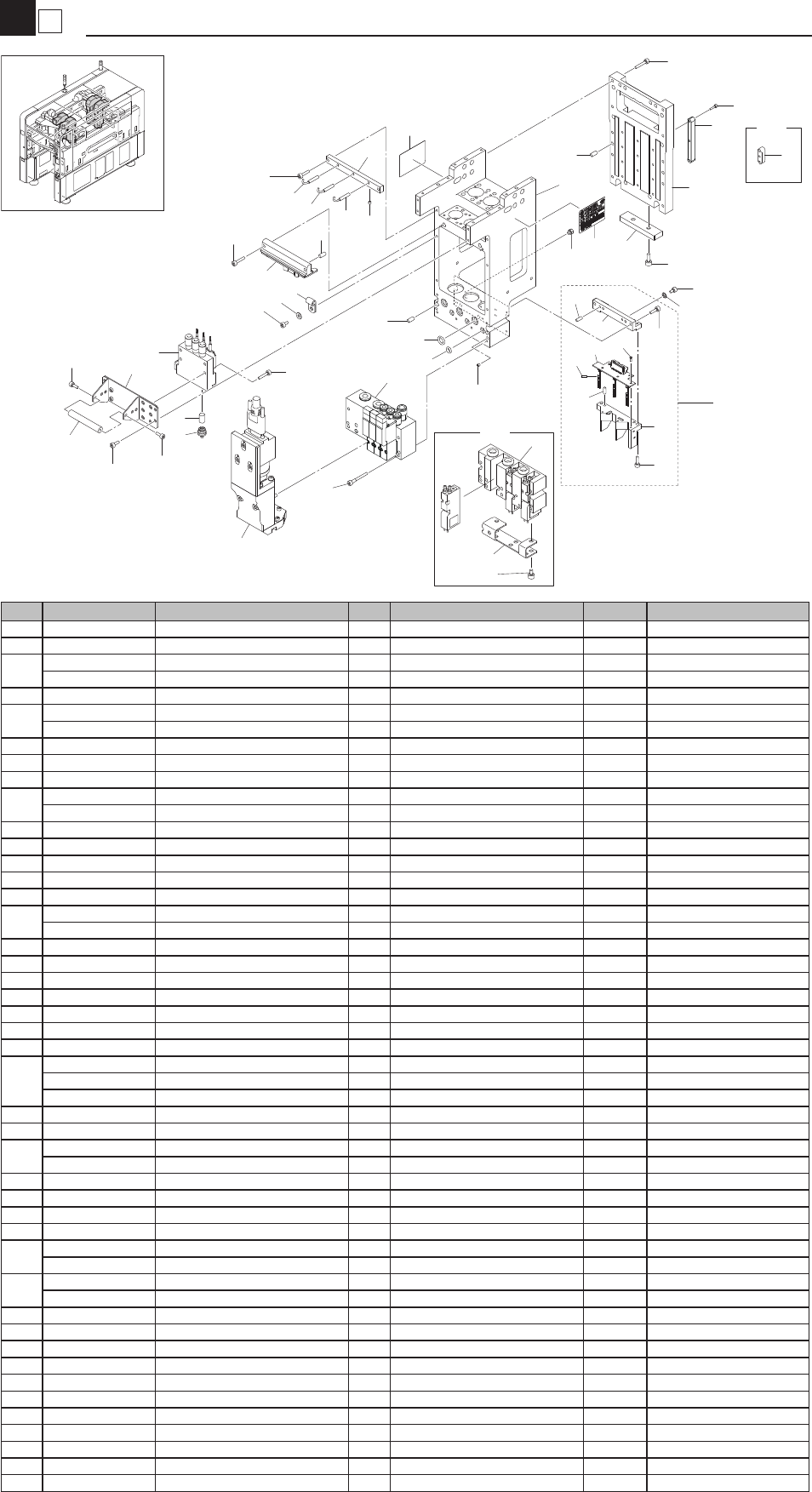

Flow Sensor / S.V.Camera (HS)
Head
KLF-1307
19
30
29
27
33
20
28
12
4
41
41
8
24
11
9
21
27
18
35
37
18
40
38
12
13
32
23
5
34
22
20
16
31
17
17
17
42
43
6
7
25
10
14
27
38
39
40
36
1
15
26
2
3
32
9
OLD
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7011-01 HOUSING,HEAD 1
2 KLF-M7021-00 PLATE,HEAD 1
3
Delete MK50086-2013/5/23
$PF-M3 PLUG 6
4 KLF-M7057-00 STAY,ORG.SENSOR 1
5
Delete MK80060-2013/9/4
KLF-M7065-00 PLATE,HNS. 1
6 KLF-M708D-01 STAY,HANDLE 1
7 KLF-M708E-01 HANDLE 1
8 KLF-M711R-00 BLOCK,HEAD 1
9
KLF-M7143-01 KEY,PARALLEL 1 OK MK90117-2013/10/11
KLF-M7143-00 KEY PARALLEL 2
10 $NK-3N NYLON CLIP 2
11 90112-02J008 BOLT HEX.SOCKET HEAD 4
12 90152-03J03 SCREW,SET M3X3 5
13 90200-10J040 O-RING 3
14 90200-10J070 O-RING 3
15
Delete MJ00264-2012/11/1
91312-03005 BOLT HEX.SOCKET HEAD 1 M3X5
16 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
17 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
18 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
19 91312-03012 BOLT,HEX.SOCKET HEAD 2 M3X12
20 91312-03014 BOLT,HEX.SOCKET HEAD 6 M3X14
21 91312-03016 BOLT,HEX.SOCKET HEAD 10 M3X16
22 91312-03025 BOLT,HEX.SOCKET HEAD 6 M3X25
23
Delete MK80060-2013/9/4
91317-04006 BOLT HEX.SOCKET HEAD 2 M4X6 OK MK50133-2013/5/31
91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
24 91312-04010 BOLT,HEX.SOCKET HEAD 2 M4X10
25 92902-03200
WASHER PLAIN 2
26
Delete MJ00264-2012/11/1
90172-00J030 WASHER,EXTL.TOOTHED 1
27 99480-04008 PIN,PARALLEL:4X8 6
28 KLF-M654J-00 SENSOR R1 ORG ASSY 1
29 KLF-M654J-10 SENSOR R2 ORG ASSY 1
30 KLF-M654J-20 SENSOR R3 ORG ASSY 1
31
KLF-M70F1-A2 HS FLOW SENSOR ASSY 1 OK MLY0002-2015/1/22
KLF-M70F1-A1 HS FLOW SENSOR ASSY 1
32
KLF-M7061-02 VALVE,SWITCH UNIT 1 Compati:KLF-M706R-000 NG MK80060-2013/9/4
KLF-M7061-A1 VALVE,SW.UNIT ASSY 1
33 KLF-M45CS-01 HS POS SENSOR ASSY 1
34 KLF-M79C0-H0 S.V.CAM.ASSY. 1
35 KLF-M79L0-H0 S.V.LIGHT ASSY. 1
36 KLF-M7921-00 STAY,LIGHT 1
37 KLF-M7922-00 BRACKET,LIGHT 1
38 90990-08J020 SCREW,M2X5 11
39 KLF-M793S-01 S.V.LIGHT BOARD SET 1
40 99480-03008 PIN,PARALLEL 4
41 KLF-M70Y0-00 LABEL,HEAD SERIAL 2
42 KLF-M7156-00 FILTER 3 Spare
43 KLF-M7155-00 FILTER JOINT 3 Spare
15
5

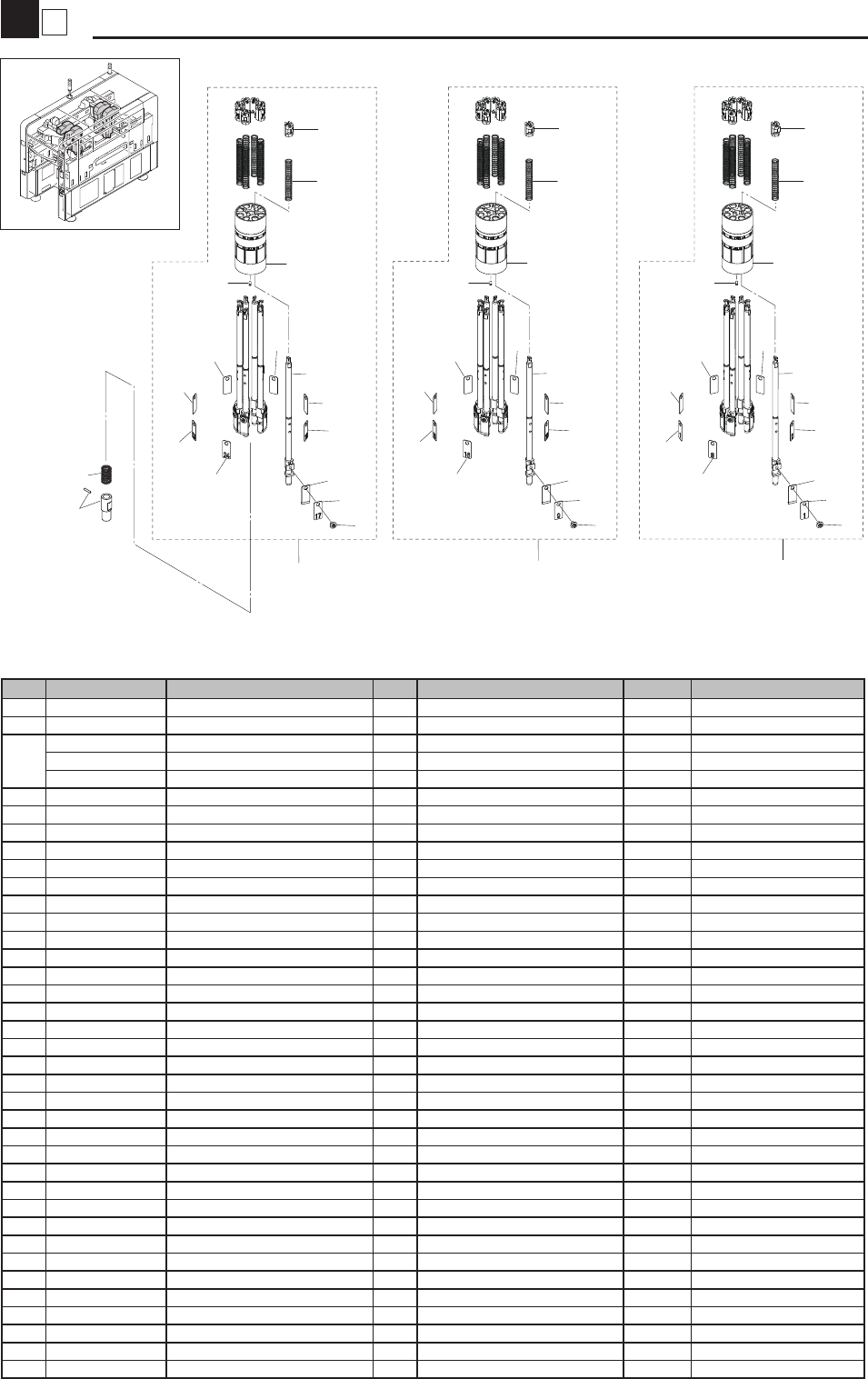

Rotary shaft Assy (HS)
Head
KLF-1307
6
17
5
4
2
3
7
18
16
20
19
23
22
24
25
21
6
1
5
4
2
3
7
8
16
10
9
13
12
14
15
11
35
36
6
26
5
4
2
3
7
27
16
29
28
32
31
33
34
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7040-A2 ROTARY SHAFT ASSY.1 1
2 KLF-M7042-01 HOLDER,MAIN 1
3
KLF-M701S-00 SHAFT A,NOZZLE 1 Diameter A rank MK00062-2013/10/21
KLF-M702S-00 SHAFT B,NOZZLE 1 Diameter B rank MK00062-2013/10/21
KLF-M703S-00 SHAFT C,NOZZLE 1 Diameter C rank MK00062-2013/10/21
4 KLF-M7046-00 SPRING 8
5 KLF-M7047-02 BLOCK,RETURN 8
6 KLF-M704F-00 NEEDLE PIN 1 This parts need press t and training.
7 KG7-M7137-A0 LEAF SPRING 8
8 KLF-M704W-10 PLATE,SPRING 1 1
9 KLF-M704W-20 PLATE,SPRING 2 1
10 KLF-M704W-30 PLATE,SPRING 3 1
11 KLF-M704W-40 PLATE,SPRING 4 1
12 KLF-M704W-50 PLATE,SPRING 5 1
13 KLF-M704W-60 PLATE,SPRING 6 1
14 KLF-M704W-70 PLATE,SPRING 7 1
15 KLF-M704W-80 PLATE,SPRING 8 1
16 90990-08J016 SCREW,PAN HEAD 8
17
KLF-M7040-B2 ROTARY SHAFT ASSY.2 1
18 KLF-M704W-90 PLATE,SPRING 9 1
19 KLF-M704W-A0 PLATE,SPRING 10 1
20 KLF-M704W-B0 PLATE,SPRING 11 1
21 KLF-M704W-C0 PLATE,SPRING 12 1
22 KLF-M704W-D0 PLATE,SPRING 13 1
23 KLF-M704W-E0 PLATE,SPRING 14 1
24 KLF-M704W-F0 PLATE,SPRING 15 1
25
KLF-M704W-G0 PLATE,SPRING 16 1
26 KLF-M7040-C2 ROTARY SHAFT ASSY.3 1
27 KLF-M704W-H0 PLATE,SPRING 17 1
28 KLF-M704W-J0 PLATE,SPRING 18 1
29 KLF-M704W-K0 PLATE,SPRING 19 1
30 KLF-M704W-L0 PLATE,SPRING 20 1
31 KLF-M704W-M0 PLATE,SPRING 21 1
32 KLF-M704W-N0 PLATE,SPRING 22 1
33 KLF-M704W-P0 PLATE,SPRING 23 1
34 KLF-M704W-R0 PLATE,SPRING 24 1
35 KLF-M704A-01 SPRING HOLDER ASSY. 1
36 KLF-M704B-00 SPRING 1
