YSM40_PartList - 第54页
3 6 Nozzle Changer (Stand) Nozzle KLF-1307 23 23 17 7 8 25 14 26 21 22 28 13 12 1 10 9 20 19 25 23 32 25 4 5 5 6 2 3 23 23 30 29 23 1 1 16 16 32 24 28 15 23 18 34 33 OLD 27 5 5 27 31 31 No. Part No. Part Name Q'ty R…
2
6

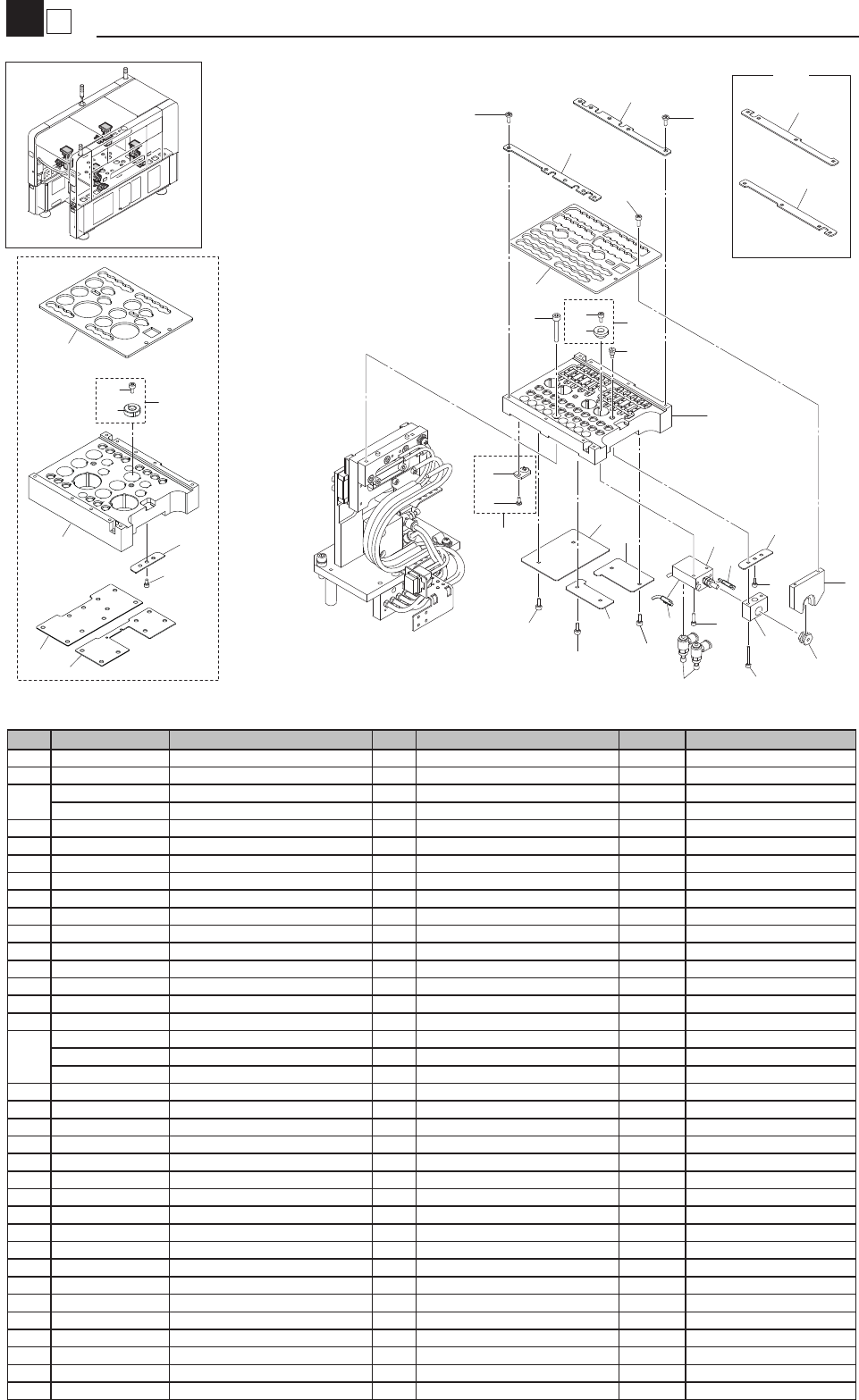

Nozzle Change (Holder)
Nozzle
KLF-1307
24
24
22
2
23
25
13
12
17
1
11
21
10
7
6
5
22
22
22
22
20
15
4
8
18
19
9
14
16
3
3
26
27
OLD
3
3
FL Type
MU Type
31
30
25
32
33
34
28
29
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9661-A0 NOZZLE HOLDER ASSY. 1
2 KLF-M9662-00 PLATE,CLAMP 1
3
KLF-M9663-01 SHEET,CLAMP GUIDE 2 NG MK10026-2013/1/21
KLF-M9663-00 SHEET,CLAMP GUIDE 2
4 KLF-M9664-00 PLATE,JOINT,CYL. 1
5 KLF-M9665-00 PLATE 1 1
6 KLF-M9666-00 PLATE 2 1
7 KLF-M9667-00 PLATE 3 1
8 KLF-M9668-00 PLATE 4 1
9 KLF-M9655-00 BLOCK,STOPPER 1
10 KHY-M9621-A0 BASE,NOZZLE D ASSY. 8
11 KHY-M9621-B0 BASE,NOZZLE D 1
12 KKS-M9622-A1 SPACER3 ASSY. 4
13 KKS-M9622-01 SPACER HOLDER 3 1
14 KKU-M184K-00 CYLINDER (MBDAS) 1
15 KGS-M9604-00 JOINT CYL. 1
16
KJD-M1740-00 SPEED CONTROLLER 2 MK30085-2013/3/26
Delete MK10028-2013/1/22
$SC4-M3MA SPEED CONTROLLER 2
17 KKE-M9608-00 PIN,SLIDE 2
18 90112-2AJ006 BOLT,HEX.SOCKET HEAD 1
19 90112-2AJ010 BOLT,HEX.S.H:M2.5X10 2
20 90112-2AJ020 BOLT HEX.SOCKET HEAD 2
21 92012-03006 BOLT,BUTTON HEAD 2
22 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
23 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
24 98902-03008 SCREW BINDING HEAD 8
25 91312-03006 BOLT HEX.SOCKET HEAD 2
26 KLF-M653S-00 SENSOR ANC OPEN ASSY 1
27 KLF-M653S-10 SENSOR ANC CL. ASSY 1
28 KLF-M9681-A0 NOZZLE HOLDER ASSY. 1
29 KLF-M9682-00 PLATE,CLAMP 1
30 KLF-M9684-00 PLATE 1 1
31 KLF-M9685-00 PLATE 2 1
32 KLF-M968B-00 SPACER,NOZZLE 1 1
33 KLF-M968B-A0 SPACER1 ASSY. 2
34 90112-2AJ005 BOLT,HEX.SOCKET HEAD 1
3
6

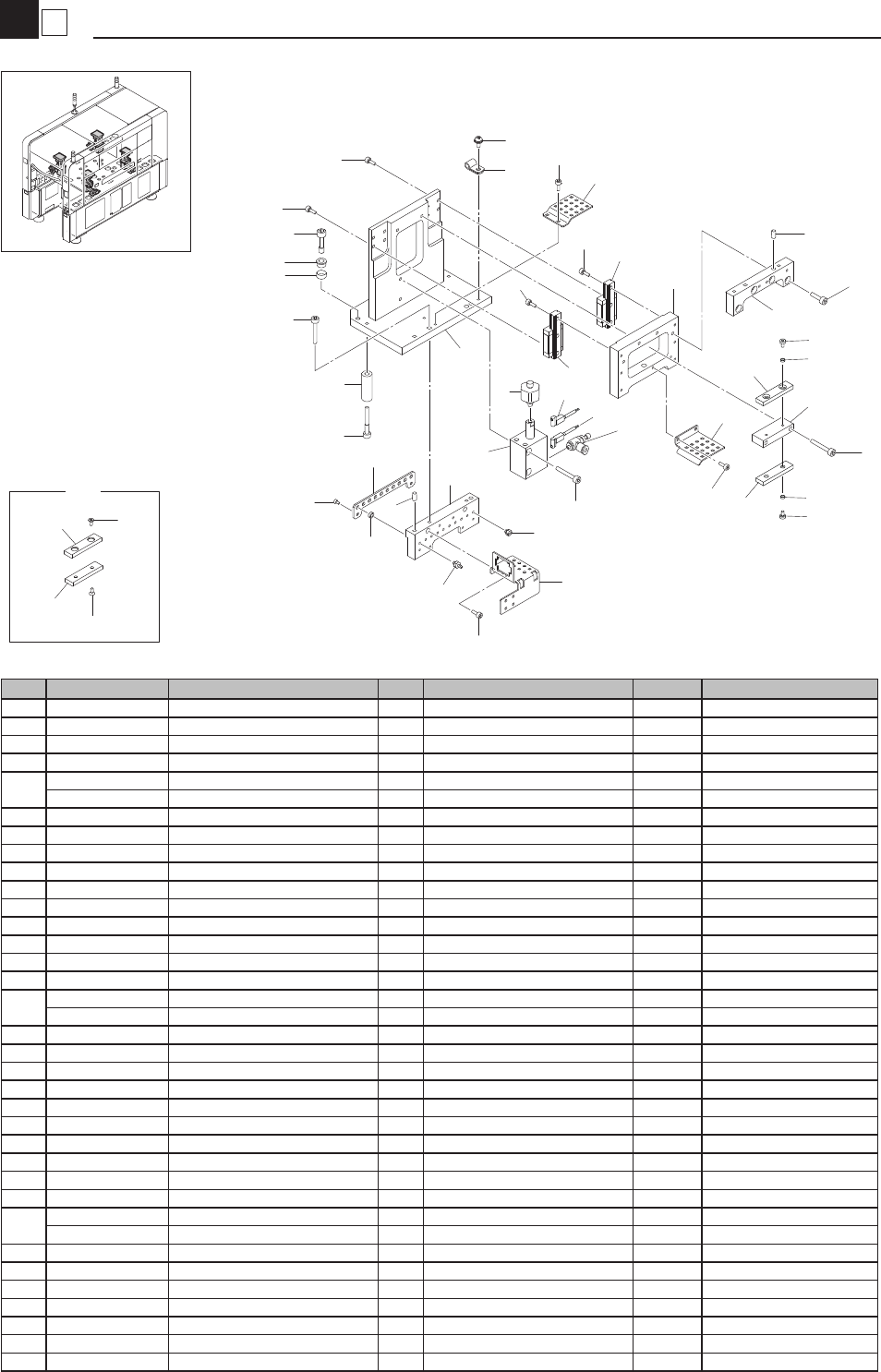

Nozzle Changer (Stand)
Nozzle
KLF-1307
23
23
17
7
8
25
14
26
21
22
28
13
12
1
10
9
20
19
25
23
32
25
4
5
5
6
2
3
23
23
30
29
23
11
16
16
32
24
28
15
23
18
34
33
OLD
27
5
5
27
31
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9651-00 BASE,A.N.C. 1
2 KLF-M9652-00 PLATE,BRACKET 1
3 KLF-M9653-00 PLATE 1
4 KLF-M9654-00 BRACKET,STOPPER 1
5
KLF-M9656-01 PLATE,STOPPER 2 NG MK20046-2013/3/11
KLF-M9656-00 PLATE,STOPPER 2
6 KLF-M9657-00 BRACKET 1 1
7 KLF-M9658-00 BUSH 2
8 KLF-M9659-00 SPRING 2
9 KLF-M965B-00 CYLINDER 1
10 KLF-M965C-00 JOINT 1
11 KLF-M965D-00 BRACKET 2 1
12 KLF-M9622-00 PLATE,PACKING 1
13 KLF-M9623-00 BLOCK,JOINT 1
14 KLF-M9624-00 SHAFT,GUIDE 2
15 KLF-M962B-00 BRACKET 1
16
KLF-M965A-00 GUIDE 2 OK MJ00003-2012/10/3
KM1-M9610-00 GUIDE 2
17 LC4-M12A2-00 SCREW,M5X20-6 2
18 $BF4-M3 JOINT 4
19 $PF-M3 PLUG 6
20 $SC4-M3MA SPEED CONTROLLER 2
21 90167-02JA05 SCREW,FLAT HEAD 2
22 90990-22J009 PACKING 10
23 91312-03008 BOLT HEX.SOCKET HEAD 12 M3X8
24 91312-04014 BOLT HEX.SOCKET HEAD 6 M4X14
25 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
26 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
27
Delete MK20046-2013/3/11
98702-03006 SCREW FLAT HEAD 4
28 99480-04008 PIN,PARALLEL:4X8 4
29 $NK-3N NYLON CLIP 2
30 97602-04308 SCREW,PAN HEAD W/W 2
31 90990-01J044 BOLT,HEX.SOCKET HEAD 4 NG MK20046-2013/3/11
32 90990-41J163 COLLAR 4 NG MK20046-2013/3/11
33 KLF-M653T-00 SENSOR ANC UP ASSY 1
34 KLF-M653T-10 SENSOR ANC DOWN ASSY 1
4
6

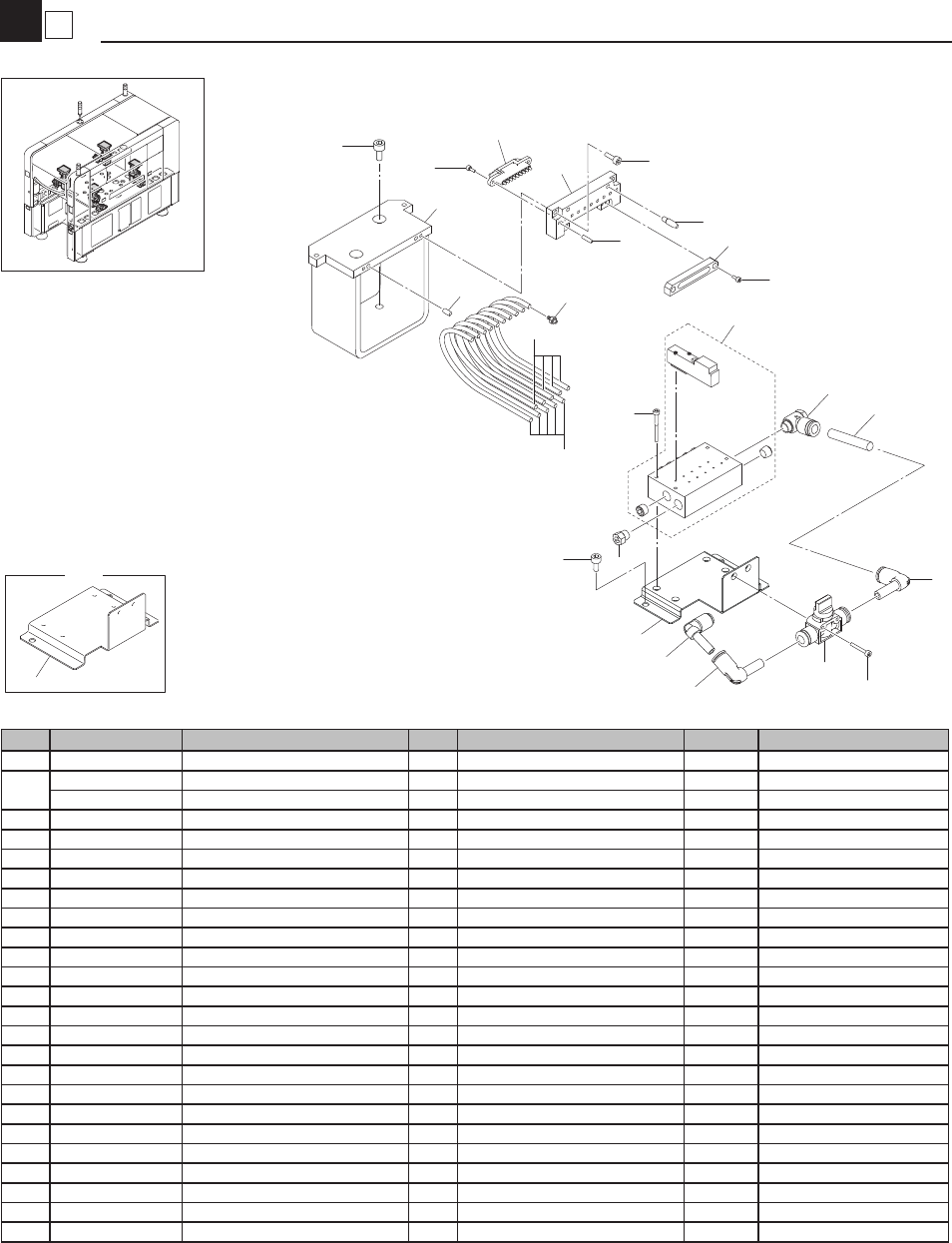

Nozzle Changer (Base)
Nozzle
KLF-1307
3
14
16
18
2
11
12
13
13
10
15
7
6
9
19
4
17
14
8
5
1
22
21
20
2
OLD
23
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9611-00 STAND 1
2
KLF-M9612-01 PLATE 1 NG MK50025-2013/5/14
KLF-M9612-00 PLATE 1
3 KLF-M9614-00 PIN,JOINT 10
4 KLF-M9615-00 PIN,GUIDE 2
5 KLF-M9617-00 BLOCK,JOINT 1
6 KLF-M961A-00 VALVE ASSY 1
7 KLF-M961D-00 BLOCK 1
8 KLF-M66M0-00 HNS,ANC DI 1
9 $BF4-M3 JOINT 10
10 $FVU8-8 JOINT 1
11 $KM-10 MUFFLER 1
12 $SL8-01 JOINT 1
13 $ULA8 JOINT 1
14 90112-2AJ006 BOLT,HEX.SOCKET HEAD 4
15 91312-03020 BOLT,HEX.SOCKET HEAD 4 M3X20
16 91312-03030 BOLT,HEX.SOCKET HEAD 4 M3X30
17 91312-04012 BOLT,HEX.SOCKET HEAD 2 M4X12
18 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
19 99480-04008 PIN,PARALLEL:4X8 2
20 $UB0425-R URETHANE TUBE 1 1200mm
21 $UB0425-BK URETHANE TUBE 1 1200mm
22 $UB0850-R URETHANE TUBE 1 50mm
23 $ULAD8-6 JOINT 1 MK50025-2013/5/14
24 91312-06012 BOLT HEX.SOCKET HEAD 2
