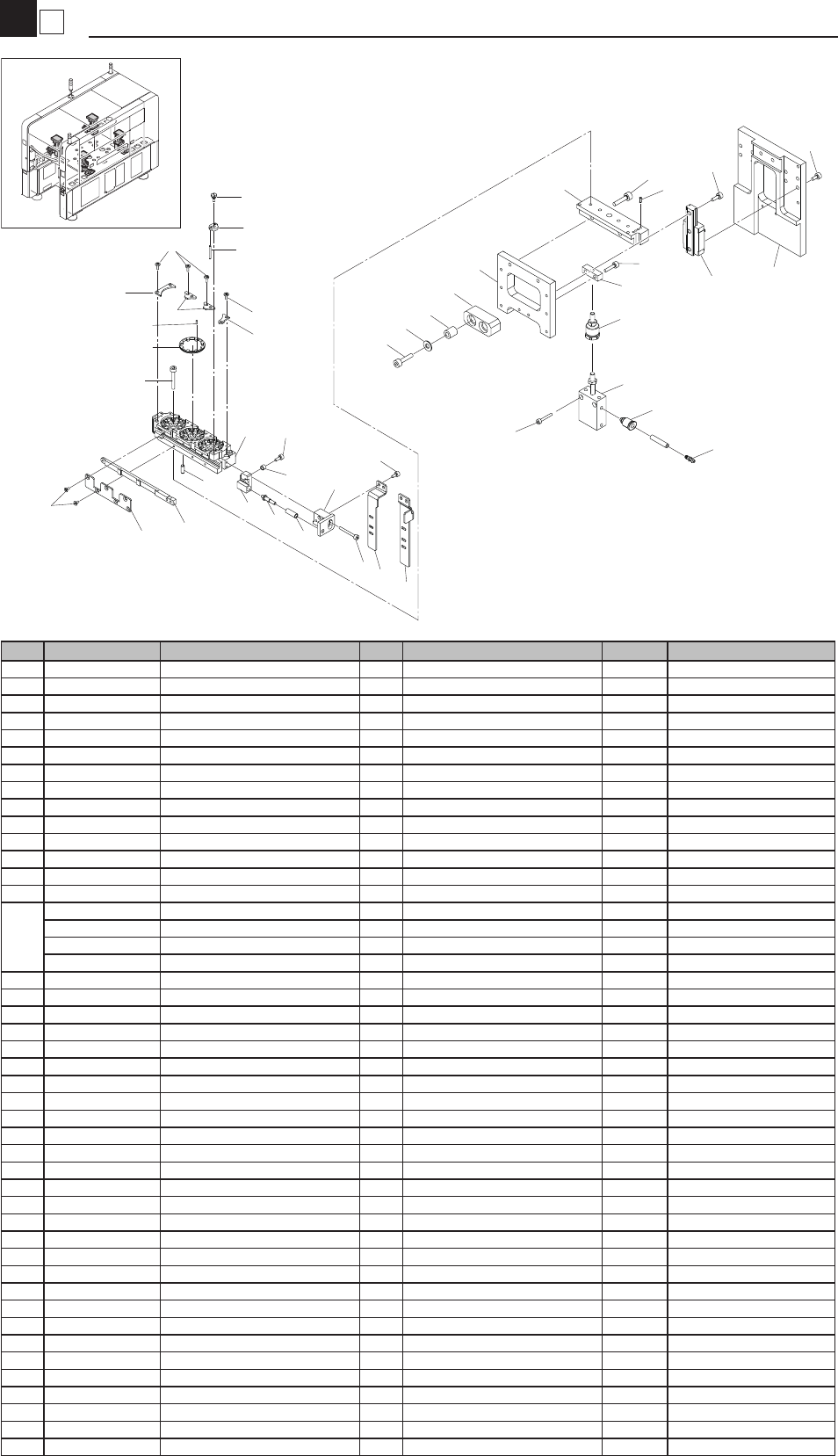

YSM40_PartList - 第57页
6 6 Body ANC (HS) Nozzle KLF-1307 2 1 1 51 8 20 21 7 9 12 28 44 32 49 1 1 33 35 12 12 30 40 12 18 3 23 13 16 50 19 6 17 31 4 41 39 48 46 1 1 10 38 36 37 29 12 28 12 9 7 21 20 45 42 43 52 4 8 27 47 14 22 25 26 1 5 34 15 5…
5
6
ANC Unit (HS)
Nozzle
KLF-1307
28
11
12
16
39
40
41
13
23
22
21
1
14
4
20
19
24
42
17
18
3
2
10
36
5
32
30
31
29
43
15
26
35
7
9
7
34
38
41
25
8
27
33
6
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $TSH4-M3M JOINT 2
2 90112-2AJ005 BOLT, HEX.SOCKET HEAD 2
3 90112-2AJ006 BOLT, HEX.SOCKET HEAD 2
4 90112-2AJ015 BOLT, HEX.SOCKET HEAD 2
5 90112-2AJ020 BOLT, HEX.SOCKET HEAD 2
6 90167-02J204 SCREW,FLAT HEAD 6
7 90169-02J205 SCREW, BINDING HEAD 8
8 90990-19J002 NEEDLE PIN 3
9 90990-19J007 NEEDLE PIN 3
10 90990-41J128 COLLAR 2
11 91312-03006 BOLT HEX,SOCKET HEAD 8
12 91312-03008 BOLT HEX,SOCKET HEAD 6
13 91312-03012 BOLT HEX,SOCKET HEAD 2
14 KLF-M733J-00 JOINT 2
15
KLF-M9631-A0 HOLDER,NOZZLE ASSY. 1 Unit 1 SPL/510
KLF-M9631-B0 HOLDER,NOZZLE ASSY. 1 Unit 2 501/511
KLF-M9631-C0 HOLDER,NOZZLE ASSY. 1 Unit 3 502/512
KLF-M9631-D0 HOLDER,NOZZLE ASSY. 1 Unit 4 ---/513
16 KLF-M9632-00 PLATE,LWR. 1
17 KLF-M9633-00 PLATE,UPR. 1
18 KLF-M9634-00 BLOCK,ADJUST 1
19 KLF-M9635-00 SPACER,STOPPER 2
20 KLF-M9636-00 STOPPER U/D 1
21 KLF-M9637-00 CYLINDER 3
22 KLF-M9638-00 JOINT,CYLINDER 1
23 KLF-M9639-00 BRACKET,CYLINDER 1
24 92902-04200 WASHER,PLAIN 2
25 KLF-M963B-00 HOLDER,CLAMP 3
26 KLF-M963C-00 PLATE,LINK 1 3
27 KLF-M963D-00 PLATE,LINK 2 1
28 KLF-M963E-00 PIN,SLIDE 3
29 KLF-M963F-01
STOPPER,CLAMP 1
30 KLF-M963G-00 GUIDE,SPRING 1
31 KLF-M963H-00 SPRING,RETURN 1
32 KLF-M963K-00 BLOCK,STOPPER 1
33 KLF-M963L-00 SHEET,LINK GUIDE 1
34 KLF-M963M-00 SHEET,CLAMP GUIDE 1 2
35 KLF-M963N-00 SHEET,CLAMP GUIDE 2 1
36 KLF-M963R-00 PLATE,SENSOR 1 1 Unit 1-3
37 KLF-M963S-00 PLATE,SENSOR 2 1 Unit 4
38 KLF-M963W-00 SHEET,CLAMP GUIDE 3 1
39 KLF-M965A-00 GUIDE 2
40 91609-20005 PIN SPRING 1
41 91312-03020 BOLT HEX,SOCKET HEAD 2
42 91312-04016 BOLT HEX,SOCKET HEAD 4
43 99480-03008 PIN,PARALLEL 2
6
6
Body ANC (HS)
Nozzle
KLF-1307
2
11
51
8
20
21
7
9
12
28
44
32
49
11
33
35
12
12
30
40
12
18
3
23
13
16
50
19
6
17
31
4
41
39
48
46
11
10
38
36
37
29
12
28
12
9
7
21
20
45
42
43
52
4
8
27
47
14
22
25
26
1
5
34
15
52
22
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $BF4-M3 JOINT 10
2 $NK-3N NYLON CLIP 2
3 $TSH4-M3M JOINT 2
4 90112-2AJ006 BOLT, HEX.SOCKET HEAD 6
5 90112-2AJ008 BOLT, HEX.SOCKET HEAD 2
6 90112-2AJ010 BOLT, HEX.SOCKET HEAD 2
7 90115-02J006 BOLT, HEX. SOCKET HEAD 8
8 90167-02JA05 SCREW, FLAT HEAD 6
9 90990-41J066 COLLAR 8
10 91312-03005 BOLT HEX,SOCKET HEAD 2
11 91312-03006 BOLT HEX,SOCKET HEAD 8
12 91312-03008 BOLT HEX,SOCKET HEAD 11
13 91312-04006 BOLT HEX,SOCKET HEAD 2
14 91312-04012 BOLT HEX,SOCKET HEAD 8
15 91312-04016 BOLT HEX,SOCKET HEAD 2
16 KGS-M9604-00 JOINT,CYL. 1
17 KKU-M184K-00 CYLINDER (MBDAS) 1
18 KLF-M653S-20 SENSOR ANC OPEN ASSY 1
19 KLF-M653S-30 SENSOR ANC CL. ASSY 1
20 KLF-M653V-00 SENSOR ANC UP ASSY 1
21 KLF-M653V-10 SENSOR ANC DOWN ASSY 1
22 KLF-M66M1-00 HNS,ANC HS 1
23 KLF-M733J-00 JOINT 2
24 KLF-M9621-00 PLATE,BASE 1
25 KLF-M9622-00 PLATE,PACKING 1
26 KLF-M9623-00 BLOCK,JOINT 1
27 KLF-M9624-00 SHAFT,GUIDE 2
28 KLF-M9625-00 BRACKET,SENSOR 2
29 KLF-M9626-00 BRACKET,CYLINDER 1
30 KLF-M9627-00 BRACKET,GUIDE 1
31 KLF-M9628-00 BRACKET 1 1
32 KLF-M9629-00 HOLDER,MARK 1
33 KLF-M962A-00 GUIDE 1
34 KLF-M962C-00 BRACKET 2 1
35 KLF-M962D-00 HOOK,CYL. 1
36 KLF-M962E-00 BLOCK,HOOK 1
37 KLF-M962F-00 PLATE,JOINT CYL. 1
38 KLF-M962G-00 PLATE,JOINT,CYL. 2 1
39 KLF-M962H-00 STOPPER,HOOK 1
40 KLF-M962K-00 BRACKET 2 1
41 KLF-M9641-01 SPACER,STOPPER 1
42 KLF-M9658-00 BUSH 2
43 KLF-M9659-00 SPRING 2
44 KLF-M96HM-00 PIN,MARK 1
45 LC4-M12A2-00 SCREW,M5X20-6 2
46 91312-04025 BOLT HEX,SOCKET HEAD 1
47 91312-04030 BOLT HEX,SOCKET HEAD 2
48 92902-04200 WASHER,PLAIN 1
49 92A08-03003 SCREW,SET 1
50 95302-04700 NUT HEXAGON 1
51 97602-04308 SCREW PAN HEAD W/WASHER 2
52 99480-04008 PIN,PARALLEL 10
1
7
Push-Up A / C
Conveyor
KLF-1210
50
3
3
7
7
2
1
43
D
A
B
C
43
45
45
44
44
44
49
5
39
39
20
40
40
6
18
28
42
48
34
22
11
11
16
23
37
33
9
39
39
36
39
19
25
36
26
47
29
8
37
47
24
43
48
38
38
31
32
27
4
10
35
30
21
47
41
5
20
21
47
41
42
17
51
OLD
39
14
13
15
12
14
46
39
11
13
12
43
46
13
12
43
46
13
12
43
46
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M920A-10 PLATE 1(357X400) 1 A-Table
2 KLF-M920B-00 STAY 1
3 KLF-M920C-00 PLATE,ARM 2
4 KLF-M9212-00 HOUSING 1
5
KLF-M9219-01 BRKT.,STOPPER 2 T=88mm NG MKX0066-2013/12/5
KLF-M9219-00 BRKT.,STOPPER 2 T=86mm
6 KLF-M921D-00 BELT 342-3GT-15 1
7 KLF-M921G-00 PLATE 2
8
KLF-M921H-01 PLATE,DOG 1 L=58mm NG MKX0066-2013/12/5
KLF-M921H-00 PLATE,DOG 1 L=56mm
9 KLF-M921N-00 JOINT A 1
10 KLF-M921S-00 BRKT.,MOTOR 1
11 KLF-M9226-00 SHAFT 3
12
KLF-M9227-02 HOUSING SLEEVE 3 NG MKX0066-2013/12/5
KLF-M9227-00 HOUSING SLEEVE 3
13
KLF-M9232-00 BALL BUSH 3 NG MKX0066-2013/12/5
KLF-M9228-00 BALL RETAINER 3
14
Delete MKX0066-2013/12/5
KLF-M9229-00 PLATE 6
15
Delete MKX0066-2013/12/5
KLF-M9230-00 SLEEVE 3
16 KLF-M9238-00 COLLAR 1
17 KGA-M921T-00 BOLT 4
18 KHW-M9215-00 PULLEY:P60-3GT 1
19 KHW-M921K-00 BRKT.,SENSOR 1
20 KHY-M9153-00 DAMPER B 2
21 KHY-M9154-00 SPACER 2
22 KHY-M9211-00 HOUSING,BRG. 1
23 KHY-M921M-01 WASHER 1
24 KHY-M921P-00 JOINT B 1
25 KLF-M653L-10 SENSOR PU1 ORG ASSY 1 A-Table
26 KLF-M653L-20 SENSOR PU2 ORG ASSY 1 C-Table
27 KKE-M9218-00 GROMMET 1
28 KKE-M9B00-00 BALL SCREW PU 1
29 KKT-M921G-00 BRKT.,DOG 1
30 KV7-M9205-01 PULLEY 1:P22-3GT 1
31 90K65-332625 AC SERVO MOTOR 1 A-Table
32 90K65-332626 AC SERVO MOTOR 1 C-Table
33 90440-01J090 CIRCLIP 1
34 90933-01J007 BEARING 2
35 90990-28J076 WASHER 1
36 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
37 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X6
38 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
39
91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10 MKX0066-2013/12/5
91312-04010 BOLT HEX.SOCKET HEAD 22
40 91312-04012 BOLT,HEX.SOCKET HEAD 5 M4X12
41 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
42 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
43
91312-05012 BOLT HEX.SOCKET HEAD 22 M5X12 MKX0066-2013/12/5
91312-05012 BOLT HEX.SOCKET HEAD 10
44 91312-05014 BOLT HEX.SOCKET HEAD 10 M5X14
45 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
46 91312-05020 BOLT HEX.SOCKET HEAD 12 M5X20
47 92902-04200 WASHER PLAIN 6
48 92902-05200 WASHER PLAIN 8
49 95602-10100 NUT U 4
50 KKV-M920D-00 PUSH UP PIN UNIT 1
51 KLF-M920A-20 PLATE 1(357X400) 1 C-Table ( Plate only )
