YSM40_PartList - 第64页
7 7 Stay / Pin Sensor Conveyor KLF-1307 1 2 12 22 19 22 22 22 17 17 19 19 19 13 13 12 The Reverse flow specification reverse the sensor position. 1 1 22 22 22 19 19 17 17 19 22 19 9 18 8 5 8 8 3 5 8 4 5 5 15 16 3 15 16 2…
6
7

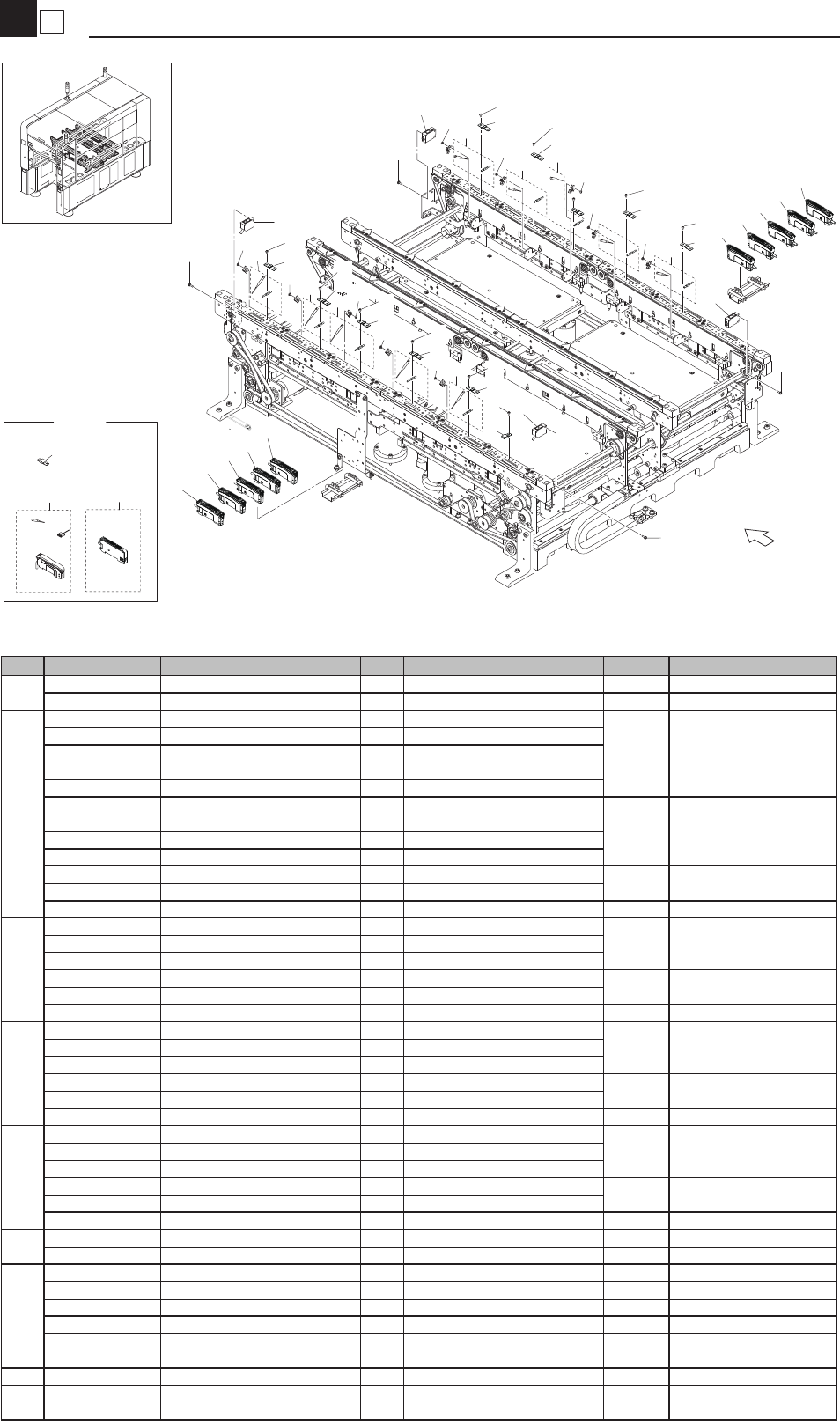

Sensor
Conveyor
KLF-1307
9
7
7
6
5
9
9
9
1
1
4
3
2
6
11
8
11
8
11
8
10
10
10
21
10
10
10
21
10
10
6
6
5
5
5
4
4
4
3
3
3
2
2
2
The Reverse flow specification reverse the sensor position.
11
8
11
8
11
8
11
8
11
8
11
8
8
2-6
OLD
11
12
KEYENCE Type
2-6
E3X-DA41RM-S-17
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M653M-01 SENSOR ENT ASSY 2 L=150mm NG MJ00062-2012/10/17
KLF-M653M-00 SENSOR ENT ASSY 2 L=400mm
2
KLF-M654M-00 SENSOR CV1 ASSY 2 Fiber+Amp
OK MK10105-2013/1/29KLF-M654M-A0 SEN.CV1 AMP ASSY 2 Amp E3NX-FA51 2M
KLF-M654H-00 SENSOR,FIBER 2 Fiber E32-T12B-5
KLF-M653W-00 SENSOR CV1 ASSY 2 Fiber+Amp
NG H017220-2012/10/1
KLF-M653W-A0 SEN.CV1 AMP ASSY 2 Amp E3X-DA41RM-S-17
KLF-M653N-00 SENSOR CV1 ASSY 2 Fiber+Amp KEYENCE Type
3
KLF-M654M-10 SENSOR CV2 ASSY 2 Fiber+Amp
OK MK10105-2013/1/29KLF-M654M-B0 SEN.CV2 AMP ASSY Amp E3NX-FA51 2M
KLF-M654H-00 SENSOR,FIBER 2 Fiber E32-T12B-5
KLF-M653W-10 SENSOR CV2 ASSY 2 Fiber+Amp
NG H017220-2012/10/1
KLF-M653W-B0 SEN.CV2 AMP ASSY 2 Amp E3X-DA41RM-S-17
KLF-M653N-10 SENSOR CV2 ASSY 2 Fiber+Amp KEYENCE Type
4
KLF-M654M-20 SENSOR CV3 ASSY 2 Fiber+Amp
OK MK10105-2013/1/29KLF-M654M-C0 SEN.CV3 AMP ASSY 2 Amp E3NX-FA51 2M
KLF-M654H-00 SENSOR,FIBER 2 Fiber E32-T12B-5
KLF-M653W-20 SENSOR CV3 ASSY 2 Fiber+Amp
NG H017220-2012/10/1
KLF-M653W-C0 SEN.CV3 AMP ASSY 2 Amp E3X-DA41RM-S-17
KLF-M653N-20 SENSOR CV3 ASSY 2 Fiber+Amp KEYENCE Type
5
KLF-M654M-30 SENSOR CV4 2 Fiber+Amp
OK MK10105-2013/1/29KLF-M654M-D0 SEN.CV4 AMP ASSY 2 Amp E3NX-FA51 2M
KLF-M654H-00 SENSOR,FIBER 2 Fiber E32-T12B-5
KLF-M653W-30 SENSOR CV4 ASSY 2 Fiber+Amp
NG H017220-2012/10/1
KLF-M653W-D0 SEN.CV4 AMP ASSY 2 Amp E3X-DA41RM-S-17
KLF-M653N-30 SENSOR CV4 ASSY 2 Fiber+Amp KEYENCE Type
6
KLF-M654M-40 SENSOR CV5 ASSY 2 Fiber+Amp
OK MK10105-2013/1/29KLF-M654M-E0 SEN.CV5 AMP ASSY 2 Amp E3NX-FA51 2M
KLF-M654H-00 SENSOR,FIBER 2 Fiber E32-T12B-5
KLF-M653W-40 SENSOR CV5 ASSY 2 Fiber+Amp
NG H017220-2012/10/1
KLF-M653W-E0 SEN.CV5 AMP ASSY 2 Amp E3X-DA41RM-S-17
KLF-M653N-40 SENSOR CV5 ASSY 2 Fiber+Amp KEYENCE Type
7
KLF-M653M-11 SENSOR EXIT ASSY 2 L=150mm NG MJ00062-2012/10/17
KLF-M653M-10 SENSOR EXIT ASSY 2 L=400mm
8
KLF-M9156-03 HOLDER,SENSOR 10 Corner chamfering OK MP60016-2017/6/6
KLF-M9156-02 HOLDER,SENSOR 10 OK MNX0050-2017/1/12
KLF-M9156-01 HOLDER,SENSOR 10 OK MK30094-2013/4/4
KLF-M9156-00 HOLDER,SENSOR 10 NG H017220-2012/10/1
KLF-M9157-00 HOLDER,SENSOR 10
9 97602-03310 SCREW,PAN HEAD W/W 8
10 98502-03003 SCREW,PAN HEAD 20
11 98502-03005 SCREW PAN HEAD 10
12 KLF-M9155-00 BRKT,HARNESS 4 MK30087-2013/4/10
7
7

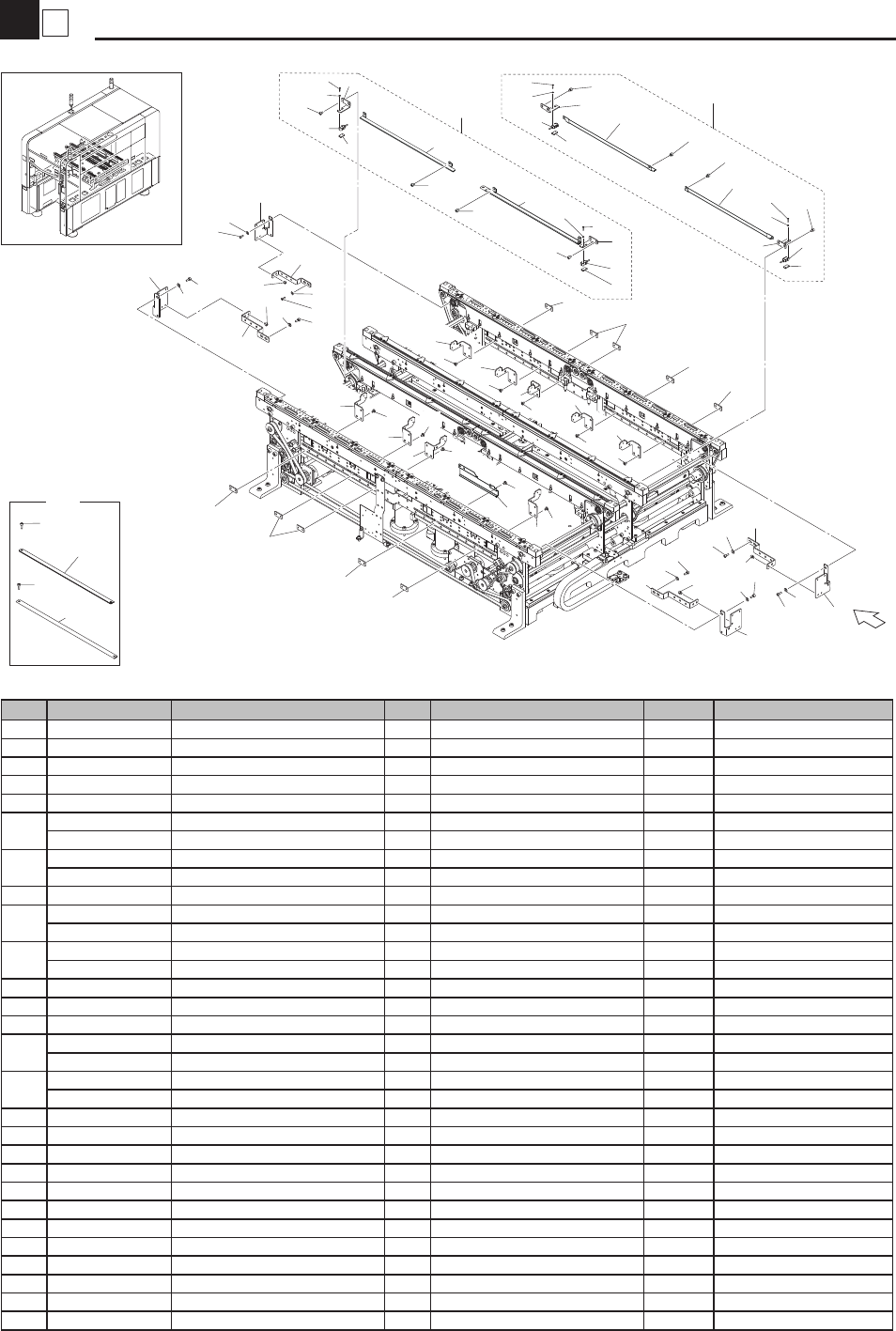

Stay / Pin Sensor
Conveyor
KLF-1307
1
2
12
22
19
22
22
22
17
17
19
19
19
13
13
12
The Reverse flow specification reverse the sensor position.
11
22
22
22
19
19
17
17
19
22
19
9
18
8
5
8
8
3
5
8
4
5
5
15
16
3
15
16
20
18
15
16
4
23
24
25
17
18
15
16
14
14
14
14
14
14
17
17
26
13
13
11
14
14
21
21
10
21
21
21
21
21
9
10
9
10
27
9
9
21
21
21
10
OLD
20
7
6
20
17
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9240-A0 PIN SENSOR ASSY.1 1
2 KLF-M9240-B0 PIN SENSOR ASSY.2 1
3 KLF-M912E-00 BRKT.,SENSOR 1 2
4 KLF-M912F-00 BRKT.,SENSOR 1 2
5 KLF-M912P-00 PLATE, NUT 4
6
Delete MJX0201-2012/12/4
KLF-M9265-00 BAR 1 2
7
Delete MJX0201-2012/12/4
KLF-M9266-00 BAR 2 2
8 KLF-M654G-00 SENSOR, PU PIN 2
9
KLF-M912A-01 BRKT.,SENSOR 5 OK MJX0201-2012/12/4
KLF-M912A-00 BRKT.,SENSOR 5
10
KLF-M912A-51 BRKT.,SENSOR 5 OK MJX0201-2012/12/4
KLF-M912A-50 BRKT.,SENSOR 5
11 KLF-M912M-01 BRKT.,SENSOR 2
12 KLF-M912M-11 BRKT.,SENSOR 2
13 KLF-M912N-01 BRKT.,SENSOR 4
14
KLF-M912L-00 PLATE,NUT 14 OK MK10133-2013/1/30
KLF-M912L-00 PLATE,NUT 10
15
90112-02J012 BOLT,HEX.S.H: M2X12 8 OK MK30165-2013/4/10
90166-02J210 SCREW 8
16 90171-02J026 WASHER PLAIN 8
17 91312-04005 BOLT HEX.SOCKET HEAD 16 M4X5
18 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
19 91312-04010 BOLT HEX.SOCKET HEAD 16 M4X10
20 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
21 98902-04006 SCREW BINDING HEAD 20
22 92902-04200 WASHER PLAIN 16
23 KLF-M9241-00 BAR 1 1 NG MJX0201-2012/12/4
24 KLF-M9242-00 BAR 2 1 NG MJX0201-2012/12/4
25 KLF-M9243-00 BAR 3 1 NG MJX0201-2012/12/4
26 KLF-M9244-00 BAR 4 1 NG MJX0201-2012/12/4
27 KLF-M912R-00 COVER,HNS. 2 MK10133-2013/1/30
8
7
Frame Assy
Conveyor
KLF-1307
14
12
13
13
13
13
3
2
1
18
11
11
20
12
6
14
6
14
16
17
16
7
16
8
16
16
15
7
16
17
17
17
8
4
16
8
16
17
17
8
4
4
16
16
15
7
19
19
19
20
3 2
2 3
10 9
9 10
17
4
4
15
16
17
16
7
4
15
10
9
5
14
5
1
1
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M9121-02 FRAME,CONVEYOR 4 OK MK50017-2013/6/6
KLF-M9121-01 FRAME,CONVEYOR 4 NG MJX0201-2012/12/4
KLF-M9121-A0 FRAME SUB ASSY. 4
2
KLF-M9130-A2 GUIDE SUB ASSY. 2 OK MK40124-2013/5/7
KLF-M9130-A1 GUIDE SUB ASSY. 2 OK MK20026-2013/2/14
KLF-M9130-A0 GUIDE SUB ASSY. 2
3
KLF-M9130-B2 GUIDE SUB ASSY. 2 OK MK40124-2013/5/7
KLF-M9130-B1 GUIDE SUB ASSY. 2 OK MK20026-2013/2/14
KLF-M9130-B0 GUIDE SUB ASSY. 2
4 KLF-M913A-A0 PULLEY,ASSY. 8
5 KGA-M9113-00 GUIDE 1,END 4
6 KGA-M9114-00 GUIDE 2,END 4
7 KGS-M9140-A0 PULLEY CONV. ASSY. 4
8 KGY-M9140-A0 PULLEY CONV. ASSY. 4
9
KLF-M9122-01 PLATE 1A,GUIDE 2 OK MJ90044-2012/9/12
KLF-M9122-00 PLATE 1A,GUIDE 2
10
KLF-M9122-11 PLATE 1A,GUIDE 2 OK MJ90044-2012/9/12
KLF-M9122-10 PLATE 1A,GUIDE 2
11
KLF-M9123-01 PLATE 2,GUIDE 4 OK MJ90044-2012/9/12
KLF-M9123-00 PLATE 2,GUIDE 4
12 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
13 91312-03008 BOLT HEX.SOCKET HEAD 20 M3X8
14 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
15 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
16 92902-05200 WASHER PLAIN 20
17 92902-05600 WASHER PLAIN 16
18 95302-03700 NUT HEXAGON 48
19 KLF-M9120-A0 FRAME ASSY. 2
20 KLF-M9120-B0 FRAME ASSY. 2
