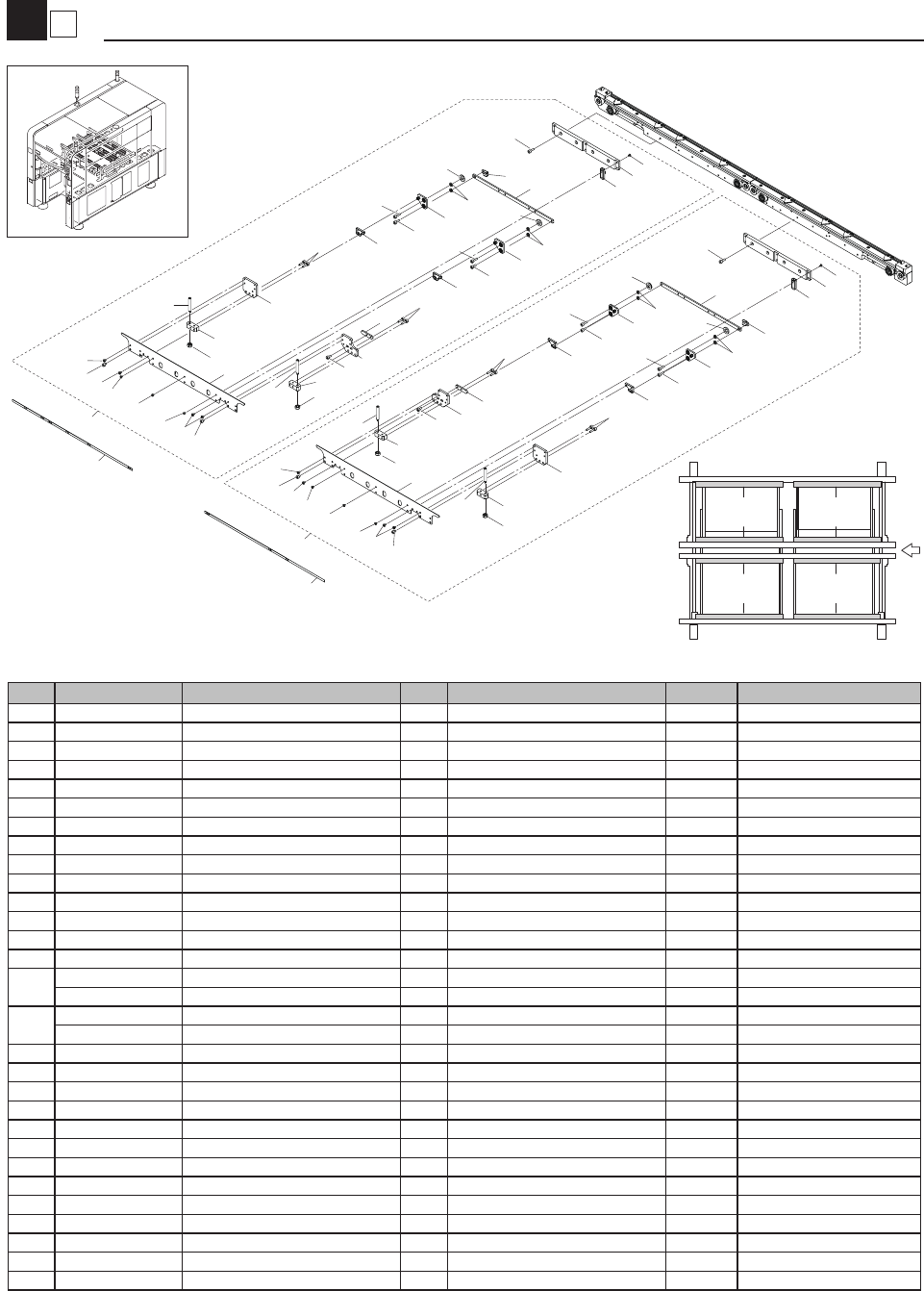

13 7 Extension Conveyor KLF-1307 22 16 4 17 2 19 1 1 14 16 15 18 9 15 8 23 5 4 21 20 15 18 9 15 17 1 12 22 6 7 15 18 9 15 2 17 8 8 5 20 4 21 16 4 10 6 15 18 9 15 8 17 1 19 13 23 16 3 12 3 7 No. Part No. Part Name Q'…
12
7
Clamp Board 2 (After Y28724)
Conveyor
KLF-1307
27
26
26
27
29
28
28
29
6
7
8
22
25
11
8
17
5
4
3
22
23
1
23
14
12
24
11
19
18
18
18
25
19
25
10
12
24
11
9
13
20
23
5
4
3
21
8
1
23
14
12
24
5
4
2
22
8
1
10
8
11
24
12
9
23
13
20
25
18
18
18
25
19
25
19
4
2
21
1
23
5
7
22
8
17
29
28
16
15
6
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M9261-01 PLATE1,LINK 4
2 KHW-M9264-A0 LINK A ASSY. 2
3 KHW-M9264-B0 LINK B ASSY. 2
4 KHW-M9265-00 SPACER 8
5 KHW-M926A-00 COLLAR 4
6 KHW-M926E-00 NUT 2
7 KKE-M9262-00 PLATE,BASE S 2
8 KKE-M926G-00 PLATE 2,LINK 2
9 KLF-M9267-00 STOPPER 2
10 KLF-M926C-00 PLATE,BOARD CLAMP 2
11 KLF-M926E-00 SPRING PLUNGER 4
12 KLF-M926F-00 HOLDER,PLUNGER 4
13 KLF-M926H-00 PLATE 2
14 KLF-M926J-00 PLATE 2
15
KLF-M926T-00 SEAL,CP BOARD 3 1 4 Beams
KLF-M926X-00 SEAL,CP BOARD 3 1 2 Beams
16
KLF-M926U-00 SEAL,CP BOARD 4 1 4 Beams
KLF-M926Y-00 SEAL,CP BOARD 4 1 2 Beams
17 KV7-M9266-01 GUIDE 6
18 90169-02JB04 SCREW, BINDING HEAD 24
19 91312-04005 BOLT HEX,SOCKET HEAD 8
20 91312-04008 BOLT HEX,SOCKET HEAD 4
21 91312-04010 BOLT HEX,SOCKET HEAD 2
22 91312-04012 BOLT HEX,SOCKET HEAD 10
23 91312-04014 BOLT HEX,SOCKET HEAD 12
24 95302-06600 NUT HEXAGON 4
25 98902-03005 SCREW BINDING HEAD 16
26 KLF-M9260-A0 CP BOARD A SUB ASSY. 2 MJX0201-2012/12/4
27 KLF-M9260-B0 CP BOARD B SUB ASSY. 2 MJX0201-2012/12/4
28 KLF-M9260-C0 CP BOARD C SUB ASSY. 2
MJX0201-2012/12/4
29 KLF-M9260-D0 CP BOARD D SUB ASSY. 2 MJX0201-2012/12/4

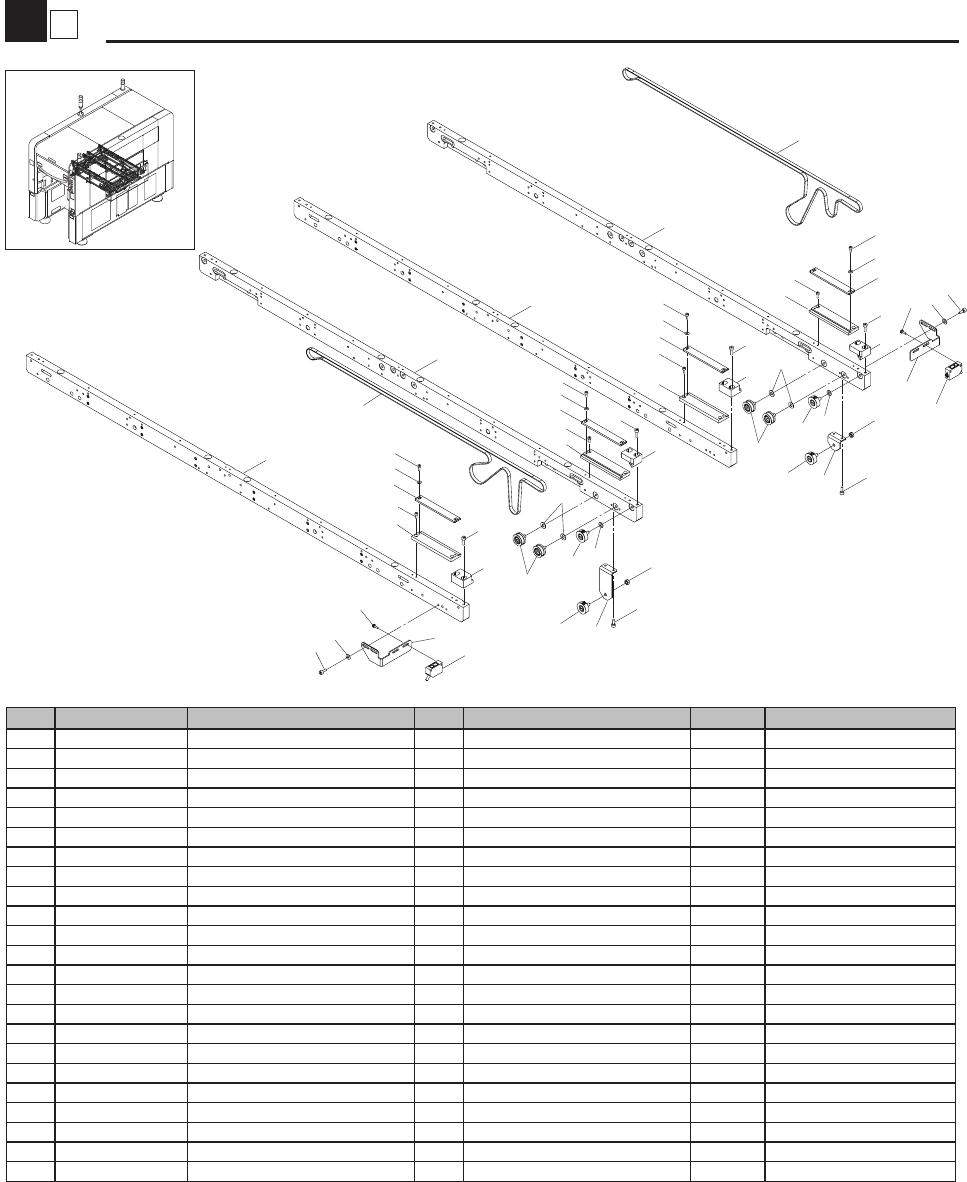

13
7
Extension
Conveyor
KLF-1307
22
16
4
17
2
19
11
14
16
15
18
9
15
8
23
5
4
21
20
15
18
9
15
17
1
12
22
6
7
15
18
9
15
2
17
8
8
5
20
4
21
16
4
10
6
15
18
9
15
8
17
1
19
13
23
16
3
12
3
7
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGA-M9113-00 GUIDE 1,END 2
2 KGA-M9114-00 GUIDE 2,END 2
3 KLF-M653M-01 SENSOR ENT ASSY 2
4 KLF-M913A-A0 PULLEY,ASSY 8
5 KLF-M9150-A0 PULLEY,CONV. ASSY 8
6 KLF-M9171-00 FRAME,CONVEYOR 2
7 KLF-M9172-00 FRAME,CONVEYOR 2
8 KLF-M9173-00 PLATE 1A,GUIDE 4
9 KLF-M9174-00 GUIDE 1-1 4
10 KLF-M9175-00 STAY,PLY 1 2
11 KLF-M9176-00 STAY,PLY 2 2
12 KLF-M9177-00 BELT,CV 1 4
13 KLF-M9178-00 STAY,SENS.1 1
14 KLF-M9179-00 STAY,SENS.2 1
15 91312-03008 BOLT HEX,SOCKET HEAD 16
16 91312-04010 BOLT HEX,SOCKET HEAD 12
17 91312-04012 BOLT HEX,SOCKET HEAD 8
18 92902-03200 WASHER,PLAIN 8
19 92902-04200 WASHER,PLAIN 4
20 92902-05200 WASHER,PLAIN 8
21 92902-05600 WASHER,PLAIN 4
22 95302-05600 NUT HEXAGON 4
23 97602-03310 SCREW PAN HEAD W/WASHER 4
1
8

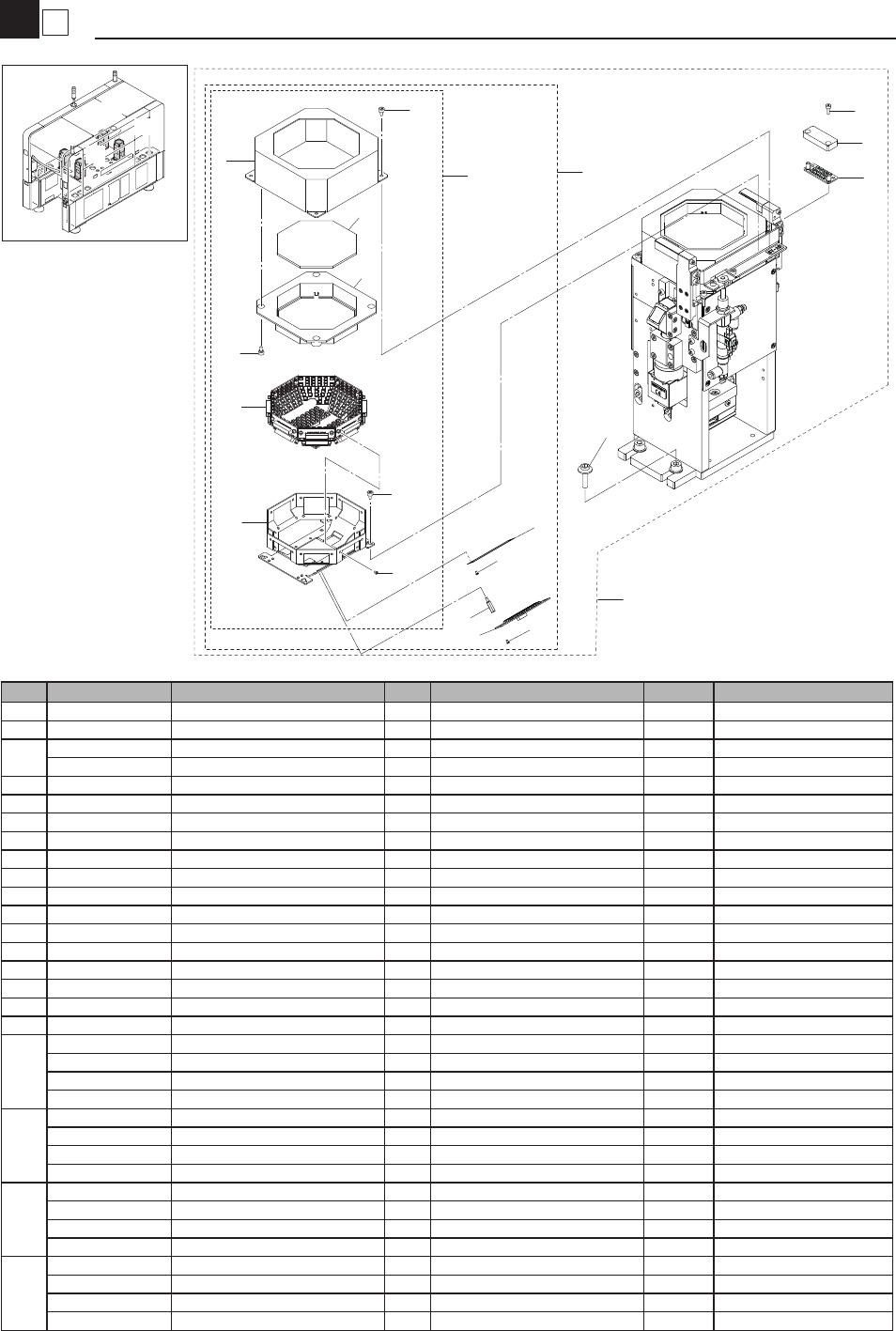

Multi Camera & Light Assy
Camera
KLF-1307
1
9
5
6
7
9
9
10
4
3
8
17
16
15
11
12
13
14
12
2
D
A
B
C
18,19,20,21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M73L0-00 MULTI LIGHT ASSY. 1 STD
2 KLF-M73L0-50 MULTI LIGHT ASSY. 1 Co-planarity
3
KLF-M735S-01 M.LIGHT BOARD SET 1 NG MK20064-2013/2/19
KLF-M735S-00 M.LIGHT BOARD SET 1
4 KLF-M7361-00 CASE,LIGHT 1
5 KLF-M7362-00 COVER,LIGHT 1
6 KLF-M7363-00 COVER,GLASS 1
7 KLF-M7368-00 COVER,LIGHT 2 1
8 90990-08J019 SCREW,M2X3 36
9 91312-03005 BOLT,HEX.SOCKET HEAD 12 M3X5
10 90990-32J004 BOLT,FLANGE 2
11 KLF-M7366-00 LSD 1
12 90990-08J019 SCREW,M2X3 4
13 90563-02J120 SPACER BOLT 2
14 KLF-M735A-00 M.LIGHT CPLA CX ASSY 1
15 90112-02J006 BOLT,HEX.SOCKET HEAD 2
16 KLF-M795E-00 DIFFUSER 1
17 KLF-M7981-00 S.V.LIGHT BRD.ASSY. 1
18
KLF-M73C0-000 MULTI CAM.ASSY. 1
A-Table ( 2 beam A-Table )
KLF-M73C0-A00 MULTI+SV CAM.ASSY. 1
A-Table +SV ( 2 beam A-Table +SV)
KLF-M73C0-B00 MULTI+CO CAM.ASSY. 1
A-Table +CO ( 2 beam A-Table +CO)
KLF-M73C0-C00 MULTI+SV+CO CAM.ASSY 1
A-Table +SV+CO ( 2 beam A-Table +SV+CO )
19
KLF-M73C0-000 MULTI CAM.ASSY. 1
B-Table
KLF-M73C1-A00 MULTI+SV CAM.ASSY. 1
B-Table +SV
KLF-M73C0-B00 MULTI+CO CAM.ASSY. 1
B-Table +CO
KLF-M73C1-C00 MULTI+SV+CO CAM.ASSY 1
B-Table +SV+CO
20
KLF-M73C0-000 MULTI CAM.ASSY. 1
C-Table
KLF-M73C2-A00 MULTI+SV CAM.ASSY. 1
C-Table +SV
KLF-M73C0-B00 MULTI+CO CAM.ASSY. 1
C-Table +CO
KLF-M73C2-C00 MULTI+SV+CO CAM.ASSY 1
C-Table +SV+CO
21
KLF-M73C0-000 MULTI CAM.ASSY. 1
D-Table ( 2 beam B-Table )
KLF-M73C3-A00 MULTI+SV CAM.ASSY. 1
D-Table +SV ( 2 beam B-Table +SV )
KLF-M73C0-B00 MULTI+CO CAM.ASSY. 1
D-Table +CO ( 2 beam B-Table +CO )
KLF-M73C3-C00 MULTI+SV+CO CAM.ASSY 1
D-Table +SV+CO ( 2 beam B-Table +SV+CO )
