YSM40_PartList - 第73页
3 8 Fiducial Camera ( 2-beam ) Camera KLF-1307 17 16 6 1 4 9 15 10 3 13 14 3 1 1 2 7 8 12 6 9 5 6 9 5 8 12 10 3 13 3 14 1 1 2 7 4 1 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 $NK-3N NYLON CLIP …
2
8
Fiducial Camera ( 4-beam )
Camera
KLF-1307
10
11
8
1
5
8
5
7
6
9
1
12
12
4
4
9
1
10
11
10
11
8
1
5
8
5
7
6
9
1
12
12
4
4
9
1
10
11
14
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M6460-00 FID.LIGHT BOARD SET 1
2
3
4 KLF-M7603-00 DIFFUSER,MAIN 2
5 KLF-M7613-00 DIFFUSER,COAX. 2
6 KLF-M7618-00 BLOCK,LIGHT R 1
7 KLF-M7619-00 BLOCK,LIGHT L 1
8 KLF-M7623-00 PLATE,DIFFUSER 2
9 KLF-M7624-00 AR SHEET 2
10 90112-02J003 BOLT HEX.SOCKET HEAD 8
11 90990-08J019 SCREW,M2X3 6
12 90990-08J020 SCREW,M2X5 8
13 KLF-M7600-10 T-FID.CAM.ASSY.A,D 2
14 KLF-M7600-20 T-FID.CAM.ASSY.B,C 2
3
8

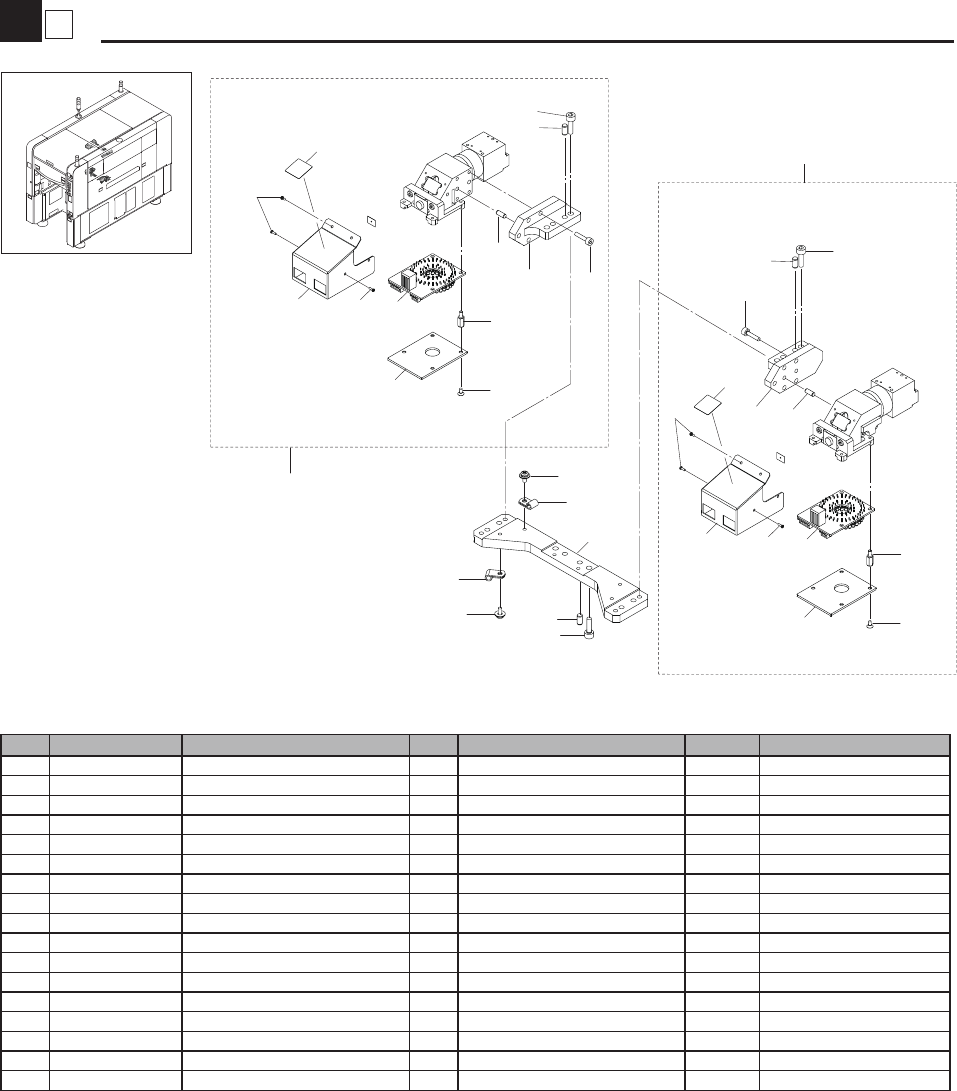

Fiducial Camera ( 2-beam )
Camera
KLF-1307
17
16
6
1
4
9
15
10
3
13
14
3
11
2
7
8
12
6
9
5
6
9
5
8
12
10
3
13
3
14
11
2
7
4
1
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $NK-3N NYLON CLIP 6
2 90563-03J100 SPACER 8
3 90990-08J020 SCREW, PAN HEAD 12
4 90990-11J003 SCREW, PAN HEAD W/W 6
5 91312-04016 BOLT HEX,SOCKET HEAD 10
6 91312-05016 BOLT HEX,SOCKET HEAD 6
7 98702-03006 SCREW,FLAT HEAD 8
8 99480-04010 PIN,PARALLEL 4
9 99480-05010 PIN,PARALLEL 6
10 90K41-001320 LABEL,CAUTION 2
11 KLF-M6461-00 FID.LIGHT BRD.ASSY 2
12 KLF-M76L1-01 STAY,CAMERA 2
13 KLF-M76L5-00 COVER,CAMERA 2
14 KLF-M76L6-00 DIFFUSER,MAIN 2
15 KLF-M76LA-00 STAY,2 CAMERA 1
16 KLF-M7650-10 W-FID.CAM.ASSY.L 1
17 KLF-M7650-20 W-FID.CAM.ASSY.R 1
1
9
Blow Station ( Fix )
Blow Station
KLF-1307
14
15
11
5
8
7
2
12
1617
17
17
17
6
9
12
12
3
10
13
14
15
4
1
1
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9901-00 BASE,B.STN. 2
2 KLF-M9902-00 BRACKET,VALVE 1
3 KLF-M9903-00 BLOCK,BLOW ST. 1
4 KLF-M9904-00 PLATE 1
5 KLF-M9906-A0 VALVE ASSY. 1
6 KGR-M9934-01 INLINE FILTER 1
7 K40-M8598-10 PLUG 1 1
8 $TL6-02 JOINT 1
9 $TS6-01 JOINT 1 M3X5
10 $PF PLUG 1
11 91312-03025 BOLT,HEX.SOCKET HEAD 2 M3X25
12 91312-04008 BOLT HEX.SOCKET HEAD 10 M4X8
13 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
14 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
15 91312-06040 BOLT HEX.SOCKET HEAD 4 M6X40
16 $UB0640-BK URETHANE TUBE 1 (250mm)
17 $UB1065-BK URETHANE TUBE 1 (1400mm)
