YSM40_PartList - 第81页
5 10 RMV(Desorption) / Clamp T ape Cutter KLF-1308 33 6 10 34 32 18 2 13 2 14 6 6 6 6 6 7 5 9 35 35 5 35 9 7 36 35 19 29 3 27 22 23 1 19 36 27 3 24 6 1 34 4 26 16 29 22 23 20 8 25 4 21 8 26 28 28 35 35 1 1 12 15 17 31 30…
4
10

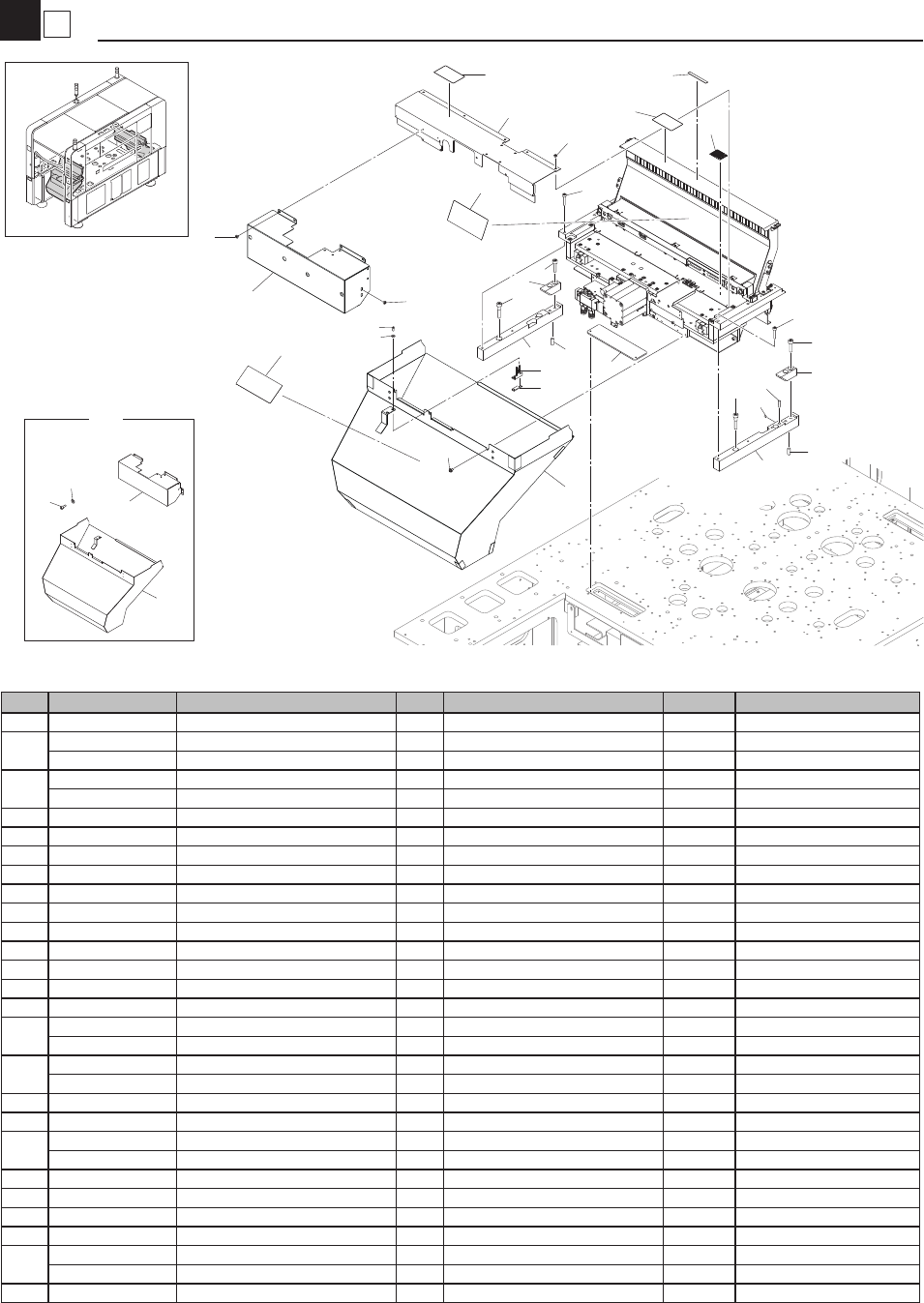

Base / Side Block
Tape Cutter
KLF-1308
9
1
15
15
15
2
8
8
6
23
19
18
21
12
14
19
18
17
7
10
22
20
21
13
4
5
3
16
17
13
11
OLD
16
24
25
3
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3T70-01 COVER,FR UPPER 1
2
KLF-M3T76-02 COVER,FRONT 1 NG MJ90107-2012/10/3
KLF-M3T76-01 COVER,FRONT 1
3
KLF-M3TC1-02 DUCT 1 NG MJ90107-2012/10/3
KLF-M3TC1-01 DUCT 1
4 KJJ-M5127-00 SAFETY SWITCH KEY 1
5 KJJ-M11C9-00 PLATE,NUT 1
6 KGS-M1360-00 BOLT 2
7 90K41-001330 LABEL,CAUTION 1
8 90K41-001410 LABEL,CAUTION 2
9 90K41-001250 LABEL,WARNING 1
10 KLF-M3TR1-00 LABEL,TC.SERIAL 1
11 KLF-M3T53-00 BLOCK,BASE R 1
12 KLF-M3T53-10 BLOCK,BASE L 1
13 KLF-M3T58-00 BLOCK,STOPPER 2
14 KLF-M3TG4-00 COVER,BASE HOLE 1
15
98902-04006 SCREW BINDING HEAD 19 OK MJ90107-2012/10/3
91312-04008 BOLT HEX.SOCKET HEAD 9 M4X8
16
97602-05310 SCREW,PAN HEAD W/W 4 OK MJ90107-2012/10/3
91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
17 91312-06030 BOLT HEX.SOCKET HEAD 6 M6X30
18 91312-08030 BOLT HEX.SOCKET HEAD 4 M8X30
19
91312-08035 BOLT HEX.SOCKET HEAD 4 M8X35 OK ML10040-2014/1/22
91312-08040 BOLT HEX.SOCKET HEAD 4 M8X40
20 99480-06020 PIN PARALLEL 1
21 99480-08020 PIN PARALLEL: 8X20 2
22 92A08-04006 SET SCREW M4X6 1
23 92902-04200 WASHER PLAIN 2
24
Delete MJ90107-2012/10/3
92902-05200 WASHER PLAIN 4
25 90K41-001460 LABEL,WARNING 1
5
10

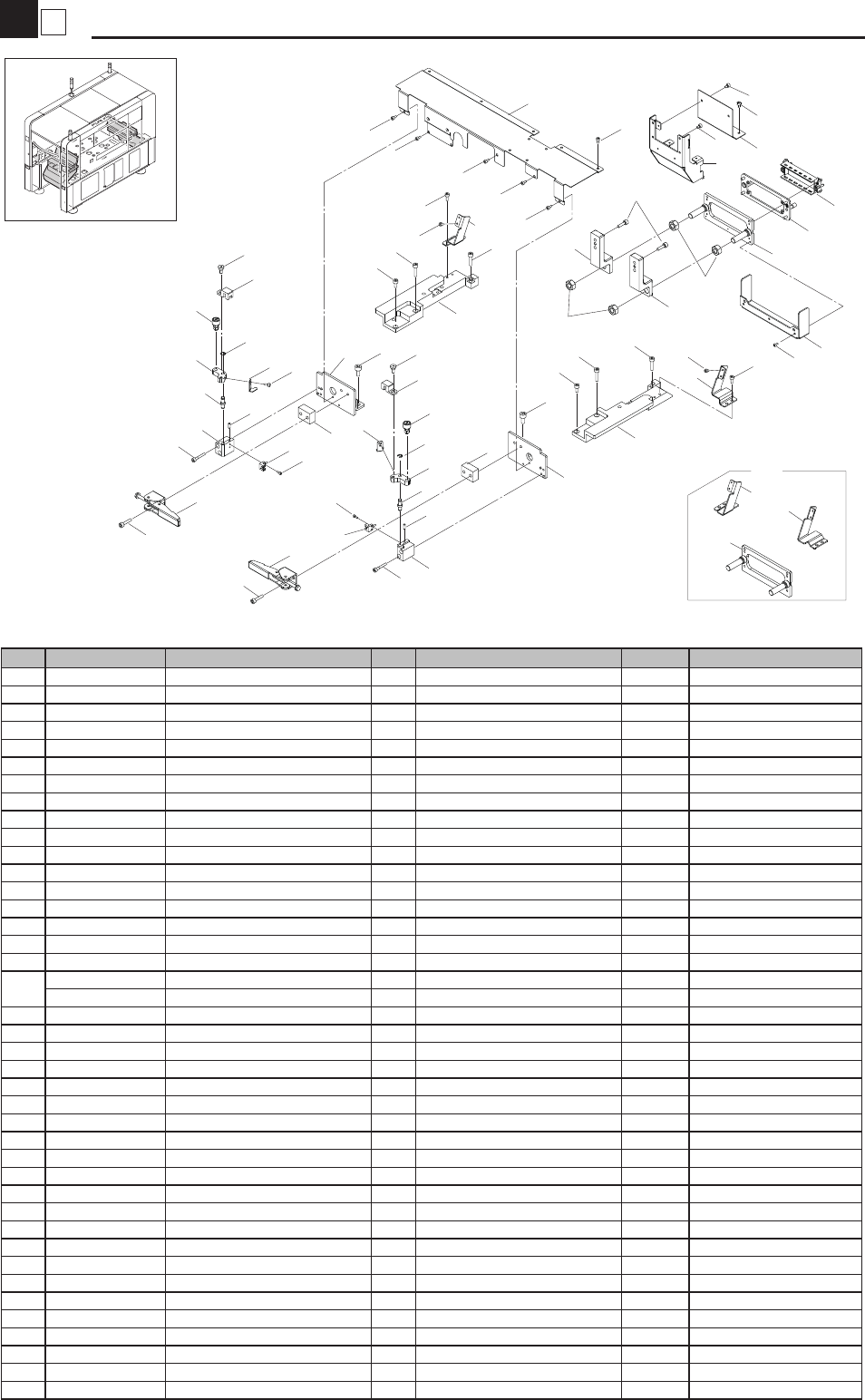

RMV(Desorption) / Clamp
Tape Cutter
KLF-1308
33
6
10
34
32
18
2
13
2
14
6
6
6
6
6
7
5
9
35
35
5
35
9
7
36
35
19
29
3
27
22
23
1
19
36
27
3
24
6
1
34
4
26
16
29
22
23
20
8
25
4
21
8
26
28
28
35
35
11
12
15
17
31
30
31
30
37
39
38
5
5
5
40
18
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 99480-04012 PIN,PARALLEL 2
2 90189-02J126 NUT, HEXAGON 4
3 90440-10J050 CIRCLIP 2
4 91312-03008 BOLT HEX,SOCKET HEAD 4
5 91312-04006 BOLT HEX,SOCKET HEAD 4
6 91312-04008 BOLT HEX,SOCKET HEAD 13
7 91312-05012 BOLT HEX,SOCKET HEAD 4
8 91312-05030 BOLT HEX,SOCKET HEAD 4
9 91312-06012 BOLT HEX,SOCKET HEAD 2
10 91312-06020 BOLT HEX,SOCKET HEAD 4
11 KLF-M3T15-20 STAY,SIDE L 1
12 KLF-M3T15-30 STAY,SIDE R 1
13 KLF-M3T68-00 BRACKET 1
14 KLF-M3T68-10 BRACKET 1
15 KLF-M3T70-51 COVER,FR UPPER 1
16 KLF-M3T78-01 STAY,CLAMP L 1
17 KLF-M3T78-11 STAY,CLAMP R 1
18
KLF-M3T79-01 STAY,CONNECTOR 1 NG MK10055-2013/1/18
KLF-M3T79-00 STAY,CONNECTOR 1
19 KLF-M3T99-00 SCREW,STEP 2
20 KLF-M3T91-00 BASE,CLAMP L 1
21 KLF-M3T91-50 BASE,CLAMP R 1
22 KLF-M3T92-00 LEVER,CLAMP 2
23 KLF-M3T93-00 PIN 2
24 KLF-M3T94-00 DOG,CLAMP L 1
25 KLF-M3T94-50 DOG,CLAMP R 1
26 KLF-M3T96-00 BLOCK 2
27 KLF-M3T97-01 HOOK 2
28 KLF-M3T98-01 PULL ACTION 2
29 KLF-M3T9A-00 CAM FOLLOWER 2
30 KLF-M3TB2-20 STAY,SLOPE L 1 OK MKY0115-2013/12/27
31 KLF-M3TB2-30 STAY,SLOPE R 1 OK MKY0115-2013/12/27
32 KLF-M3TJ1-00 BRKT.,HD CNT.1 1
33 KLF-M3TJ3-00 BRKT.,HD CNT.2 1
34 KLF-M653R-00 SEN.CUT CLAMP ASSY 2
35 91312-06025 BOLT HEX,SOCKET HEAD 8
36 91312-08016 BOLT HEX,SOCKET HEAD 4
37 KLF-M3TS1-00 COVER,CONNECTOR 1 MK10055-2013/1/18
38 KLF-M3TS2-00 DUCT,CONNECTOR 1 MK20050-2014/1/10
39 KLF-M3TS3-00 DUCT COVER,CONNECTOR 1 MK20050-2014/1/10
40 91312-03006 91312-03006 3 MK10055-2013/1/18
6
10

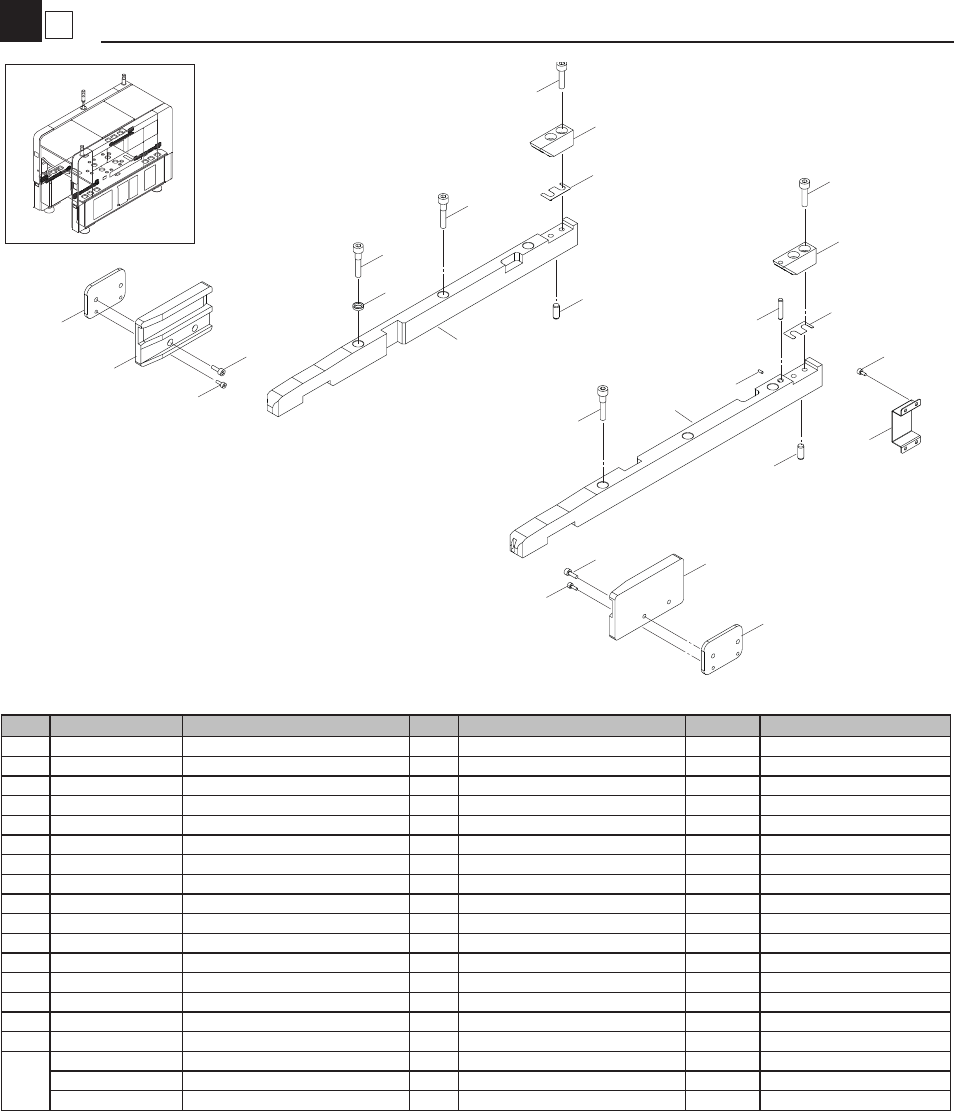

RMV(Desorption) / R Base
Tape Cutter
KLF-1308
16
17
11
5
6
4
3
15
13
16
14
15
5
12
17
2
9
3
4
10
10
6
8
6
1
7
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90990-28J033 WASHER,PLAIN
1
2 91312-04008 BOLT HEX,SOCKET HEAD
4
3 91312-04010 BOLT HEX,SOCKET HEAD
4
4 91312-05014 BOLT HEX,SOCKET HEAD
4
5 91312-08030 BOLT HEX,SOCKET HEAD
4
6 91312-08040 BOLT HEX,SOCKET HEAD
6
7 92A08-04006 SCREW,SET
1
8 99480-06030 PIN,PARALLEL
1
9 KLF-M2659-00 STAY,CABLE Y
1
10 KLF-M3T52-S0 BLOCK,BASE SET
1
11 KLF-M3T58-00 BLOCK,STOPPER
1
12 KLF-M3T58-10 BLOCK,STOPPER
1
13 KLF-M3TFL-00 GUIDE,CTAT. L
1
14 KLF-M3TFM-00 GUIDE,CTAT. R
1
15 KLF-M3TFN-00 BRACKET CTG.
2
16 99480-08020 PIN,PARALLEL
4
17
90990-30J084 SHIM,CUTTER BASE0.02
1
90990-30J085 SHIM,CUTTER BASE0.05
1
90990-30J092 SHIM,CUTTER BASE0.1
1
