YSM40_PartList - 第9页

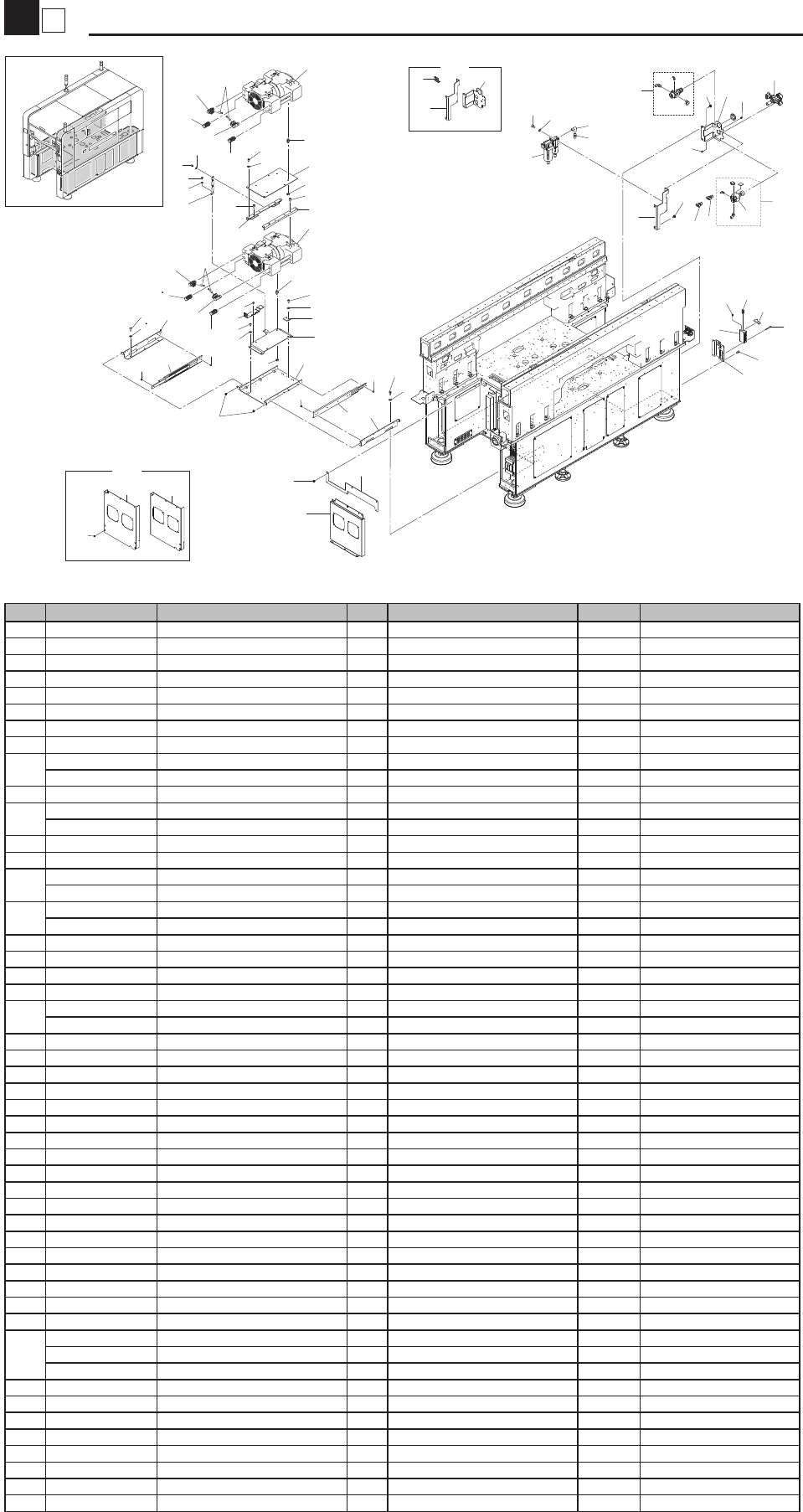

2 1 Sub Assy / UPS Base KLF-1307 10 12 9 8 17 17 17 20 1 17 17 17 17 18 13 6 14 17 17 17 9 8 19 19 1 1 5 3 4 15 16 7 19 2 10 17 17 17 20 OLD 12 21 22 23 24 25 26 27 29 17 30 28 19 32 31 33 28 30 29 19 32 31 17 28 30 29 U…
1
1
Base
Base
KLF-1307
11
22
1
34
34
3
3
2
2
3
3
2
2
24
31
4
4
25
24
31
25
31
7
27
27
27
27
29
10
10
41
42
40
39
25
31
31
13
18
44
45
35
36
19
46
23
26
16
28
15
37
21
20
25
38
32
14
28
23
9
8
7
33
6
33
26
26
22
22
30
12
30
5
5
1
43
14
15
11
OLD
17
OLD
39
39
Fig 1
Fig 2
47
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M8501-00 PUMP,VACUUM 2
2 KLF-M8536-00 MUFFLER 4
3 KLF-M8537-00 JOINT 4
4 KLF-M11K3-00 ANTIVIB.RUBBER 8
5 KLF-M11K5-00 PLATE,PUMP 1 2
6 KLF-M11K6-00 PLATE,PUMP 2 1
7
KLF-M11N1-00 BRKT.,PUMP 1
2
8 KLF-M11N2-00 PLATE,PUMP 1
9
KLF-M11N3-01 PLATE,PUMP 1 OK MJ90017-2012/9/6
KLF-M11N3-00 PLATE,PUMP 1
10 KLF-M11N4-00 SLIDE RAIL 2
11
KLF-M11N7-01 PLATE,CONNECTOR 1 NG MJ90017-2012/9/6
KLF-M11N7-00 PLATE,CONNECTOR 1
12 KLF-M11N9-00 STAY,HNS. 1
13 KJX-M1105-00 PLATE,HOLD R 1
14
KLF-M1111-02 PLATE 11 1 NG MK10103-2013/2/6
KLF-M1111-01 PLATE 11 1
15
KLF-M1125-01 PLATE 25 1 D=39mm NG MK10103-2013/2/6
KLF-M1125-00 PLATE 25 1 D=35mm
16 KLF-M8502-00 FILTER SET 1
17 KLF-M8511-00 EXT.VALVE 1
18 KLF-M8512-00 REGULATOR 1
19 KLF-M8513-01 PRECISION REGULATOR 1
20
KKE-M8582-10 VALVE 1 OK MJY0157-2012/12/24
KHY-M8582-00 VALVE 1
21 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
22 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
23 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
24 91312-05006 BOLT HEX.SOCKET HEAD 6 M5X6
25 91312-05010 BOLT HEX.SOCKET HEAD 12 M5X10
26 91312-06010 BOLT HEX.SOCKET HEAD 6 M6X10
27 92012-04006 BOLT, BUTTON HEAD 16
28 90990-12J004 SCREW BIN.HEAD W/W 4
29 97602-04308 SCREW,PAN HEAD W/W 2
30 92902-04200 WASHER PLAIN 2
31 92902-05200 WASHER PLAIN 14
32 92902-06200 WASHER PLAIN 2
33 95302-06600 NUT HEXAGON 8
34 $UP10 JOINT 4
35 $UYD10-8 JOINT 2
36 $UY10 JOINT 1
37 $SL8-01 JOINT 1
38 $KM-10 MUFFLER 1
39
KLF-M11M7-02 COVER,PUMP 3 1 NG MK20160-2013/3/8
KLF-M11M7-01 COVER,PUMP 3 1 Fig 2 NG MJ00218-2012/11/1
KLF-M11M7-00 COVER,PUMP 3 1 Fig 1
40 97602-04308 SCREW,PAN HEAD W/W 6
41 KLF-M11P4-00 BRKT.,COVER 12 1
42 90990-12J004 SCREW BIN.HEAD W/W 3
43 KHW-M8582-40 VALVE 1 Spare
44 90990-42J008 JOINT 1
45 90990-42J006 JOINT 1
46 KLF-M8513-00 PRECISION REGULATOR 1
47 KLF-M1113-00 PLATE 13 1
2
1
Sub Assy / UPS
Base
KLF-1307
10
12
9
8
17
17
17
20
1
17
17
17
17
18
13
6
14
17
17
17
9
8
19
19
11
5
3
4
15
16
7
19
2
10
17
17
17
20
OLD
12
21
22
23
24
25
26
27
29
17
30
28
19
32
31
33
28
30
29
19
32
31
17
28
30
29
UPS
7
36
35
34
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1151-00 PLATE,SIDE 1 1
2 KLF-M1152-00 PLATE,SIDE 2 1
3 KLF-M1153-00 PLATE,SIDE 3 1
4 KLF-M1154-00 PLATE,SIDE 4 1
5 KLF-M1155-00 PLATE,SIDE 5 1
6 KLF-M1156-00 PLATE,SIDE 6 1
7
KLF-M1157-01 PLATE,SIDE 7 1 OK MK00050-2013/11/26
KLF-M1157-00 PLATE,SIDE 7 1
8
KLF-M1158-01 PLATE,SIDE 8 2 OK MK30054-2013/3/13
KLF-M1158-00 PLATE,SIDE 8 2
9 KLF-M1159-00 PLATE,SIDE 9 2
10 KLF-M1164-00 COVER,FAN 2
11 KLF-M1337-00 BRACKET 1
12
KLF-M1337-51 BRACKET 1 NG MJ70127-2012/9/6
KLF-M1337-50 BRACKET 1
13 $FVU8-8 JOINT 1
14 KLF-M1339-00 BRKT.,FL 1
15 KLF-M1338-00 BRKT.MAIN SWITCH 1
16 KKE-M1180-00 LEVELING BOLT ASSY 4
17 90990-12J004 SCREW,PAN HEAD W/W 60
18 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X30
19 91312-05010 BOLT HEX.SOCKET HEAD 28 M5X10
20 KGS-M1180-00 LEVELING BOLT ASSY 4
21 KLF-M1153-10 PLATE,SIDE 3 1
22 KLF-M1154-11 PLATE,SIDE 4 1
23 KLF-M115E-01 PLATE,UPS 1
24 KLF-M115F-02 BRACKET,UPS 1
25 KHW-M1157-01 BRACKET 2,UPS 1
26 KLF-M1161-00 BRACKET 3,UPS 1
27 KLF-M1160-00 COVER,HARNESS 1
28 91312-04006 BOLT HEX.SOCKET HEAD 9
29 92902-04200 WASHER PLAIN 9
30 90172-00J040 WASHER,EXTL.TOOTHED 9
31 92902-05200 WASHER PLAIN 4
32 90172-00J050 WASHER,EXTL.TOOTHED 4
33 90990-12J001 SCREW BIN.HEAD W/W 2
34 KLF-M115J-00 FILTER,CP FAN 1 MK00050-2013/11/26
35 98502-04050 SCREW PAN HEAD (+) 8 MK00050-2013/11/26
36 95302-04600 NUT, HEXAGON 8 MK00050-2013/11/26
1
2
Top Cover (Right side)
Cover
KLF-1307
52
52
18
11
46
46
3
17
57
25
44
44
53
16
30
44
32
51
5
55
50
34
35
44
44
54
62
47
65
58
1
28
27
48
49
45
45
19
36
45
6
7
8
53
20
63
64
44
44
44
44
44
44
44
44
44
44
31
33
12
57
59
2
25
44
51
55
56
46
50
34
14
13
10
9
44
22
44
44
44
23
44
46
56
46
24
53
56
23
49
26
39
29
41
38
44
40
43
37
15
24
4
49
56
56
21
21
19
OLD
23
OLD
60
60
61
42
58
66
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M1301-04 COVER 1 1 OK MLX0117-2015/2/16
KLF-M1301-03 COVER 1 1 Stay position change NG MJ70127-2012/9/6
KLF-M1301-02 COVER 1 1
2
KLF-M1302-03 COVER 2 1 Hole position change NG MJ70127-2012/9/6
KLF-M1304-02 COVER 4 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KLF-M130B-00 COVER,SW 1
6
KLF-M13A3-01 COVER A3 1 D=23.5mm NG MJ70127-2012/9/6
KLF-M13A3-00 COVER A3 1 D=17.5mm
7
KLF-M13A4-02 COVER A4 RH. 1 Hole position change NG MJ70127-2012/9/6
KLF-M13A4-01 COVER A4 RH. 1
8
KLF-M13A4-52 COVER A4 LH. 1 Hole position change NG MJ70127-2012/9/6
KLF-M13A4-51 COVER A4 LH. 1
9 KLF-M13A5-00 COVER A5 1
10 KLF-M1343-00 PLATE 1
11 KLF-M131A-00 COVER A RH. 1
12 KLF-M131A-50 COVER A LH. 1
13 KLF-M131B-00 COVER B RH. 1
14 KLF-M131B-50 COVER B LH. 1
15 KLF-M1318-00 COVER 18 1
16
KLF-M133A-01 BRKT,LCD UNIT 1 OK MJ70127-2012/9/6
KLF-M133A-00 BRKT,LCD UNIT 1
17
Delete MJ70127-2012/9/6
KLF-M133B-00 BRKT R 1
18
Delete MJ70127-2012/9/6
KLF-M133C-00 BRKT L 1
19
KLF-M1372-01 COVER 72 1 NG MJ70127-2012/9/6
KLF-M1372-00 COVER 72 1
20
KLF-M1335-00 BRKT.2,GATE COVER 2
21
Delete MJ70127-2012/9/6
KLF-M1331-00 BRACKET 1 2
22 KLF-M1332-01 BRACKET 2 1
23
KLF-M1333-02 BRKT. 1 2 NG MJ70127-2012/9/6
KLF-M1333-01 BRKT. 1 2
24 KLF-M1336-00 RAIL,COVER 2
25 KV5-M1130-00 CATCH MG. 2
26 KLF-M130C-00 BRKT,KB C 1
27 KLF-M13B4-00 CATCH MG. 1
28 KLF-M1344-00 PLATE 1
29 KLF-M1349-00 COVER 49 1
30 KLF-M13F1-01 COVER,CE R 1
31 KLF-M13F2-01 COVER,CE L 1
32 KLF-M13F3-00 GUIDE,FES. R 1
33 KLF-M13F4-00 GUIDE,FES. L 1
34 KLF-M3TFN-00 BRACKET CTG. 2
35 KLF-M13D6-00 SEAL 1(YSM40) 1
36 90K41-001250 LABEL,WARNING 2
37 90K41-001260 LABEL,WARNING 1
38 90K41-001290 LABEL,WARNING 1
39 K93-M1392-00 SPACER 2
40 KH1-M13A9-00 BUSH 1
41 90990-23J008 GROMMET 1
42
Delete H01766-2013/1/8
KKE-M138A-00 DAMPER 4
43 90990-01J074 BOLT HEX.SOCKET HEAD 2
44 90990-12J001 SCREW BIN.HEAD W/W 64
45 90990-12J004 SCREW BIN.HEAD W/W 10
46 90172-00J040 WASHER,EXTL.TOOTHED 14
47 90172-00J050 WASHER,EXTL.TOOTHED 8
48 91312-03004 BOLT HEX.SOCKET HEAD 2 M3X4
49 91312-04005 BOLT HEX.SOCKET HEAD 9 M4X5
50 91312-04010 BOLT HEX.SOCKET HEAD 10
M4X10
51 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
52 91312-05006 BOLT HEX.SOCKET HEAD 9 M5X6
53 91312-05008 BOLT HEX.SOCKET HEAD 28 M5X8
54 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
55 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
56 95702-04500 NUT FLANGE 17
57 98902-03005 SCREW BINDING HEAD 16
58
98902-04008 SCREW BINDING HEAD 4 NG H01766-2013/1/8
98902-04016 SCREW BINDING HEAD 4
59 90990-23J006 GROMMET 1
60
Delete H01766-2013/1/8
90990-28J141 WASHER,PLAIN 8
61
Delete H01766-2013/1/8
90990-41J132 COLLAR 4
62 92902-05200 WASHER PLAIN 8
63 KLF-M1375-00 COVER 75 1 MJ70127-2012/9/6
64 KLF-M1376-00 COVER 76 1 MJ70127-2012/9/6
65 92902-04200 WASHER PLAIN 4 H01766-2013/1/8
66 90172-00J040 WASHER,EXTL.TOOTHED 4 H01766-2013/1/8
