P-301-003e - 第81页
79 G -S165-02 1012-003 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BT -2 172 6301338729 CORD(X89C2-X521A) 1→0 829BT -010-172 4W203008 173 6301338637 CORD(X89C1-X21 1A) 1→0 829BT -010-173 4W202999
78
G -S165-02
0909-002
172
173
See Fig.BL-6
Key No.596
See Fig.BL-6
Key No.558
EXCHANGE
デュアル搬送取付本体対応
Main Machine Modification
For
G -S165-02 Attaching Dual
T
ransfer G -S165-02
Fig. BT-2

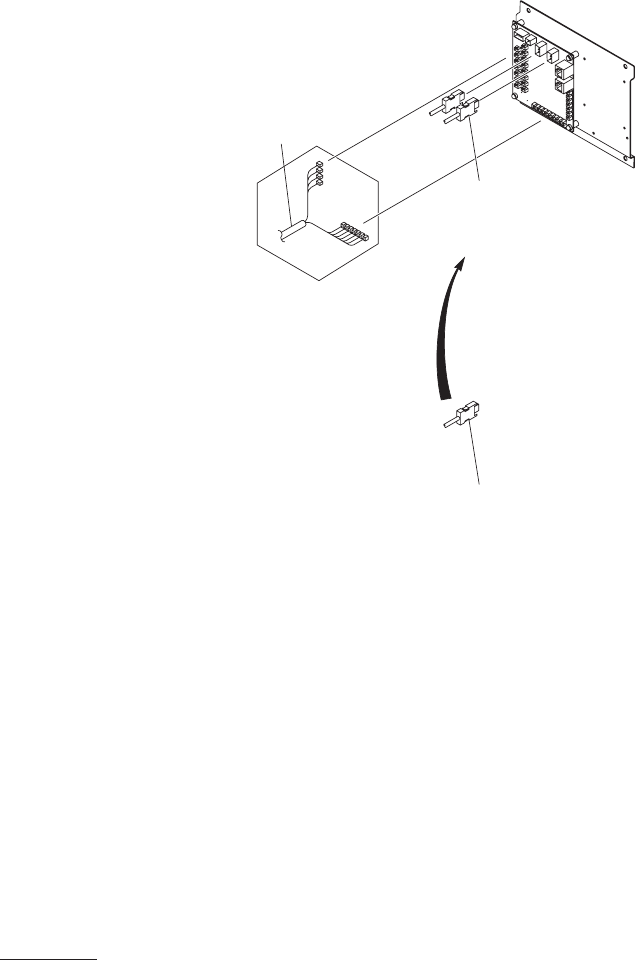

架台下
XY
サーボ部
A
UNDERFRAME XY SERVO
- ケーブル
SECTION
A-Cable
79
G -S165-02
1012-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BT-2
172 6301338729 CORD(X89C2-X521A) 1→0 829BT-010-172 4W203008
173 6301338637 CORD(X89C1-X211A) 1→0 829BT
-010-173 4W202999
80
G -S165-02
0909-002
See Fig.BL-6
Key No.563
See Fig.BL-6
Key No.589
EXCHANGE
380
ADD
デュアル搬送取付本体対応
Main Machine Modification
For
G -S165-02 Attaching Dual
T
ransfer G -S165-02
Fig. D-4

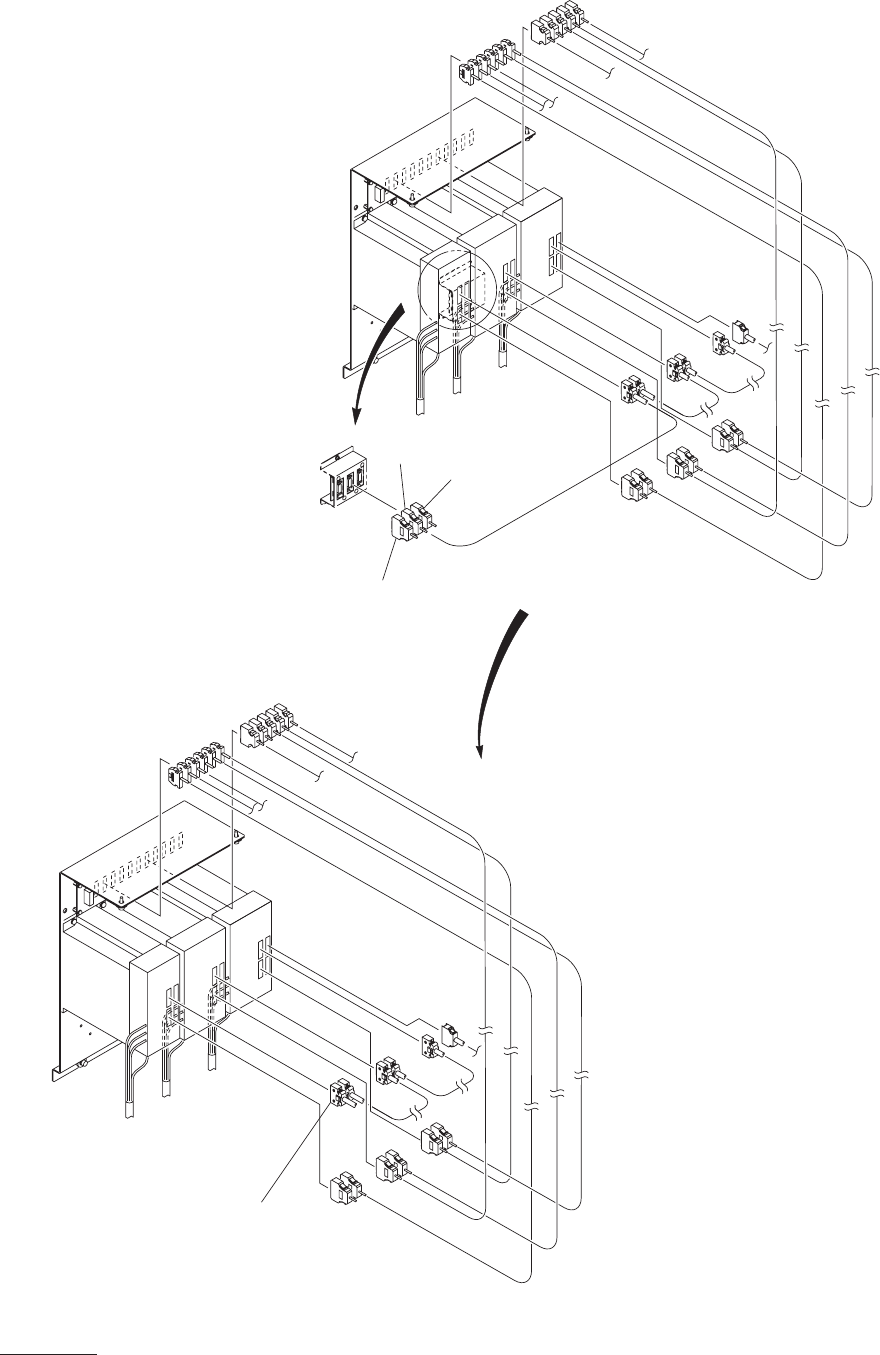

部品認識部 - ケーブル
Recognition Section-Cable
