MODEL DL-G50 071 1-001 58 ケーブル CABLE Fig. ND-5 排出コンベア Output Conveyor 452 453 462 457 451
MODEL DL-G50
1012-003
57
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
ND-2
154 6301528335 CORD 1 806ND-210-354 4W203859
156 6301510279 CORD 1 806ND-210-356
4W203796
157 6301510286 CORD 1 806ND-210-357
4W203797
158 6301528342 CORD 1 806ND-210-358
4W203860
159 6301528359 CORD 1 806ND-210-359
4W203861
160 6301528366 CORD 1 806ND-210-360
4W203862
161 6301528373 CORD 1 806ND-210-361
4W203863
172 6301478289 ASSY,CORD 1 806ND-210-252
0W201255
176 6301478319 ASSY,CORD 1 806ND-210-256
0W201258
180 6301478357 ASSY,CORD 1 806ND-210-260
0W201262
181 6301478364 ASSY,CORD 1 806ND-210-261
0W201263
182 6301478371 ASSY,CORD 1 806ND-210-262
0W201264
MODEL DL-G50
0711-001
58
ケーブル
CABLE

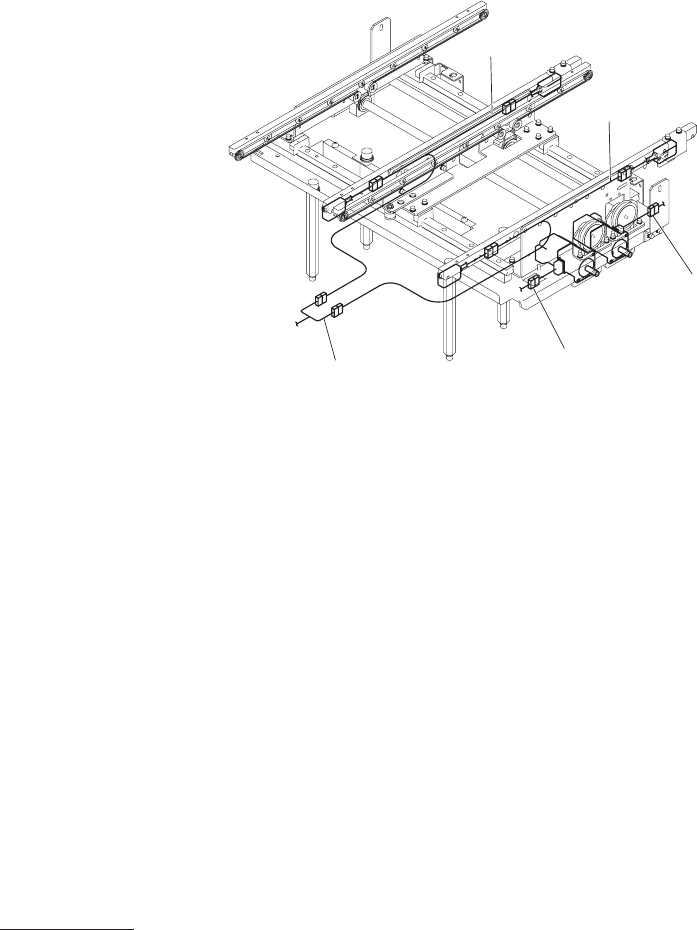

Fig. ND-5
排出コンベア
Output Conveyor
452
453
462
457
451
MODEL DL-G50
1012-003
59
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
ND-5
451 6301634050 CORD 1 806ND-210-551 4W204551
452 6301634067 CORD 1 806ND-210-552
4W204552
453 6301478296 ASSY,CORD 1 806ND-210-253
0W201256
457 6301478326 ASSY,CORD 1 806ND-210-257
0W201259
462 6301510330 CORD 1 806ND-210-362
4W203802
