Pneumatics Tasks • Adjust mains in put withi n toleran ce • Replace a solenoid valve Issue 2: July 2007 • Replace a solenoid valve • Manual ly test the fu nctionali ty of all pneuma tic solenoids Objective 18: Complete a…

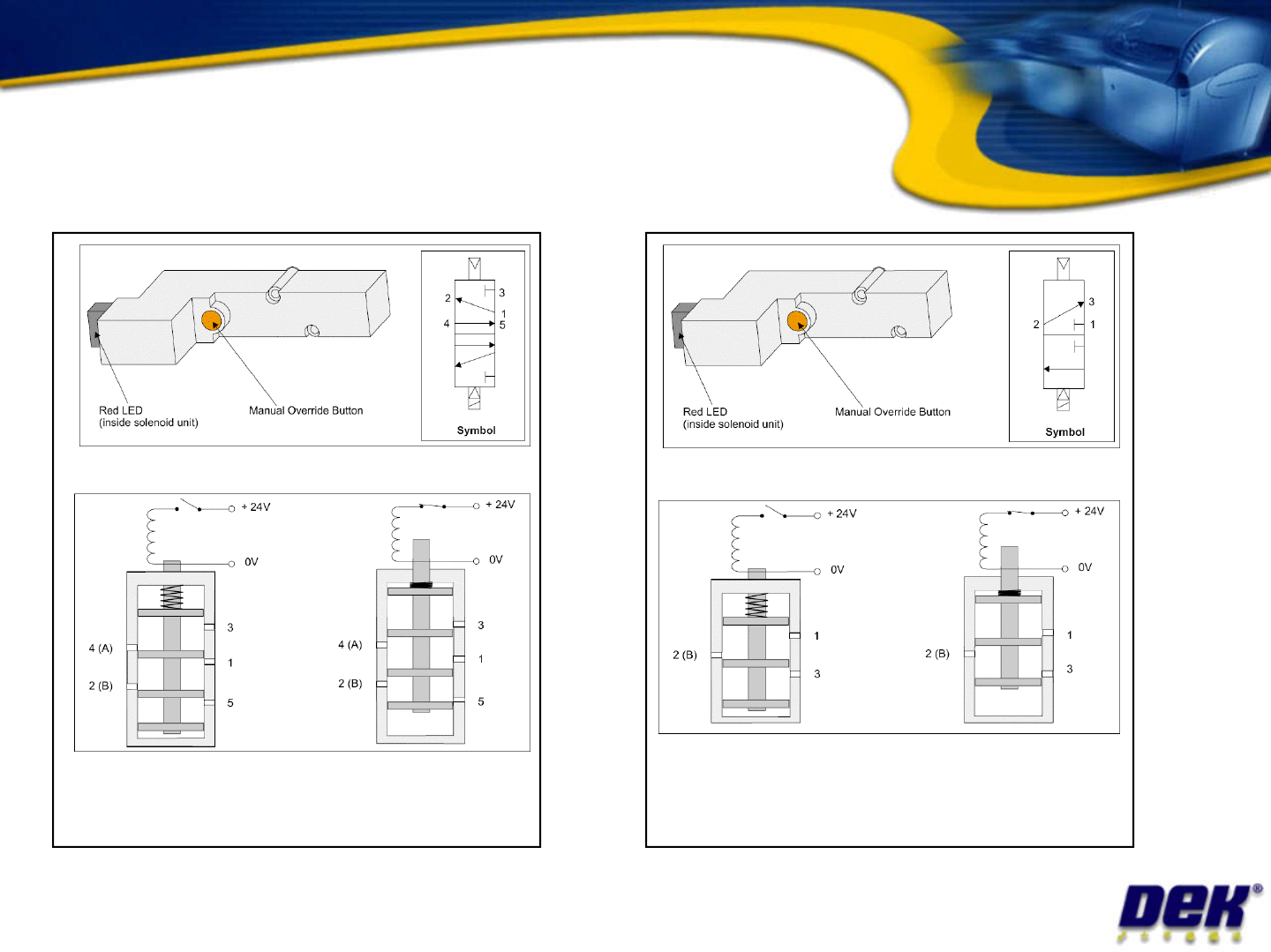

Solenoid valves
Issue 2: July 2007
Valve type 5/2
For double acting cylinders
Valve type 3/2
For single acting cylinders
Pneumatics Tasks
•
Adjust mains input within tolerance
•
Replace a solenoid valve
Issue 2: July 2007
•
Replace a solenoid valve
•
Manually test the functionality of all
pneumatic solenoids
Objective 18: Complete activities in your workbook
Electrical schematic
Issue 2: July 2007
