Print Carriage Tasks • Remove and refit print carriage be lt • Remove and refit motor Issue 2: July 2007 • Remove and refit motor • Check print carria ge home p osition Objective 19: Complete ac tivit ies in your workboo…
Print Carriage
•
The Print Carriage module consists of
the following sub-assemblies:
– Print Carriage Motor (Node 7)
Issue 2: July 2007
– Print Carriage Motor (Node 7)
– Print carriage I/O Node 3
– Home Sensor
– Drive Belt
Print Carriage Tasks
•
Remove and refit print carriage belt
•
Remove and refit motor
Issue 2: July 2007
•
Remove and refit motor
•
Check print carriage home position
Objective 19: Complete activities in your workbook

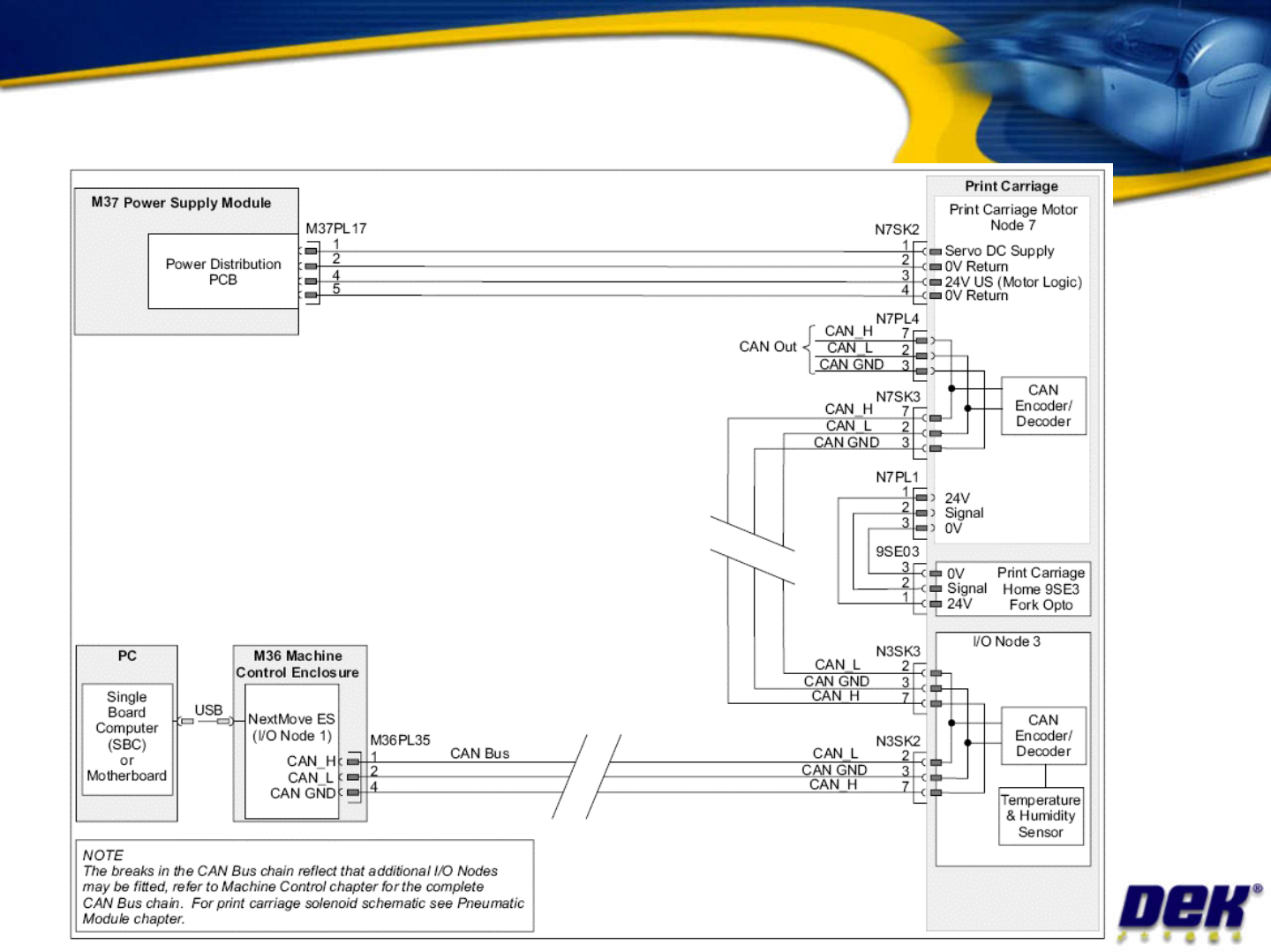

Print Carriage Schematic
Issue 2: July 2007
