Blue Cleaner Schematic Issue 2: July 2007
Blue Cleaner Tasks
•
Remove USC assembly from machine and
disassemble
•
Check knowledge Base for related articles
•
Issue 2: July 2007
•
Perform cleaner height adjustment
•
Calibrate solvent level
•
Test under screen cleaner performance (see
workbook)
Objective 28: Complete the workbook tasks

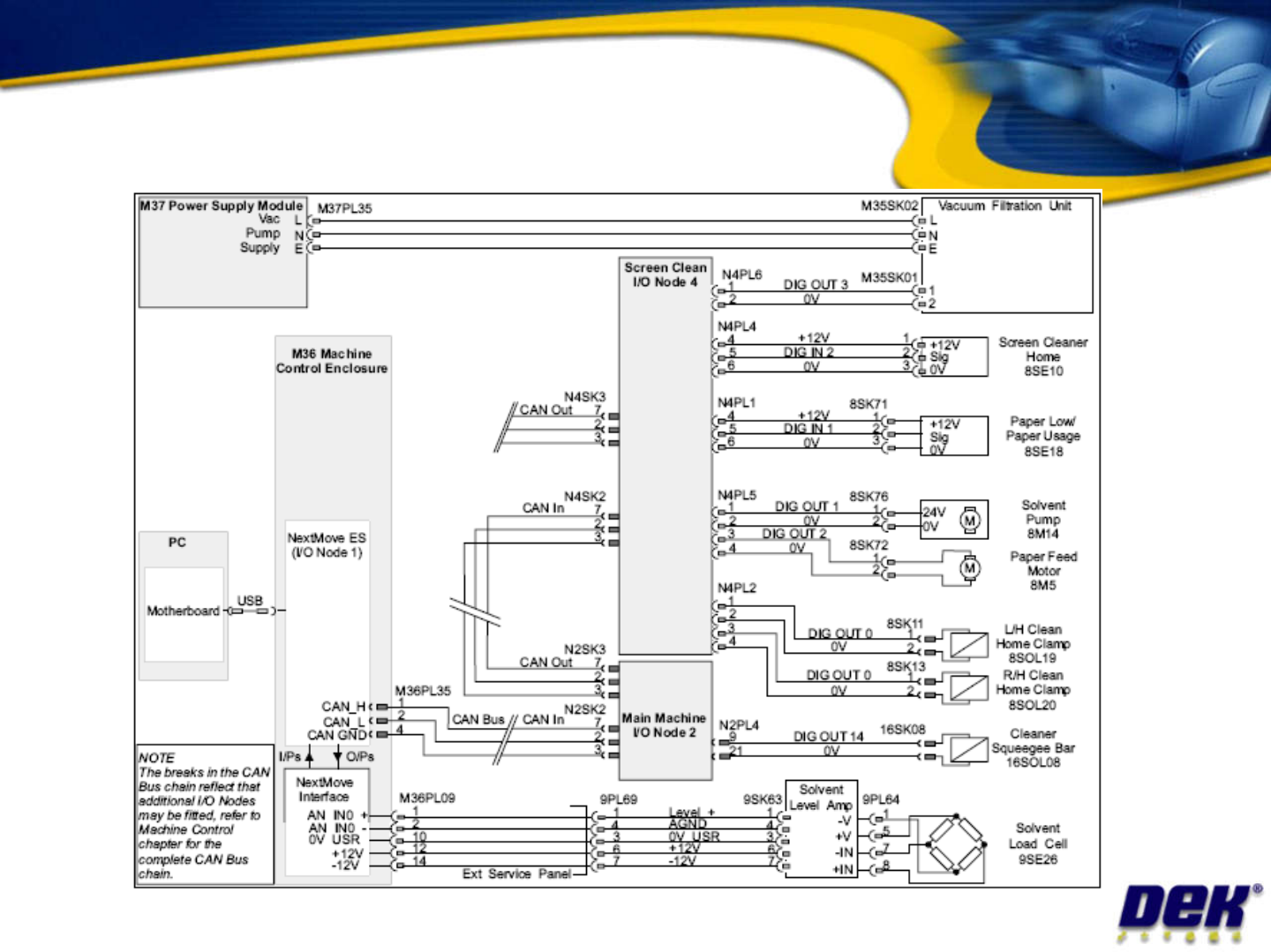

Blue Cleaner Schematic
Issue 2: July 2007

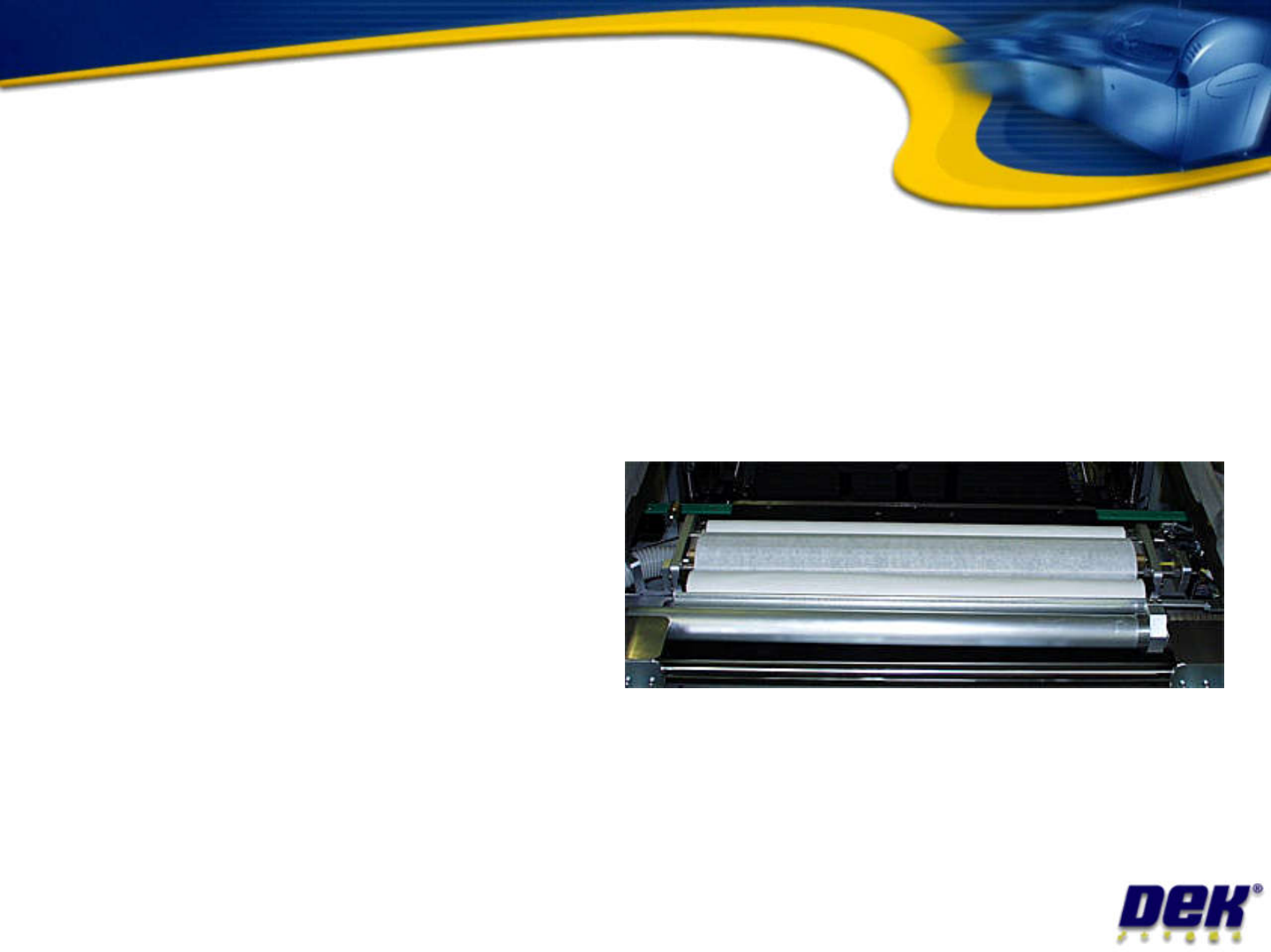

Cyclone Cleaner
•
The Cyclone under screen cleaner module
consists of the following sub-assemblies:
– Cleaner body assembly
– Screen Cleaner I/O node 4
– Home sensor
Issue 2: July 2007
– Home sensor
– Home clamp
– Paper move DC motor
– Oscillating DC motor
– Paper usage sensor
– Solvent pump
– Solvent load cell and amplifier
– Pneumatic lift mechanism
– Vacuum pump
