Calibration Summary Issue 2: July 2007
Rising Table (Berger Lahr)
Issue 2: July 2007

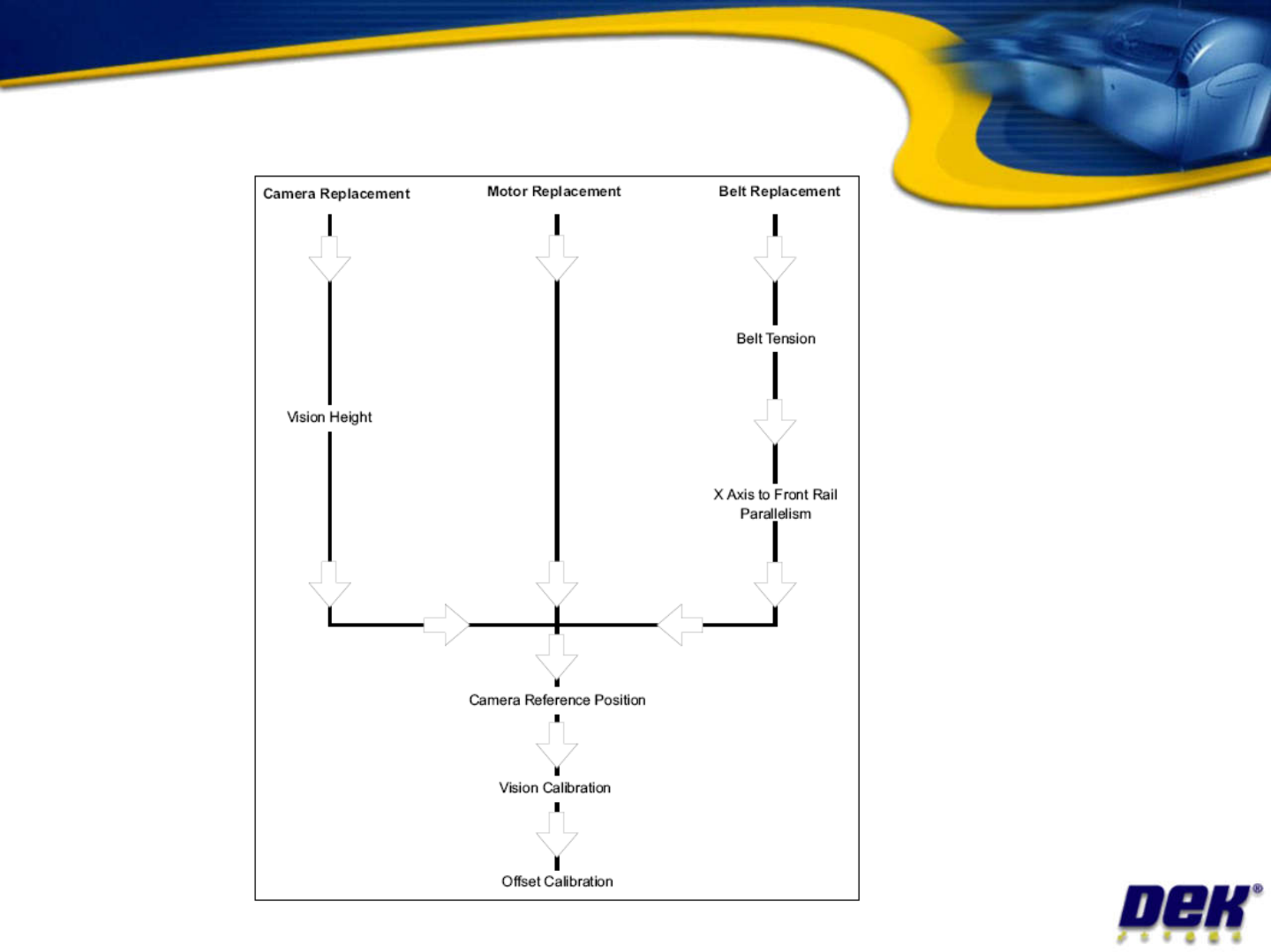

Calibration Summary
Issue 2: July 2007
Calibrations Summary
•
Calibrations required if Config.cfg was
deleted or corrupt:
– Vision Height
– Print Height
– Board stop X Offset
Issue 2: July 2007
– Board stop X Offset
– Camera Reference Position
– Vision Scale Calibration
– Vision Offset Calibration
– Squeegee Reference Heights
– plus other settings such as cleaner type etc
