Monitor c ard measures 64 DC voltages in the M37 power supply and reports them to the PC via USB. It measures both sid es of every circ uit breaker . Shows power GOOD/BAD and brea ker IN/OUT for all DC po wer circui ts. …
E-stop circuit
Issue 2: July 2007
Monitor card measures 64 DC voltages in the M37 power supply
and reports them to the PC via USB.
It measures both sides of every circuit breaker. Shows power
GOOD/BAD and breaker IN/OUT for all DC power circuits.

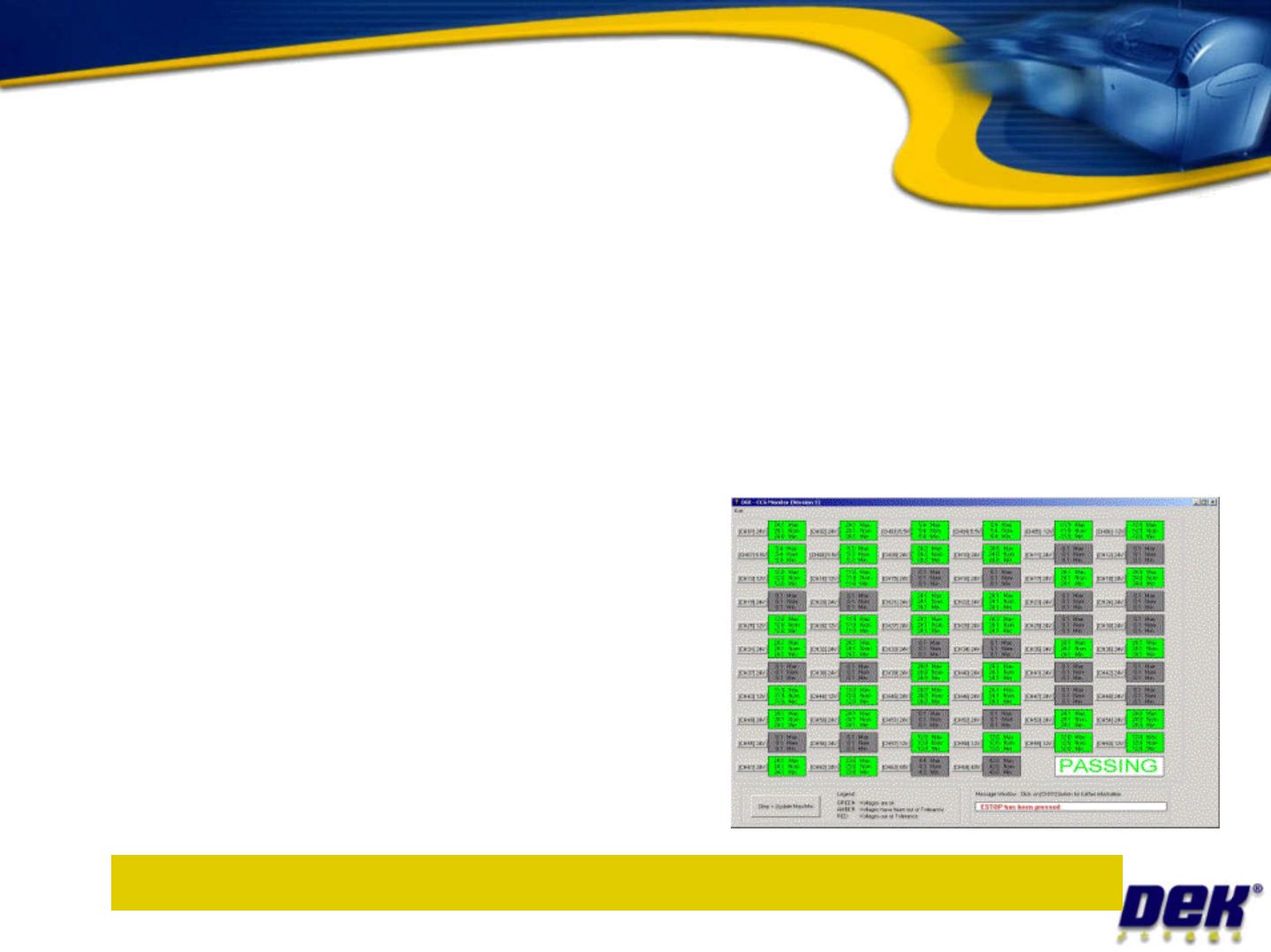

PC display shows average, max and min voltage values.
Power supply monitor
Issue 2: July 2007
PC display shows average, max and min voltage values.
Power good shown GREEN,
fault condition shown RED.
Updates every 2 sec.
Objective 5: Monitor DC voltages using power monitor software

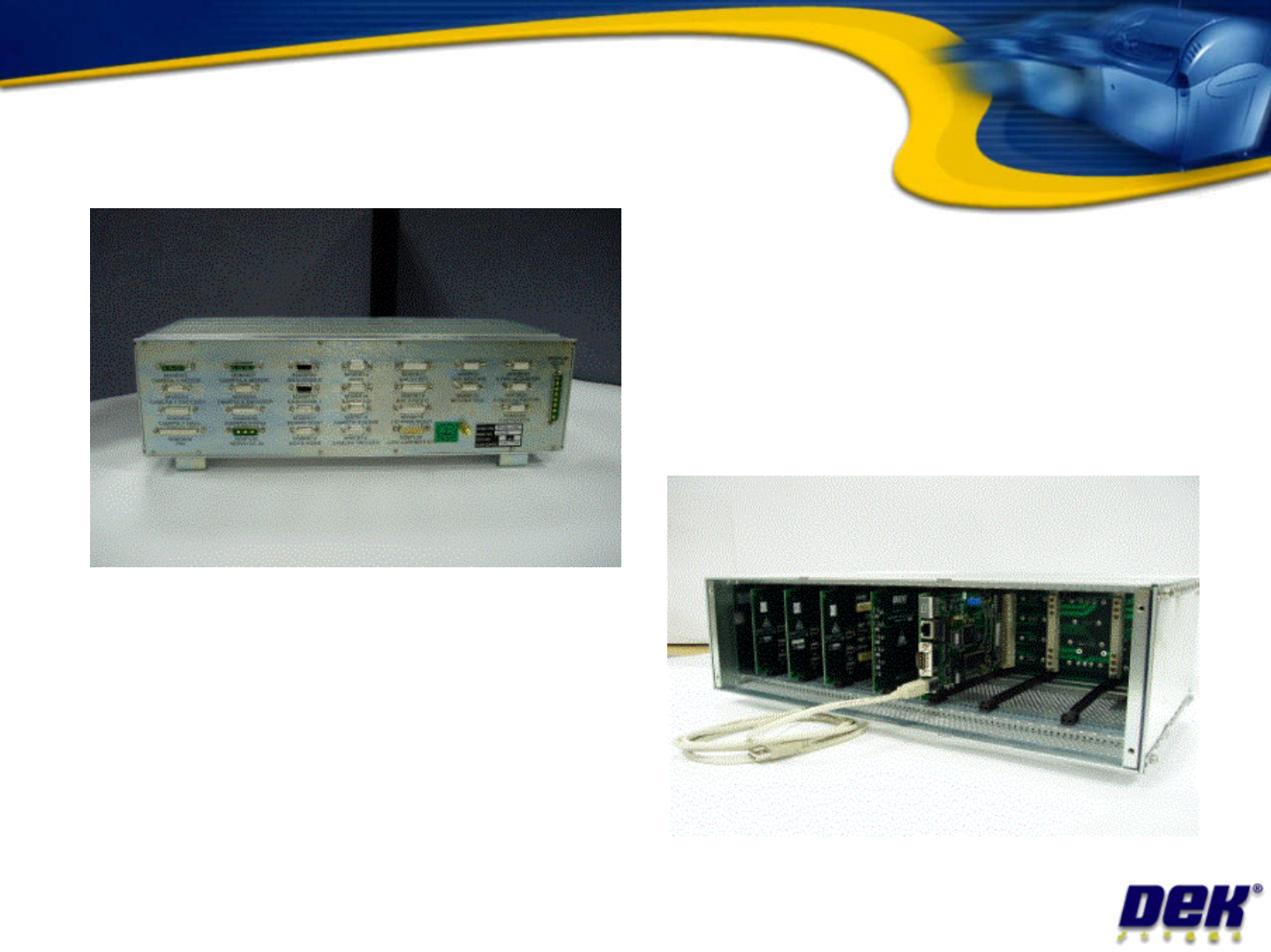

Control enclosure M36
