Advantech PC card layout Issue 2: July 2007 Network card* V isio n card V isio n card (gold camera only) Sound card* Wireless bridge breakout* V ision adaptor card Single board co mputer 4 Port USB hub Peripheral connect…

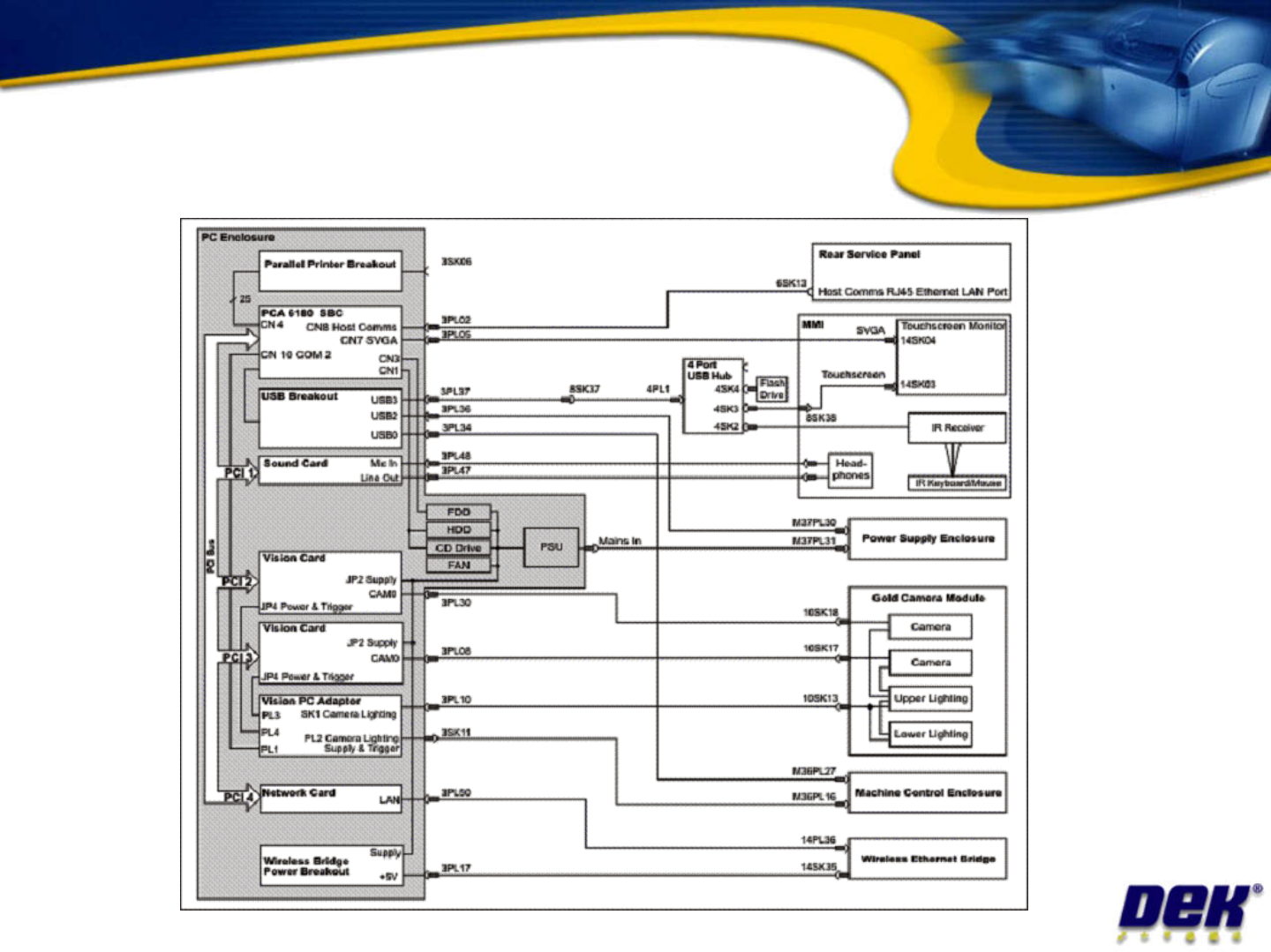

Advantech PC- Gold Camera
Issue 2: July 2007
Advantech PC card layout
Issue 2: July 2007
Network card*
Vision card
Vision card
(gold camera only)
Sound card*
Wireless bridge breakout*
Vision adaptor card
Single board computer
4 Port USB hub
Peripheral connectors
* Required only for Interactive software option

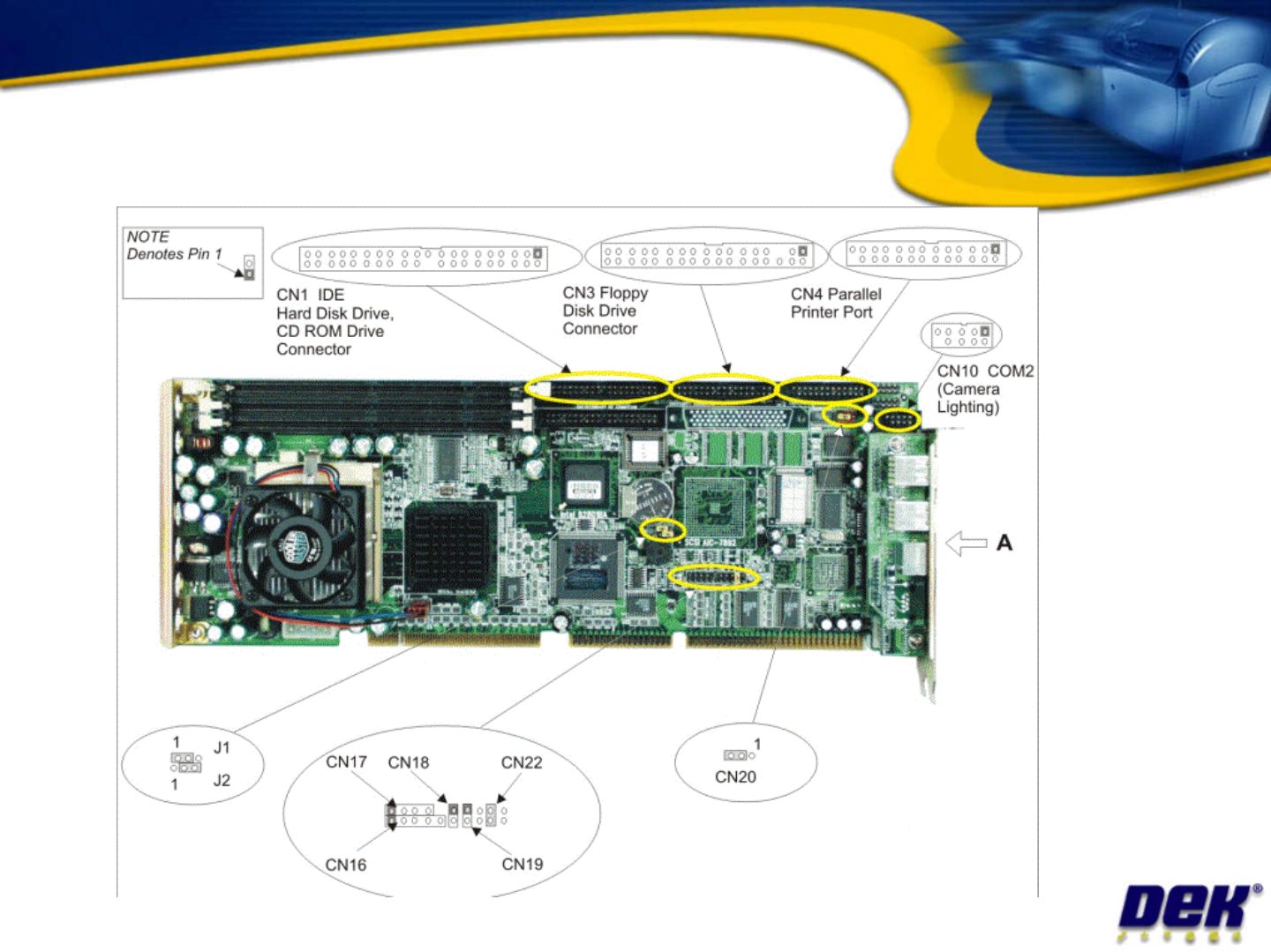

Advantech - Single board
computer
Issue 2: July 2007
