Stepper motor block diagram PSU 1 Nextmov e ES Dual step drive Front Squeegee MOTOR Issue 2: July 2007 Home Strain Gauge ES X2 Nextmov e Interface Print Carriage Node 3 CA N Bus

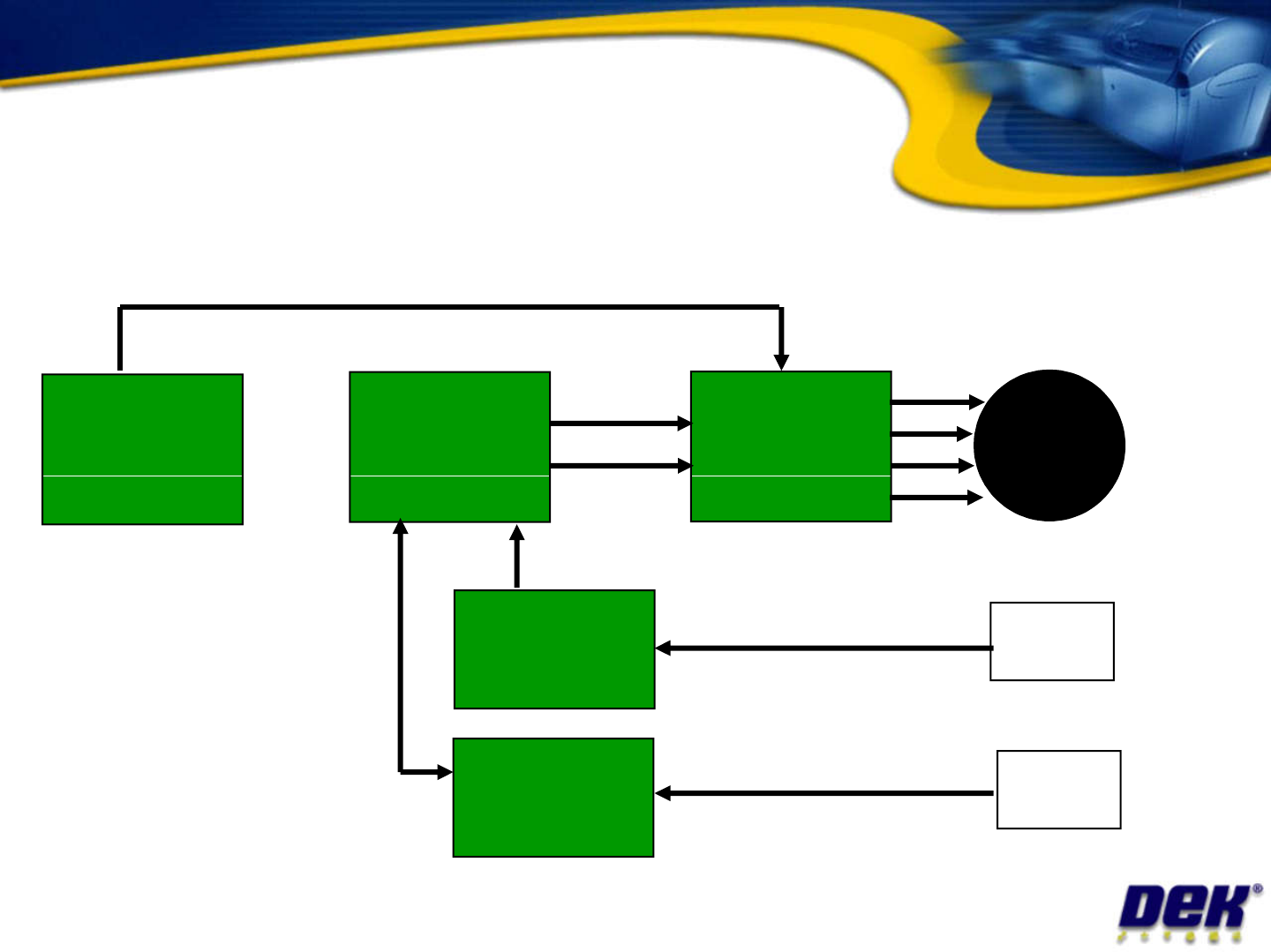

Stepper motor block diagram
MOTOR
_________
_________
X __
PSU __
__________
_________
Front
Squeegee
Issue 2: July 2007
Home
Strain
Gauge
X __
__________
_________
__________
_________
_________
Objective 10: Complete the diagram in your workbook

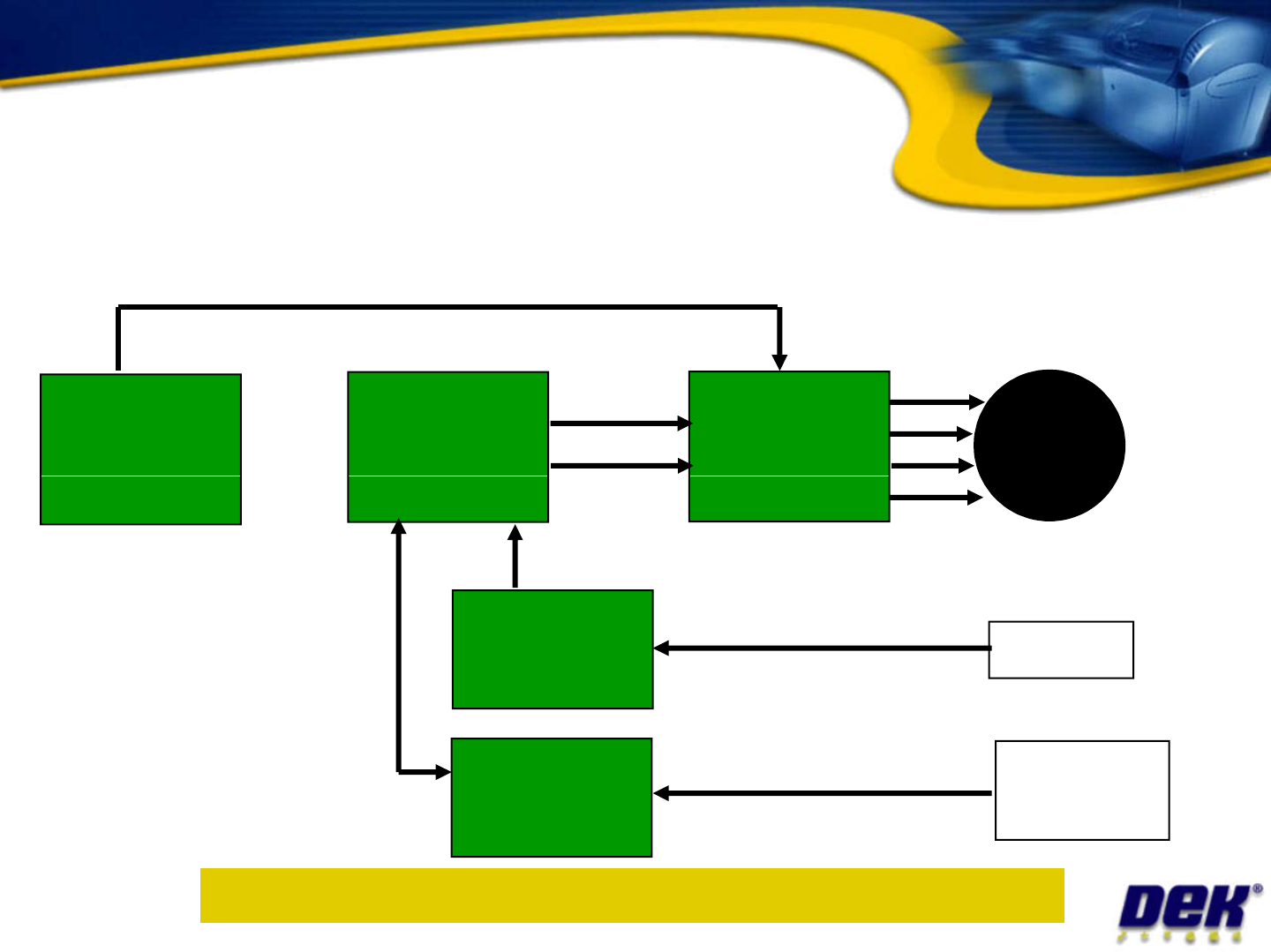

Stepper motor block diagram
PSU 1
Nextmove
ES
Dual step
drive
Front
Squeegee
MOTOR
Issue 2: July 2007
Home
Strain
Gauge
ES
X2
Nextmove
Interface
Print
Carriage
Node 3
CAN Bus
Micro Step..New development
•
Micro-step uses existing hardware
•
Actuator resolution
– Current = 3.41 microns
– Micro-step = 0.4 microns
Issue 2: July 2007
– Micro-step = 0.4 microns
•
Micro-step uses 1/8
th
step card configuration
•
Will introduce a ‘jiggle’ effect I.e. every
alignment movement (even 0 microns) will
have a backwards and forwards move into
position
•
No effect on cycle time
