Servo / Steppe r Motor nodes • Servo node 6 – Rising Table* Issue 2: July 2007 * Either separate BG901 0 or integral node dependi ng on m otor type • Servo node 6 – Rising Table* • Servo node 7 – Print Carriage • Servo n…
•
Communicates via CAN bus
•
Multiple sensor inputs
•
Multiple outputs
•
Solvent pump drive circuit
•
Support for all under screen cleaner functionality including
paper & vortex, pumped or pressurised solvent.

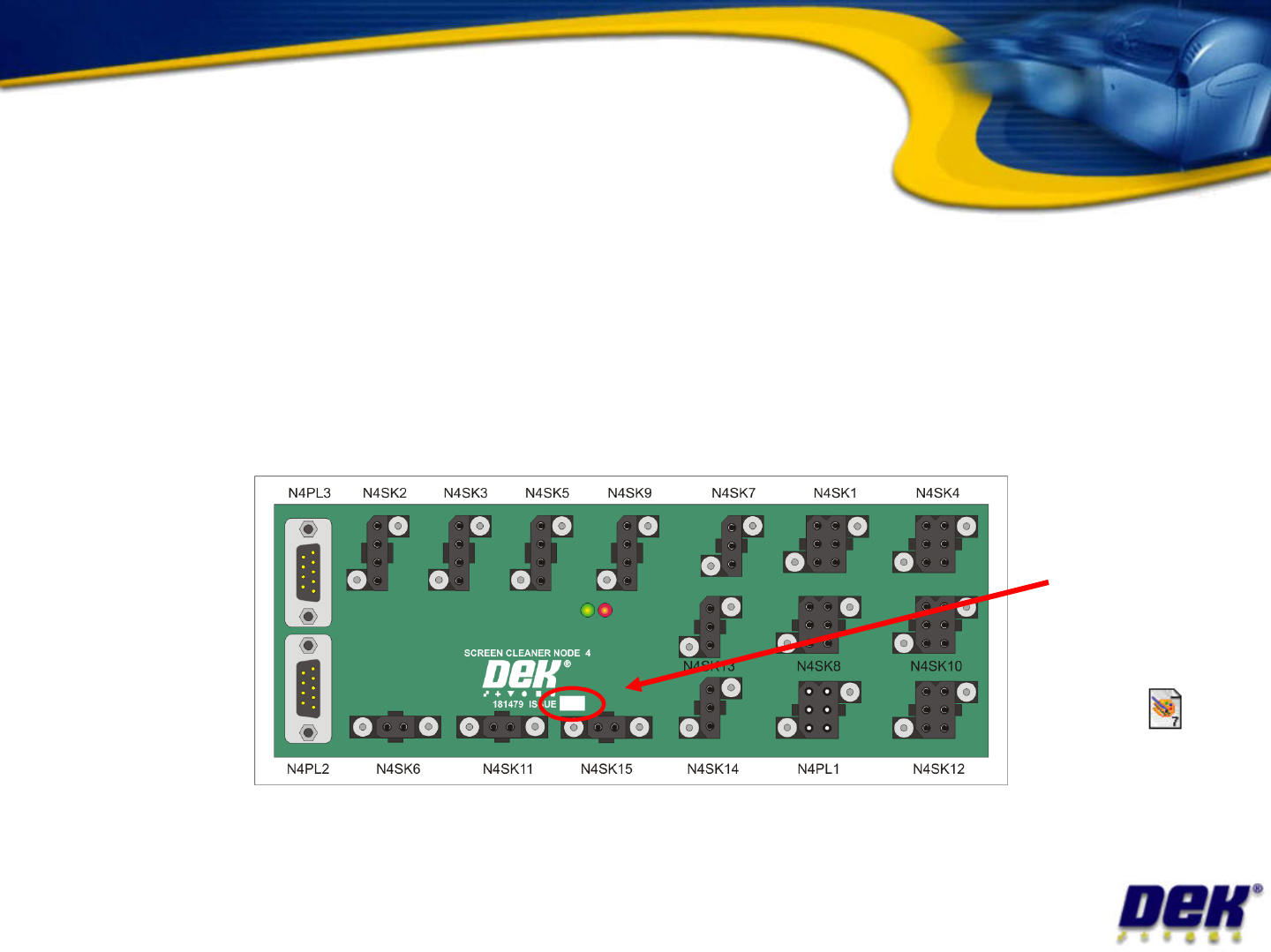

Screen cleaner I/O Node 4
Issue 2: July 2007
Paint Shop Pro 7
Check
Knowledge
base for issue
status and
related articles

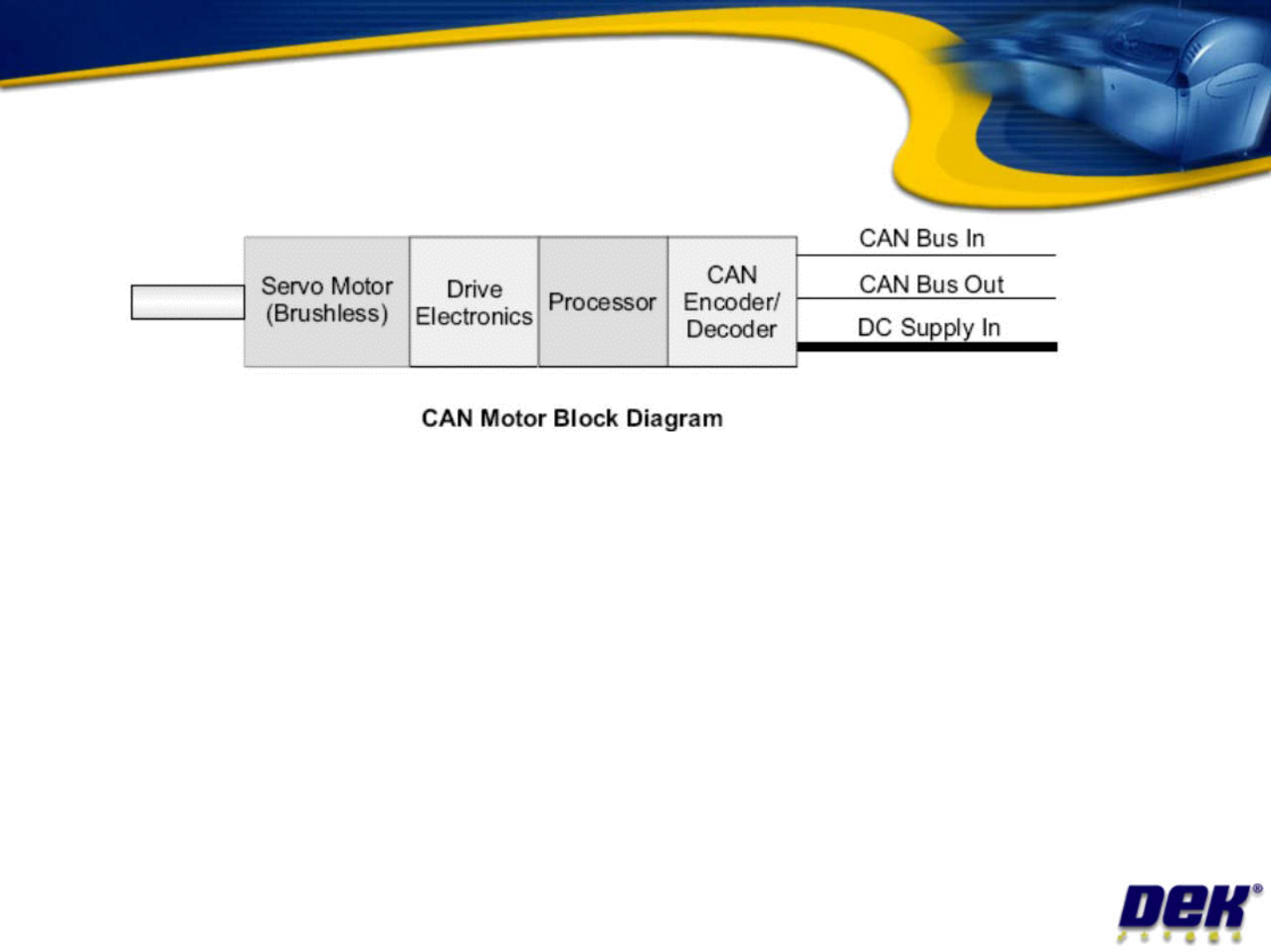

Servo / Stepper Motor nodes
•
Servo node 6 – Rising Table*
Issue 2: July 2007
* Either separate BG9010 or integral node depending on motor type
•
Servo node 6 – Rising Table*
•
Servo node 7 – Print Carriage
•
Servo node 8 - Camera X (rotary only)
•
Servo node 9 - Camera Y (rotary only)
•
Stepper node 10 – Paste dispense (option)
•
Servo Node 11 – Board stop node (RTC)
•
Stepper Node 12 – Moving Rail (RTC)
•
Servo Node 13 – Paste Management for ‘Big Red’
Nodes
List the nodes in the order they appear in the CAN bus chain
Node __ Nextmove ES
Node __
Node __
Node __
Node __
Issue 2: July 2007
Objective 15: Complete details in workbook
Node __ Main Machine I/O
Node __
Node __
Node __
Node __
Node __
