110 MODEL TIM-5200F/R 0307-001 フィ－ダ－ベ－ス部 FEEDER BASE SECTION Fig. QD-5 フィ－ダ－ベ－ス Feeder Base 477 479 476 468 469 467 468 469 467 401 404 See Fig.QD-1 Key No.1 403 403 477 478 476 477 478 476 402 402
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
109
MODEL TIM-5200F/R
0307-001
QD-4 2 unit/1 machine
301 630 083 6486 BRACKET(R) 1 805QD-010-301
302 630 083 6493 BRACKET(L) 1 805QD-010-302
303 630 083 6509 BRACKET(C) 1 805QD-010-303
305 630 120 6424 COVER 1 805QD-010-305
357 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
358 411 141 3001 WASHER SPR 6 4 SW6
359 630 000 7886 BOLT,HEX-SCT 4 M6X16
366 411 141 4107 WASHER V 5X10X1 2 FW5
367 411 141 6705 WASHER SPR 5 2 SW5
368 630 000 7763 BOLT,HEX-SCT 2 M5X16
369 411 140 8007 SCR TRS 5X6 8 M5X6 TRS
110
MODEL TIM-5200F/R
0307-001

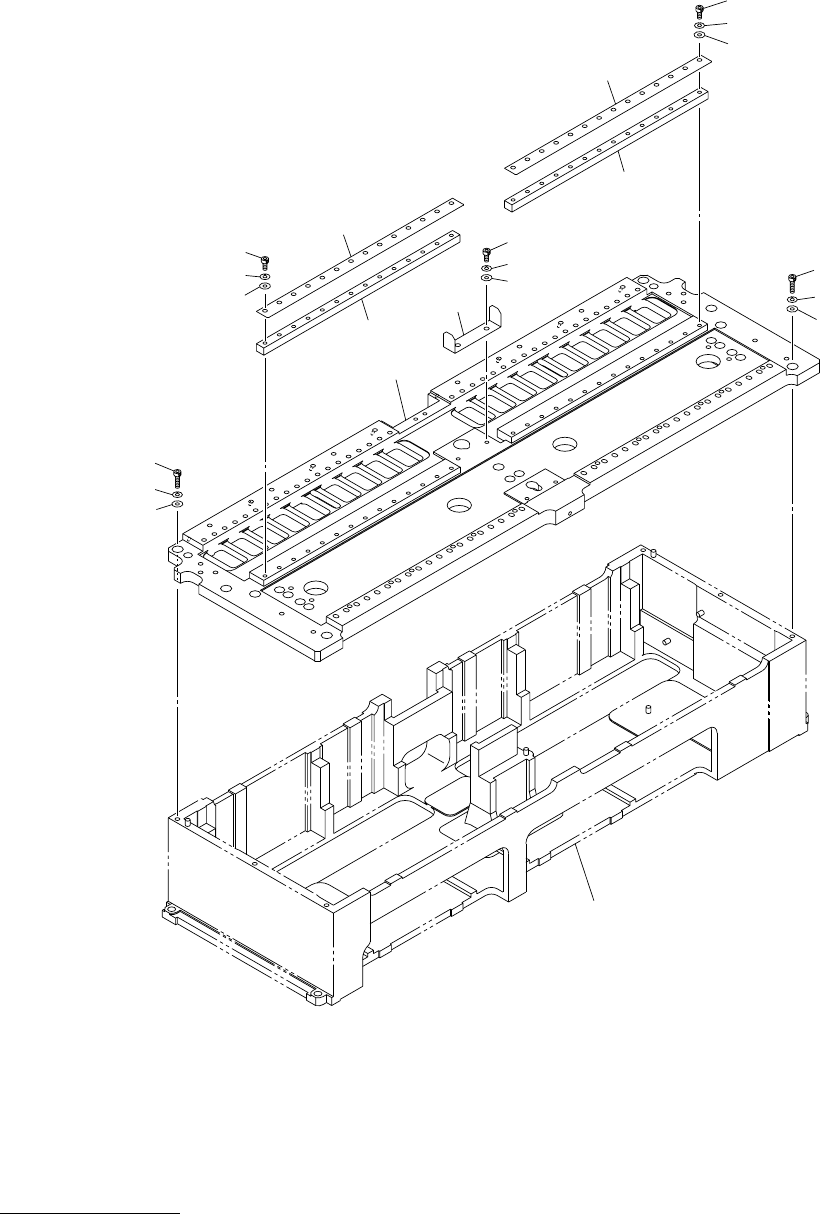

フィ－ダ－ベ－ス部 FEEDER BASE SECTION
Fig. QD-5 フィ－ダ－ベ－ス Feeder Base
477
479
476
468
469
467
468
469
467
401
404
See Fig.QD-1
Key No.1
403
403
477
478
476
477
478
476
402
402
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
111
MODEL TIM-5200F/R
0307-001
QD-5 2 unit/1 machine
401 630 120 6349 PLATE 1 805QD-010-401
402 630 120 6691 SPACER 2 805QD-010-402
403 630 120 6356 PLATE 2 805QD-010-403
404 630 081 4903 BRACKET 1 805QD-010-404
467 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
468 411 141 3001 WASHER SPR 6 6 SW6
469 630 000 7893 BOLT,HEX-SCT 6 M6X20
476 411 141 4107 WASHER V 5X10X1 30 FW5
477 411 141 6705 WASHER SPR 5 30 SW5
478 630 000 7756 BOLT,HEX-SCT 28 M5X12
479 630 000 7749 BOLT,HEX-SCT 2 M5X10
