Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 127 MODEL TIM-5200F/R 0307-001 BB-1 1 1 41 1 141 4305 WASHER V 6X12.5X1.6 4 FW 6 12 41 1 141 3001 WASHER SPR 6 4 S W6 14 630 000 7886 BOL T ,HEX-SCT 4 M6X16 15 41 1 141 0…
126
MODEL TIM-5200F/R
0307-001
本体電装部 MACHINE ELECTRICAL SECTION

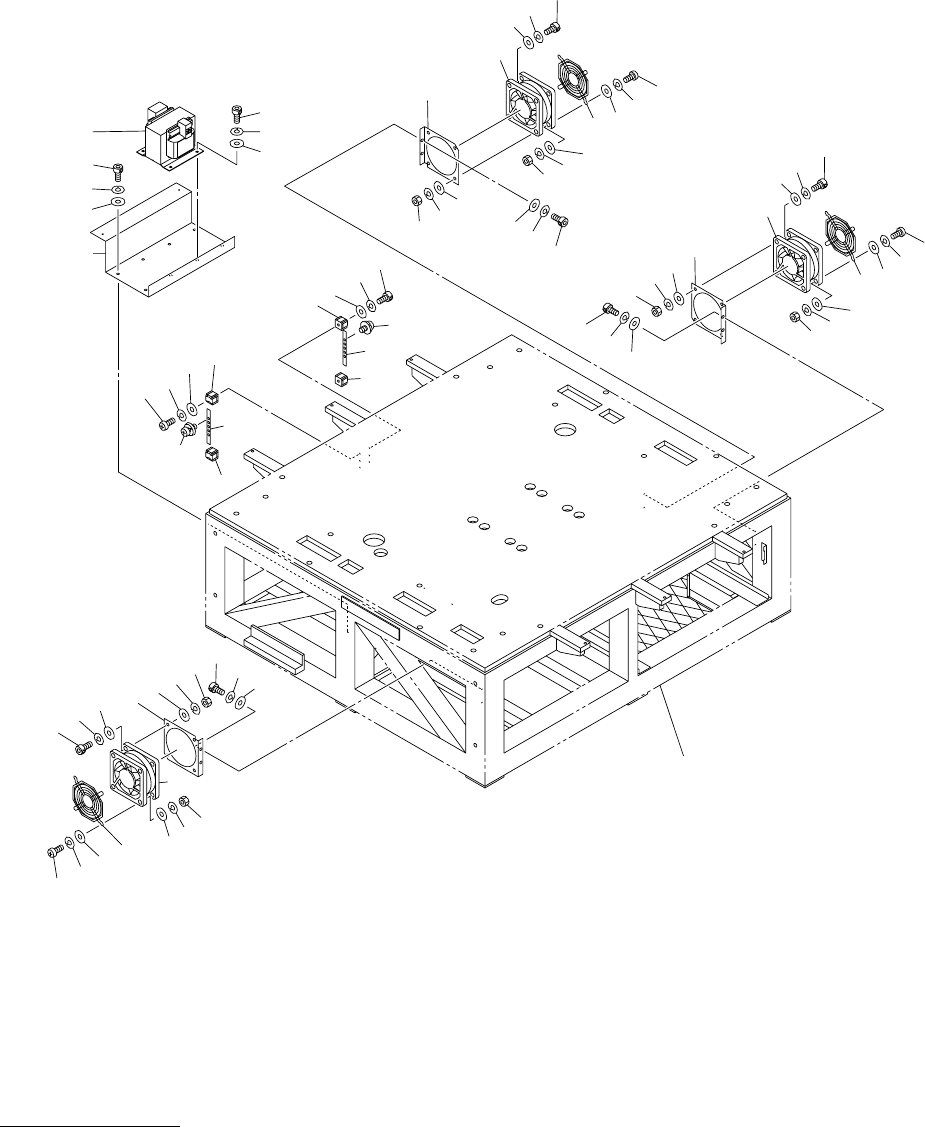

Fig. BB-1 ベースフレーム部 Base Frame Section
14
See Fig.B-1
Key No.1
12
11
69
36
37
38
38
45
68
69
37
36
69
68
69
45
19
17
16
15
17
16
86
87
16
17
20
17
16
16
17
15
19
17
16
57
20
17
16
58
15
16
57
17
20
15
17
16
16
58
17
20
18
17
51
16
75
19
17
16
15
17
16
86
16
57
17
20
15
17
16
16
58
17
20
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
127
MODEL TIM-5200F/R
0307-001
BB-1
11 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
12 411 141 3001 WASHER SPR 6 4 SW6
14 630 000 7886 BOLT,HEX-SCT 4 M6X16
15 411 141 0505 NUT HEX 5 24 M5
16 411 141 4107 WASHER V 5X10X1 58 FW5
17 411 141 6705 WASHER SPR 5 58 SW5
18 630 000 7749 BOLT,HEX-SCT 4 M5X10
19 630 000 7756 BOLT,HEX-SCT 6 M5X12
20 630 000 7763 BOLT,HEX-SCT 24 M5X16
21 411 141 4008 WASHER V 4X9X0.8 4 FW4
22 411 141 2905 WASHER SPR 4 4 SW4
23 630 000 7626 BOLT,HEX-SCT 4 M4X10
36 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
37 411 008 1706 WASHER SPR 4 4 SW4 F
38 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
45 411 036 8609 SCR PAN+SW+W 5X12 10
51 630 120 7414 TRANSFORMER,POWER 1 T1,STN2.0 805BB-010-251
57 630 070 3061 MOTOR,AC 3 MFAN01,MFAN02,MFAN03,MRS16-BUL
805BB-010-357
58 630 068 4292 ACCESSORY,MOT-M 3 805BB-010-358
75 630 120 7506 BRACKET 1 805BB-010-175
86 630 072 9269 BRACKET 2 805B--010-006
87 630 072 9276 BRACKET 1 805B--010-007
128
MODEL TIM-5200F/R
0307-001
本体電装部 MACHINE ELECTRICAL SECTION
Fig. BB-2 トラバースＳＤＳ，ＰＭＤ Traverse SDS, PMD
See Fig.B-1
Key No.1
See Fig.TT-1
Key No.10
See Fig.TT-1
Key No.10
See Fig.TT-1
Key No.7
See Fig.TT-1
Key No.9
138
172
137
136
121
122
123
133
132
131
161
155
134
132
131
154
135
132
131
136
174
137
138
138
137
136
151
145
173
165
141
140
137
136
133
132
131
158
171
131
132
133
118
117
116
118
117
116
175
153
176
