Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 137 MODEL TIM-5200F/R 0307-001 BB-6 516 41 1 141 4107 WASHER V 5X10X1 3 FW 5 517 41 1 141 6705 WASHER SPR 5 3 S W 5 519 630 000 7749 BOL T ,HEX-SCT 3 M5X10 531 41 1 1 19 …
136
MODEL TIM-5200F/R
0307-001
本体電装部 MACHINE ELECTRICAL SECTION

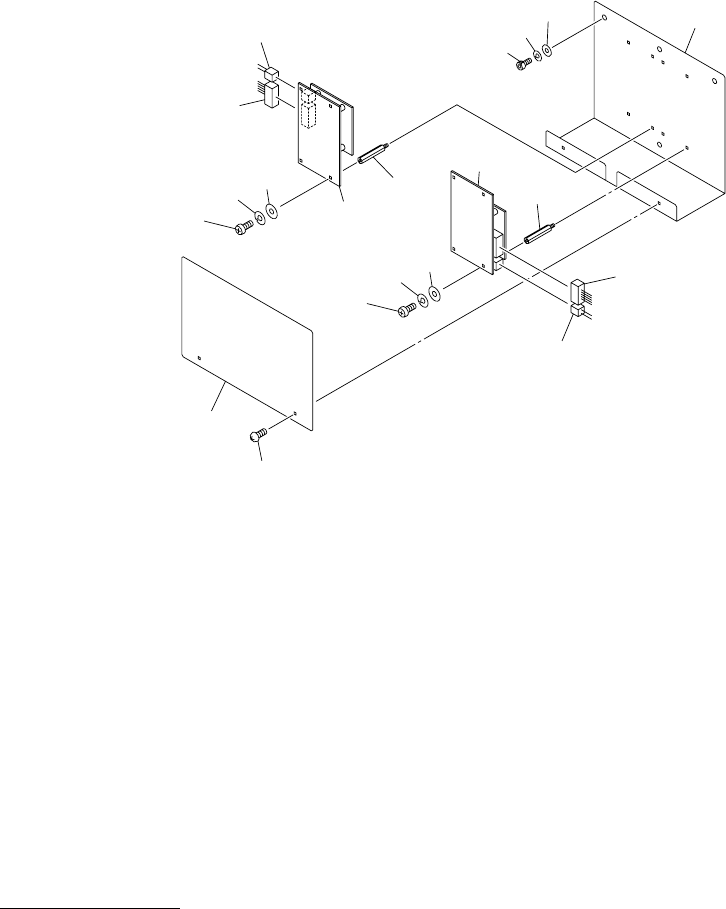

Fig. BB-6 操作パネルＢ ＳＤＳ Operation Panel B SDS
582
569
568
590
570
531
586
570
532
533
539
587
531
532
533
586
587
516
517
519
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
MODEL TIM-5200F/R
0307-001
BB-6
516 411 141 4107 WASHER V 5X10X1 3 FW5
517 411 141 6705 WASHER SPR 5 3 SW5
519 630 000 7749 BOLT,HEX-SCT 3 M5X10
531 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
532 411 086 4408 WASHER SPR 3 8 SW3 F
533 411 041 8908 SCR PAN 3X6 8 M3X6 PAN
539 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
568 630 071 2551 UNIT,I/O 1 #SAB10-TS16K41 805BB-010-860
569 630 071 2568 UNIT,I/O 1 #SAB10-TA16K41A 805BB-010-861
570 630 077 5617 ACCESSORY,P.C.B 8 805BB-010-867
582 630 120 0095 BRACKET 1 805BB-010-077
586 630 070 2965 CONNECTOR 2 805BB-010-652
587 630 070 2972 CONNECTOR 2 805BB-010-868
590 630 120 0071 COVER 1 805BB-010-080
138
MODEL TIM-5200F/R
0307-001
本体電装部 MACHINE ELECTRICAL SECTION
Fig. BB-7 メカ配線ボード２ Machine Wiring Board 2
639
672
633
668
671
618
617
616
632
631
618
617
616
