Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 143 MODEL TIM-5200F/R 0307-001 BB-10 916 630 001 0220 W ASHER 3 BW 5 917 41 1 141 6705 WASHER SPR 5 3 S W 5 918 630 000 7756 BOL T ,HEX-SCT 3 M5X12 931 41 1 1 19 1909 WAS…
142
MODEL TIM-5200F/R
0307-001

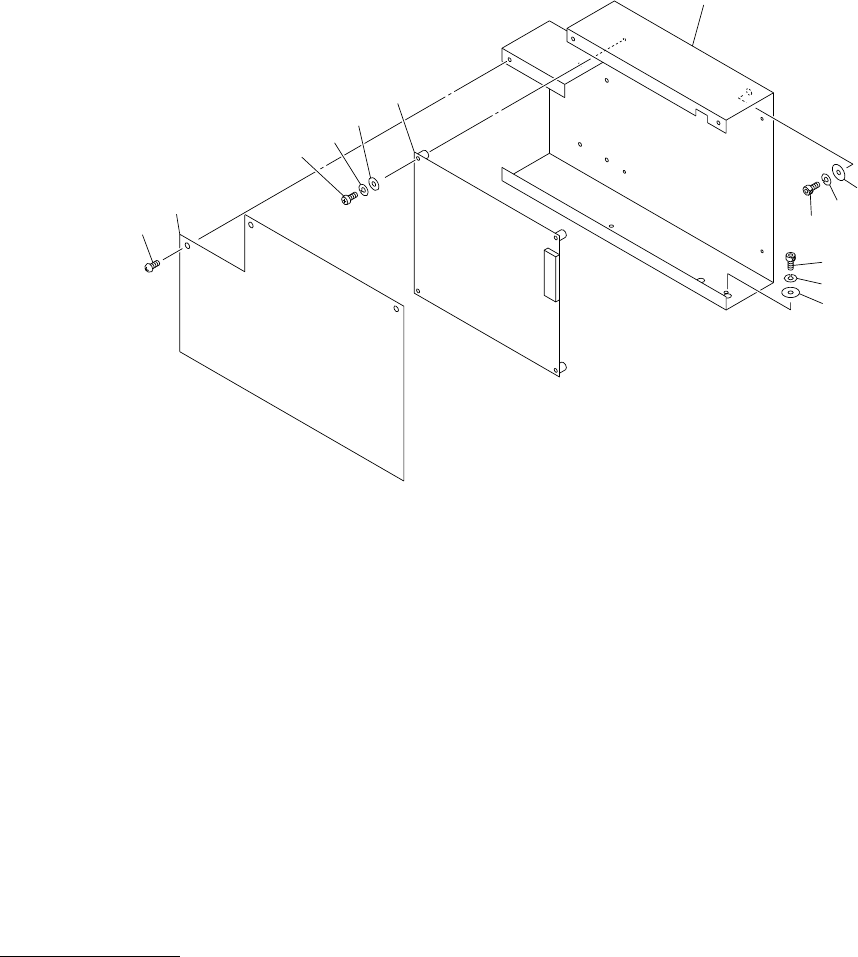

本体電装部 MACHINE ELECTRICAL SECTION
Fig. BB-10 メカ配線ボード４ Machine Wiring Board 4
971
918
918
917
916
917
916
933
972
939
932
931
973
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
143
MODEL TIM-5200F/R
0307-001
BB-10
916 630 001 0220 WASHER 3 BW5
917 411 141 6705 WASHER SPR 5 3 SW5
918 630 000 7756 BOLT,HEX-SCT 3 M5X12
931 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
932 411 086 4408 WASHER SPR 3 4 SW3 F
933 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
939 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
971 630 085 2400 BOX 1 805BB-010-075
972 630 084 3033 COVER 1 805BB-010-070
973 630 052 3010 P.C.B,MOUNT(MEKAHAI) 1 U942*001*0000 805BB-01U-051
144
MODEL TIM-5200F/R
0307-001

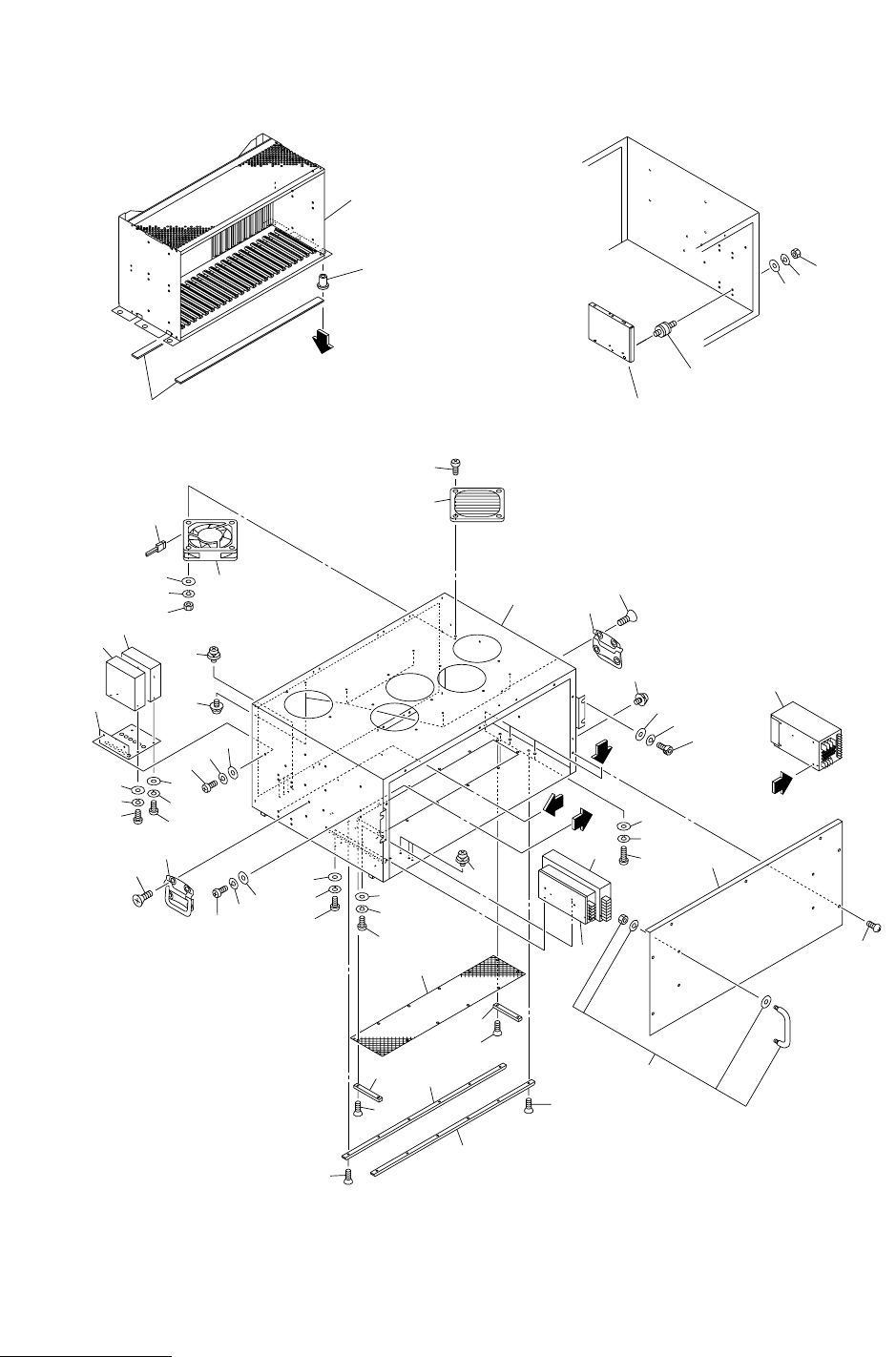

制御ボックス部 CONTROL BOX SECTION
Fig. BC-1 制御ボックス（１） Control Box (1)
57
VIEW "A"
63
67
66
C
60
21
22
26
46
46
55
54
76
11
12
13
11
23
22
21
23
22
21
62
42
11
12
13
21
46
56
53
41
78
52
46
62
71
25
59
42
35
37
39
A
B
B
C
65
43
43
72
73
43
73
43
61
72
22
23
12
13
58
51
16
17
18
31
32
33
