Key No. P A R T No. P AR T NAME Q’ t y REMARKS NOTE 163 MODEL TIM-5200F/R 0307-001 BD-4 316 630 001 0220 WASHER 3 BW 5 317 41 1 141 6705 WASHER SPR 5 3 S W 5 318 630 000 7756 BOL T ,HEX-SCT 3 M5X12 341 41 1 1 19 2104 WAS…
162
MODEL TIM-5200F/R
0307-001
ドライバ部 DRIVER SECTION

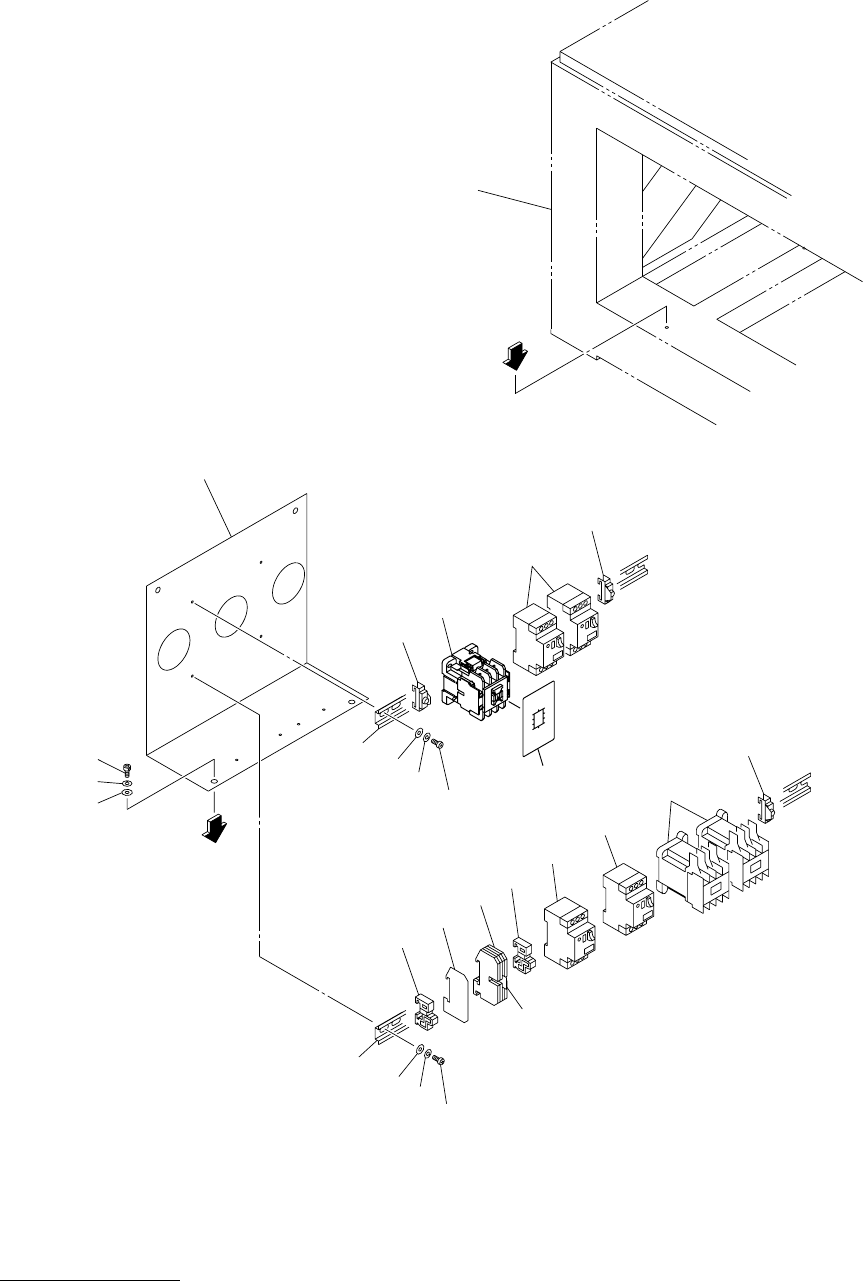

Fig. BD-4 ドライバＢパネルレイアウト Driver B Panel Layout
A
367
371
371
364
366
353
352
354
353
371
357
341
342
343
357
317
318
374
316
341
342
343
A
369
.
370
361
368
.
370
351
See Fig.B-1
Key No.1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
163
MODEL TIM-5200F/R
0307-001
BD-4
316 630 001 0220 WASHER 3 BW5
317 411 141 6705 WASHER SPR 5 3 SW5
318 630 000 7756 BOLT,HEX-SCT 3 M5X12
341 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
342 411 008 1706 WASHER SPR 4 6 SW4 F
343 411 043 5004 SCR PAN 4X8 6 M4X8 PAN
351 630 083 5472 TERMINAL 4 805BE-010-151
352 630 083 5519 ACCESSORY,WIRING 1 805BE-010-152
353 630 049 3672 BRACKET,WIRING 2 805BE-010-153
354 630 083 5564 ACCESSORY,WIRING 1 805BE-010-154
357 630 094 4419 RAIL,WIRING 2 805BE-010-157
361 630 114 7772 COVER 1 805BE-010-161
364 630 108 3520 CIRCUIT PROTECTOR 1 Q302B 805BE-010-061
366 630 106 7193 CIRCUIT PROTECTOR 1 Q301B 805BE-010-056
367 630 119 2260 CIRCUIT PROTECTOR 2 Q303B,Q304B 805BE-010-057
368 630 114 7734 EM-CONTACTOR 1 KM115B 805BE-010-058
369 630 053 8588 EM-CONTACTOR 2 KM103B,KM104B 805BE-010-059
370 630 100 1357 COMP,CR 3 805BE-010-060
371 630 000 1051 BRACKET,WIRING 3 805BE-010-251
374 630 084 3286 PANEL 1 805BE-010-074
164
MODEL TIM-5200F/R
0307-001
電源部 POWER SUPPLY SECTION

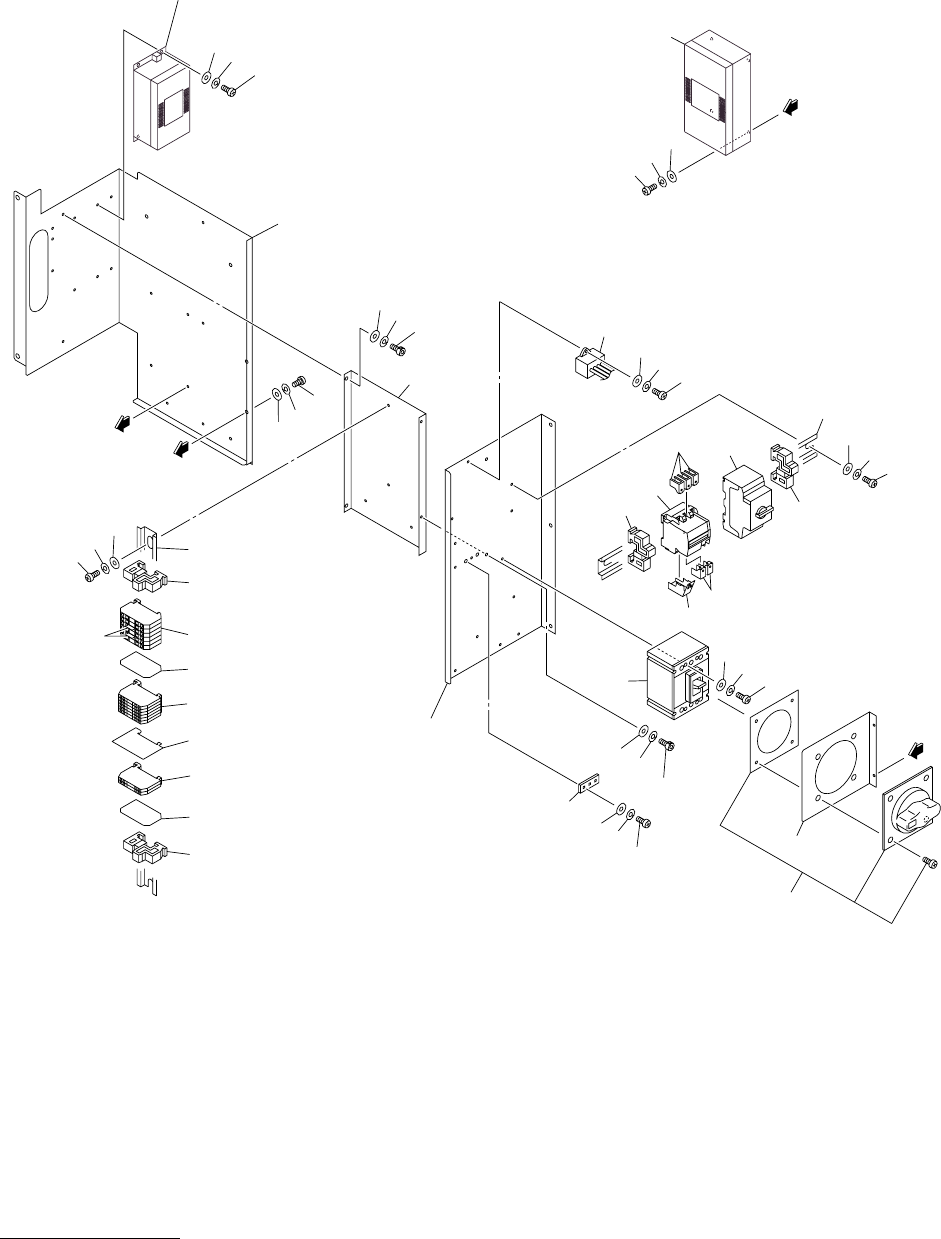

Fig. BF-1 電源１ レイアウト Power Supply 1 Layout
86
86
87
21
A
22
24
23
22
21
84
21
22
23
71
56
58
25
26
27
55
21
22
23
74
75
21
22
23
21
22
23
21
22
23
25
26
27
73
72
51
53
81
82
93
92
90
90
B
A
B
75
75
76
21
22
23
63
54
62
64
64
